ADC e-sphyg 3 NIBP Monitor

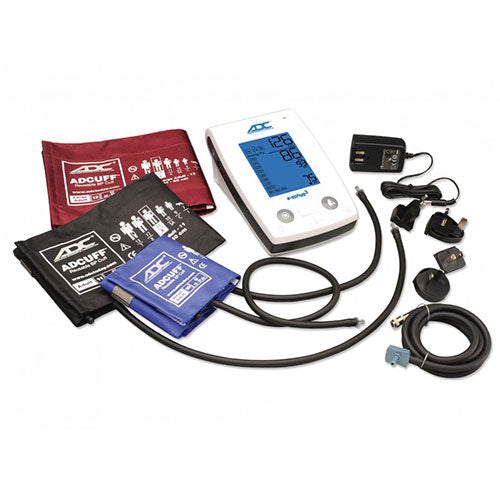

The ADC e-sphyg 3 NIBP Monitor includes three cuffs (Small Adult, Adult, Large Adult), rechargeable battery, AC power adapter, and built-in handle. Available in two-piece cuff or one-piece cuff configurations.

Note: Mounts are not included with the monitor. Must be purchased separately, see Accessories.

Warranties:

• Unit, Inflation System, and Cuffs - 3 Years.
• Battery - 1 Year.

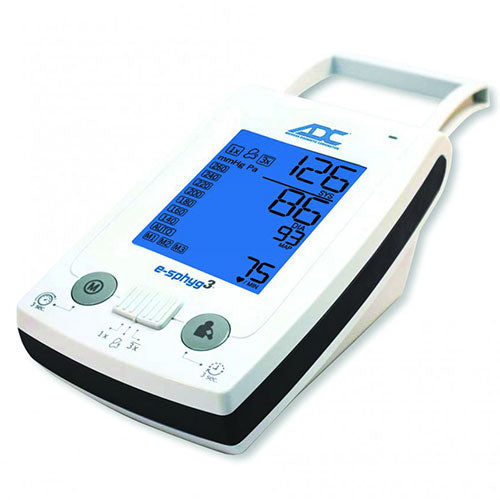

The ADC e-sphyg 3 NIBP Monitor can quickly monitor blood pressure with just one button push. It features an auto mode for 30 second readings, and a manual mode for use with a stethoscope. It takes oscillometric measurements for diastolic and systolic blood pressure, mean arterial pressure, irregular heartbeat detection, and pulse rate. The display features individual measurements with a three-readings average mode.

This NIBP monitor is ideal for adult and pediatric patients, as well as validated for pregnancy and preeclampsia. It's latex-free and free from phthalates. There's also optional mounts available for convenient storage and placement: a desktop caddy, wall mount, or mobile stand mount (not included, see Accessories for more information).

ADC e-sphyg 3 NIBP Monitor Features

• Features 30-second auto mode and manual mode for stethoscope use.
• Includes Small Adult, Adult, and Large Adult Adcuffs.
• Available is two-piece and one-piece cuffs.
• Latex-free and free from phthalates.

ADC e-sphyg 3 NIBP Monitor Specifications

• Weight: 2.08 lb (942 g).
• Dimensions: 7.87'' x 4.92'' x 3.54'' (20 x 12.5 x 9 cm).
• Sphyg Type: NIBP.
• Measuring Method: Oscillometric.
• Measuring Range BP: SYS 60 to 255 mmHg / DIA 30 to 200 mmHg.
• Measuring Range MAP: 35 to 240 mmHg.
• Measuring Range Pulse: 40 to 200 BPM.
• Accuracy BP: ± 3 mmHg.
• Accuracy Pulse: ± 5%.
• Operating Temp: 50°F to 104°F (10°C to 40°C).
• Storage Temp: 4°F to 131°F (-20°C to 55°C).
• Cuff Type: Adcuff.
• Number of Tubes: 1 Tube.
• Number of Cuffs Included: 3.
• Cuff Sizes: Small Adult, Adult, Large Adult.
• Cuff Range: 19 - 50 cm.
• Cuff Color: Multiple.
• Cuff Tubing Length: 140 cm.
• Battery Type: High-capacity NiMh / 4.8V 3500 mAh.
• Unit Warranty: 3 Years.
• Inflation System Warranty: 3 Years.
• Battery Warranty: 1 Year.

ADC e-sphyg 3 NIBP Monitor Configurations

• #9003K-MCC: With Two-Piece Cuffs.
• #9003K-MCC1: With One-Piece Cuffs.

ADC e-sphyg 3 NIBP Monitor Accessories

• #9003D: Desk Caddy for e-sphyg 3 NIBP Monitor.
• #9003M: Mobile Stand for e-sphyg 3 NIBP Monitor.
• #9003W: Wall Mount for e-sphyg 3 NIBP Monitor.
