Condition:
-
Country of Origin: Germany
-
Warranty:
- Weight: 2.62 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5510L
- Phone: (800) 232-2670
Frequently asked questions

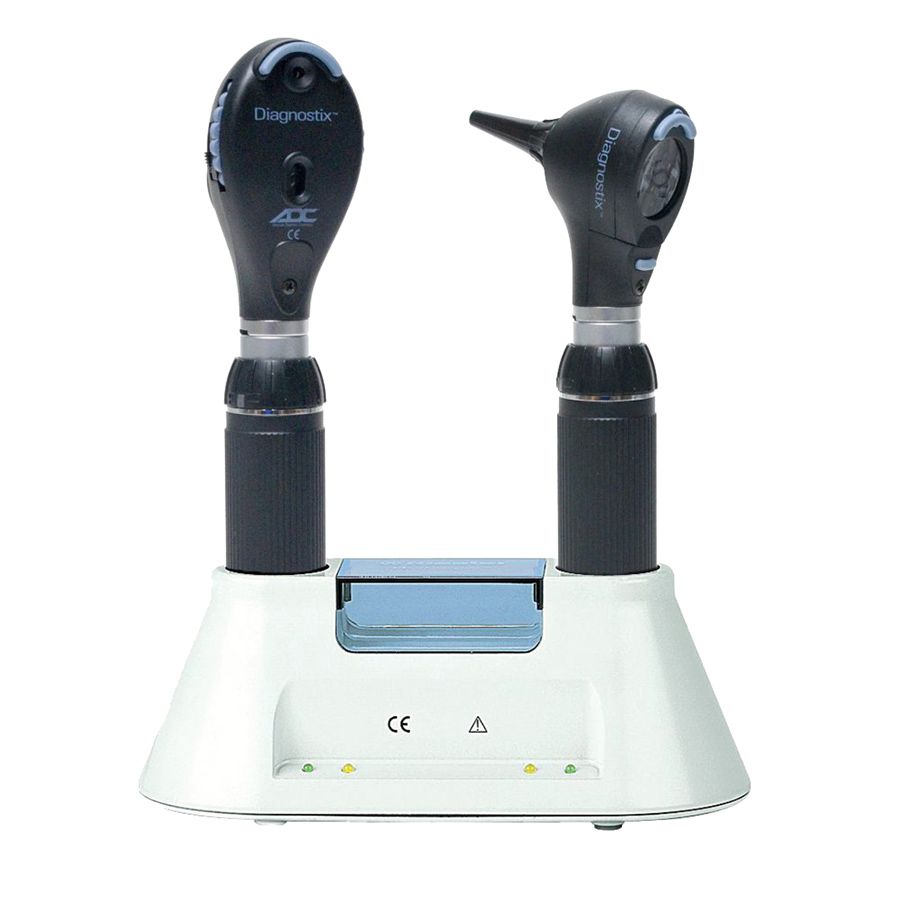

Is the ADC Diagnostix 5510 a complete diagnostic set?
Yes, the ADC Diagnostix 5510 is a comprehensive diagnostic desk set designed for detailed EENT examinations, providing immediate readiness for clinical use.
The complete system includes:
- ADC Diagnostix 5420 Otoscope Head: Features fiber-optic light transmission for unobstructed views.
- ADC Diagnostix 5440 Coax Ophthalmoscope Head: Offers advanced aspherical optics and a wide array of apertures and filters.
- Two ADC Diagnostix 5560 3.5V Rechargeable Battery Handles: CNC machined from solid brass with electronic reostatic light control.
- ADC Diagnostix 5500 Desk Charger: A dual-port charger that fully recharges both handles in approximately 3 hours.
It also includes a reducing sleeve for smaller “AA” sized handles and a wall mount bracket for flexible installation.
Does the set include high-performance illumination options?
Yes, the ADC Diagnostix 5510 set offers versatility by allowing you to choose between two high-performance illumination sources: AdLED and traditional Xenon.
These options significantly impact performance and battery life:
- High-Performance AdLED: This option is highly efficient, offering up to 50 hours of continuous use on a single charge. Additionally, the AdLED lamp carries a lifetime warranty.
- Xenon Illumination (Halogen/Xenon): This traditional source provides approximately 3 hours of continuous use on a single charge.
Because the set includes both an Otoscope and an Ophthalmoscope head, you can select the illumination source for each instrument individually. The four specific configuration variants available are:
- LED Otoscope / LED Ophthalmoscope
- LED Otoscope / Xenon Ophthalmoscope
- Xenon Otoscope / LED Ophthalmoscope
- Xenon Otoscope / Xenon Ophthalmoscope

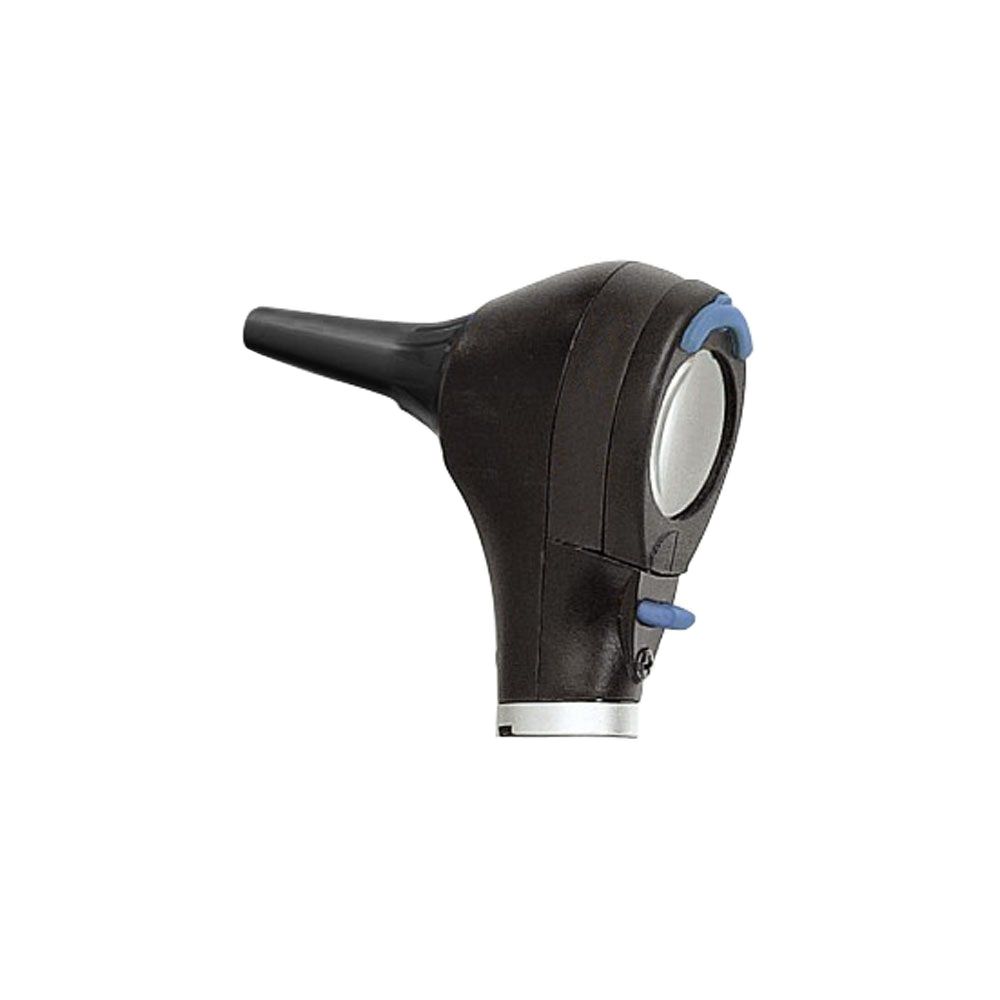

Is the otoscope head compatible with Welch Allyn specula?
Yes, the ADC Diagnostix 5420 Otoscope Head is designed to be compatible with Welch Allyn specula, providing flexibility for clinical use. It also includes several key features designed for comprehensive examination:
- Magnification: Provides 3X magnification via high-quality optical glass.
- Instrumentation: Features a bidirectional swivel lens for easy access during procedures.
- Pneumatic Otoscopy: Includes an insufflator port to allow for pneumatic otoscopy.
- Mounting: Utilizes a universal bayonet mount for compatibility with other 3.5V instrument handles and features an anti-theft locking system.

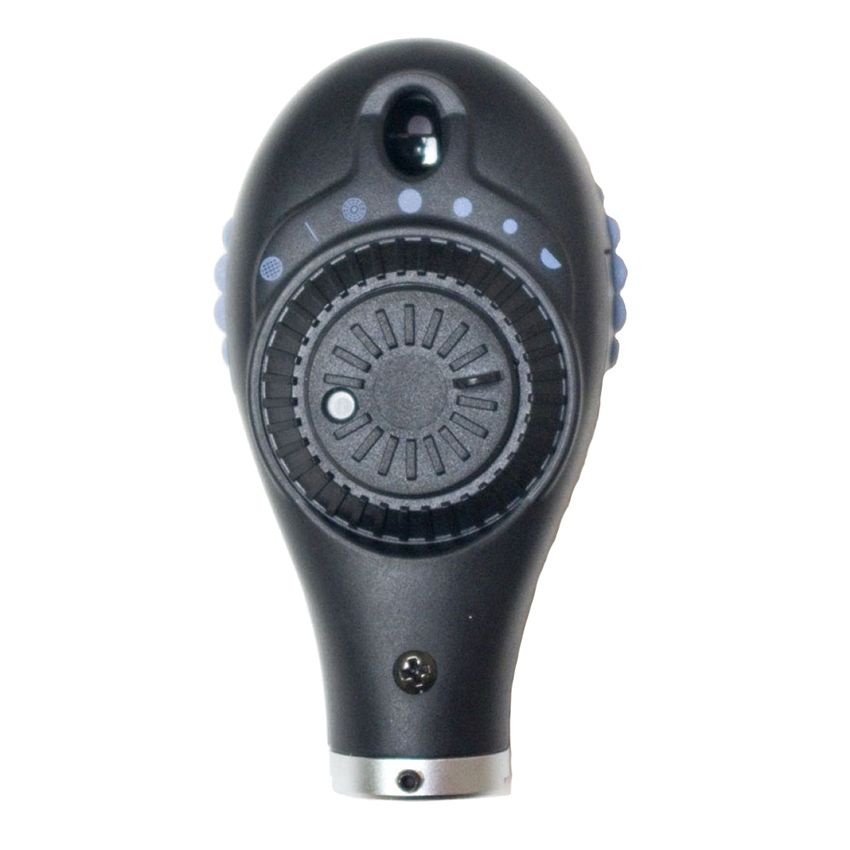

How advanced are the ophthalmoscope optics?
The ADC Diagnostix 5440 Coax Ophthalmoscope uses advanced, high-performance optics designed for detailed and precise examinations. It features a coaxial design with an aspherical condenser lens to minimize corneal reflection, ensuring an optimal view.
The system offers comprehensive control over the diagnostic view with 24 total aperture/filter combinations:
- Viewing Lenses: A total of 29 viewing lenses are included, ranging from -35 to +40 diopters, providing wide adjustment capabilities.
- Apertures (6 total): You can select from Slit, Fixation, Large, Small, Micro spot, and Half moon.
- Specialty Filters (3 + Neutral): The instrument includes Red free (for vascular contrast), Cobalt (for fluorescein assessments), and Polarizing (to eliminate glare).

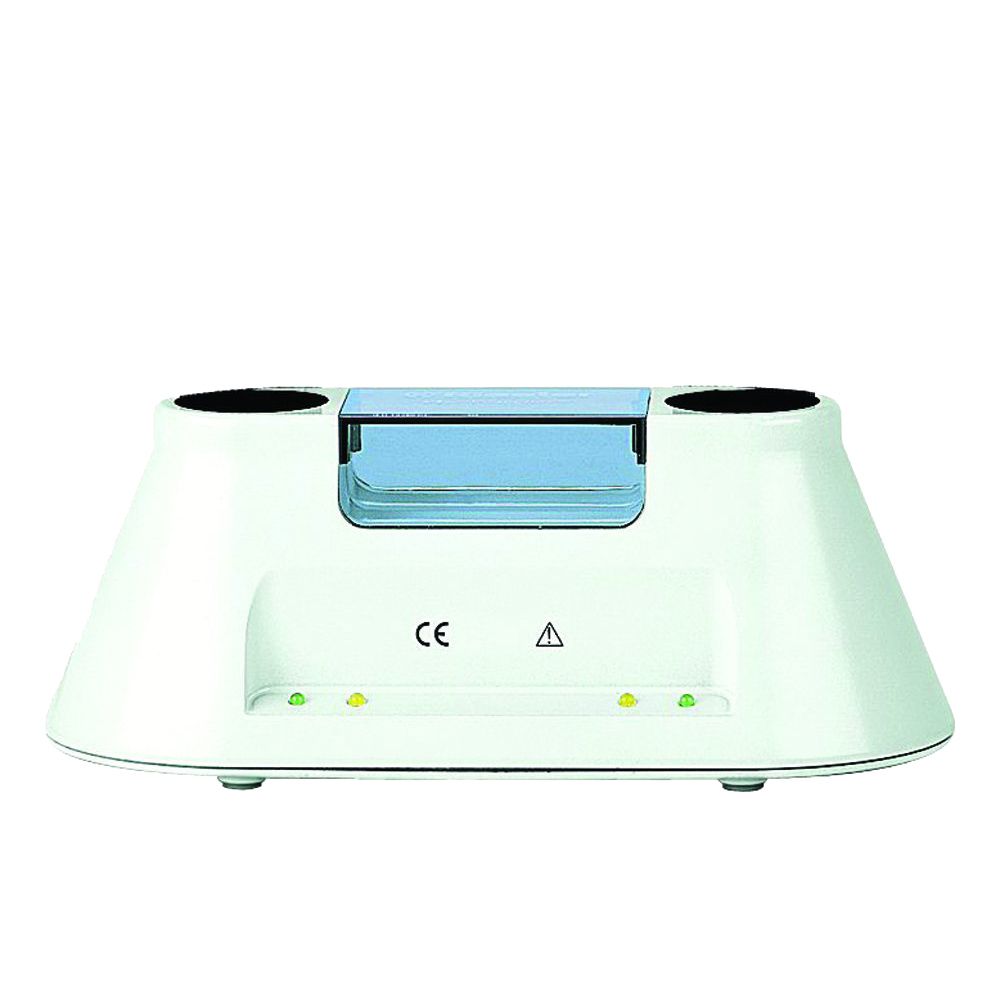

How does the desk charger keep instruments ready?
The ADC Diagnostix 5500 Desk Charger is designed for efficiency and convenience, ensuring your 3.5V handles are fully powered and ready for use in the clinical setting.
Key features that keep your instruments ready include:
- Simultaneous Dual Charging: The unit can charge both included rechargeable battery handles at the same time.
- Fast Charge Time: It fully recharges the Li-ion batteries in approximately 3 hours.
- Status Monitoring: Colored LEDs clearly indicate the current power and charging state of the handles.
- Enhanced Versatility: A reducing sleeve is included, allowing the charger to also accommodate smaller “AA” sized handles if necessary.
- Flexible Placement: A wall mount bracket is provided for customizable installation and efficient organization of your workspace.

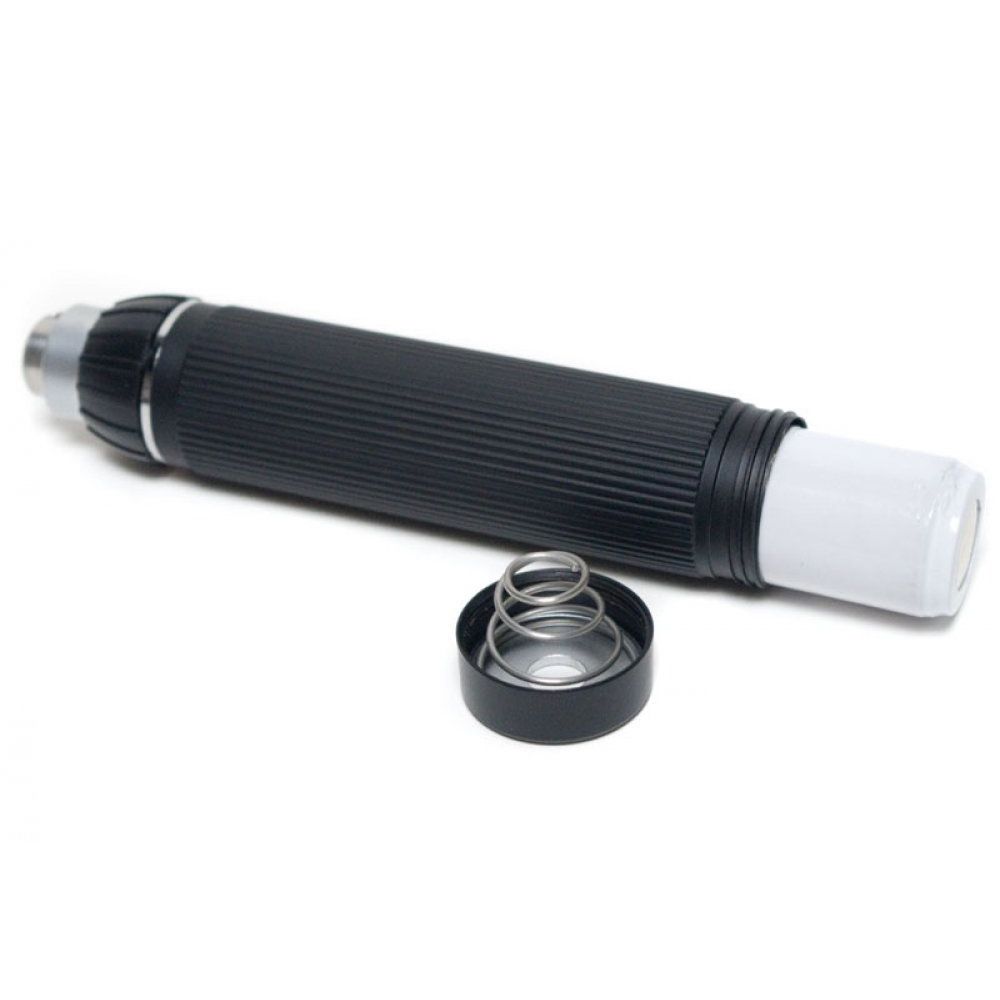

Are the durable handles made of solid brass?
Yes, the ADC Diagnostix 5560 rechargeable handles are built with high-quality materials designed for exceptional durability and secure handling.
- Premium Construction: The handles are CNC machined from solid brass and finished with sleek black chrome plating, ensuring longevity and a professional feel.
- Enhanced Grip: They feature a deeply ribbed surface designed to provide a secure, comfortable, non-slip grip during examinations.

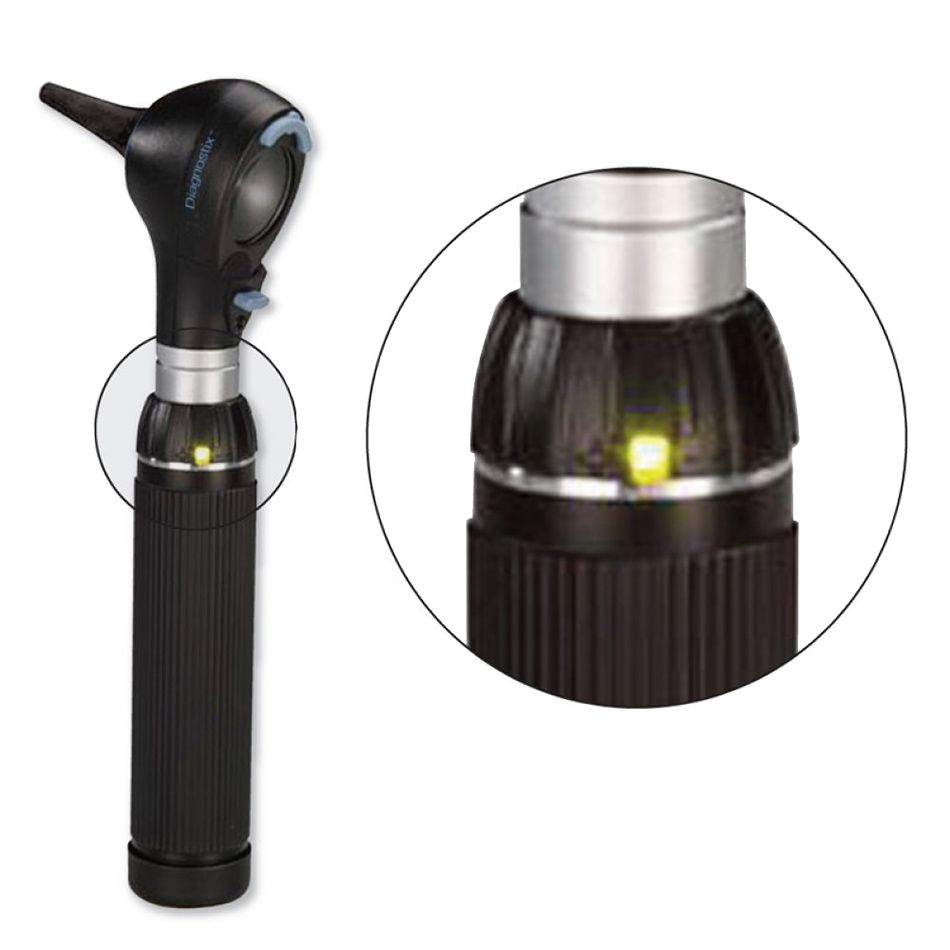

- Advanced Illumination Control: The handles incorporate Adtronic electronic rheostatic control, which allows for precise, continuous adjustment of light intensity.
- Energy Saving: A built-in feature automatically turns the instrument off after two minutes of inactivity to conserve the Li-ion battery life.
What is the continuous runtime for the handles?
The ADC Diagnostix 5510 set includes two high-capacity 3.5V Li-ion rechargeable battery handles (2600 mAh). The continuous runtime depends on the illumination configuration you select:
- AdLED Illumination: Provides an exceptional runtime of up to 50 hours of continuous operation.
- Halogen/Xenon Illumination: Provides up to 3 hours of continuous operation.
To ensure efficient power management and battery longevity, the handles feature Adtronic electronic reostatic light control and an auto-off safety feature that powers down the instrument after two minutes. The included dual desk charger can fully recharge the handles in approximately 3 hours, ensuring they are quickly ready for clinical use.

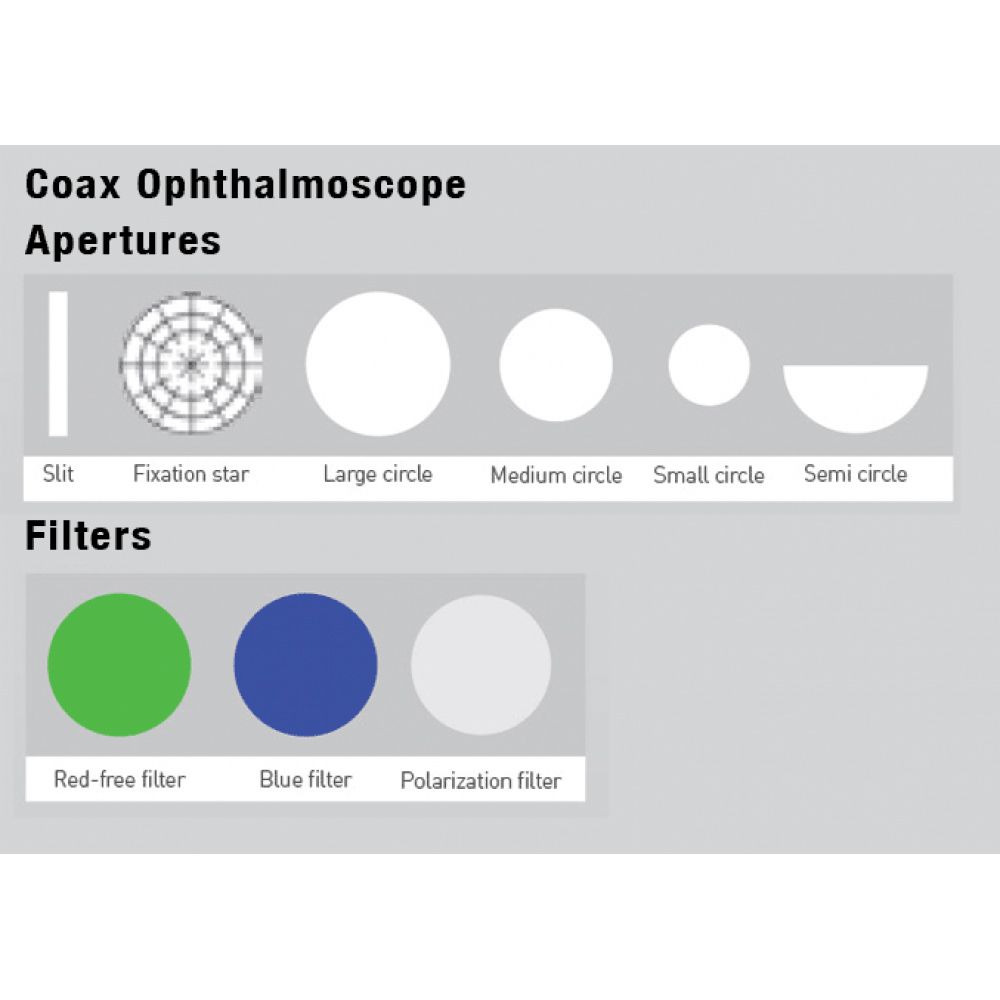

Does the ophthalmoscope have versatile apertures and filters?
Yes, the ADC Diagnostix 5440 Coax Ophthalmoscope head is highly versatile, offering 24 total aperture/filter combinations for detailed examination.
It features six distinct apertures:
- Slit
- Fixation
- Large
- Small
- Micro spot
- Half moon
Additionally, it includes three specialized filters plus a neutral setting:
- Red free: Enhances visualization of retinal vasculature (arteries and veins).
- Cobalt: Used in conjunction with fluorescent dyes for examining the cornea and anterior structures.
- Polarizing: Reduces glare and corneal reflection for clearer viewing.

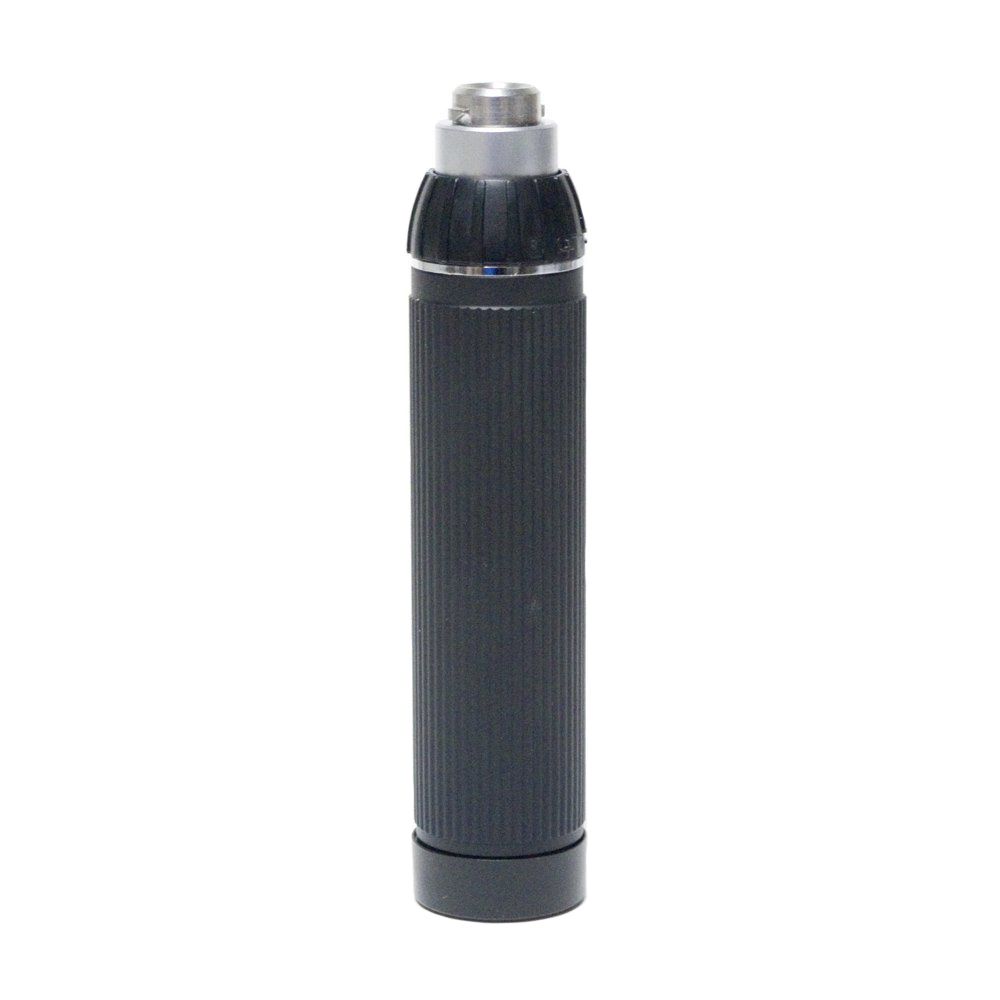

Are the rechargeable handles durable?
Yes, the ADC Diagnostix 5560 handles are built for exceptional durability and reliable long-term clinical use:
- Robust Construction: The handles are crafted from CNC machined solid brass and finished with black chrome plating. They feature a ribbed surface designed to provide a secure, ergonomic grip.
- Intelligent Power Management: The handles include the Adtronic electronic reostatic control for variable light intensity. This system also features an auto-off function after 2 minutes to conserve battery life.
- Extended Runtime: They are powered by 3.5V, 2600 mAh Li-ion batteries, offering impressive continuous use:
- Up to 50 hours with AdLED illumination.
- Up to 3 hours with Xenon illumination.
What is the set's warranty coverage?
The ADC Diagnostix 5510 Desk Set includes robust warranty coverage:* The entire diagnostic set (handles, charger, and instrument heads) is covered by a 2-year warranty.* If you select a configuration with the high-performance AdLED illumination, the AdLED lamp itself is backed by a comprehensive lifetime warranty.
