Condition:
-
Warranty:
- Weight: 0.37 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 9005-9CGR-1MB
- Phone: (800) 232-2670
Frequently asked questions
Is this cuff compatible with blood pressure monitors from other brands?
This cuff is specifically designed for use with the ADC ADView 2 Modular Diagnostic Station. Compatibility with other brands is not guaranteed.
How often is accuracy verification required?
Accuracy verification for the cuff-pressure transducers and indicators is required bi-annually (twice per year) to ensure continued reliability.
This routine check ensures the cuff system maintains or exceeds the stringent ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive blood pressure measurement accuracy.
Does this cuff include robust safety features?
Yes, the ADC cuff system is equipped with robust, redundant safety features to ensure patient well-being during automated blood pressure measurements:
- Dual Over-Pressure Protection: The system utilizes both an independent hardware over-pressure circuit and a redundant software algorithm. These mechanisms strictly limit the cuff pressure to less than 300 mmHg (+20/-10 mmHg).
- Cycle Duration Control: To prevent prolonged pressure application, the measurement cycle duration is limited to less than 180 seconds by both a hardware timing circuit and a software timing algorithm.
What is the reliable heart rate range?
The ADC Cuff, when used with the ADView 2 Modular Diagnostic Station, provides heart rate measurements across a wide range. The specified measurement range is 30 BPM to 220 BPM.
What are the available cuff sizes and limb ranges?
These ADC cuffs are available in seven distinct sizes (Child through Thigh) to ensure accurate, automated blood pressure measurements for patients aged three and older. The sizes accommodate a wide range of limb circumferences and are color-coded for quick identification in a clinical setting.
| Size | Limb Circumference Range |
|---|---|

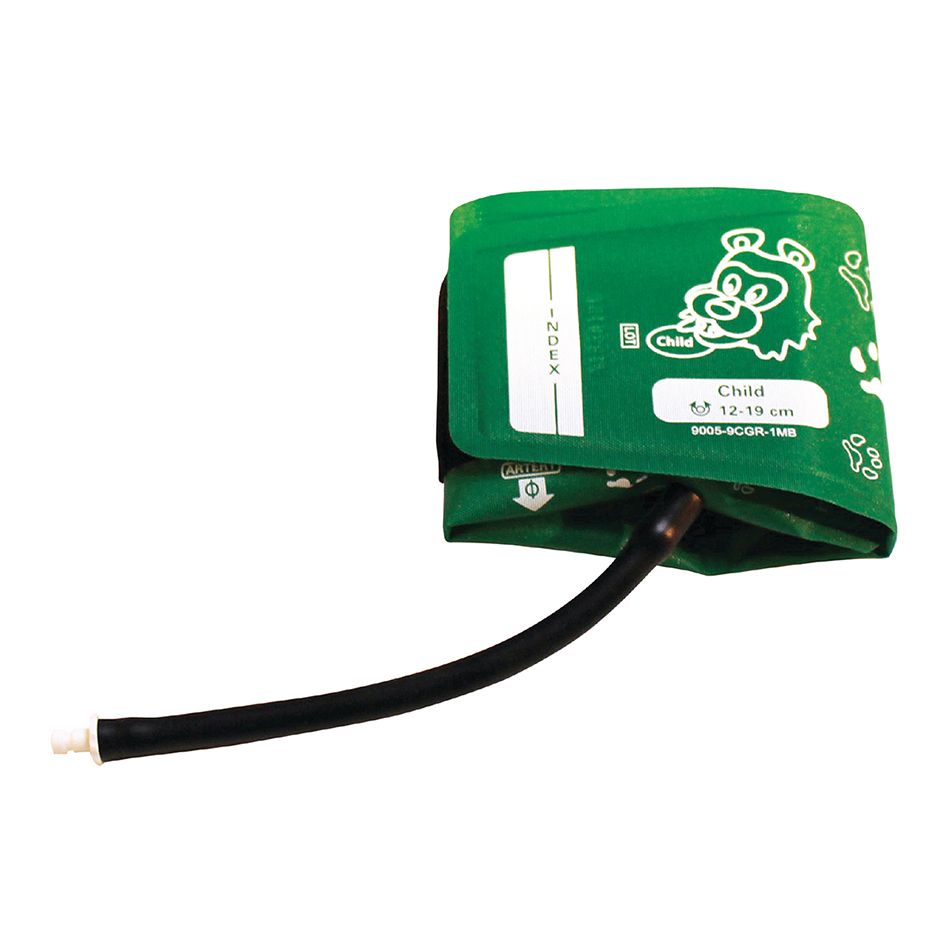

| Child (Green) | 12 – 19 cm |

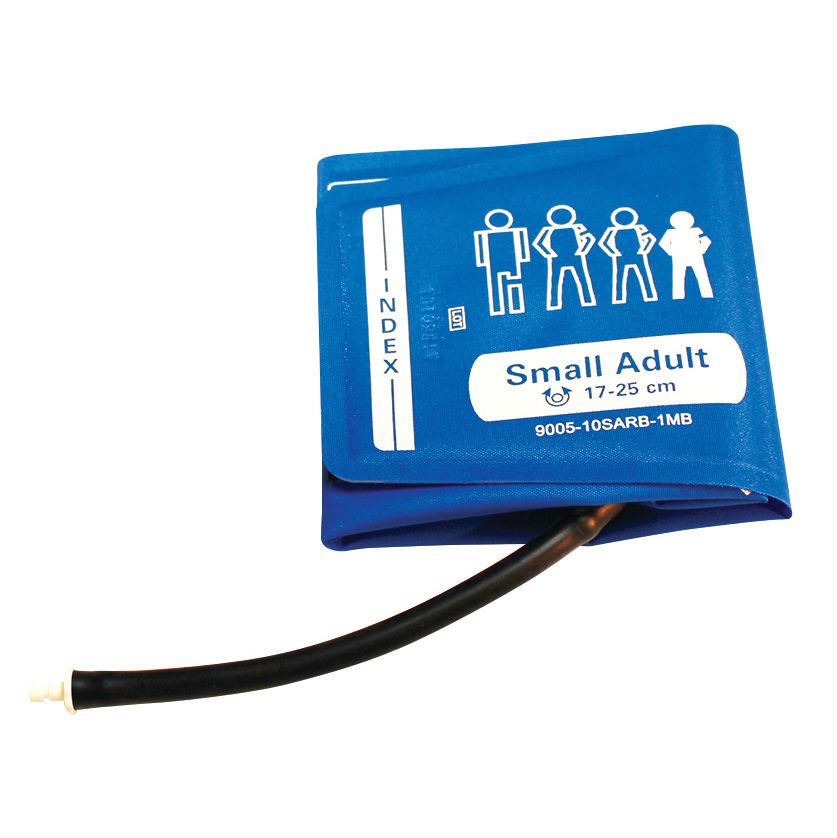

| Small Adult (Royal Blue) | 17 – 25 cm |

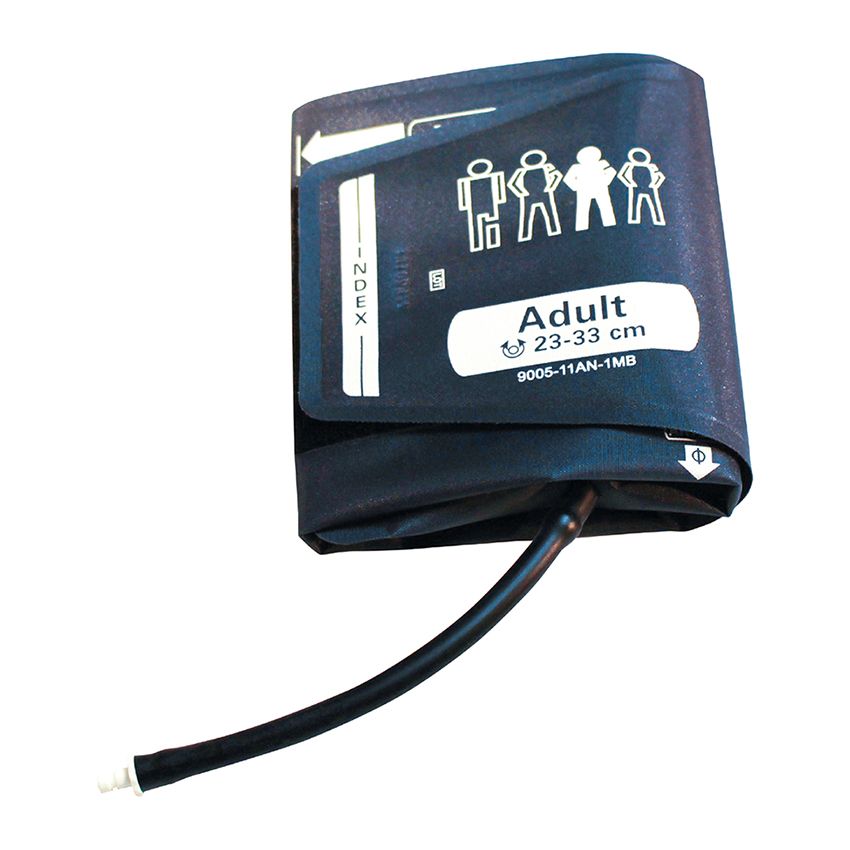

| Adult (Navy) | 23 – 33 cm |

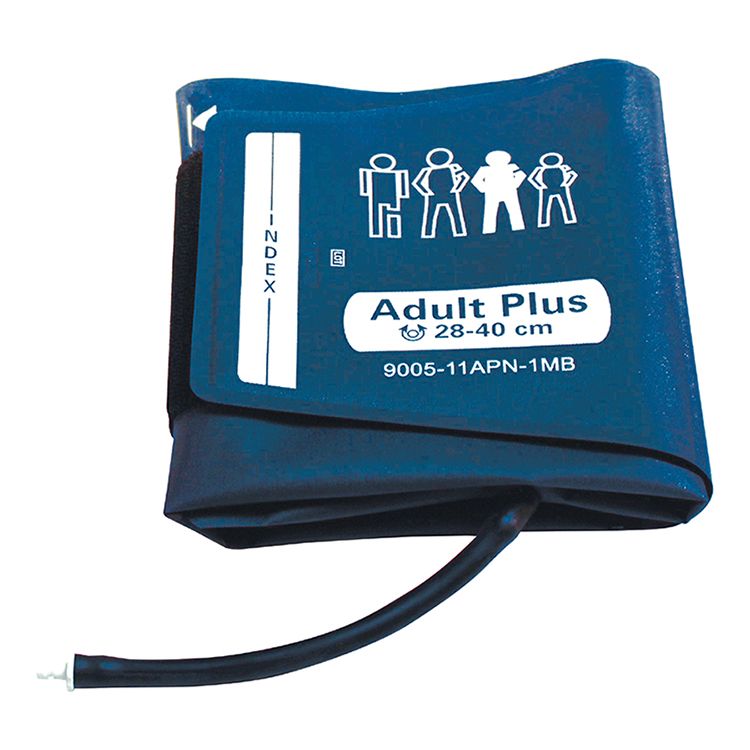

| Adult Plus (Navy) | 28 – 40 cm |

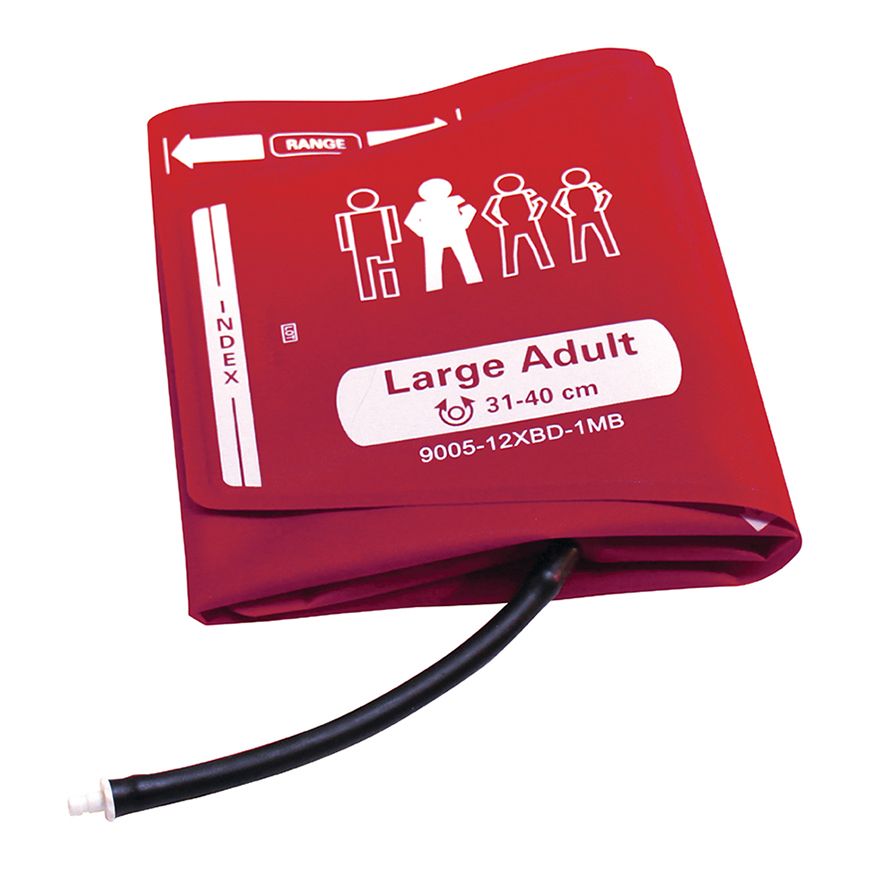

| Large Adult (Burgundy) | 31 – 40 cm |

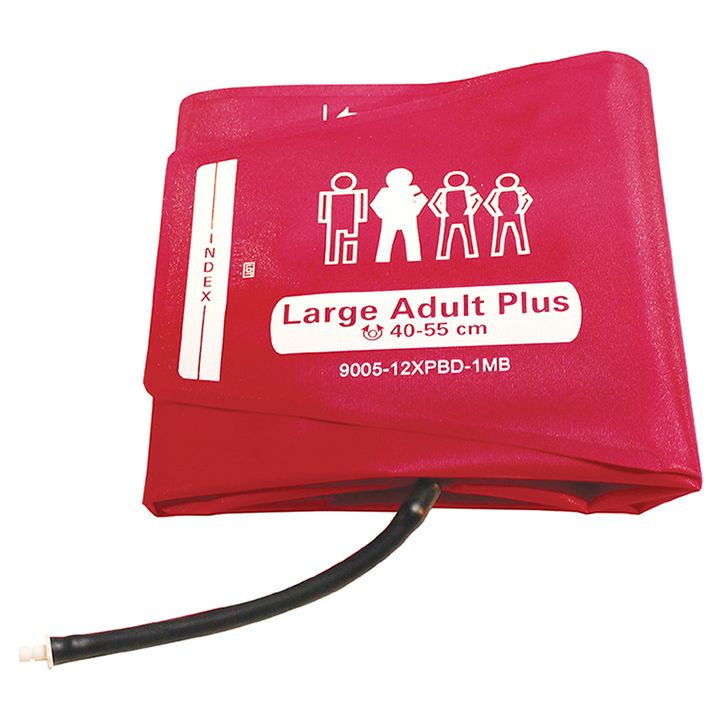

| Large Adult Plus (Burgundy) | 40 – 55 cm |

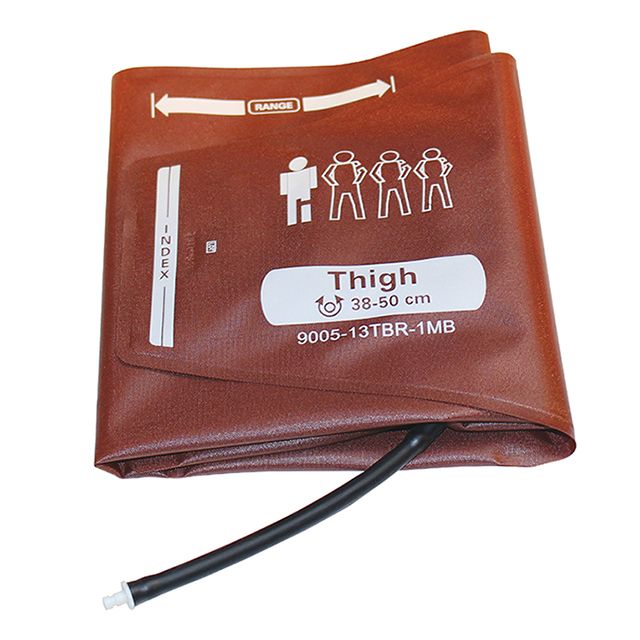

| Thigh (Brown) | 38 – 50 cm |
What are the blood pressure and heart rate ranges?
| The ADC cuff is designed to work seamlessly with the ADC ADView 2 Modular Diagnostic Station, providing highly reliable measurements that meet or exceed the ANSI/AAMI/ISO 81060-2:2013 accuracy standard.The system supports the following comprehensive measurement ranges: | Measurement Type | Range | :— | :— | Adult Systolic BP | 40 - 260 mmHg | Adult Diastolic BP | 20 - 200 mmHg | Pediatric Systolic BP | 40 - 230 mmHg | Pediatric Diastolic BP | 20 - 160 mmHg | Heart Rate | 30 - 220 BPM |
Does the ADC Cuff feature a secure bayonet connector?
Yes, the ADC Cuff is designed with a bayonet connector for secure and easy attachment. This ensures seamless integration and rapid connection to the ADC ADView 2 Modular Diagnostic Station.
Are the ADC cuffs color-coded for quick sizing?
Yes, the ADC Cuffs for the ADView 2 Diagnostic Station feature a color-coding system designed for rapid visual identification in clinical settings. This ensures staff can quickly select the correct cuff size, which is critical for accurate automated blood pressure measurements.
This system helps accommodate the full range of sizes, catering to patients ages 3 and older (from Child through Thigh measurements). The primary color correlations are:
- Child: Green
- Small Adult: Royal Blue
- Adult: Navy
- Large Adult: Burgundy
- Thigh: Brown
Additionally, the cuff material includes printed labels that specify the exact size name and the measurable limb circumference range for confirmation. Using the correct size helps maintain accuracy that meets or exceeds the strict ANSI/AAMI/ISO 81060-2:2013 standard.
Does this cuff meet high accuracy standards?
Yes, this ADC cuff is designed to meet stringent international requirements, ensuring reliable automated blood pressure readings for clinical use. This commitment to accuracy is demonstrated through:
- Certified Standard: The cuff meets or exceeds the ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive blood pressure (NIBP) accuracy.
- Precision Performance: This guarantees a mean measurement error of +/-5 mmHg (with an 8 mmHg standard deviation).
- Recommended Calibration: To maintain optimal precision, accuracy verification is advised bi-annually.
What is the limb range for the Adult cuff?
The limb range for the Adult size cuff is 23 to 33 cm (9.06” to 13”). This specific sizing is designed to ensure accurate blood pressure measurements when used with the ADC ADView 2 Modular Diagnostic Station.
