Key Features
  • SKU: ADC-9005BP
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 3 Years
  • Weight: 8.22 lb
  • Clinical-grade Advantage BP technology from SunTech Medical
  • Contemporary, compact design with an integrated handle and easy-to-read display
  • Next-generation EMR ready with HL7 messaging for electronic data transfer
  • Network enabled with built-in Ethernet or optional Wi-Fi

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 9005BP
  • Phone: (800) 232-2670
$1,051.43 $830.99

+ Free Shipping

Special Order Item

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

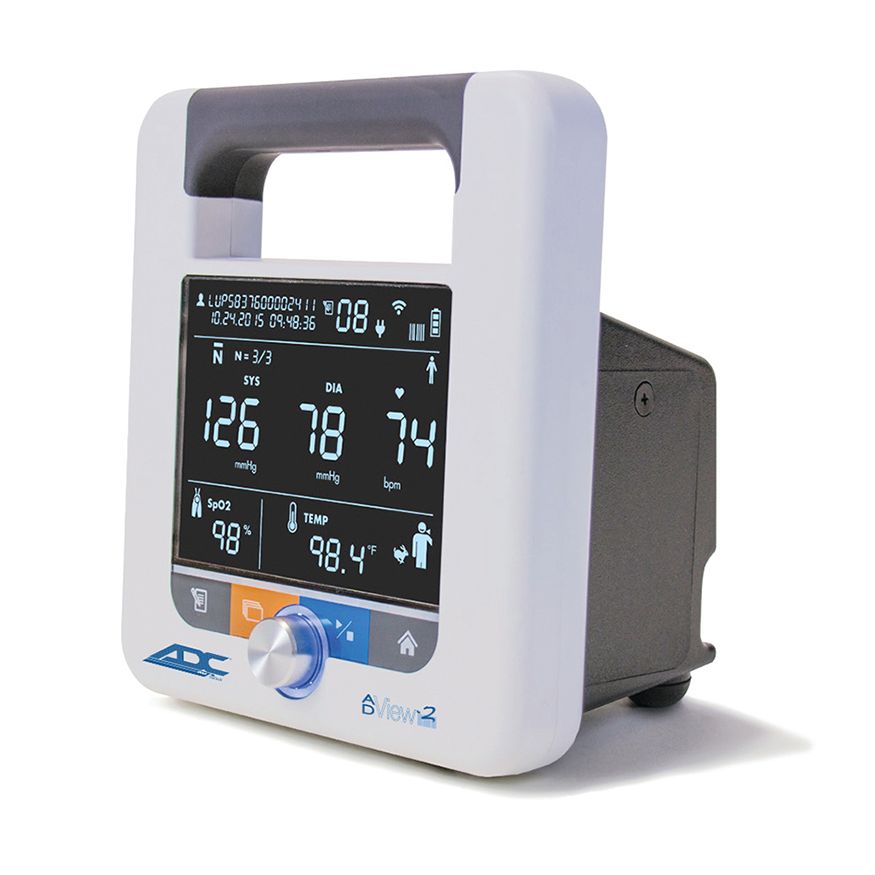

The ADC ADView 2 Modular Diagnostic Station includes a rechargeable lithium-ion battery, U.S. power cord, 10-foot length of tubing, Adult Plus and Large Adult Plus cuffs, Mini-USB to USB cable, a Quick Start Guide, and a Quick Reference Guide.

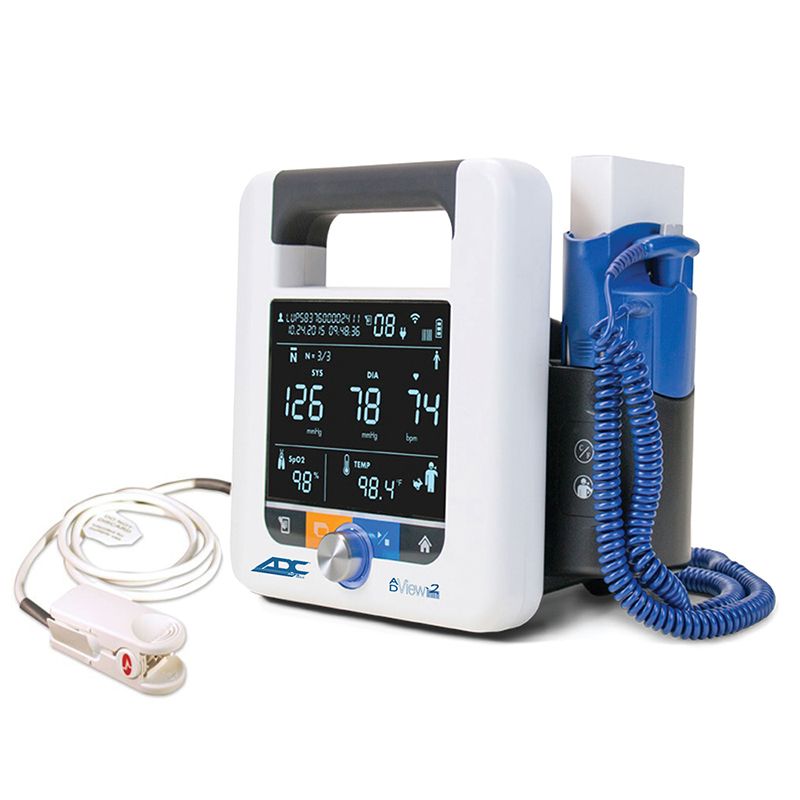

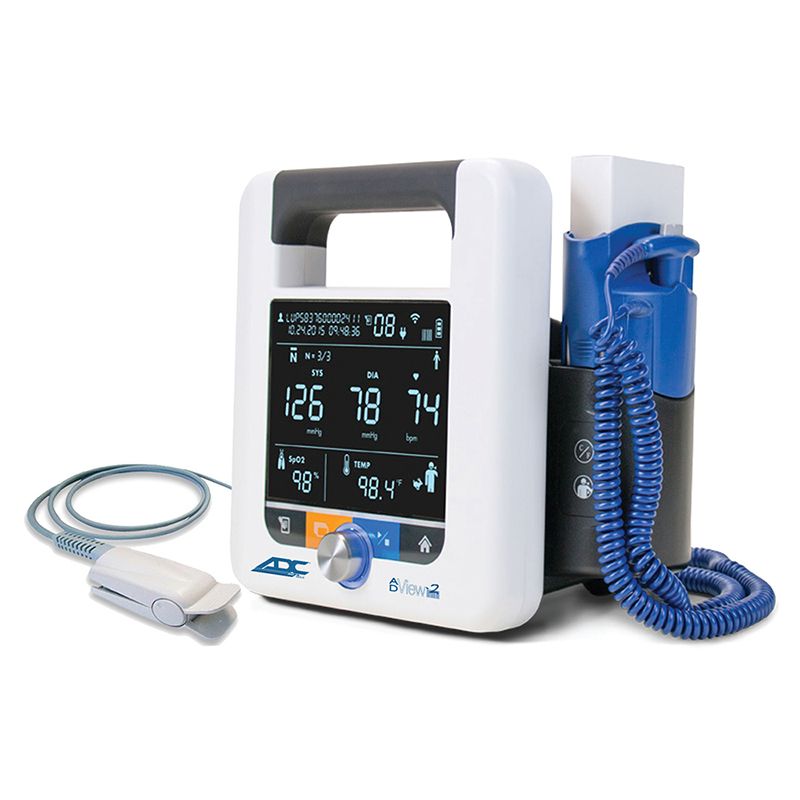

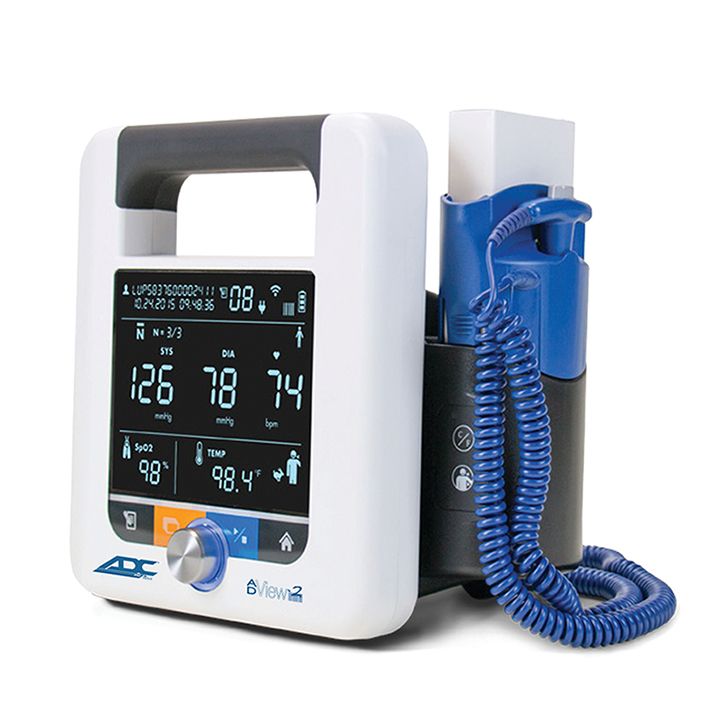

The Temperature Module can be added and includes an oral/axillary probe and well (blue) and a box of 20 probe covers.

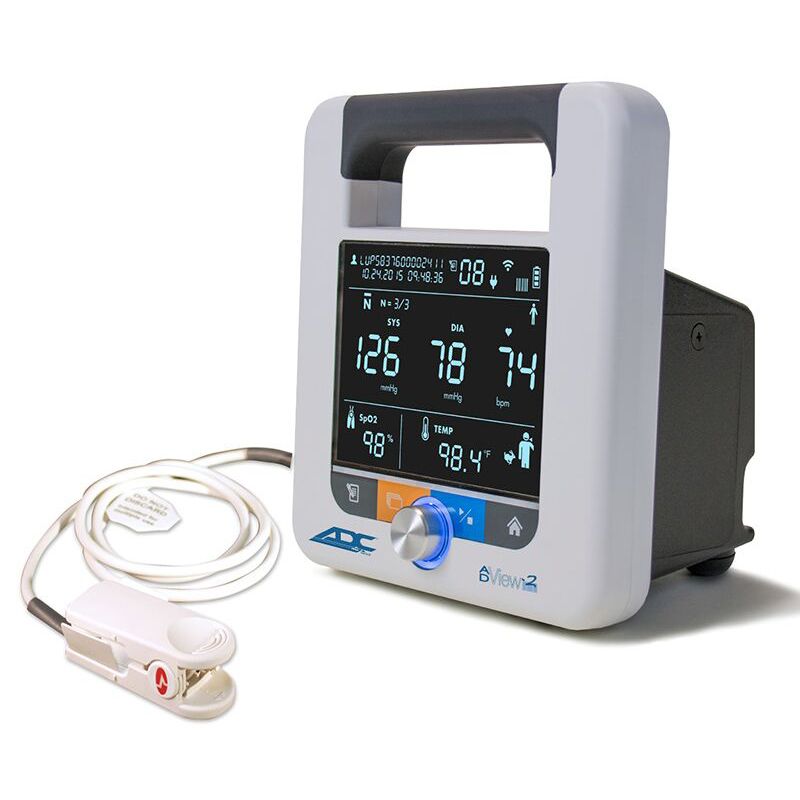

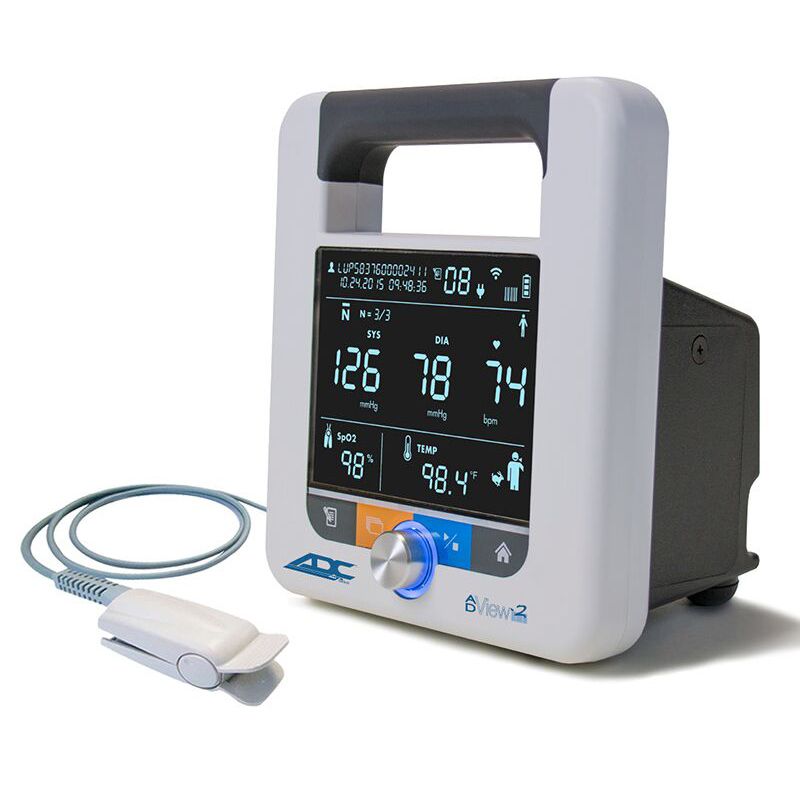

A Pulse Oximetry Module can also be added and is available with a ChipOx Nellcor Compatible SpO2 Module or a Masimo SET SpO2 Module that includes a reusable adult finger sensor and an eight foot extension cable.

Warranty: 3 Years (Main Unit and Modules), 2 Years (Blood Pressure Cuffs), 1 Year (Battery).

The ADView 2 is still the only truly modular diagnostic station that grows with your needs. Start with blood pressure and choose temperature or pulse oximetry options at the time of purchase; we'll ship your ADView 2 fully configured and ready to go. You can also add new modules and accessories in the field, anytime, as you need them. The ADC ADView 2 Modular Diagnostic Station's user-expandable, connect-and-go construction makes upgrading effortless.

The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button. The non-invasive blood pressure base unit module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure (MAP*) displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the ADView 2 can be used for patients ages three and older. Mounting options and other accessories are also available on our website. *Not validated for use in the U.S.

Features

ADC ADView 2 Modular Diagnostic Station Features

  • ADC ADView 2 Modular Diagnostic Station Features:
    • Clinical-grade Advantage BP technology from SunTech Medical.
    • Contemporary, compact design with an integrated handle and easy-to-read display.
    • Next-generation EMR ready with HL7 messaging for electronic data transfer.
    • Network enabled with built-in Ethernet or optional Wi-Fi.
    • Lithium-ion power for longer-lasting battery life and a lighter weight.
    • Built-in memory with up to 99 charting sessions.
    • New Pediatric Mode to ensure accurate measurements for younger patients.
    • Firmware upgradeable.
    • Manual mode option for added versatility:
      • Manual blood pressure mode for real-time verification.
      • Allows you to capture blood pressure with a stethoscope using the traditional ausculatory method without changing cuffs.
      • Manual mode provides important versatility for patients with arrhythmias or other complex needs.
    • Customizable average mode options:
      • Offers a user-definable averaging mode, with setting options ranging from two to five readings as well as start and interval delays.
      • Averaging is recognized as a key component of accurate blood pressure measurement and was used in the recent SPRINT trial conducted by the National Institute of Health.
    • Next-generation EMR ready with HL7 messaging for electronic data transfer.
      • Connectivity using your ADView 2 is extremely flexible offering three integration options - simple, native, or enterprise.
        • Simple: Using ADC's free, downloadable ADviewer software, our Simple Integration creates a PDF file that can be attached to a patient's existing electronic record. A print option is also available. This solution offers fast, inexpensive integration with little technical know-how.
        • Native: Native integration will send individual vital sign measurements directly to the corresponding EMR fields as defined in a patient's electronic record. We have a growing list of supported EMR vendors that are compatible with the ADviewer platform. Native integration requires some technical know-how and may involve initial costs to confirm data is being communicated accurately.
        • Enterprise: Enterprise integration deploys translation middleware and leverages your experienced EMR integration specialists. This solution is suitable for larger institutions that may already have translation software and and IT team. Costs will be higher and execution more technical. ADC can recommend a professional services partner, if needed.
      • Allows the option to build the ADView 2 into almost any clinical EMR workflow, no matter how complex.
  • ADC ADView 2 Modular Diagnostic Station Temperature Module Features:
    • Add a Covidien Filac 3000 thermometry module to your ADView 2 for an oral or axillary temperature reading in as little as four seconds.
    • Features both Fahrenheit and Celsius scales, switchable with the touch of a button.
    • Cold Mode for lower ranges.
    • Built-in, color-coded storage well for the probe.
    • An optional color-coded rectal chamber and probe is also available.
  • ADC ADView 2 Modular Diagnostic Station Pulse Oximetry Module Features:
    • Add a pulse oximetry module to your ADView 2 to measure oxygen saturation of arterial blood flow in about 10 seconds.
    • The ChipOx Nellcor Compatible SpO2 module displays pulse rate signal strength during measurement.
    • Alternatively, choose the Masimo SET SpO2 module upgrade.
    • An optional pediatric/multi-site sensor is also available.

Specifications

ADC ADView 2 Modular Diagnostic Station Specifications

  • Conditions for Use: 10 degrees C (50 degrees F) to 40 degrees C (104 degrees F) 15 - 90% RH non-condensing - 700 kPa - 1060 kPa.
    • Operating the monitor in an environment at maximum temperature can produce temperatures exceeding 41 degrees C (41.6 degrees C highest recorded) on a patient-applied part.
    • It is up to the operator to determine if this temperature is too high based upon the condition of the patient and, if so, to ensure the ambient temperature of the environment is 38 degrees C or below.
  • Storage: -20 degrees C (-4 degrees F) to 55 degrees C (149 degrees F) 15 - 90% RH non-condensing - 500 kPa - 1060 kPa.
    • Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above.
  • Power: Internal power supply.
    • Input: 100-240 VAC @ 1.5A max, 50-60 Hz.
    • Output: +9VDC @ 5A IEC 320 type input connector.
  • Battery:
    • Type: 7.2v, 6600mAh Internal Lithium-Ion battery.
    • Run Time (full charge): ~20 hrs* / 200 BP cycles.
    • Charge Time: ~6 hrs @ 23deg Celsius +/- 2deg.
    • *Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner.
  • Calibration: The accuracy of cuff -pressure transducers/indicators should be verified bi-annually.
  • Safety Systems: Independent hardware over-pressure circuit and redundant software over-pressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds.
  • Dimensions (without thermometer option): 8" (215 mm) H x 6.75" (190 mm) W x 5.2" (140 mm) D.
  • Standards: ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013.
  • Classifications: Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE.
  • Ingress of Liquid: Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529.
  • Blood Pressure Range:
    • Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric).
    • Systolic: 40-260 mmHg (adult), 40-230 mmHg (pediatric).
    • Heart Rate: 30-220 BPM (beats per minute).
  • Blood Pressure Accuracy: Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (+/-5mmHg mean error with 8mmHg standard deviation).
  • Temperature Module Specifications:
    • Temperature Accuracy:
      • Quick Mode (Oral): +/- 0.3 degrees C.
      • Std. Mode (Aux/Recta): +/- 0.1 degrees C.
      • Direct Mode: +/- 0.1 degrees C.
    • Response Time:
      • Quick Mode: 4 sec.
      • Axillary/Rectal: 10-15 sec.
      • Direct Mode: 60 sec.
    • Resolution: 0.1 degrees C.
  • SpO2 Module Specifications:
    • Saturation Normal (no motion): 70-100%Arms +/- 2%.
    • Saturation Motion: N/A.
    • Low Perfusion: N/A.
    • Pulse Heart Rate: 20-300 BPM: +/-3 BPM.
    • Pulse Heart Rate w/motion: 20-300 BPM: +/-3 BPM.

Configurations

ADC ADView 2 Modular Diagnostic Station Configurations

  • #9005BP: ADView 2 Blood Pressure Base Unit.
  • #9005BPTO: ADView 2 Blood Pressure Base Unit with Temperature Module.
  • #9005BPS: ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module.
  • #9005BPSTO: ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module and Temperature Module.
  • #9005BPSM: ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module.
  • #9005BPSMTO: ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module and Temperature Module.

Frequently asked questions

Does it allow for traditional manual blood pressure readings?

Yes, the ADC ADView 2 is designed for versatility and includes a manual mode option. This feature allows clinicians to perform traditional auscultatory blood pressure measurements, which is especially useful for: <ul><li>Patients with complex conditions.</li><li>Patients experiencing arrhythmias where automated readings may be challenging.</li></ul> This dual-functionality ensures you have the flexibility needed to provide accurate care across a wide variety of patient populations.

Is clinical-grade BP technology used?

Yes, the ADView 2 utilizes highly accurate, clinical-grade Advantage BP technology supplied by SunTech Medical. This advanced, reliable system meets or exceeds the strict ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive blood pressure accuracy.

To ensure versatility and optimal readings across patient types, the station includes several key features:

  • Customizable Averaging Mode: Users can define settings (2 to 5 readings) with adjustable delays to calculate a reliable average BP reading.
  • Dedicated Pediatric Mode: Optimizes measurement protocols specifically for accurate results on younger patients (ages three and older).
  • Manual Auscultatory Mode: Provides the option for traditional verification using a stethoscope, which is critical for patients with challenging vital sign profiles.
  • Safety Systems: Features independent hardware and software circuits to prevent over-pressure and excessive cycle duration.
Does this station feature robust EMR connectivity?

Yes, the ADC ADView 2 Modular Diagnostic Station is designed for next-generation EMR readiness with robust electronic data transfer capabilities using industry-standard HL7 messaging.

It offers flexible integration options to suit various clinical IT requirements:

  • Simple Integration: For easy PDF data export.
  • Native Integration: Supports direct data mapping into EMR fields.
  • Enterprise Integration: Designed for complex, large-scale solutions, often utilizing existing middleware.

Connectivity is provided via built-in Ethernet or optional Wi-Fi, ensuring seamless network integration. Additionally, the unit features built-in memory capable of storing up to 99 charting sessions.

Does the ADView 2 support pediatric measurements?

Yes, the ADC ADView 2 is suitable for pediatric patients ages three and older.

It includes a dedicated Pediatric Mode designed to ensure highly accurate, non-invasive blood pressure (NIBP) readings for younger patients. Additionally, the system supports comprehensive patient care by offering seven available cuff sizes, ranging from Child up to Thigh.

Is the ADView 2 EMR data integration ready?

Yes, the ADView 2 is designed for next-generation EMR readiness and supports comprehensive data transfer via HL7 messaging.

Key features for data management and connectivity include:

  • HL7 Messaging: Supports Simple, Native, or Enterprise integration options for flexible electronic data transfer.
  • Connectivity: Network enabled with built-in Ethernet or optional Wi-Fi capabilities.
  • Local Storage: Features built-in memory capable of storing up to 99 charting sessions.
Is the blood pressure accuracy clinical grade?

Yes, the ADC ADView 2 is designed for clinical-grade performance.

It utilizes the proprietary Advantage BP technology from SunTech Medical and is certified to meet or exceed the stringent ANSI/AAMI/ISO 81060-2:2013 standards for non-invasive blood pressure (NIBP) accuracy.

To ensure reliable results across diverse patient types, the station offers several advanced measurement modes:

  • Customizable Averaging Mode: Allows averaging 2 to 5 readings, with user-definable settings for enhanced diagnostic accuracy.
  • Pediatric Mode: Specifically designed for accurate measurements on younger patients (ages three and older).
  • Manual Mode: Includes an auscultatory mode for clinical verification using a stethoscope, adding critical versatility.
Does the station have memory for patient data?

Yes, the ADView 2 Diagnostic Station is equipped with robust data management capabilities, including both local storage and advanced network integration:

  • Internal Memory: The unit features built-in memory that supports up to 99 charting sessions directly on the device.
  • EMR Connectivity: It is EMR-ready, enabling electronic data transfer via HL7 messaging.
  • Network Options: The station is network-enabled using built-in Ethernet or optional Wi-Fi connectivity, supporting flexible integration pathways (Simple PDF, Native field transfer, or Enterprise solutions).
What essential BP cuffs are included?

The ADC ADView 2 base unit configuration comes with two essential non-invasive blood pressure (NIBP) cuffs:

  • Adult Plus Cuff
  • Large Adult Plus Cuff

Although only these two are included, the system is compatible with a total of seven different cuff sizes, ranging from child to thigh, supporting patients aged three and older.

Which vital signs can this modular station monitor?

The ADC ADView 2 Modular Diagnostic Station is designed with true modularity, allowing you to expand its monitoring capabilities to meet evolving clinical needs.

Standard Measurements (Base Unit)

The base unit offers fast and accurate measurements using clinical-grade Advantage BP technology from SunTech Medical:

  • Non-Invasive Blood Pressure (NIBP): Provides Systolic (SYS), Diastolic (DIA), and Mean Arterial Pressure (MAP) readings in approximately 30 seconds.
  • Pulse Rate: Automatically calculated during the NIBP cycle (Range: 30–220 BPM).

This unit also features a dedicated Pediatric Mode and a Manual Mode for traditional auscultatory verification.

Optional Modular Capabilities

Add these connect-and-go modules at any time to expand monitoring:

  • Temperature: The optional module uses Covidien Filac 3000 thermometry for quick and accurate readings, including oral/axillary in as little as four seconds.
  • Pulse Oximetry (SpO2): Available in either a ChipOx Nellcor Compatible version or a Masimo SET version, both measuring oxygen saturation in about 10 seconds.
How long does the battery last on a charge?

The ADC ADView 2 is equipped with an internal Lithium-Ion battery that provides approximately 20 hours of run time on a full charge. This estimate accounts for a fully configured setup, including blood pressure, temperature, SpO2, Wi-Fi, and barcode scanner functionality, ensuring reliable performance throughout your clinical shifts.
