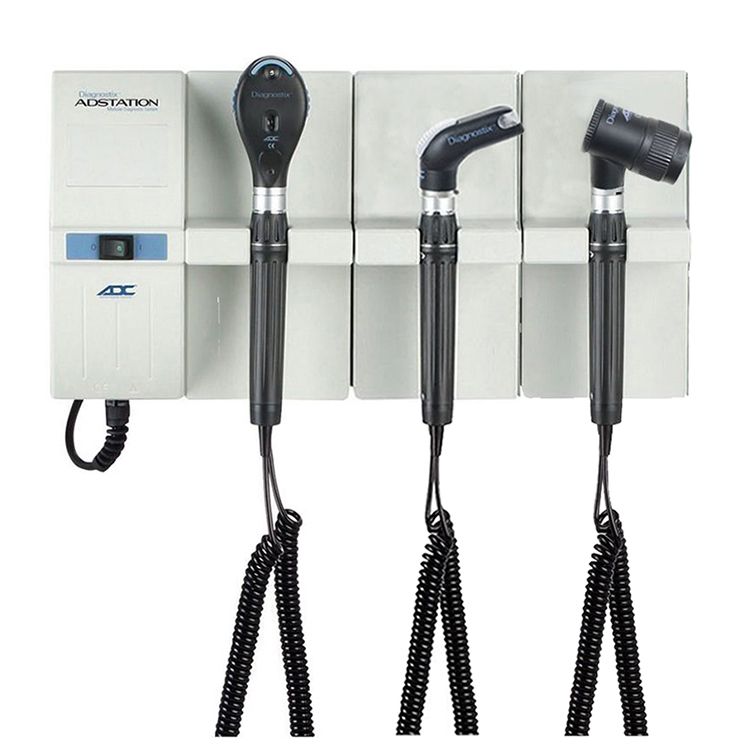

ADC Adstation 5612-56 3.5V Wall Ophthalmoscope/Throat Illuminator/Dermascope Diagnostic Set

The ADC Adstation 5612-56 is a comprehensive diagnostic station that includes three essential 3.5V instrument heads for versatile clinical use:

• ADC Diagnostix 5440 Coax Ophthalmoscope: This head is designed for detailed internal eye examinations, featuring Gullstrand’s principle to reduce corneal reflection, 29 viewing lenses (-35 to +40 diopters), 6 apertures, and 3 specialized filters.
• ADC Diagnostix 5450 Dermascope: Optimized for skin assessments, it utilizes consistent AdLED illumination and an optical grade 10X focusable magnifying lens. It includes two disinfectable contact plates for flexible use (one with a scale).
• ADC Diagnostix 5426 Throat Illuminator: Used for oral cavity and pharynx examination, it provides PMMA light transmission for an unobstructed view and features a hygienic tongue blade holder with an eject button.

The ADC Diagnostix 5440 Coax Ophthalmoscope Head is a high-performance instrument designed for detailed assessment of the eye’s media and retina, offering superior viewing and control features:

• Advanced Optics: It utilizes Gullstrand’s principle and an aspherical condenser lens to significantly reduce glare and corneal reflection, providing an unobstructed view.
• Extensive Lens Range: Features 29 viewing lenses ranging from -35 to +40 diopters for versatile focusing capabilities.

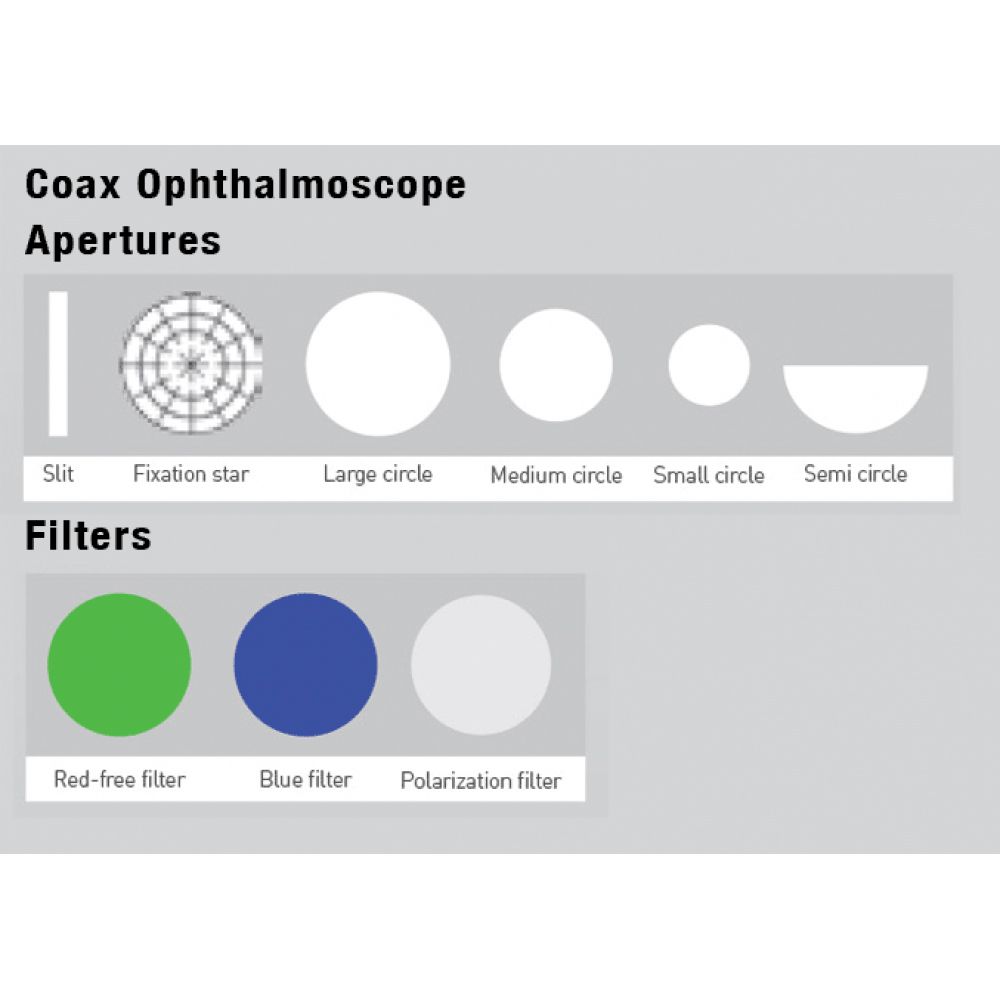

• Apertures and Filters: The head provides precise light control with:
  • 6 Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
  • 3 Filters (+ Neutral): Red free, Cobalt, and Polarizing.
• Compatibility and Security: The head utilizes a universal bayonet mount compatible with other 3.5V power supply handles and includes a standard anti-theft locking feature.

Yes, the ADC Diagnostix 5450 Dermascope head is specifically designed for highly detailed skin assessment, emphasizing clarity and magnification.

Key features that ensure a detailed examination include:

• 10X Magnification: It utilizes an optical grade 10X focusable magnifying lens for close inspection of skin features and pigmentation.
• AdLED Illumination: The Dermascope exclusively uses AdLED illumination for bright, consistent light necessary for accurate color recognition and clarity during dermatoscopy.
• Precision Focusing: A large, knurled focusing ring allows clinicians to easily achieve sharp, precise focus.
• Interchangeable Plates: It includes two disinfected contact plates: one plain and one with a scale, enabling the measurement and tracking of lesions.

Yes, for enhanced security, the ADC Adstation 5612-56 diagnostic set includes an anti-theft locking feature standard on all instrument heads, ensuring your ophthalmoscope, throat illuminator, and dermascope are securely attached.

Yes, the Adstation power system incorporates sophisticated electronic control and essential safety features:

• Precision Light Control: The system utilizes Adtronic electronic rheostatic control. This allows for infinite, continuous adjustment of light intensity, ensuring optimal visibility during every examination.
• Automatic Shut-Off Safety: A key feature is the Adtronic auto-off mechanism. If a handle is left uncradled or unused, the power automatically shuts off after two minutes of inactivity, which helps conserve energy and prolongs the lifespan of the lamps.
• Power Switch: The wall transformer base unit includes a dedicated power switch and supports standard 120V or 230V power supplies.

The handles for the ADC Adstation 5612-56 are engineered for durability and reliable professional use:

• Material: The 3.5V handles are constructed from CNC machined solid brass, ensuring exceptional longevity and robustness.
• Finish: They are chrome-plated black with a ribbed surface design.
• Ergonomics: The ribbed surface is essential for providing a firm, secure, and non-slip grip during patient examinations.

Yes, the ADC Adstation 5612-56 provides advanced illumination flexibility in both initial configuration and real-time use.

1. Configurable Lamp Technology

You can customize the light source for the Ophthalmoscope and Throat Illuminator heads, choosing between traditional Xenon or highly efficient, long-life AdLED lamps. The Dermascope head consistently utilizes AdLED illumination.

The available configurations are:

• Xenon Ophthalmoscope / Xenon Throat Illuminator / LED Dermascope
• LED Ophthalmoscope / LED Throat Illuminator / LED Dermascope
• Xenon Ophthalmoscope / LED Throat Illuminator / LED Dermascope
• LED Ophthalmoscope / Xenon Throat Illuminator / LED Dermascope

2. Real-time Intensity Control

For optimal diagnostic viewing, the power supply base unit includes Adtronic electronic rheostatic control. This feature allows for infinite, continuous adjustment of the light intensity, ensuring maximum clarity and user comfort during examinations.

The warranty for the ADC Adstation 5612-56 diagnostic set is structured differently based on the component:

• Wall Transformer: Covered for 5 Years.
• Instrument Heads and Xenon Lamps: Covered for 2 Years.
• LED Lamp: Provided with a Lifetime Warranty.

Yes, the ADC Diagnostix 5426 Throat Illuminator head is designed with PMMA (Polymethyl methacrylate) light transmission.

This high-quality material ensures excellent light conductivity, providing a bright and completely unobstructed view necessary for detailed examination of the oral cavity and pharynx.

For user convenience and safety, the throat illuminator also includes essential functional features:

• A dedicated tongue blade holder for secure use.
• An integrated eject button for the safe and hygienic disposal of used tongue blades.
• A standard anti-theft locking feature to secure the instrument head to the handle.

The ADC Adstation 5612-56 utilizes a central wall transformer base unit and modular extensions. Their dimensions are:

• Wall Transformer Base Unit (Diagnostic Station): 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm)
