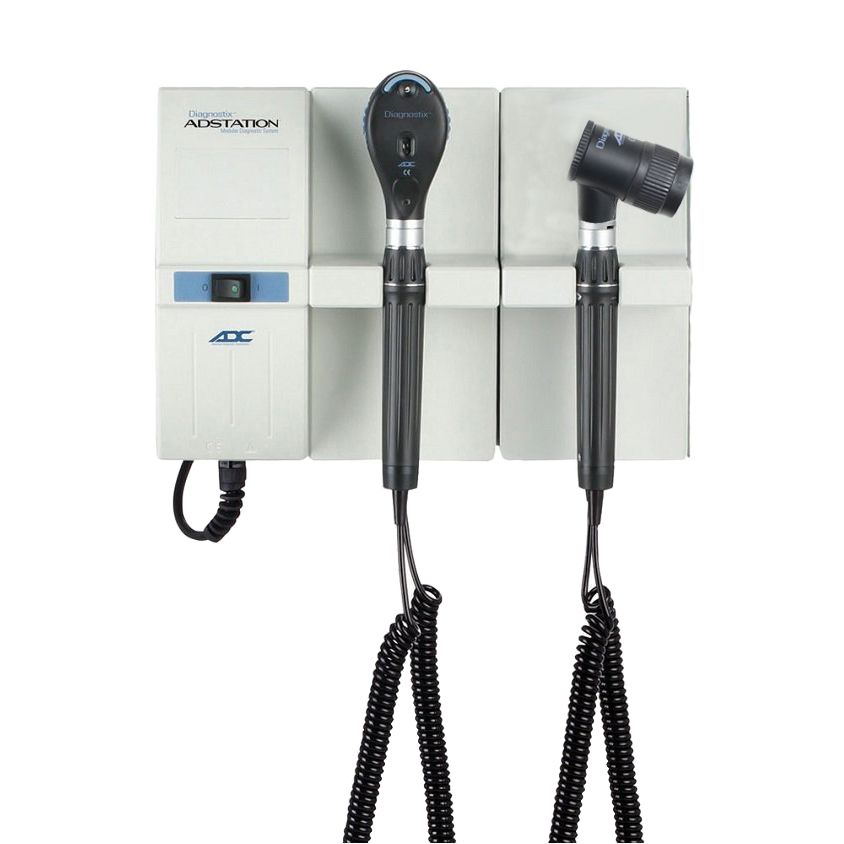

ADC Adstation 5612-5 3.5V Wall Ophthalmoscope/Dermascope Diagnostic Set

ADC Adstation 5612-5 3.5V Wall Ophthalmoscope/Dermascope Diagnostic Set Features

• ADC Adstation 5612-5 3.5V Wall Ophthalmoscope/Dermascope Diagnostic Set Configurations:
  • Xenon Ophthalmoscope/LED Dermascope (#5612X-5) / European Plug (#5612X-5EU).
  • LED Ophthalmoscope/LED Dermascope (#5612L-5) / European Plug (#5612L-5EU).
  • Xenon Ophthalmoscope/LED Dermascope with Clock Aneroid (#5612X-57) / European Plug (#5612X-57EU).
  • LED Ophthalmoscope/LED Dermascope with Clock Aneroid (#5612L-57) / European Plug (#5612L-57EU).
• ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:
  • High performance aspherical condenser lens reduces corneal reflection.
  • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's principal).
  • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
  • Dust proof.
  • Magnified/illuminated aperture viewing window.
  • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
  • Anti-theft locking feature is standard.
  • 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 - Minus 1-10, 15, 20, 25, 30, 35).
  • 24 aperture/filter combinations for improved versatility.

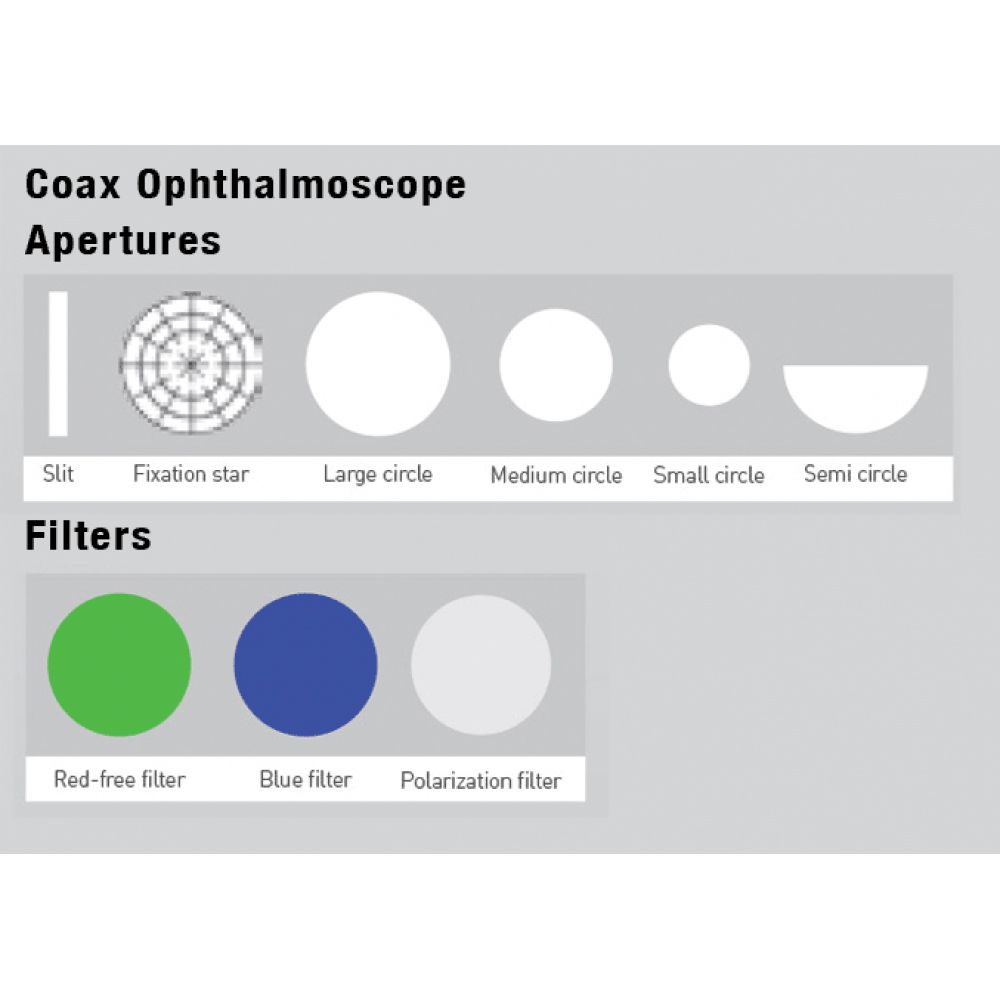

  • 6 apertures include:
    • Slit - used to help determine levels of tumors and lesions.
    • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
    • Large - standard aperture for a dilated pupil and general examination of the eye.
    • Small - provides excellent view of fundus through an undilated pupil.
    • Micro spot- allows quick entry into small, undilated pupils.
    • Half moon - provides a combination of depth perception and field of view.
  • 3 filters (plus neutral) include:
    • Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
    • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
    • Polarizing - virtually eliminates corneal reflection.
• ADC Diagnostix 5450 3.5V Dermascope Head Features:
  • Direct Illumination.
  • Optical grade 10X focusable magnifying lens.
  • Large knurled focusing ring.
  • Two interchangeable contact plates - one with scale, one without may be disinfected.
  • Comfortable soft eyepiece may be used with eyeglasses.
  • Anti-theft locking feature is standard.
  • AdLED illumination.
• ADC Wall Transformer Power Supply Features:
  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
  • Base unit contains the power switch and one handle and the extension holds the other handle.
  • Up to 2 additional extension modules (3 total) can be added.
  • UL approved.

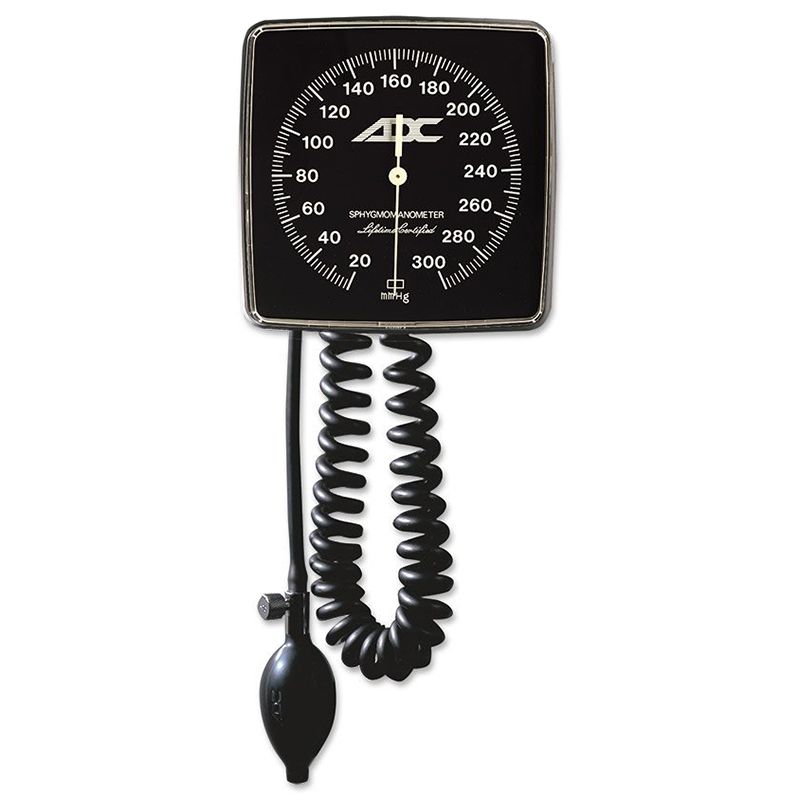

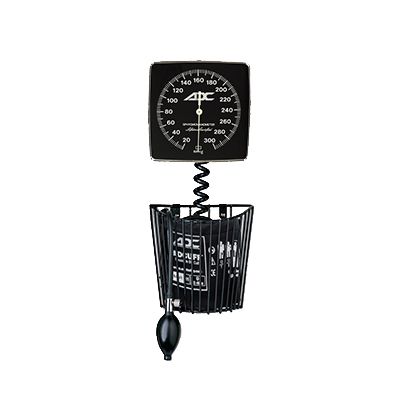

• ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:

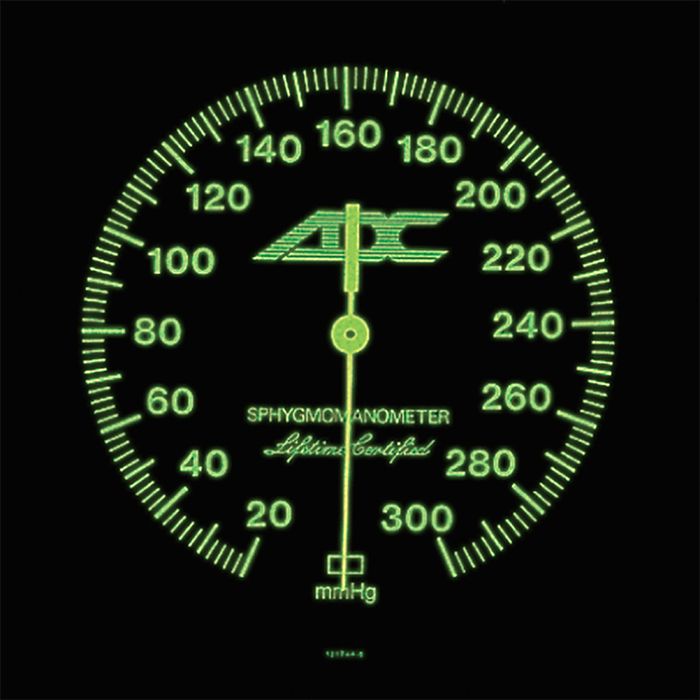

  • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
  • 300 mm Hg no-pin stop movement withstands the heaviest use.
  • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

ADC Adstation 5612-5 3.5V Wall Ophthalmoscope/Dermascope Diagnostic Set Specifications

• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
• Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
• Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).
