- Condition: Factory New
- Warranty: 3 Years
- Weight: 4.9 lb
-
Learn more:
-
Purchasing Restriction: Medical license or prescription required
- MFR: Mettler Ships from Manufacturer
- MPN: ME 228
- Phone: (800) 854-9305
Frequently asked questions
What specialized treatment modes are included?
The Mettler Sys*Stim 228 is equipped with four distinct treatment modes, offering versatility for various clinical protocols, including pain management and muscle rehabilitation.
The available treatment modes are:
- Surge
- Reciprocation
- Surge with Reciprocation
- Vector Rotation
What standard accessories are included?
The Mettler Sys*Stim 228 is shipped as a complete, Factory New system, providing all the necessary components for two-channel neuromuscular stimulation. The standard package includes:
- Two electrode cable sets (#2260).
- Two gray pin to banana adapters (#2027), which enable combination therapy when used with a compatible Mettler ultrasound unit.
- A supply of EZ Trodes, including one package of 2-inch round (#2221) and one package of 2.75-inch round (#2222).
- A detachable, U.L. listed hospital-grade line cord (#7293).
- Instruction Manual and warranty registration instructions.
Does the Sys*Stim 228 support combination therapy?
Yes, the Mettler Sys*Stim 228 is designed to support combination therapy.
This advanced capability allows you to integrate the neuromuscular stimulation treatments with compatible Mettler ultrasound units.
The system includes the necessary accessories to enable this functionality:
- An adapter is included to allow running the stimulation output directly through Mettler ultrasound devices.
- Specifically, the package contains two gray pin to banana adapters (#2027) to facilitate the connection.
What four versatile stimulation waveforms are available?
The Mettler Sys*Stim 228 provides exceptional clinical versatility with four discrete, high-utility stimulation waveforms designed for use in pain management and rehabilitation protocols:
- Interferential (IFC)
- Pre-modulation
- Medium Frequency (Russian Stim)
- Biphasic
This selection allows clinicians to effectively customize treatments and apply the optimal electrotherapy protocol for diverse patient needs.
Can two areas be treated simultaneously?
Yes, the Mettler Sys*Stim 228 features two independent channels supported by two independent timers (known as Two Timer Mode).
This functionality allows for great clinical versatility, enabling you to:
- Treat two distinct body areas on the same patient with separate protocols.
- Treat two different patients simultaneously, as each channel is independently controlled.
Is the Sys*Stim 228 portable for home use?
Yes, the Mettler Sys*Stim 228 is designed for portability, making it highly suitable for use in both clinical settings and home health environments. Its design emphasizes ease of transport and simple operation.
Key features supporting its mobility include:
- Lightweight Build: The unit weighs only 4.9 lb (2.2 kg).
- Integrated Handle: It features a built-in handle for convenient carrying.
- Simple Interface: The intuitive membrane panel and LED guidance system facilitate easy setup and control, even for non-clinical use.
What is the maximum output intensity for each waveform?
The Mettler Sys*Stim 228 delivers precise therapeutic currents, featuring different maximum intensity outputs for its four distinct stimulation waveforms:
| Waveform | Maximum Intensity Output |
|---|---|
| Interferential | 65 mA RMS |
| Premodulated | 50 mA RMS |
| Medium Frequency (Russian Stim) | 50 mA RMS |
| Biphasic | 99 mA peak |
What are the required electrical input specifications?
The Mettler Sys*Stim 228 is designed for operation on standard electrical specifications:
| Specification | Detail |
|---|---|
| Input Voltage | 115 VAC (± 10%) |
| Frequency | 50/60 Hz |
| Current Draw | 0.4 Amp Nominal |
For enhanced safety and clinical reliability, the unit is supplied complete with a detachable U.L. listed hospital-grade line cord.
Does the unit offer long treatment sessions?
Yes, the Mettler Sys*Stim 228 offers an adjustable treatment duration ranging from 1 minute up to 60 minutes.
Crucially, the unit features two independent timers (Two Timer Mode). This Dual Channel Functionality provides maximum clinical flexibility by allowing you to simultaneously treat:
- Two separate patients.
- Two distinct body areas on the same patient.
Each channel operates with separate control over its timing and treatment parameters.
Does the Sys*Stim 228 have an easy setup process?

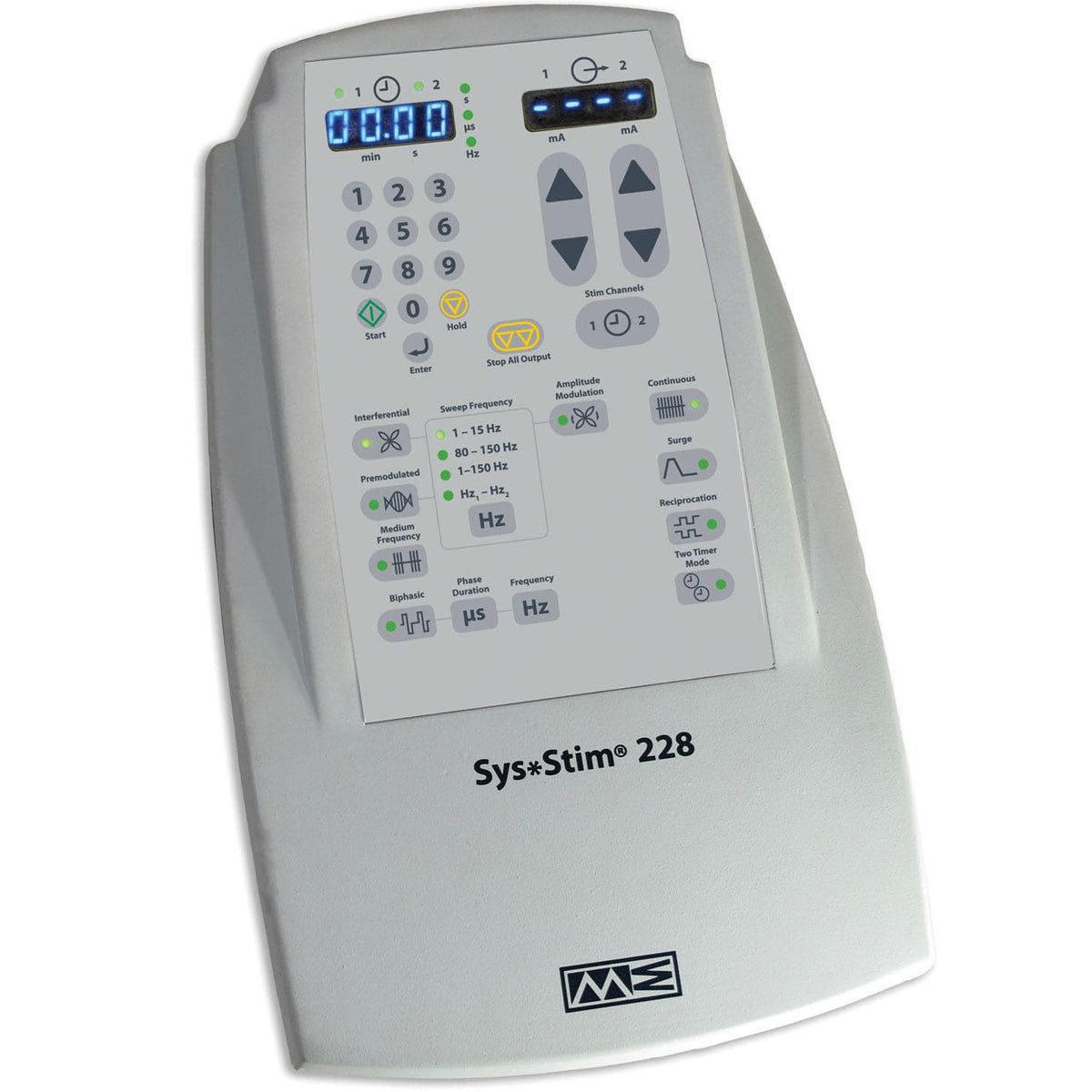

Yes, the Mettler Sys*Stim 228 is engineered for ease of operation and intuitive clinical use, supported by a microprocessor-controlled system.
Key features that streamline the setup and operation include:
- Simple User Interface: It uses a tactile membrane control panel designed for one-touch parameter entry, making treatment setup fast and efficient.
- Guided Setup: The system features an easy setup routine guided by LEDs and provides audible tone confirmation when parameters are entered correctly.
- Clear Display: A bright color LED display ensures all treatment parameters, timing, and output units are clearly visible at a glance.
