Description

The Edan U50 Prime Diagnostic Ultrasound System (#U50P) includes:

  • (2) Fuses (#21.21.064172).
  • Transducer Holder (#01.51.113140).
  • Ultrasound Gel Holder (#21.51.113131).
  • Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
  • Power Cord [(USA standard) (#21.13.036384-10)].
  • Ground Cable (#11.13.114214).
  • User Manual.
  • Quick Guide.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

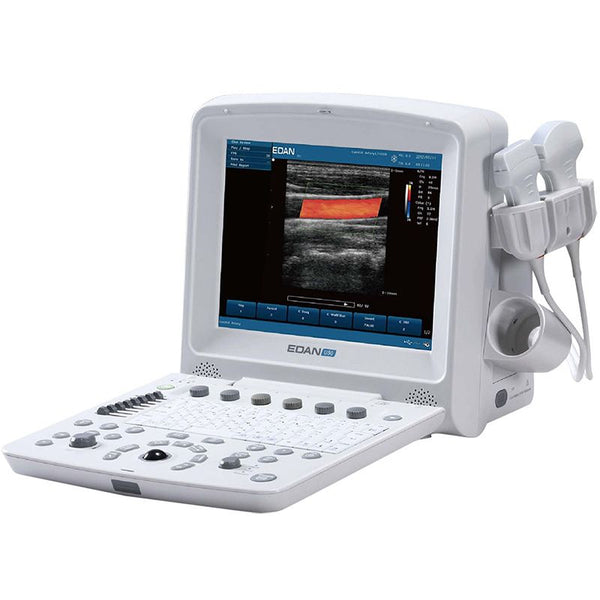

The U50 Prime is Edan's newest portable system that offers color flow, pulse wave, and power doppler.

The U50 Prime Edition ensures you can scan more patients, across more applications, with more diagnostic confidence, whether your imaging study requires unparalleled detail and contrast resolution of high frequency musculoskeletal imaging or superb penetration to evaluate deep abdominal targets.

Features

Edan U50 Prime Diagnostic Ultrasound System Features

  • Imaging Modes: B, B+B, 4B, B+M, M, and PW.
    • Color Doppler Flow.
    • Pulsed Wave Doppler (PW).
    • Continuous Wave Doppler (CW).
    • Power (Directional Power) Doppler.
    • Multi-Beam-Forming: High frame-rate in all modes including color and Doppler.
    • Phased Inversion Harmonic Compound: Reduces noise and clutter for optimum image quality.
    • Speckle Resistance: Improves contrast resolution while maintaining detail resolution.
    • Spatial Compounding: Multiple lines-of-sight improves contrast resolution.
    • Spectral Doppler high-PRF (HPRF).
  • THI.
  • TSI.
  • Multi-Frequency Transducer Technology: Multiple 2-D, harmonic and color frequencies increases transducer utility.
  • User-Friendly Workflow: Intuitive control panel reduces learning curve.
  • Smart PreSets: Quickly adjust multiple settings to suit your patient type and imaging preferences.
  • Multi-pseudo color.
  • Light-weight design for excellent mobility (can be hand carried).
  • Quick boot-up.
  • Back-lit control panel.
  • Measurement and calculation packages.
  • Multi-language software packages.
  • High-performance transducers feature outstanding quality and reliability.
    • The new Prime Edition Transducer Suite includes the C5-2b, L15-7b, and P5-1b.
    • The U50 Universal Transducer Suite includes the C352UB, C612UB, C6152UB, L1042UB, L742UB, L552UB, and E612UB.
  • The performance of a high-end system at a compact price.
  • Built in lithium battery for continuous two hour work (optional).

Specifications

Edan U50 Prime Diagnostic Ultrasound System Specifications

  • Monitor: 12.1" LCD.
  • Transducer Connectors: 2.
  • Memory: 256 frames CINE loop.
  • Image Storage: 504 MB (built-in).
  • USB Ports: 2.

Accessories

Edan U50 Prime Diagnostic Ultrasound System Accessories

The Edan U50 Prime Diagnostic Ultrasound System is commonly purchased with the following transducers:

  • #12.01.210398: Edan Linear Array Transducer L742UB.
  • #02.01.211004: Edan C5-2b Convex Array Transducer.
  • #02.01.211291: Edan P5-1b Phase Array Transducer.
  • #02.01.211060: Edan L15-7b Linear Array Transducer.
  • #12.01.210565: Edan Micro-Convex Array Transducer C6152UB.
  • #12.01.210567: Edan Micro-Convex Array Transducer C612UB.
  • #12.01.210569: Edan Micro-Convex Array Transducer C422UB.
  • #12.01.210398: Edan Linear Array Transducer L742UB.
  • #12.01.210402: Edan Linear Array Transducer L1042UB.
  • #12.01.210575: Edan Linear Array Transducer L552UB.
  • #12.01.210400: Edan Transvaginal Array Transducer E612UB.

Literature

Edan U50 Prime Diagnostic Ultrasound System Literature

Edan U50 Datasheet

Edan U50 Prime Edition Brochure
