Regular price$5,744.25 Sale price$3,838.99
Earn 3839 points
Select a Configuration

Ships from Manufacturer

Est. Delivery:

Shop with Confidence

Package:

Description

The Edan C6A Video Colposcope comes standard with:

  • Camera with Rolling Stand.
  • Capture Card.
  • Capture Card to PC Connecting Cable (#01.13.036677-10).
  • AC Adapter (#21.21.064212).
  • Power Plug (#01.12.032102).
  • Foot Switch (#21.10.027168).
  • Video Colposcope Software.
  • Installation Guide.
  • Quick Reference.
  • User Manual.
  • Data Management Software (#02.01.210696).
  • USB Interface Sentinel for R-way Evaluation Program (#02.05.250701-10).
  • Dust Cover for Camera (#01.56.465507-10).

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

The C6A Video Colposcope uses a bright LED cold lighting system, high-resolution camera, and electronic green filter. It enables precise cervical examination, offering crucial and accurate information for clinical decision making to the gynecologist.

This unit includes a sturdy rolling stand, which can also hold a laptop computer and monitor. The colposcope arm can move up and down while the camera is capable of being tilted.

The colposcope connects to a monitor through a VSA or VGA cable. If connected to a laptop, the colposcope can connect to the monitor via HDMI.

Features

Edan C6A Video Colposcope Features

  • LED cold lighting system reproduces an original view of tissue.
  • LED lights are replaceable.
  • Advanced and fast auto-focusing system ensures clear image.
  • Remote capture control and user-friendly keyboard layout for one handed operation.
  • Electronic green filter enhances vascular image display without compromise of illumination.
  • Acetic acid and iodine reaction test timer to precisely detect low/high grade CIN.
  • Real-time display of magnification.
  • Powerful colposcopic findings gallery for comparison analysis.
  • R-Way Evaluation Program supports cervical disease diagnosis guidance for clinical users.
  • DICOM 3.0 supportive.

Specifications

Edan C6A Video Colposcope Specifications

  • LED Lamps: 40 (two rings of lights).
  • Illumination: > 2500 lux.
  • LED Lifetime: 20,000 to 50,000 hours.
  • Workstation Dimensions: 31.2" x 20.1" x 53" (792 mm x 510 mm x 1345 mm).
  • Colposcope Dimensions: 7.9" x 3.7" x 43.5" (201 mm x 94 mm x 1106 mm).
  • Weight: 30 lb (13.6 kg).
  • Magnification: 1 to 36X.
  • Resolution: 440,000 pixels.
  • Horizontal Resolution: > 470 lines.
  • Focus Mode: Auto/Manual.
  • Working Distance: 6.7 to 11.8" (170 to 300 mm).
  • Field of View: 0.4 to 5.9" (10 to 150 mm).
  • Signal Output: S-VIDEO, PAL/NTSC.
  • Power Supply:
    • Operating Voltage: 110/220 V.
    • Operating Frequency: 50/60 Hz.

Configurations

Edan C6A Video Colposcope Configurations

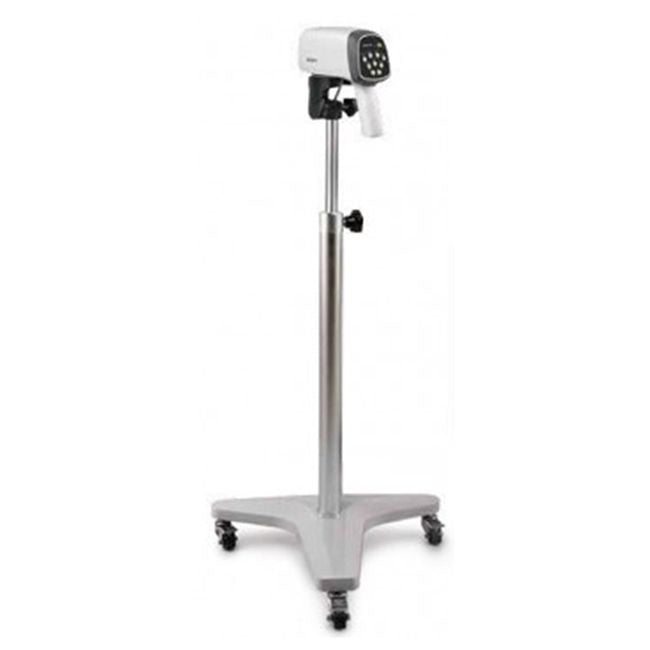

  • #C6A: Standard (No Swing Arm or PC Tray).

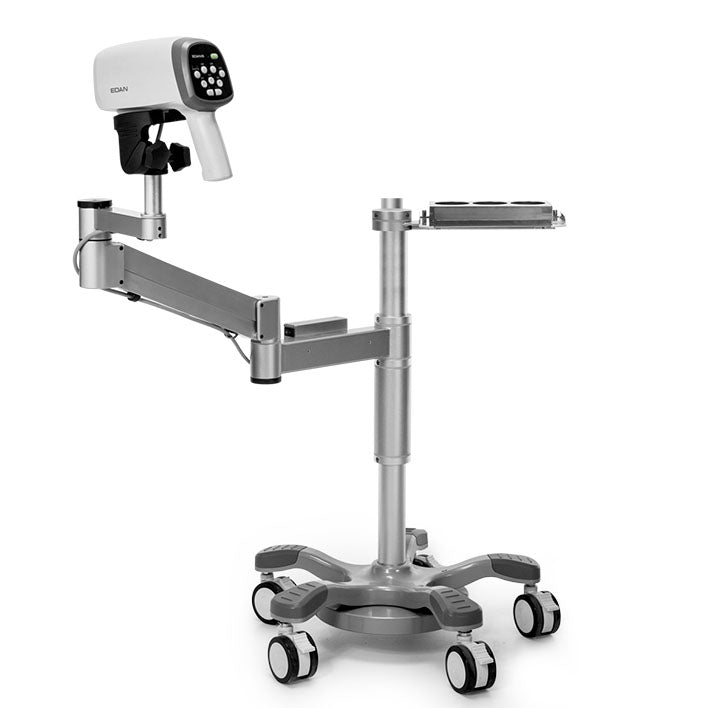

  • #C6A_Arm: With Swing Arm.

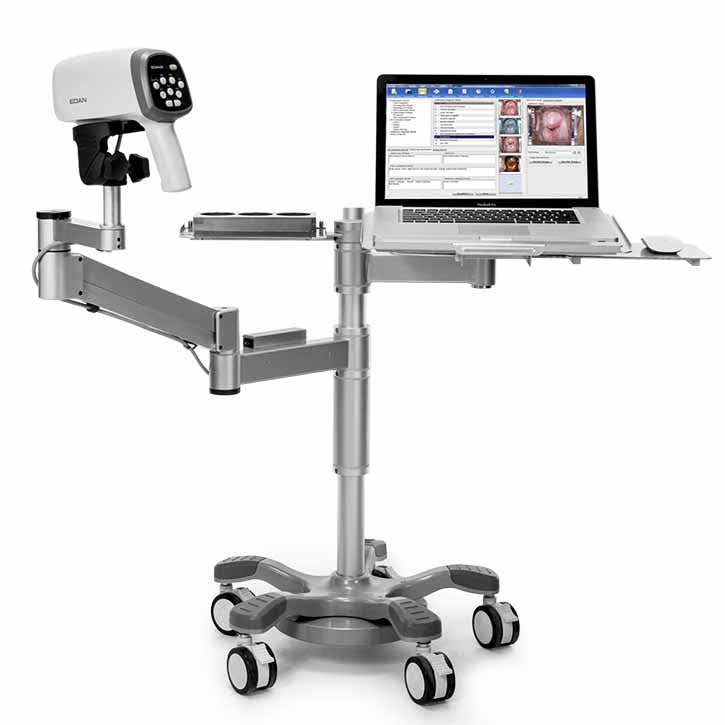

  • #C6A_Arm_Tray: With Swing Arm and PC Tray.

Literature

Edan C6A Video Colposcope Literature

Edan C3A/C6A Video Colposcope Brochure
