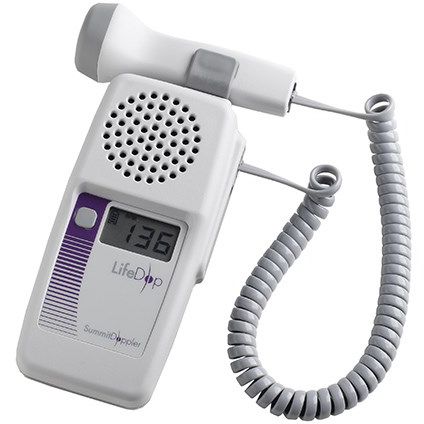

Summit Doppler LifeDop L250 Hand-Held Doppler

The Summit Doppler LifeDop L250 Hand-Held Doppler features a choice of one interchangeable probe.

Warranty: 1 Year - Free from Defects in Material and Workmanship.

The LifeDop L250 accepts the full line of non-directional probes for obstetrical or vascular applications. This system is ergonomically designed to fit in the palm of your hand with comfort, and allows easy access to each control feature. Each system is individually tested and inspected to ensure the highest quality standards.

Non-Directional Interchangeable Probes: Summit Doppler has combined years of experience developing the highest quality Doppler probes in the world. The unique design eliminates the majority of service issues found with traditional Doppler probes.

The Summit Doppler Probes use a standard phone cord to connect the probe to the Doppler. Over time, these Doppler to probe connections wear out and break. With our probes, the customer can replace the cable with any phone cord and they are up and running in minutes and avoid timely and costly repairs, and the tremendous inconvenience created with service requests (user replaceable cables available with SD2, SD3, SD4, SD5, and SD8 model probes).

Summit Doppler probe crystals are protected by a high quality durable plastic, eliminating the probability of the crystal cracking on those unavoidable drops. Each probe is individually tuned to the Doppler to maximize the performance of the probe, and is designed with custom chip technology to minimize traditional crackling noise found with ultrasound probes. The custom design, along with a Dolby stereo speaker, produces a theater sound quality (all Summit Doppler products are backed with a guaranteed satisfaction policy). When the unit is turned on and ready for use, sound from the probe will indicate the probe is connected and working.

We recommend you use Parker Aquasonic Clear Ultrasound Gel (#03-02 or #03-08) with your Doppler.

Summit Doppler LifeDop L250 Hand-Held Doppler Features

• Large LCD display for indication of signal quality, battery status, and extended fetal heart-rate (50 to 220 BPM).
• Superior sound quality from the high-fidelity Dolby stereo speaker.
• Extended battery life.
• Enhanced probe sensitivity.
• Interchangeable probe capability.
• User replaceable cable.
• Powered by three AA batteries.
• Low battery indication.
• Dimensions: 140 mm (H) x 70 mm (W) x 35 mm (L).
• Weight: 0.71 lb (320 grams).

Summit Doppler LifeDop L250 Hand-Held Doppler Probes

• Obstetrical Probes:
  • #L250-SD2: 2 MHz - For late term fetal heart detection.
  • #L250-SDW: 2 MHz (Waterproof) - For late term fetal heart detection with waterproof design.
  • #L250-SD3: 3 MHz - For early fetal heart detection, best general purpose.
• Vascular Probes:
  • #L250-SD4: 4 MHz - Broad flat beam for easy location of blood flow.
  • #L250-SD5: 5 MHz - Wide beam pencil style probe for detection of deeper peripheral vessels.
  • #L250-SD8: 8 MHz - Narrow beam pencil style probe for detection of peripheral surface vessels.
  • #L250-STN: 8 MHz (Sterilizable) - Narrow beam pencil style probe for detection of blood flow for use in sterile fields using STERRAD.
• #C250CB: Obstetrical Combination (2 MHz and 3 MHz).
• #C250CV: Vascular Combination (5 MHz and 8 MHz).
• #C250CC: Obstetrical/Vascular Combination (3 MHz and 8 MHz).

Summit Doppler LifeDop L250 Hand-Held Doppler Accessories

The following accessories are compatible and commonly purchased with the LifeDop L250 Hand-Held Doppler:

• #K200: Hand-Held Dopplers Stand - With Storage Basket.
• #K230: Hand-Held Dopplers Stand - Standard (No Storage Basket).
• #03-02: Parker Aquasonic Clear Ultrasound Gel - 60 g Doppler Size Tube.
• #03-08: Parker Aquasonic Clear Ultrasound Gel - 0.25 Liter Dispenser Bottle.

Summit Doppler LifeDop L250 Hand-Held Doppler Literature

Wallach Product Catalog

Summit Doppler Non-Directional Interchangeable Probes Feature Sheet

Summit Doppler LifeDop OB Sell Sheet

Summit Doppler LifeDop Vascular Sell Sheet

Summit Doppler C250CB Obstetrical Multiple Probe Combination Product Feature Sheet

Summit Doppler C250CV Vascular Multiple Probe Combination Product Feature Sheet

Summit Doppler C250CC Obstetrical/Vascular Multiple Probe Combination Product Feature Sheet

Summit Doppler LifeDop L150/L250 Series User Manual
