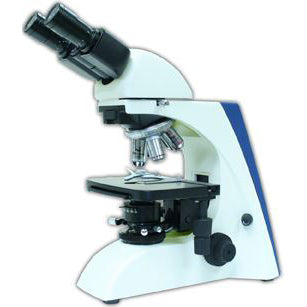

Seiler Microlux IV Compound Microscope

The Seiler Microlux IV Compound Microscope is equipped with Infinity Corrected Plan Objectives, which are designed to deliver superior, professional imaging performance.

The system includes five objective lenses:

• 4x
• 10x
• 20x
• 40x
• 100x

These high-quality objectives ensure:

• Sharper Images: Providing exceptional clarity and detail.
• Aberration-Free Viewing: Virtually eliminating optical distortions across the field of view.

Yes, the Seiler Microlux IV Compound Microscope features integrated anti-fungal systems.

This important protective measure is built in to ensure long-term performance and optical clarity, helping to:

• Maintain the integrity of the Infinity Corrected Plan Objectives.
• Prevent damage and degradation caused by fungal growth.
• Ensure reliable operation across diverse laboratory and clinical environments.

The Seiler Microlux IV Compound Microscope is designed to be highly versatile, supporting multiple configurations for specialized laboratory needs. Key options include:

• Standard Configuration: The robust base unit equipped with the powerful Kohler Illumination System and five Infinity Corrected Plan Objectives (4x, 10x, 20x, 40x, 100x).
• Phase Contrast Capabilities: Specialized configurations that incorporate Phase Contrast objectives, ideal for high-resolution viewing of unstained or transparent specimens.
• Dual View Observation: Options that support simultaneous viewing by two users.
• Digital Video Integration: Configurations designed for seamless integration with video systems, facilitating digital documentation and collaborative analysis.

Yes, the Seiler Microlux IV is equipped with a robust and precise double layer mechanical stage designed for stable and accurate specimen manipulation.

Key features ensuring its durability and precision include:

• Stage Type: A durable double layer mechanical stage.
• Dimensions: The stage measures 190 mm x 140 mm.
• Travel Area: It allows for precise specimen navigation across a 78 mm x 55 mm travel area.
• Control: Movement is managed efficiently using a dedicated right-hand stage handle, and it includes a removable slide holder.

The Seiler Microlux IV utilizes the precise Kohler Illumination System for bright, controlled viewing.

Key components of the illumination setup include:

• Standard Light Source: Halogen 12 V / 20 W.
• Optional Upgrade: An LED light source is available, depending on the chosen configuration.
• Condenser: An Abbe Type Condenser (N.A. = 1.25) with an iris diaphragm allows for highly accurate light control onto the specimen.

Yes, the Seidentopf type binocular head of the Seiler Microlux IV Compound Microscope offers adjustable features for comfortable viewing:

• Interpupillary Adjustable Distance: 50 - 75 mm
• Diopter Adjustable Range: ± 5°

The Seiler Microlux IV comes equipped with a high-quality eyepiece featuring the following key specification:

• Type: WF10X / 20 mm

This specification is beneficial because:

• It provides a 10x magnification factor.
• It offers a wide 20 mm field of view (FN 20), ensuring comfortable and extensive observation of your specimens.

The Seiler Microlux IV is engineered to be a versatile and high-performance instrument, making it suitable for a wide range of demanding professional and educational settings.

It is ideally suited for:

• Clinical Diagnostics and Pathology: The core strength lies in its Infinity Corrected Plan Objectives (4x to 100x), which deliver sharp, aberration-free images crucial for detailed analysis of tissue samples and clinical slides. The robust construction and anti-fungal system ensure longevity in frequent use environments.
• Advanced Laboratory Research: The ability to configure the microscope with Phase Contrast Objectives allows for specialized viewing of unstained or live specimens, essential for many advanced research protocols.
• Education and Collaborative Review: The system is available in Dual View and dedicated Video/Digital configurations. These variants enable seamless sharing of the live view, making the Microlux IV an excellent tool for teaching, collaborative diagnosis, and documentation in academic or hospital settings.
• General Microscopy: Its powerful Halogen 12 V / 20 W (or optional LED) illumination, combined with the Abbe Type Condenser, provides excellent contrast and brightness for standard laboratory work.

Yes, the Seiler Microlux IV Compound Microscope features a 110 - 240 V universal power supply.

This broad voltage compatibility makes the microscope highly versatile for use in various global locations without the need for a specific voltage converter.

Yes, the Seiler Microlux IV Compound Microscope utilizes a high-quality Abbe Type Condenser with a Numerical Aperture (N.A.) of 1.25.

This condenser is essential for optimizing illumination and maximizing image clarity, especially when utilizing the powerful Infinity Corrected Plan Objectives.

Key features of the condenser include:

• N.A. = 1.25: Provides the necessary light concentration for high-magnification viewing, including the 100x objective.
• Integrated Iris Diaphragm: Allows precise control over the angle of illumination, enabling users to adjust contrast and depth of field for superior image quality.
