Burton CoolSpot II Examination Light - Single Ceiling Mount

Burton CoolSpot II Examination Light - Single Ceiling Mount
Burton Outpatient II / CoolSpot II Combo Light - Fastrac Mount
Burton CoolSpot II Examination Light - Single Ceiling Mount
Burton Outpatient II / CoolSpot II Combo Light - Fastrac Mount
Key Features
  • SKU: PHL-CS316SC
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 29.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from MFI Medical
  • MPN: CS316SC
  • Phone: (800) 444-9909
$5,028.00 $3,713.81

+ Free Shipping

1+ In Stock

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton CoolSpot II Examination Light - Single Ceiling Mount secures the impressive medical spotlight to an elevated base, making it ideal for examination areas where space is limited.

Warranty: 5 Years - Parts and Labor.

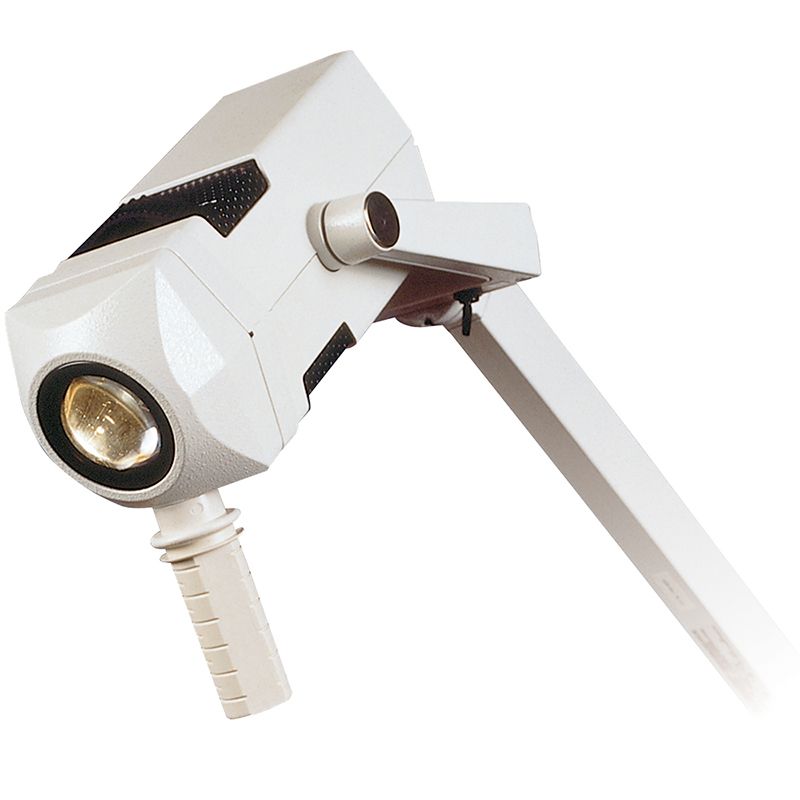

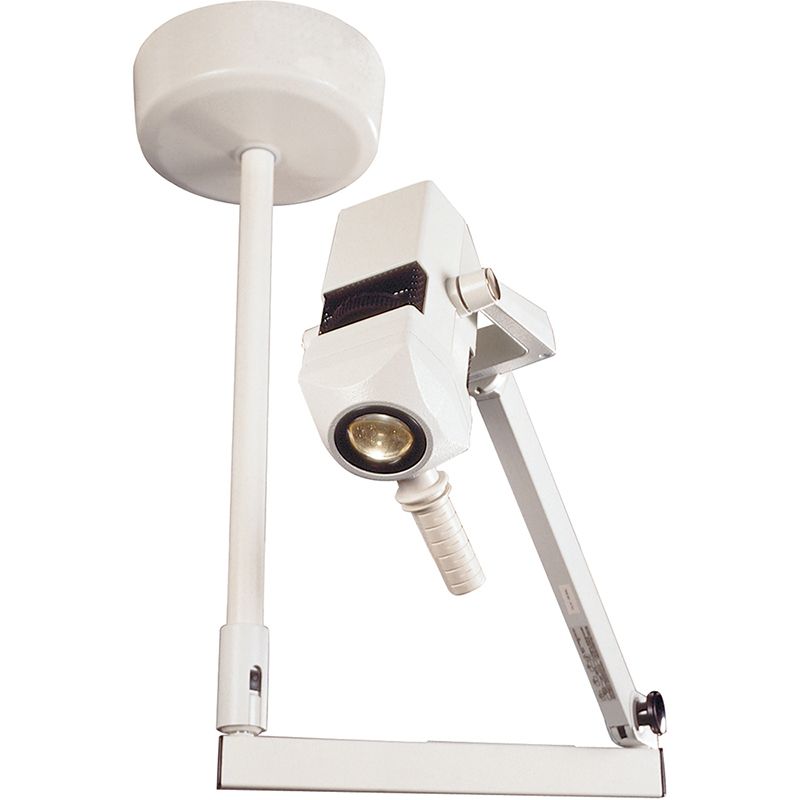

The Burton CoolSpot II Examination Light - Single Ceiling Mount descends from the base by 36 inches, and the light is mounted onto two arms that measure 18 inches and 19.5 inches. The grip handle at the base of the light makes for easy maneuverability, and the light is also equipped with a bi-level dimmer. Caregivers can position the light and adjust the intensity as needed.

The ceiling mount keeps this lamp elevated and compact, while also maintaining a wide range of reach. The CoolSpot II has been found to be most effective in hospital and clinical examination settings, including dental and veterinary offices.

The Burton CoolSpot II Examination Light - Single Ceiling Mount ships in 2 packages:

  • Head: 12.5 lb / 36" x 14" x 8".
  • Single Ceiling Mount: 37.5 lb / 34" x 14" x 8".

Features

Burton CoolSpot II Examination Light - Single Ceiling Mount Features

  • Focused, cool light for patient comfort.
  • Meets California Seismic Codes.
  • Sterilizable handle.
  • 600 hours of light, right out of the box.
  • Friction knob adjusts tension of the arms without needing special tools.
  • 120 V standard, with 100 V and 230 / 240 V options available.

Specifications

Burton CoolSpot II Examination Light - Single Ceiling Mount Specifications

  • Weight: 50 lb (23 kg).
  • Drop Tube Length: 36" (91.44 cm).
  • Light Source: Halogen bulb - 150 watts.
  • Variable Spot Size: 2" - 10" (5 cm - 25 cm).
  • Illuminance: 60,000 lux (5,574 footcandles).
  • Light Color Temperature: 4,300 Kelvin.
  • Color Rendering Index: 94.
  • Number of Bulbs: 1.
  • Bulb Life: 600 hours.
  • Power:160 Watts.
  • Certifications / Approvals: UL 60601-1, EN 60601-1-2, IEC 60601-2-41 and CAN/CSA C22.2 NO. 601.1 M90.
  • FDA Classification: FDA Class I, Major Surgery Light.

Configurations

Burton CoolSpot II Examination Light - Single Ceiling Mount Configurations

  • #CS316SC: 120 V - For use in the U.S.
  • #CS325SC: 230 / 240 V - For use in Europe.
  • #CS315SC: 100 V - For use in Japan.
  • #C302SC25: 230 V / 240 V - SP Model. Refers to Spanish Language Manuals.

Burton CoolSpot II Examination Light - Single Ceiling Mount Accessories

The Burton CoolSpot II Examination Light - Single Ceiling Mount is commonly purchased with:

  • CoolSpot II Replacement Bulbs (4 / Box).
  • CoolSpot II Replacement Handle.
  • Light Handle Covers, Sterile (25 / Box).
  • 42" Drop Tube.
  • Maximum 58" Drop Tube.

Frequently asked questions

Is the light intensity easy to adjust?

Yes, the Burton CoolSpot II is engineered for swift and precise control over both light output and physical positioning.

Key features that make adjustments easy include:

  • Intensity Control: The light utilizes an integrated bi-level dimmer to quickly adjust the illumination level, which delivers a maximum output of 60,000 lux.
  • Variable Spot Size: You can focus the beam from a narrow 2-inch (5 cm) spot to a wider 10-inch (25 cm) spot, adapting to various examination requirements.
  • Positioning & Maneuverability: The light head features a sterilizable grip handle for easy manipulation. Positioning is further simplified by the dual articulated arms which have a friction knob allowing tool-free tension adjustment.
Does this light feature an adjustable spot size?

Yes, the Burton CoolSpot II Examination Light is equipped with a variable spot size feature, which allows you to precisely focus the light for different procedures and examination needs. The spot size is adjustable across the following range:

  • Minimum Spot Size: 2 inches (5 cm)
  • Maximum Spot Size: 10 inches (25 cm)

This control enables you to use either a tightly focused beam or a broader area of illumination.

Does it include a high-performance Halogen bulb?

Yes, the Burton CoolSpot II comes standard with a high-performance 150-watt Halogen bulb designed for accurate medical examinations. This single bulb is optimized for focused, cool illumination.

Key specifications for the light output include:

  • High Output: Delivers 60,000 lux illuminance (5,574 footcandles).
  • Excellent Color Fidelity: Features a high Color Rendering Index (CRI) of 94 and a color temperature of 4,300 Kelvin, ensuring accurate color rendition of tissue.
  • Adjustable Spot Size: The light allows for a variable spot size, adjustable from 2 inches up to 10 inches (5 cm to 25 cm).
  • Bulb Life: The included bulb has an initial rated lifespan of 600 hours.
Does the bulb have a long operating life?

The halogen bulb is rated for an operating life of approximately 600 hours right out of the box. This extended duration helps minimize the need for frequent replacements, ensuring the examination light remains reliable and operational in busy clinical settings.

Does it offer a space-saving design?

Yes, the Burton CoolSpot II is designed with a single ceiling mount to keep the lamp elevated and compact, making it ideal for examination areas with limited space.

Is light positioning easy and precise?

Yes, the Burton CoolSpot II is specifically engineered for easy and precise illumination placement and maximum flexibility:

  • Extensive Reach: The light head is supported by dual articulated arms (measuring 18 inches and 19.5 inches) that provide a wide range of motion for positioning.
  • Precise Control: Positioning is easily controlled using the sterilizable grip handle, which maintains aseptic conditions while allowing for fine adjustments.
  • Secure, Stable Placement: Arm tension is quickly adjusted via a friction knob (no special tools required), ensuring the light remains stable and securely held in the desired location without unwanted drift.
Is the Color Rendering Index (CRI) high?

Yes, the Burton CoolSpot II is designed for superior clinical visualization and features an exceptionally high Color Rendering Index (CRI) of 94. This high rating ensures that colors are rendered naturally and accurately, which is vital for precise diagnosis and accurate tissue rendition during examinations.

Here are the key lighting specifications:

  • Illuminance: Delivers 60,000 lux (5,574 footcandles) of focused light.
  • Color Temperature: 4,300 Kelvin, providing a clear white light.
  • Light Source: Uses a single 150-watt Halogen bulb.
  • Bulb Life: The initial bulb life is rated at 600 hours.
  • Spot Size: The light offers a variable spot size, adjustable from 2 inches up to 10 inches (5 cm - 25 cm).
Does it offer accurate color rendering?

The Burton CoolSpot II Examination Light boasts a Color Rendering Index (CRI) of 94, ensuring highly accurate color representation. This is crucial for medical examinations, allowing caregivers to perceive tissue and skin tones with exceptional clarity and precision.

How many packages is the examination light shipped in?

The Burton CoolSpot II Examination Light is shipped in two separate packages (one for the Light Head and one for the Ceiling Mount assembly). The total combined shipping weight for both packages is 50 lb (23 kg). The dimensions for the two packages are as follows:<ul><li>Light Head Package: 36” x 14” x 8”</li><li>Ceiling Mount Package: 34” x 14” x 8”</li></ul>

Does this light include a sterilizable handle?

Yes, the Burton CoolSpot II Examination Light is designed with a sterilizable grip handle.

This handle, located at the light base, is essential for:

  • Maintaining strict hygiene standards in medical settings.
  • Allowing clinicians to precisely position the light head over the patient.

Using a sterilizable handle minimizes the risk of cross-contamination during examinations.
