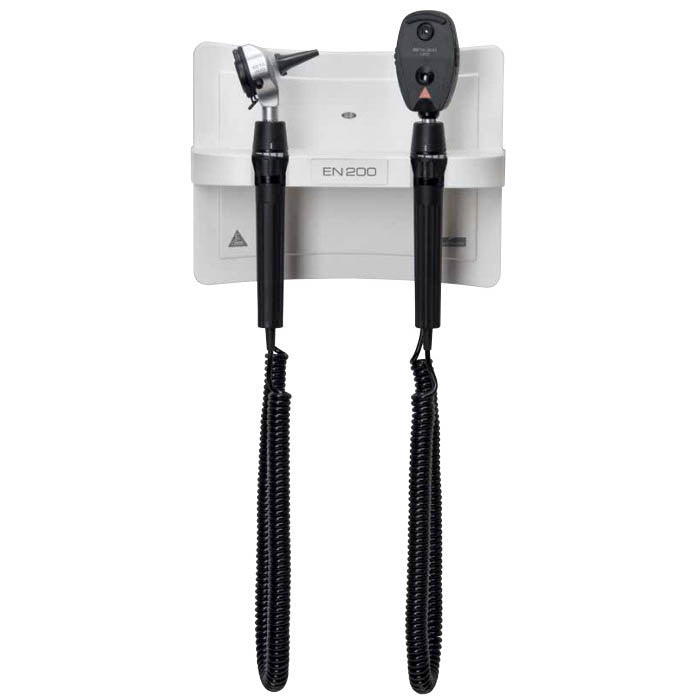

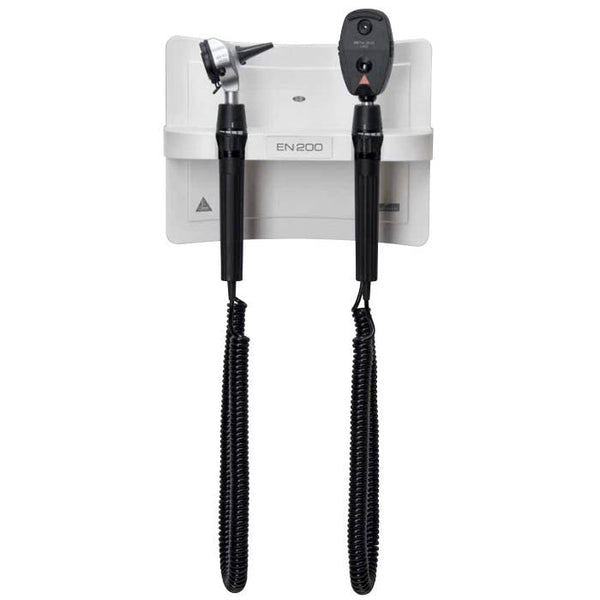

Midmark EN200 HEINE Diagnostic Wall Kit with BETA Instruments

Yes, the Midmark EN200 HEINE Diagnostic Wall Kit includes an integrated anti-theft system.

This security feature is designed to prevent the unauthorized removal of the diagnostic instrument heads (Otoscope and Ophthalmoscope) from the wall unit, ensuring these critical tools are consistently available for clinical use.

Yes, the Midmark EN200 HEINE Diagnostic Wall Kit includes two high-quality BETA diagnostic instruments (Otoscope and Ophthalmoscope), designed for precision and clinical durability.These instruments offer several advanced features:

• Exceptional Durability: The instruments are built with a shock-resistant cast-aluminum frame. They utilize multi-coated, scratch-resistant glass viewing windows, unlike conventional plastic.
• Long-Term Savings: Configurations featuring LEDHQ technology provide an estimated operational life of up to 100,000 hours, significantly reducing long-term maintenance needs.
• Detailed Views: The Ophthalmoscope offers a broad lens range from -35D to +40D and includes six essential apertures. Additionally, the optional BETA400 Otoscope configuration delivers increased magnification for enhanced detail and foreign body recognition.
• Operational Reach: Both instruments are connected to the EN200 Wall Transformer via durable polycarbonate handles with a generous 11.5 ft (3.5 m) cord length.

Yes, the Midmark EN200 HEINE Diagnostic Wall Kit is specifically engineered for space efficiency and streamlined use in clinical settings.

Key aspects of its design include:

• Wall-Mounted System: The comprehensive diagnostic center mounts directly to the wall, conserving valuable counter and floor space.
• Flat Housing: The unit features a flat, minimalist housing that minimizes projection from the wall. This design also improves hygiene by being easy to clean and reducing contamination risk.
• Retractable Cords: Instruments are connected via 11.5’ (3.5 m) coiled corded handles, providing maximum reach during examination while keeping the workspace neat when the instruments are docked.

Yes, the design of the EN200 Wall Kit prioritizes hygiene and safety, minimizing the risk of cross-contamination in clinical settings. This is achieved through specific design elements:

• Flat, Easy-to-Clean Housing: The space-saving, wall-mounted unit features a smooth, flat housing without an external on/off switch. This design eliminates crevices and minimizes difficult-to-clean areas, allowing for quick and thorough sanitization.
• Automated Power Management: Instruments automatically power on when removed and power off when returned to the cradles. This automated functionality significantly reduces physical contact points compared to devices requiring manual operation.

The Midmark EN200 HEINE Diagnostic Wall Kit, when configured with LEDHQ instruments, provides exceptional longevity:

• The projected operational life for the LEDs is 100,000 hours.

This extended lifespan is a major benefit, as it significantly reduces maintenance and service costs by virtually eliminating the need for bulb replacements.

Yes, the BETA400 configuration, available for the otoscope, provides increased magnification to significantly enhance detail recognition during examinations. This superior visualization is essential for thorough diagnostics in clinical settings.

Yes, the EN200 system utilizes Automated Power Management to streamline workflow and improve hygiene.

Key features include:

• Automatic Activation: Handles switch on automatically when they are removed from the charging cradle.
• Automatic Deactivation: Handles switch off automatically when they are placed back in the cradle.
• Brightness Memory: The system maintains the desired brightness level set by the user, ensuring the instrument is instantly ready for examination.

This automatic function also eliminates the need for an external on/off switch on the wall unit, supporting the flat, space-saving design and enhancing overall hygiene.

The Midmark EN200 kit configurations allow you to select the appropriate illumination technology and instrument series based on your clinical needs. The system provides two primary choices:

1. Illumination Technology

• LEDHQ (High-Quality LED): Offers bright, homogeneous illumination and features an exceptional 100,000-hour LED life, significantly reducing long-term maintenance and service costs.
• XHL (Xenon Halogen Lamp): A high-performance, traditional light source that delivers intense and clear illumination.

2. Instrument Series (Magnification Level)

• BETA200 Instruments: Utilize high-resolution, multi-coated precision optics.
• BETA400 Instruments: This advanced option provides ** increased magnification** for superior anatomical detail, easier foreign body recognition, and exceptional depth of field.

The EN200 Wall Transformer requires a main power supply of 100 to 240 VAC / 50 to 60 Hz.

Yes, the BETA Ophthalmoscope is designed for versatile and precise retinal examination, featuring an extremely wide and accessible adjustment range, alongside specialized filters. Its key features include:

• Extensive Diopter Range: The lens focuses across a broad range, from -35D to +40D, enabling precise examination for various refractive needs.
• Aperture Versatility: It provides six specialized apertures (including slit, fixation star, cobalt blue filter, large spot, pinhole, and hemispot), all available with an integrated red-free filter for comprehensive diagnostics.
• Precision Control: Brightness adjustment is managed easily via one-finger operation, spanning from 100% down to 3%.
• Durability and Optics: The viewing window utilizes multi-coated, scratch-resistant glass. Its optical components are shock-resistant and housed within a robust cast-aluminum frame, ensuring long-term reliability.
• Illumination Life (LED Variants): When configured with LEDHQ illumination, the light source has an estimated service life of 100,000 hours, minimizing maintenance.
