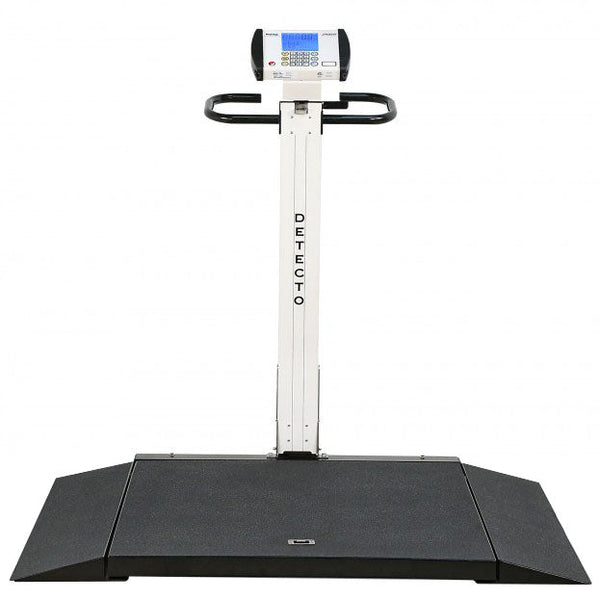

The Detecto Digital Portable Fold-Up Wheelchair Scale (#809161139402 / Model 6550) is versatile and designed to be both a stand-on scale and a wheelchair scale. It includes an advanced Detecto Weight Indicator with optional Ethernet output mounted on a 360° rotating swivel bracket for easy viewing, and an easy to read blue LCD display.
Warranty: 2 Years - Limited Workmanship and Defects.
The scale features heavy duty wheels for ease of transport, sloped ramps on both sides, and a fold-up feature that makes it easy to store. The 6550 is powered by 6 "C" batteries or optional MVIPWR AC adapter (#809161189506).
The 6550 scale's column folds down and latches securely for easy transport; the vertical-fold feature requires minimal floor space for storage, and stays in an upright position when not in use. These features make the 6550 ideal for use in multiple areas.
The MV1 MedVue Weight Indicator attached to the 6550 Scale is the clinical industry's most advanced, featuring EMR/EHR-ready serial, USB and optional Wi-Fi connectivity, BMI calculation, "quick keys" for basic weighing, and an LCD display. Other features of the MV1 include patient ID storage and scanning for EMR/HER records and a hold/release key to hold weight after leaving the scale for better patient care. Optional Mounting Kit MMK2 available (#809161190106).
Detecto Digital Portable Fold-Up Wheelchair Scale Specifications
- Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg.
- Keypad: 19-key, color-coded sealed membrane.
- Platform Size: 30" x 32" (76 cm x 81 cm).
- Weight Display: 7/8" high LCD, 5-digit, 7-segment.
- Height Display: 1/2" high LCD, 4-digit, 7-segment.
- Connectivity: RS232 serial, USB port, wired, and Wi-Fi Ethernet.
- Display Dimensions: 9.5" W x 6.6" H x 2.1" D (24 cm x 17 cm x 5 cm).
- Resolution: 5,000 divisions, maximum.
- Operating Temperature: 14 to 104 °F.
- Enclosure Construction: Steel and aluminum.
- Shipping Weight: 91 lb.
- 6550KGEU EU Declaration of Conformity.
- 6550KGEU 300 kg Composition of Modules.
- 6550KGEU 350 kg Composition of Modules.
- MVWIFI Wi-Fi Ethernet (#809161189704): Card for wireless Ethernet connectivity. Be connected via Wi-Fi while having USB and serial ports free to be connected to other devices.
- MVIP Wired Ethernet (#809161189605): Wired Ethernet option card.
