MFR:
Detecto
Ships from Manufacturer
-
MPN: APEX-SH
- Phone: (800) 641-2008
Frequently asked questions
Does it feature touchless sonar height measurement?

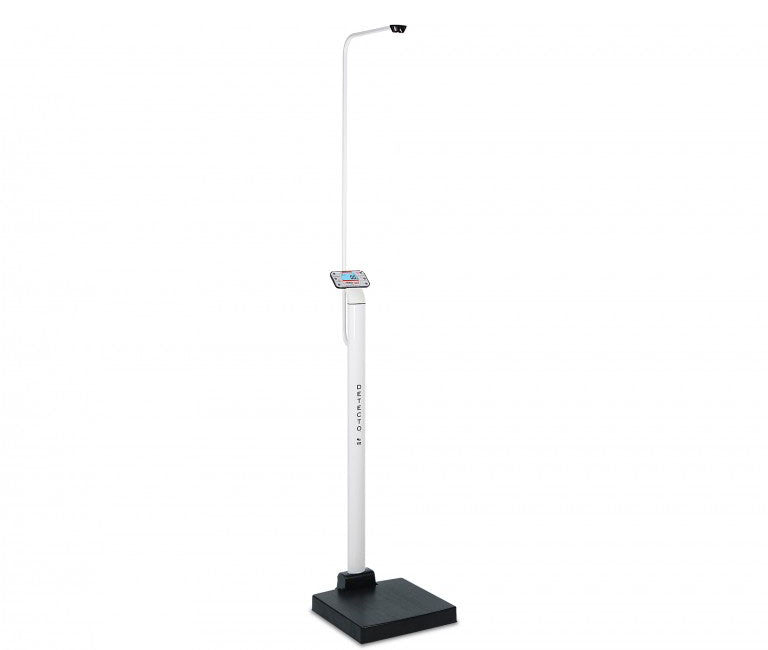

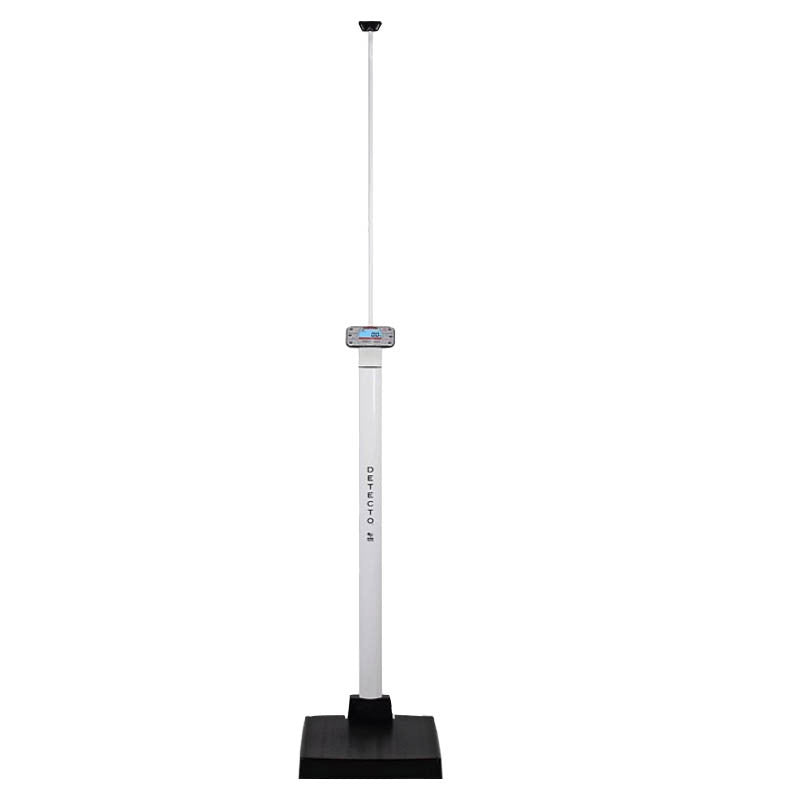

Yes, the Detecto Apex scale is equipped with an integrated Sonar Height Rod, providing fast and hygienic non-contact measurement.
Key features of the touchless height rod:
- Hygienic and Touchless: Measurement is instantaneous and requires no physical contact, enhancing patient comfort and clinical efficiency.
- Measurement Range: It accurately measures height from 24 inches up to 86 inches (60 cm - 218 cm).

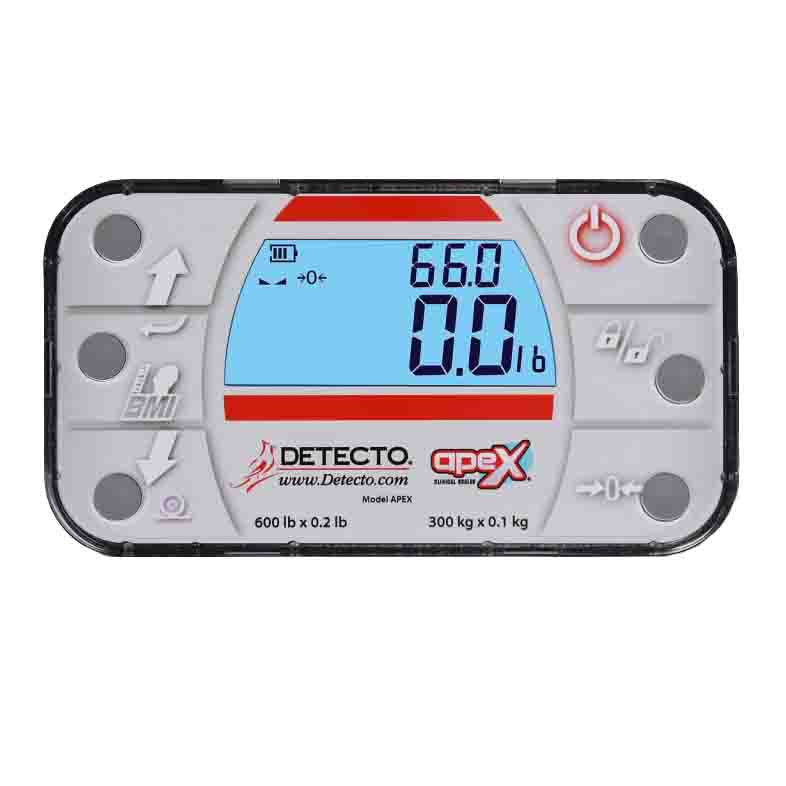

- Integrated Display: Height readings are displayed simultaneously with the patient’s weight and the calculated Body Mass Index (BMI) on the eye-level, clinical-blue LCD screen.
What are the high-capacity and sonar height measurement ranges?
The Detecto Apex scale is engineered for high-capacity clinical use, offering simultaneous and precise measurement of weight and height.
- Maximum Weight Capacity: This robust scale supports up to 600 lb (300 kg), providing highly accurate readings with a readability of 0.2 lb or 0.1 kg.
- Touchless Height Measurement: Utilizing the integrated Sonar Height Rod, height is measured instantly and hygienically without physical contact. The measurement range is extensive, spanning from 24 inches (60 cm) to 86 inches (218 cm).
Does this scale calculate BMI?
Yes, the Detecto Apex Digital Clinical Scale calculates Body Mass Index (BMI) with a dedicated button for streamlined patient assessment.
Is the sonar height rod range wide?
Yes, the integrated, touchless Sonar Height Rod provides fast and hygienic height measurement across a substantial range, accommodating most patients in a clinical setting. The system instantly measures height without physical contact. The measurement range is:
- Imperial: 24 inches up to 86 inches (7 feet, 2 inches)
- Metric: 60 cm up to 218 cm
These results are displayed simultaneously with the patient’s weight and calculated BMI on the eye-level LCD screen.
Does the scale offer flexible power options?
Yes, the Detecto Apex Digital Clinical Scale is designed with flexible power options to suit both mobile and fixed clinical settings:
- Battery Power: The scale can be operated using 12 AA batteries for cordless use (note: batteries are not included).
- AC Power: An optional AC adapter is available for continuous operation or stationary setups. You must select the appropriate configuration if you require the AC adapter.
Does this scale integrate with EMR/EHR systems?
Yes, the Detecto Apex Digital Clinical Scale is engineered for robust data transfer and easy integration with Electronic Medical Records (EMR) and Electronic Health Records (EHR) systems. Its connectivity features include:
Standard Compliance and Ports
The base configuration adheres to industry standards and provides multiple physical connection points:
- Industry Compliance: The scale is HL7 IEEE 11073 compliant, ensuring reliable data exchange compatibility.
- Physical Ports: It includes two RS232 serial ports and one micro USB-B port for direct data transfer.
Optional Advanced Integration
For clinical environments requiring wireless or specific device compatibility, specialized configurations are available:
- Wireless EMR/EHR: Wi-Fi/Ethernet models are offered for seamless wireless transmission of data.
- Welch Allyn Connectivity: Specific models support integration with Welch Allyn protocols (CVSM, CSM, LXI).
Is the platform spacious and stable?
Yes, the Detecto Apex scale is designed with a spacious and sturdy platform suitable for clinical use. Its substantial dimensions ensure patient comfort and stability, supporting a high capacity of up to 600 lb (300 kg).
The specific platform dimensions are:
- Width: 17 inches (43.2 cm)
- Depth: 17 inches (43.2 cm)
- Height (from floor): 2.75 inches (7 cm)
Is this scale suitable for high-traffic clinical environments?
Yes, the Detecto Apex Digital Clinical Scale is explicitly engineered for high-demand, rigorous clinical use, prioritizing efficiency, accuracy, and hygiene.
Key features that make it ideal for busy settings include:
- Touchless, Rapid Measurement: The integrated Sonar Height Rod provides instant, sanitary height measurements (24 to 86 inches) without physical contact, significantly speeding up patient throughput.
- High Capacity: It supports weights up to 600 lb (300 kg) with high precision (0.2 lb / 0.1 kg increments), accommodating a wide range of patients.
- Streamlined Workflow: The eye-level LCD display simultaneously shows weight and height, and features a one-press function for automatic BMI calculation.
- Mobility and Integration: The sturdy scale includes dual integral wheels for easy transport. Robust connectivity options (dual RS232, USB-B, and optional Wi-Fi/EMR modules) ensure seamless data logging in high-volume practices.
Is the integrated height rod touchless?

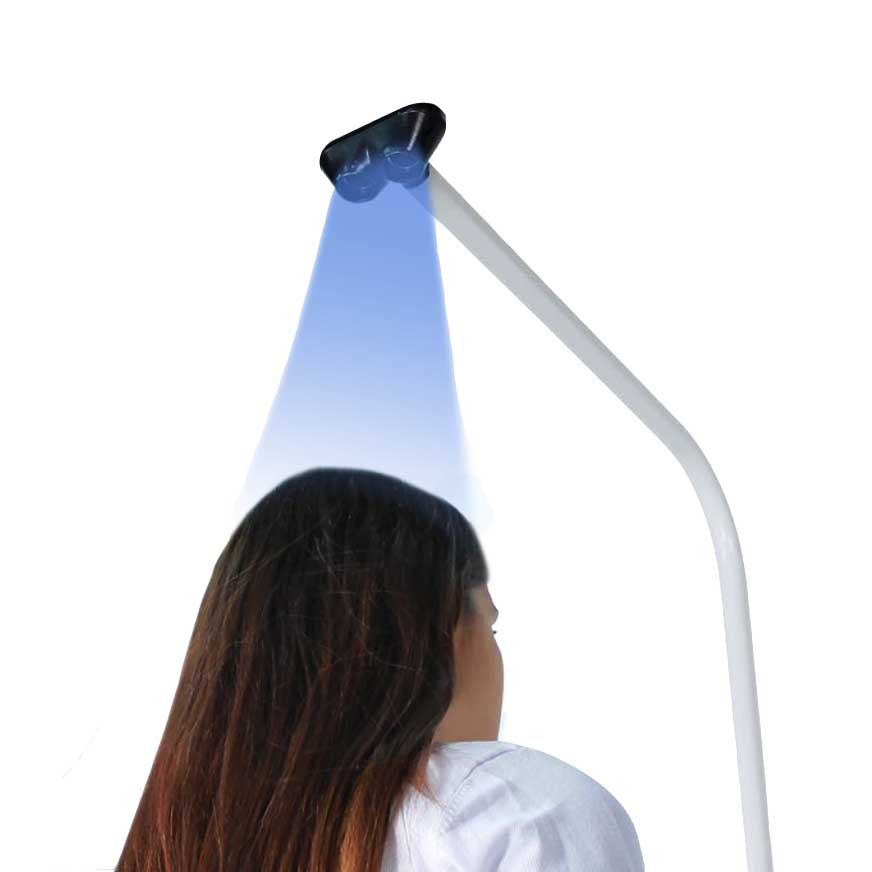

Yes, the Detecto Apex Scale features an advanced Sonar touchless height rod, which is a key component for hygienic and efficient patient measurements.
Key measurement features include:
- Touchless Technology: Height is measured instantly using sonar technology, eliminating the need for physical contact.
- Wide Range: The rod can measure patient height across a broad spectrum, from 24 inches up to 86 inches (60 cm to 218 cm).
- Integrated Display: The dual-row, eye-level LCD display shows the measured height and weight simultaneously.
- Instant BMI Calculation: The scale includes a dedicated BMI button to automatically calculate and display the Body Mass Index alongside the height and weight readings, streamlining clinical workflow.

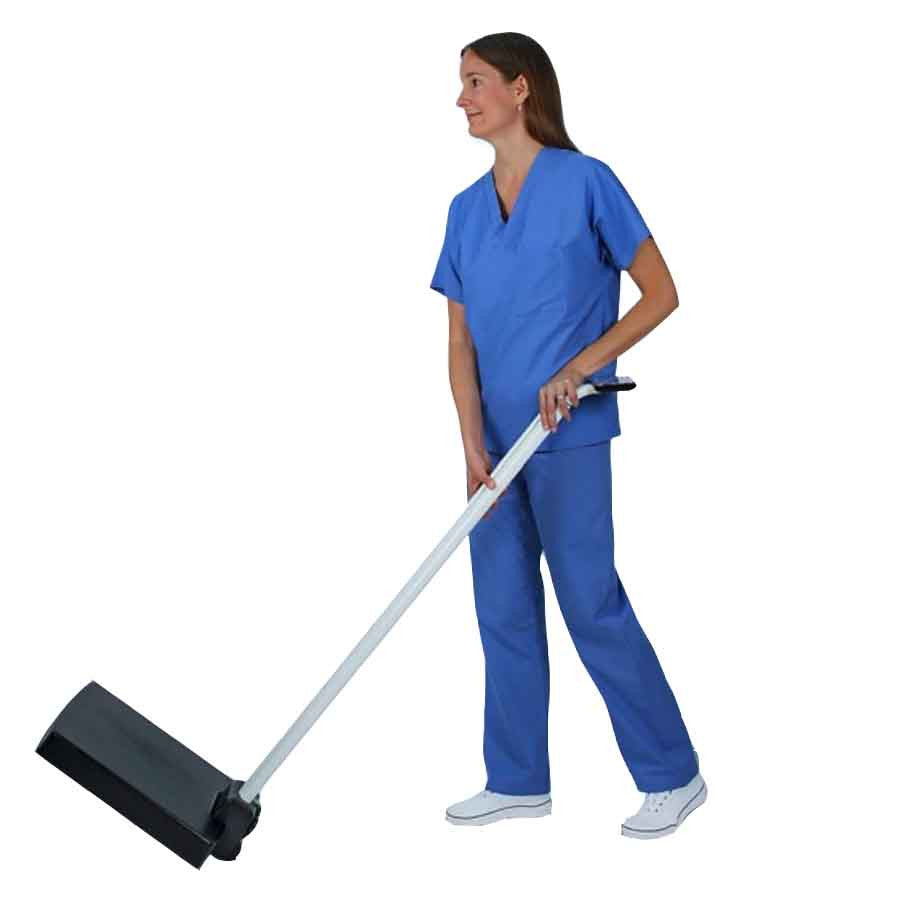

Does this scale feature convenient portability?
Yes, the Detecto Apex Digital Clinical Scale is designed for easy transport and relocation within clinical environments. Key features that enhance mobility include:
- Dual Integral Wheels: The scale base is equipped with dual integral wheels, allowing staff to move the unit easily.
- Lightweight Construction: The scale has a net weight of only 31 lb (14 kg), making it straightforward to maneuver using the wheels.
