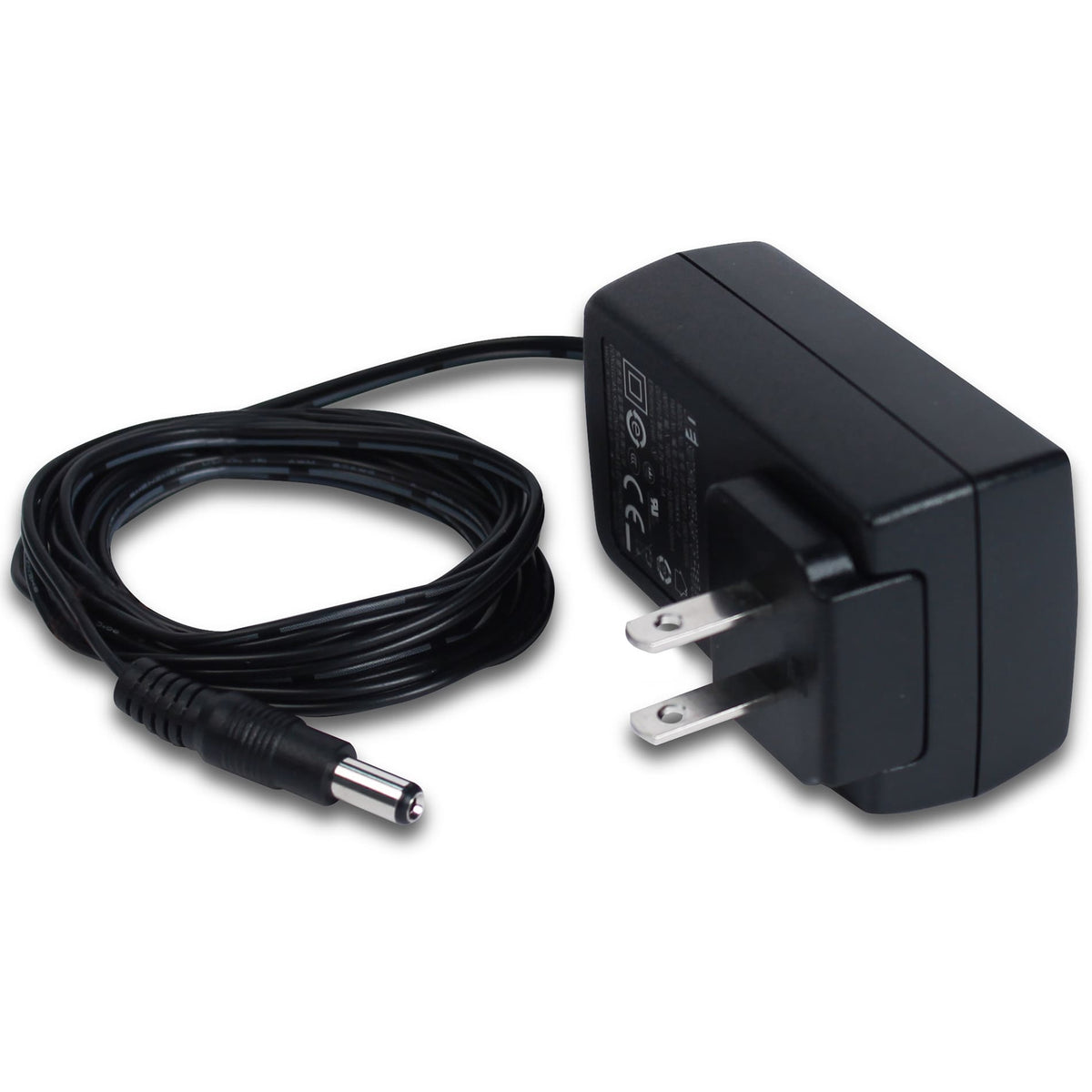

Detecto AC Adapter - ProDoc/solo Scales

Detecto AC Adapter - ProDoc/solo Scales
Key Features
  • SKU: DTO-PD-AC1
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 90 Days
  • Weight: 1.0 lb
  • Designed to power ProDoc and solo Series clinical scales
  • US plug
  • Cord Length: 59" (1.5 m)
  • OEM: GlobTek, Inc. WR9HD1333CCP-F(R6B)

  • Learn more:

Contact The Manufacturer
  • MFR: Detecto Ships from Manufacturer
  • MPN: PD-AC1
  • Phone: (800) 641-2008
$77.74

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Detecto AC Adapter - ProDoc/solo Scales (#PD-AC1) with US plug is designed to power ProDoc and solo Series clinical scales.

Warranty: 90 Days.

To power the scale using the 9 V wall plug-in adapter, connect the plug from the adapter into the power jack on the back of the scale base, and then plug the power adapter into the proper electrical outlet.

Note: This is manufactured OEM by GlobTek, Inc., with MPN of #WR9HD1333CCP-F(R6B).

Specifications

Detecto AC Adapter - ProDoc/solo Scales Specifications

  • Input Type: Fixed blade.
  • Voltage:
    • Input: 90 ~ 264 VAC.
    • Output: 9 V.
  • Current - Output (Max): 1.33 A.
  • Power: 12 W.
  • No Load Power Consumption: 75 mW (Max).
  • Efficiency: Level VI.
  • Output Connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D. x 11 mm.
  • Cord Length: 59" (1.5 m).
  • Input Connector: NEMA 1-15P.
  • Dimensions: 2.72" (L) x 1.13" (W) x 2.26" (H) (69 mm x 28.8 mm x 57.3 mm).

Frequently asked questions

Is this AC adapter compatible with ProDoc/solo scales?

Yes, this Detecto AC Adapter (Model #PD-AC1) is explicitly designed to supply power to both the Detecto ProDoc Series and solo Series clinical scales.

Key features that ensure proper operation include:

  • OEM Quality: Manufactured by GlobTek, Inc., guaranteeing an authentic replacement.
  • Stable Output: Delivers a reliable 9 V DC output at up to 1.33 A (12 W).
  • Extended Cord: Features a generous 59-inch (1.5 m) cord length for flexible placement.

It features a standard US plug (NEMA 1-15P input) and meets Level VI energy efficiency standards.

Does the adapter meet high efficiency standards?

Yes, this Detecto AC adapter is designed for high efficiency, helping to minimize energy consumption, especially when idle.

  • It complies with the stringent Efficiency Level VI standard.
  • Its maximum No Load Power Consumption is extremely low, drawing only 75 mW when plugged in but not actively powering the scale.
What is the power cord's length?

The AC adapter is equipped with a cable length of 59 inches (1.5 meters). This generous length ensures flexibility and ample reach when connecting your Detecto ProDoc or solo Series clinical scale to an electrical outlet.

What are the exact output connector dimensions?

This AC adapter, specifically designed for Detecto ProDoc and solo Series scales, utilizes a barrel plug connector.

The precise dimensions of the output connector are:

  • Inner Diameter (I.D.): 2.1 mm
  • Outer Diameter (O.D.): 5.5 mm
  • Length: 11 mm
Does the AC adapter have a high efficiency rating?

Yes, this AC adapter is designed for superior energy efficiency, which helps reduce power consumption, especially when the scale is idle. It features two key attributes:

  • Efficiency Level VI: The adapter meets the stringent Level VI efficiency standards, indicating reduced energy waste during operation.
  • Low Standby Power: It draws a maximum no-load power consumption of only 75 mW when plugged in but not actively powering the device.
Does the adapter have a US-style plug?

Yes, this adapter is designed specifically for US electrical outlets and features a standard fixed-blade NEMA 1-15P US plug.

A key benefit is its wide operating range, which ensures reliable performance across various power conditions:

  • Input Voltage Range: It accepts universal input voltages from 90 VAC up to 264 VAC.
What are the adapter body dimensions?

The AC adapter body is designed to be compact for use in clinical environments. Its precise dimensions are:

  • Length: 2.72 inches (69 mm)
  • Width: 1.13 inches (28.8 mm)
  • Height: 2.26 inches (57.3 mm)
Who is the OEM manufacturer of this adapter?

This Detecto AC adapter is manufactured by an Original Equipment Manufacturer (OEM) to guarantee quality and reliable power delivery for your scales.

  • The specific OEM manufacturer is GlobTek, Inc.
  • The OEM part number associated with this adapter is #WR9HD1333CCP-F(R6B).
  • This unit is designed exclusively for use with Detecto ProDoc and solo Series clinical scales.
What are the specific output connector dimensions?

The AC adapter features a barrel plug specifically engineered to fit the Detecto ProDoc and solo Series clinical scales. The precise dimensions of the DC output connector are:

  • Inner Diameter (I.D.): 2.1 mm
  • Outer Diameter (O.D.): 5.5 mm
  • Length: 11 mm
Is this adapter factory new?

This adapter is Factory New, ensuring you receive a brand-new, unused product.
