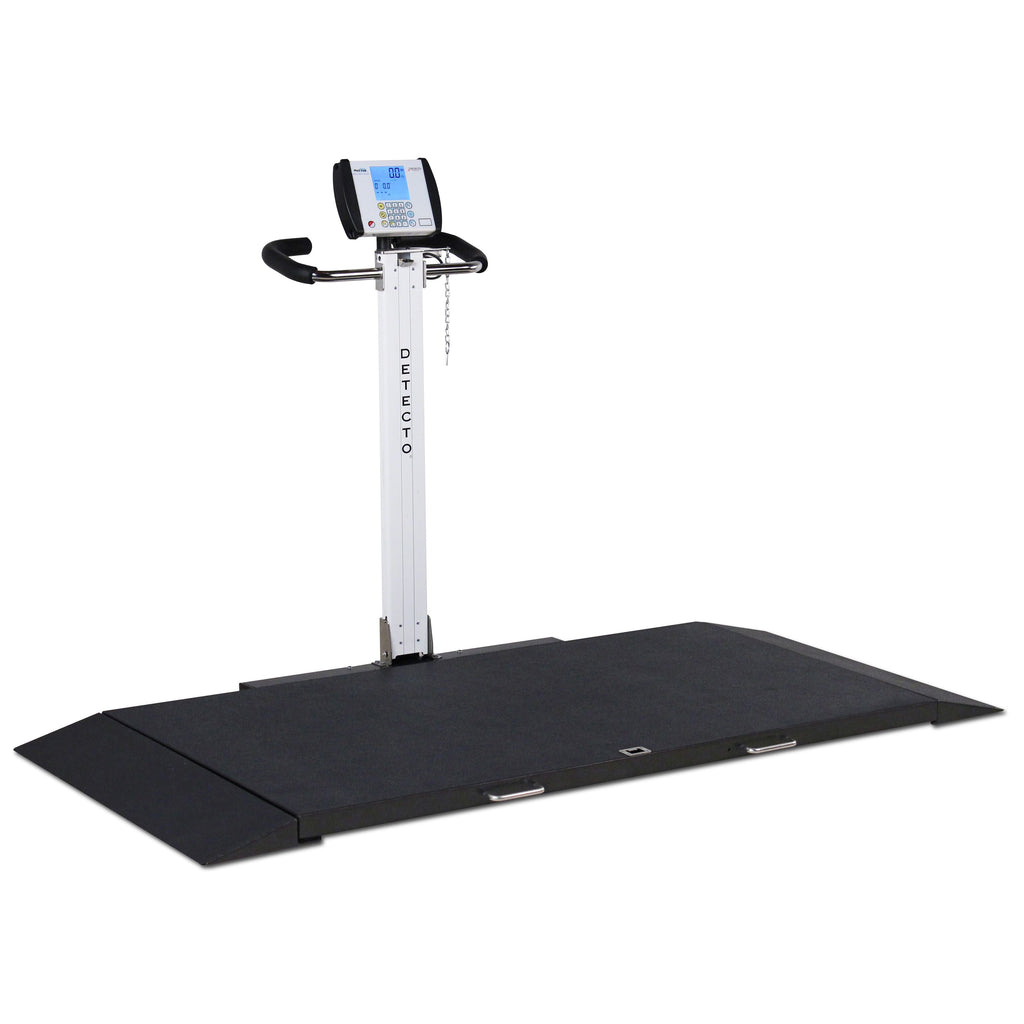

Detecto 8550 Portable Stretcher Scale with Fold-Up Column

Detecto 8550 Portable Stretcher Scale with Fold-Up Column

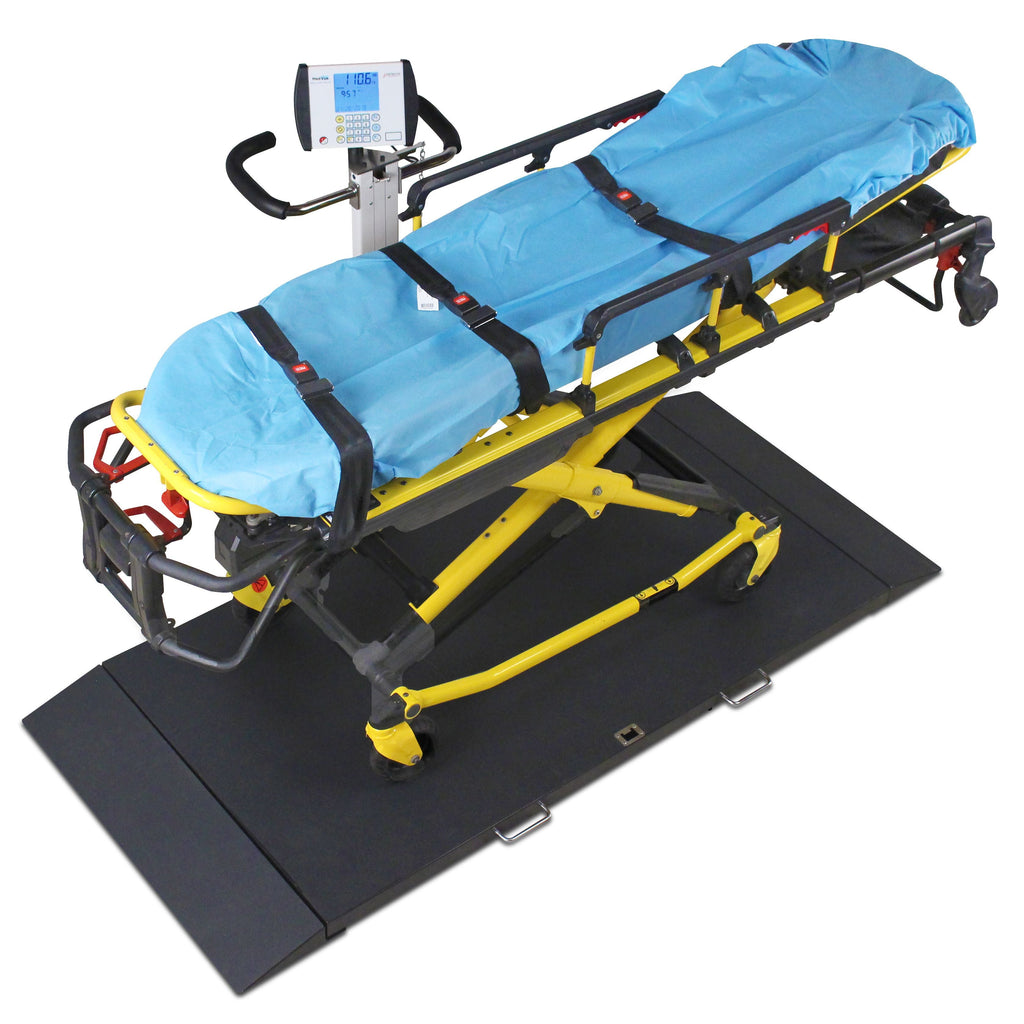

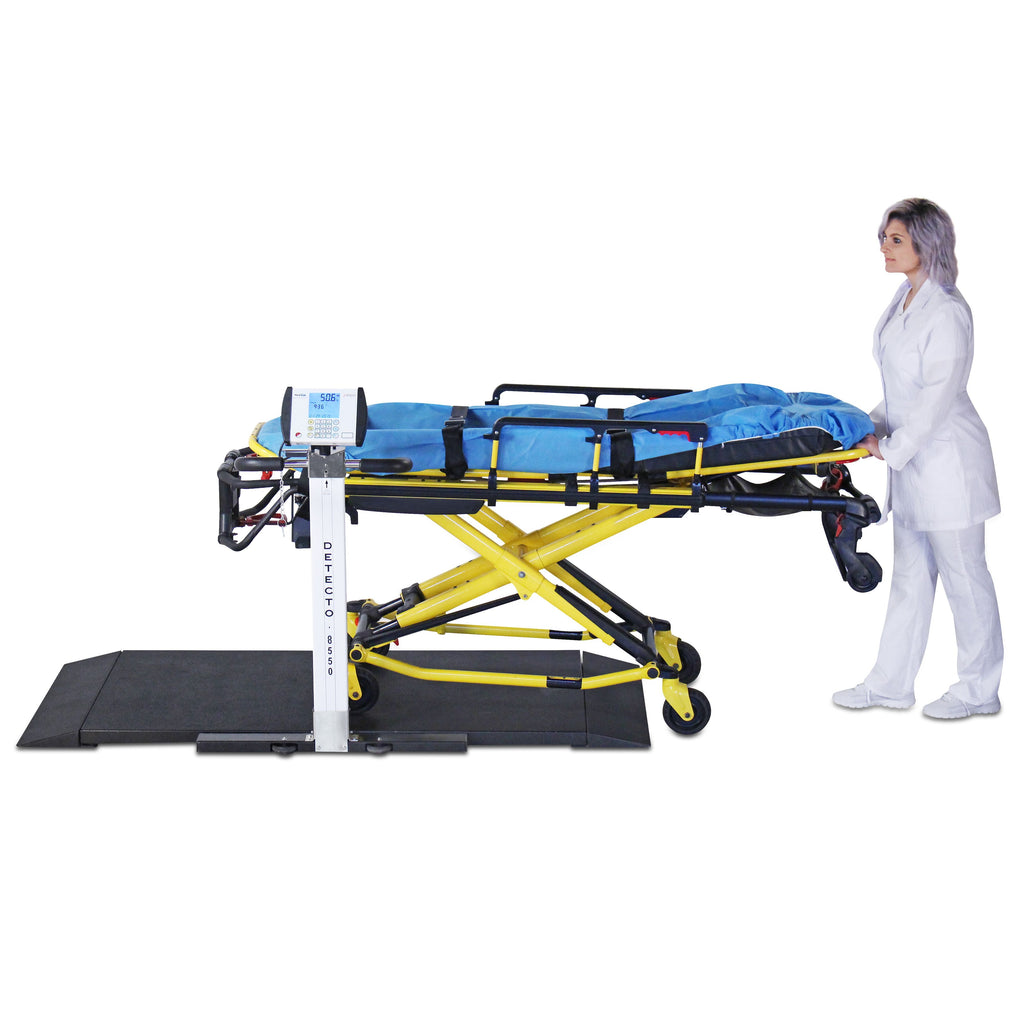

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - With Stretcher

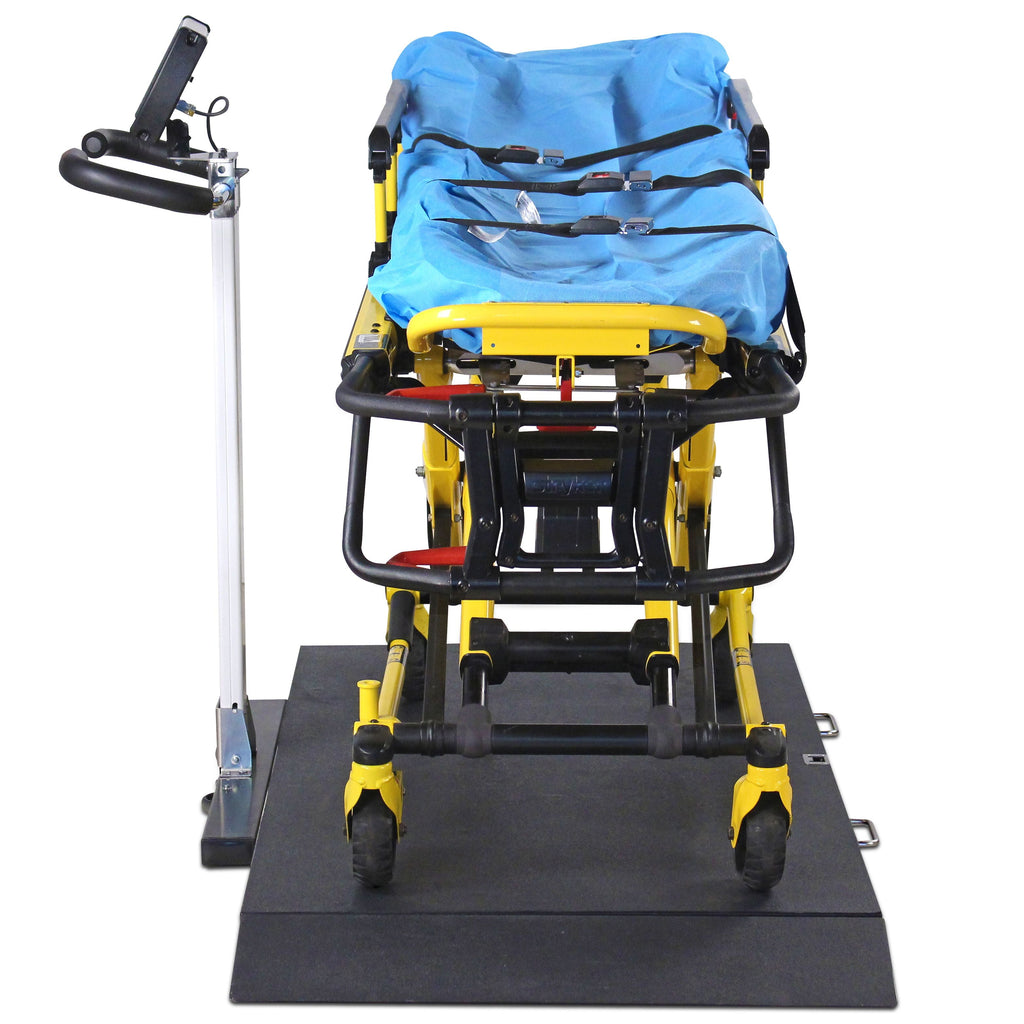

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - With Stretcher, Side View

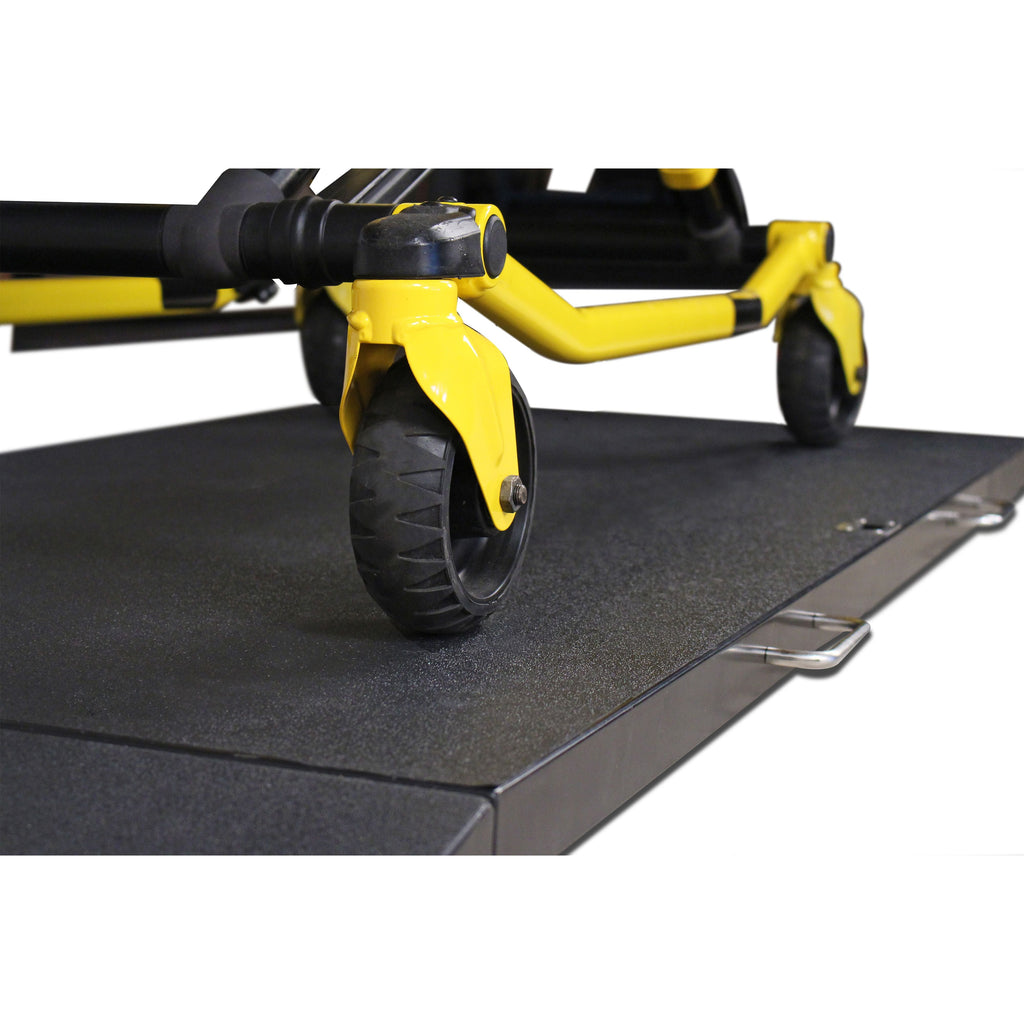

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Wheels Close-Up

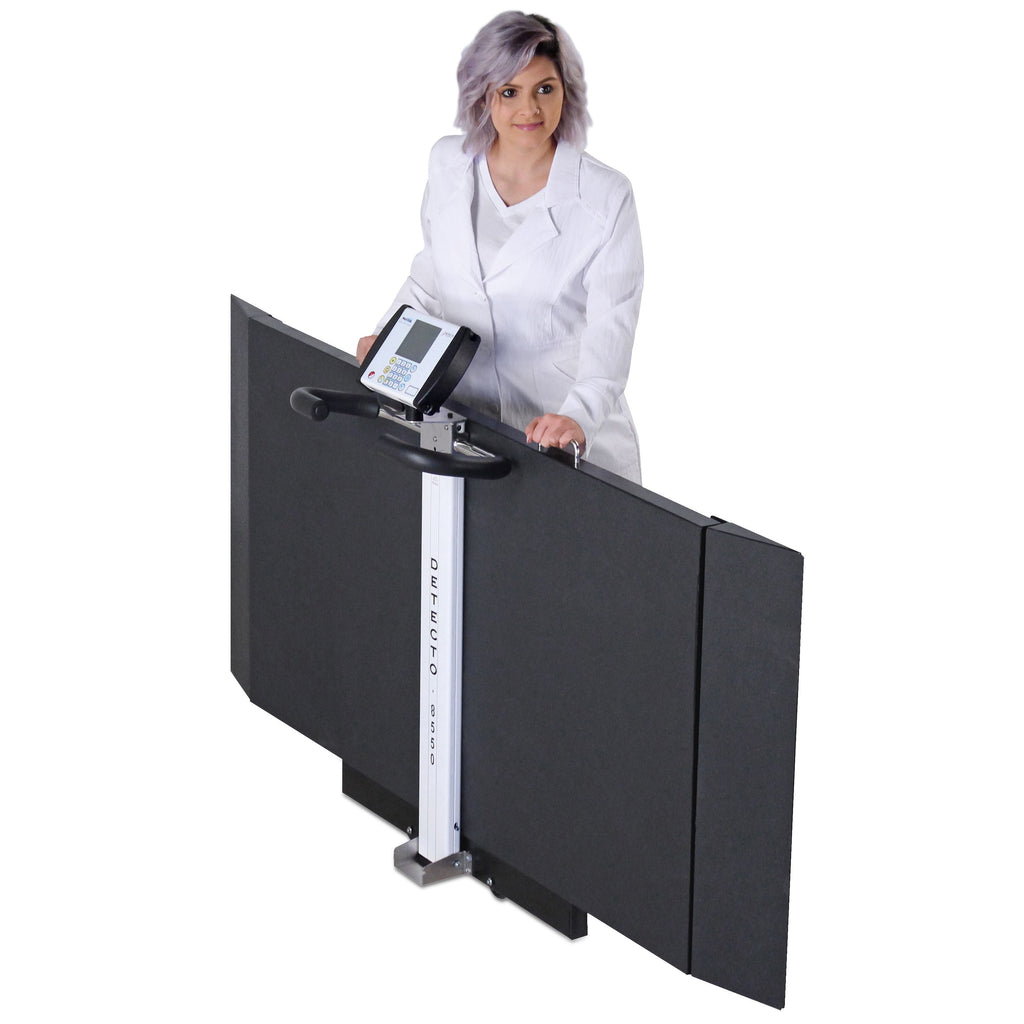

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Demo

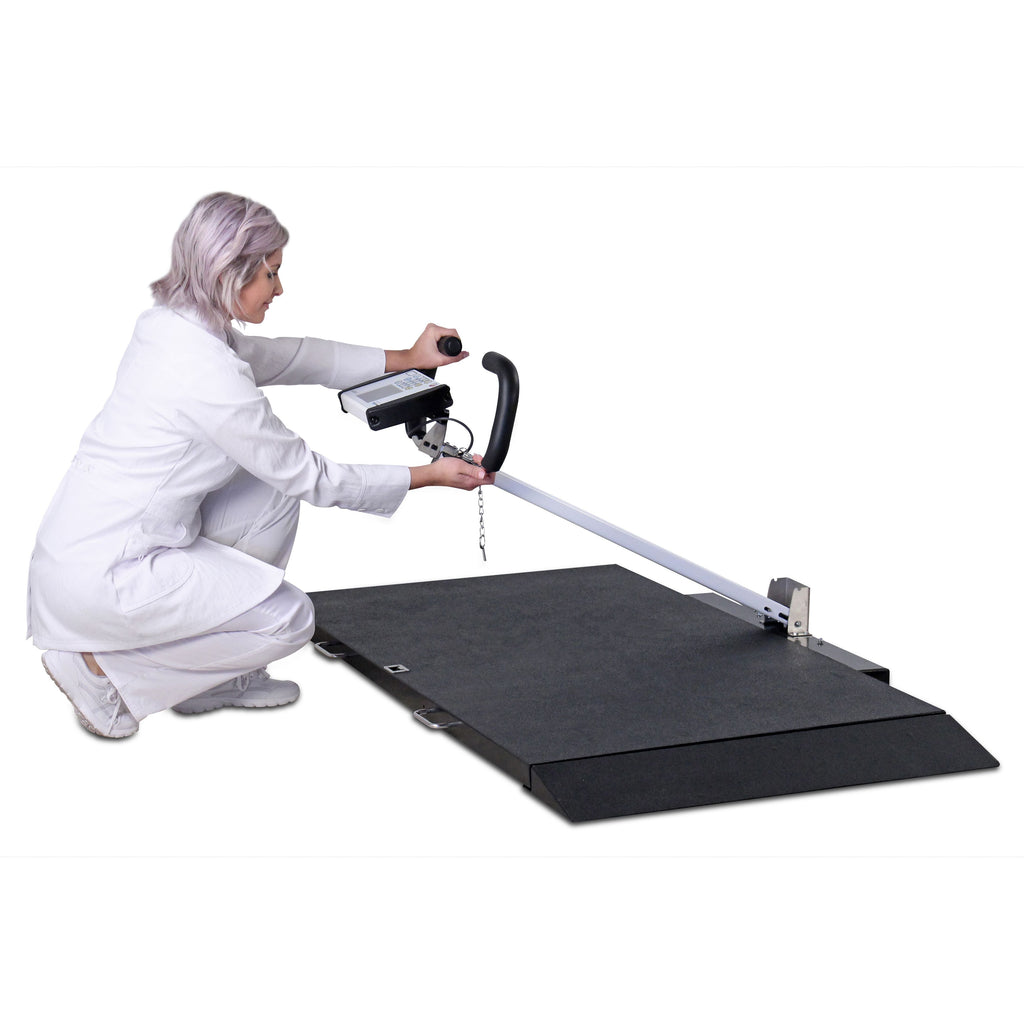

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Fold Demo

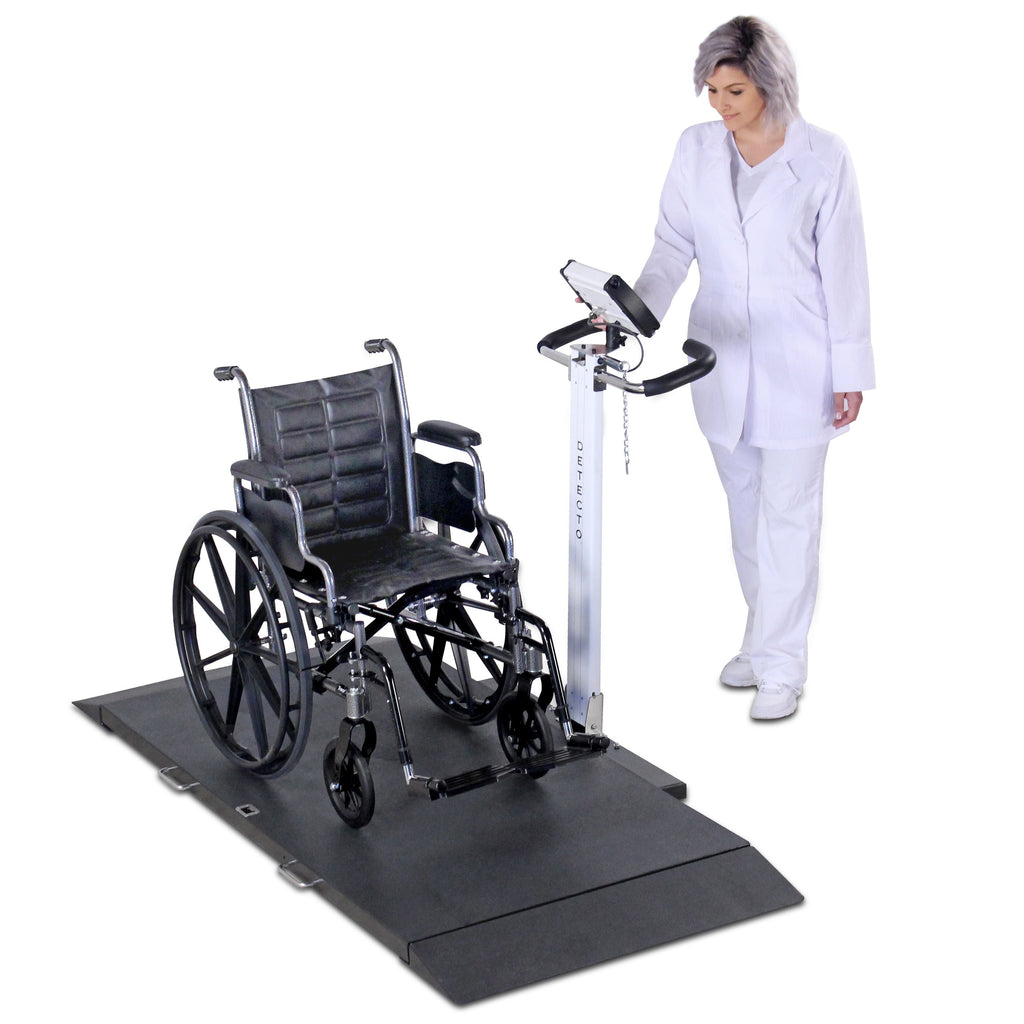

Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Wheelchair Demo
Detecto 8550 Portable Stretcher Scale with Fold-Up Column
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - With Stretcher
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - With Stretcher, Side View
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Wheels Close-Up
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Demo
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Fold Demo
Detecto 8550 Portable Stretcher Scale with Fold-Up Column - Wheelchair Demo
Key Features
  • SKU: DTO-8550
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 0.02 lb
  • Has an 800 lb weight capacity
  • Two ramps included
  • Can fit stretchers, gurneys, and wheelchair

  • Learn more:

Contact The Manufacturer
  • MFR: Detecto Ships from Manufacturer
  • MPN: 8550
  • Phone: (800) 641-2008
$6,980.00 $6,173.83

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Detecto 8550 Portable Stretcher Scale with Fold-Up Column (#8550) comes with the scale, keypad column, and two ramps included.

Warranty: 2 Years - Free from Defects in Material and Workmanship.

The Detecto 8550 Portable Stretcher Scale with Fold-Up Column is convenient, lightweight scale that includes two ramps and is compatible with stretchers, gurneys, and wheelchairs. It has a weight capacity of 800 lb, and can be used in clinics, long-term care homes, and emergency rooms. If a patient is confined to the stretcher, gurney, or wheelchair, this scale can quickly subtract the difference weight for an accurate reading.

When the scale is not in use, the column and keypad can be folded down quickly and the whole unit is wheeled for ease of movement. Only one or two individuals are needed to move this scale around, and the slim design allows for movement through any doorway.

Features

Detecto 8550 Portable Stretcher Scale with Fold-Up Column Features

  • An 800 lb weight capacity.
  • Clear, LCD, color-coded Display for information input.
  • Lightweight and wheeled for easy mobility.
  • Accommodates stretchers, gurneys, and wheelchairs.
  • Two-way access ramps are included with device.

Specifications

Detecto 8550 Portable Stretcher Scale with Fold-Up Column Specifications

  • Capacity: 800 lb x 0.2 lb / 360 kg x 0.1 kg.
  • LCD Display Dimensions: 3.5 in (W) x 3 in (H) / 89 mm (W) x 76 mm (H) backlit blue LCD.
  • Display: 5 digit, 7 segment, 7/8 inch (22 mm) high LCD weight digits.
  • Resolution: 5,000 divisions, max.
  • Keypad: 19 key, color-coded, sealed membrane.
  • Functions: Tare, Net/Gross, Hold/Release, Zero, metric conversion, ID storage, Height entry for Body Mass Index calculation, and printer output.
  • Power: Optional model MV1PWR AC adapter or 6 C batteries (not included).
  • Battery Life: 7,560 weighments (with backlight fully ON) 10,620 weighments (with backlight fully OFF).
  • Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet.
  • Mounting Bracket: 350-degree indicator swivel mounting bracket included.
  • Operating Temperature: 14 to 104 ºF / -10 to +40 ºC.
  • Construction: Mild steel.
  • Included: Two ramps (assembly required).
  • Overall Dimensions: 76 in (W) x 38 in (D) x 44.8 in (H) / 1,930 mm (W) x 965 mm (D) x 1,138 mm (H).
  • Platform Dimensions: 60 in (W) x 32.5 in (D) x 2 in (H) / 1,524 mm (W) x 826 mm (D) x 51 mm (H).
  • Ramp Dimensions: 7.5 in (W) x 32.5 in (D) x 2 in (H) / 191 mm (W) x 826 mm (D) x 51 mm (H).
  • Optional Guide Rail Dimensions: 24 in (W) x .1 in (D) x 3.3 in (H) / 610 mm (W) x 3 mm (D) x 83 mm (H) (2 short rails per scale) and 27 in (W) x .1 in (D) x 3.3 in (H) / 686 mm (W) x 3 mm (D) x 83 mm (H) (2 long rails per scale).
  • Net Weight: 130 lb / 59 kg.
  • Shipping Weight: 215 lb / 98 kg (including pallet).
  • Shipping Dimensions: 65 in (L) x 41 in (W) x 14 in (H) / 165 cm (L) x 104 cm (W) x 36 cm (H).
  • Country of Origin: USA.
  • UPC Code: 809161305104.

Literature

Detecto 8550 Portable Stretcher Scale with Fold-Up Column Literature

Detecto 8500 and 8550 Portable Stretcher Scale Brochure

Frequently asked questions

What is the maximum weight capacity of this stretcher scale?

The Detecto 8550 scale has a high weight capacity of up to 800 lb (360 kg), making it suitable for weighing a wide range of patients and equipment.

Is this stretcher scale portable and easy to store?

Yes, the Detecto 8550 is designed for portability. It features a fold-up column and wheels, allowing for easy movement and compact storage when not in use.

Can this scale be used with stretchers, gurneys, and wheelchairs?

Yes, the Detecto 8550 is versatile and can accommodate stretchers, gurneys, and wheelchairs, making it suitable for various patient weighing needs in healthcare settings.

What are the dimensions and features of the LCD display?

The Detecto 8550 features a backlit blue LCD display that measures 3.5 inches (W) x 3 inches (H). It shows 5-digit, 7-segment weight digits that are 7/8 inch (22 mm) high, ensuring clear visibility.

What advanced functions does the scale include?

The Detecto 8550 scale includes a comprehensive set of functions to ensure accurate and flexible patient weighing and data capture. These include:

  • Tare Function: Crucial for subtracting the weight of the carrier (stretcher, gurney, or wheelchair) to ensure an accurate net weight reading of the patient.
  • Body Mass Index (BMI) Calculation: Allows for height entry directly into the unit to automatically calculate BMI.
  • Hold/Release: Used to freeze the weight reading, essential when weighing unstable or moving patients.
  • Net/Gross: Toggles between displaying the patient’s net weight and the total gross weight.
  • ID Storage: Allows for storing patient identification information.
  • Zero: Resets the scale to zero before weighing.
  • Metric Conversion: Enables instant switching between pounds (lb) and kilograms (kg).
  • Printer Output: Supports the output of weight data for record-keeping and printing.
Can the scale use AC or battery power?

Yes, the Detecto 8550 Portable Stretcher Scale features flexible power sources for maximum versatility:

  • AC Power: The unit is compatible with the optional model MV1PWR AC adapter.
  • Battery Power: The scale can run on six C batteries (not included) for complete portability.

Battery life is highly efficient, minimizing the need for frequent replacement:

  • With the backlight ON, it provides approximately 7,560 weighments.
  • With the backlight OFF, it provides approximately 10,620 weighments.
How many weighments does the battery provide?

The Detecto 8550 scale provides a high number of measurements when operating on 6 C batteries (which are not included). The battery endurance depends on the display usage:

  • With the display backlight ON: Up to 7,560 weighments.
  • With the display backlight OFF: Up to 10,620 weighments.

For continuous power, the scale can also use the optional model MV1PWR AC adapter.

What connectivity options are available with this scale?

The scale offers connectivity options including RS232 serial, USB, and optional wired and Wi-Fi Ethernet.

What are the overall and platform dimensions of the scale?

The overall dimensions of the scale are 76 in (W) x 38 in (D) x 44.8 in (H), and the platform dimensions are 60 in (W) x 32.5 in (D) x 2 in (H).

Are ramps included for easy patient loading?

Yes, this scale includes two-way access ramps. Assembly is required for these ramps.
