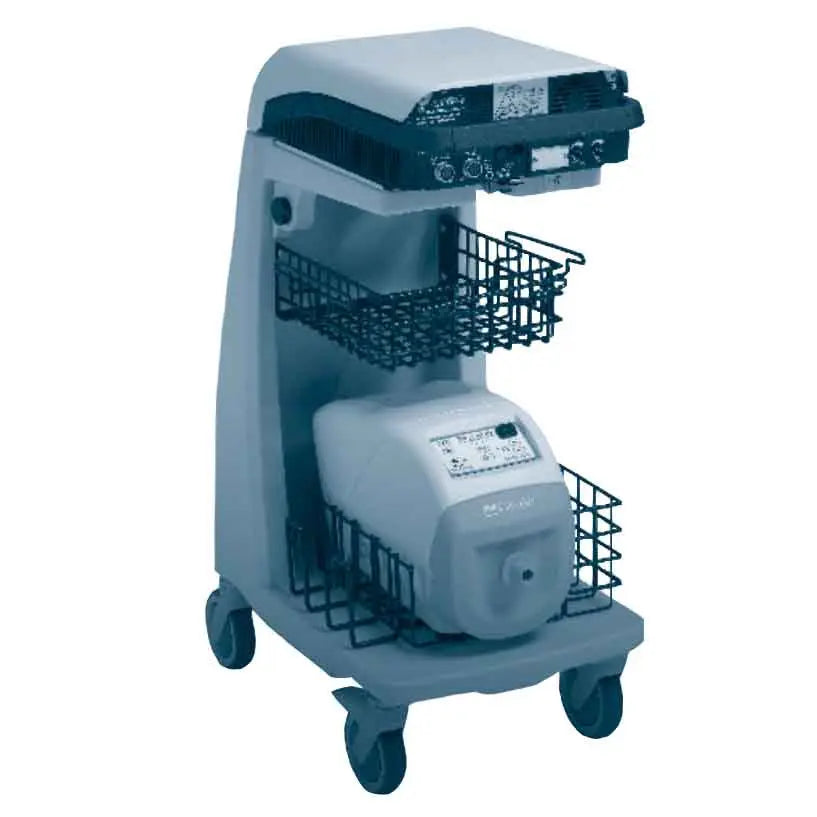

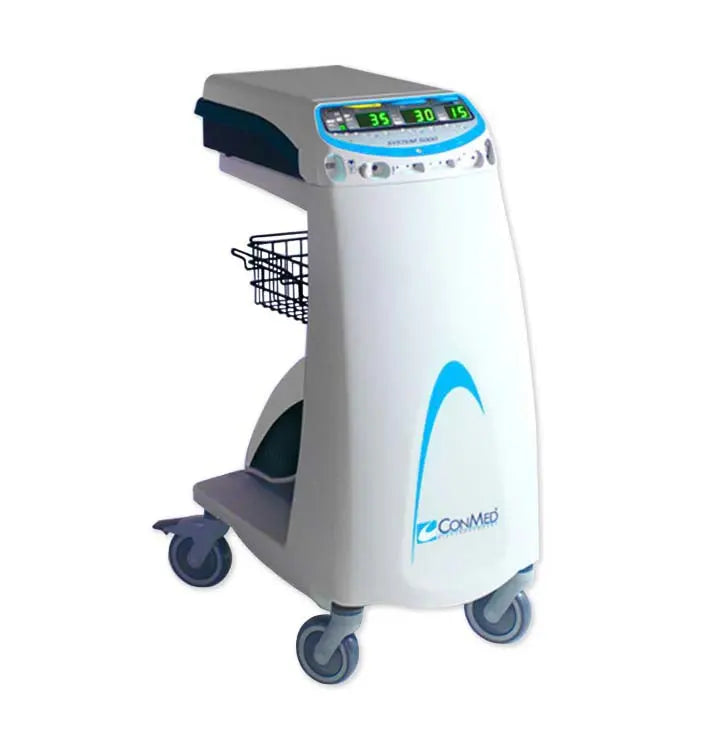

ConMed System 5000 Electrosurgical System

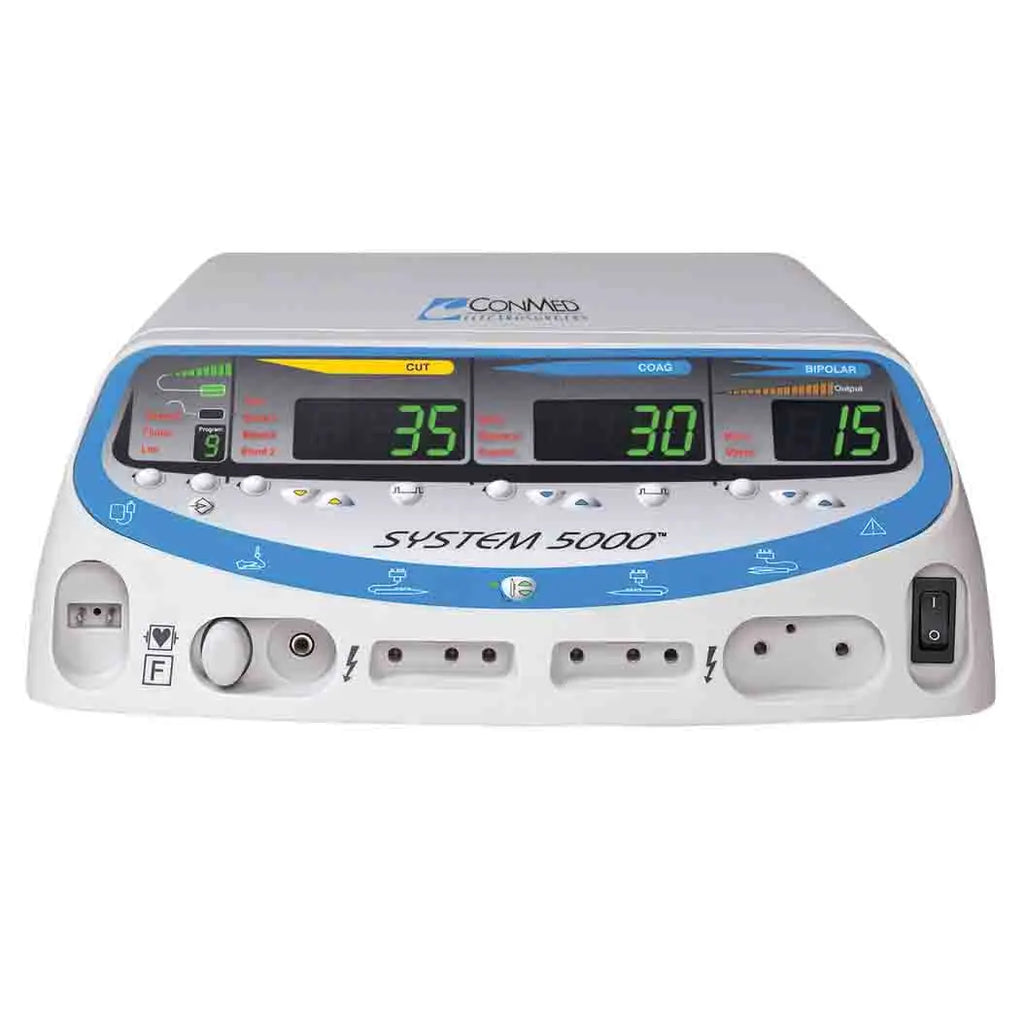

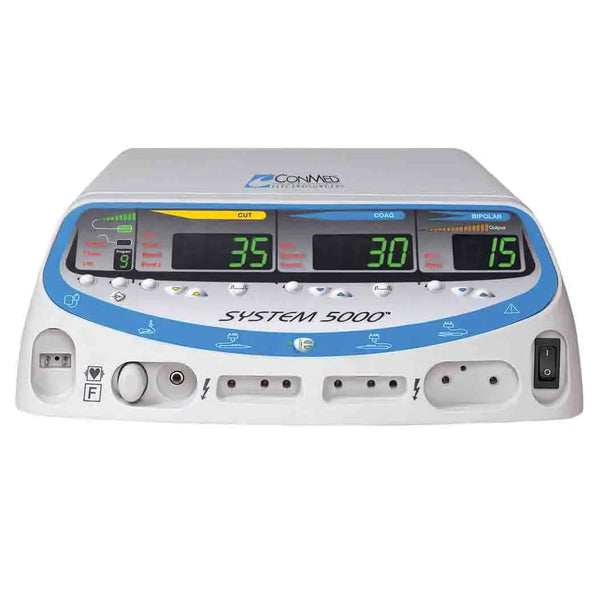

ConMed System 5000 Electrosurgical Generator
ConMed System 5000 Electrosurgical System - back

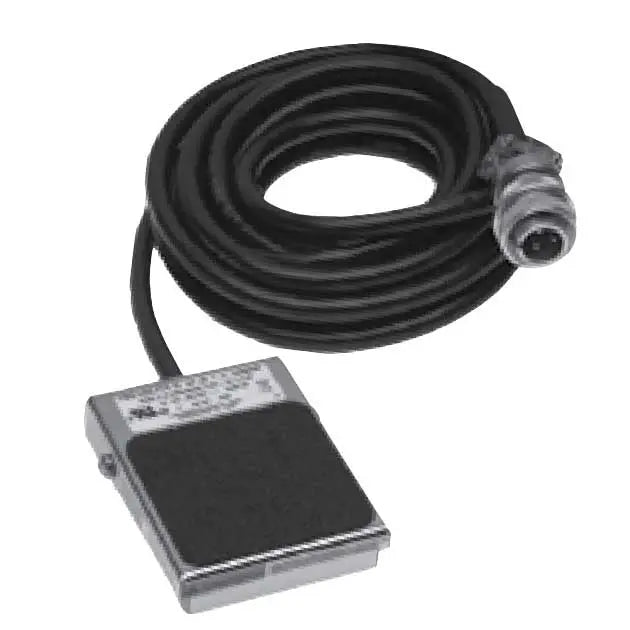

ConMed Low Profile Bipolar ESU Footswitch
ConMed System 5000 Electrosurgical System
ConMed System 5000 Electrosurgical Generator
ConMed System 5000 Electrosurgical System - back
ConMed Low Profile Bipolar ESU Footswitch
Key Features
  • SKU: CNM-60-8005-SYS
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 1.0 lb
  • Automatic Return Monitor includes three advanced specialty modes and nine programmable accessory portals
  • General Mode: Provides full power performance for open surgical procedures
  • Fluids Mode: Provides immediate energy delivery for procedures performed in a fluid medium
  • Laparoscopic Mode: Provides optimal safety by limiting output voltages below 2,700 volts through microprocessor-controlled circuitry

  • Learn more:

Contact The Manufacturer
  • MFR: ConMed Ships from Manufacturer
  • MPN: 60-8005-SYS
  • Phone: (866) 426-6633
$18,062.83

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The ConMed System 5000 Electrosurgical System (#60-8005-SYS) includes a System 5000 Electrosurgical Unit, Mobile Pedestal (#60-8040-001), Upper Storage Basket, Lower Storage Basket, Monopolar Footswitch (#60-6700-001), and Splashproof Bipolar Footswitch (#60-5103-001).

Warranty: 2 Years.

The System 5000 Electrosurgical System is the gold standard in consistent energy delivery. The System 5000 allows you to perform a myriad of procedures with just one machine. No other electrosurgical generator allows surgeons to customize the output characteristics as precisely as the System 5000.

The 5000 offers multiple modes for the full range of electrosurgical capabilities. Unique modes on the System 5000 include the Fluids Mode, which provides an additional boost of energy in procedures taking place in a fluid environment, and the Laparoscopic Mode, which limits open circuit voltages to below 2,700 volts in all modes, reducing the potential risk of inadvertent burns from capacitive coupling.

The Dynamic Response Technology used in the System 5000 Electrosurgical Generator is unique to ConMed products. It delivers optimal clinical effects in all operational modes through the continuous synchronization of current and voltage. Additionally, the Advanced Digital Signal Processing architecture enables the system to sample current and voltage at over 450,000 times per second, adjusting the output accordingly to deliver consistent tissue effect.

Features

ConMed System 5000 Electrosurgical System Features

  • Custom energy activation cable allows for seamless activation with the da Vinci S and Si surgical robotic systems.
  • Automatic Return Monitor includes three advanced specialty modes and nine programmable accessory portals.
  • Remote power control with standard electrosurgical pencil.
  • General Mode: Provides full power performance for open surgical procedures.
  • Fluids Mode: Provides immediate energy delivery for procedures performed in a fluid medium.
  • Laparoscopic Mode: Provides optimal safety by limiting output voltages below 2,700 volts through microprocessor-controlled circuitry. This minimizes the potential harmful effects of capacitive coupling, insulation breakdown and unintended burns.
  • Pulse Cut Mode: Provides precise energy bursts for critical dissections.
  • Pulse Coag Mode: Provides pulsing bursts of coagulation energy for better control of hemostasis at the operative site, resulting in visibly less tissue carbonization than standard coagulation at equivalent power settings.
  • Multiple Bipolar Modes: Micro bipolar for fine and precise coagulation. Macro bipolar for more energy intensive bipolar applications.
  • Front Panel: English.

Specifications

ConMed System 5000 Electrosurgical System Specifications

  • Set-Up and Power Setting Memory: 9 Memory Locations.
  • Output Control System: Dynamic Response.
  • Contact Quality Monitoring System (CQM): Improved ARM.
  • CQM Range/Trip Point: 10 to 150 Ω / 30%.
  • Cooling System: Convection / Fan.
  • Power Display Accuracy: 10% or 3 W at rated load.
  • Technology: Isolated RF Output.
  • Voltage: 120 V.
  • Cart Dimensions: 23" D x 16" W x 32.5" H (58.4 cm x 40.6 cm x 82.5 cm).
  • Height with ESU on top: 38" (96.5 cm).
  • Basket Dimensions: 10.81" D x 13.81" W x 6.16" H (27.5 cm x 35.1 cm x 15.6 cm).
Mode Watts Max Peak Voltage Crest Factor (Typical) Frequency (KHz) Special Features
Monopolar
Pure Cut 300 800 1.4 - 1.7 391 Pulse Cut
Blend 1 Cut 200 860 1.5 - 1.9 391 Pulse Cut
Blend 2 Cut 200 1100 1.9 - 2.4 391 Pulse Cut
Blend 3 Cut 200 1480 2.4 - 2.9 391 Pulse Cut
Pinpoint Coag 120 2120 3.7 - 4.6 391 Pulse Coag
Standard Coag 120 3140 5.6 - 6.6 562 Pulse Coag
Bipolar
Micro Bipolar 50 170 1.5 - 1.9 391 Audible/Visual Output Meter
Macro Bipolar 90 610 1.6 - 2.0 391 Audible/Visual Output Meter

Accessories

ConMed System 5000 Electrosurgical System Accessories

The following accessories are compatible and commonly purchased with the System 5000 Electrosurgical System:

  • Splashproof Bipolar Footswitch:
    • #60-5103-001: 10' (3.05 m).
    • #60-5103-002: 15' (4.57 m).
  • #60-6700-001: Monopolar Dual Pedal Footswitch.
  • #60-8040-001: System 5000 Mobile Pedestal.

Frequently asked questions

How does Dynamic Response Technology ensure precision?

Dynamic Response Technology is ConMed’s proprietary output control system, critical for ensuring precise and consistent energy delivery during electrosurgical procedures. It relies on Advanced Digital Signal Processing to achieve its high level of performance.This technology guarantees precision by: * Continuous Synchronization: It constantly monitors and synchronizes the current and voltage output. * High-Speed Adjustment: The output is sampled and adjusted over 450,000 times per second.This rapid feedback loop ensures a repeatable clinical effect and predictable tissue effects across all operational modes.

What are the dimensions of the ConMed System 5000, including the cart and baskets?

Here are the dimensions for the ConMed System 5000:

  • Cart Dimensions: 23” D x 16” W x 32.5” H (58.4 cm x 40.6 cm x 82.5 cm)
  • Height with ESU on top: 38” (96.5 cm)
  • Basket Dimensions: 10.81” D x 13.81” W x 6.16” H (27.5 cm x 35.1 cm x 15.6 cm)
What is included with the ConMed System 5000 Electrosurgical System?

The ConMed System 5000 Electrosurgical System includes:

  • System 5000 Electrosurgical Unit
  • Mobile Pedestal (#60-8040-001)
  • Upper Storage Basket
  • Lower Storage Basket
  • Monopolar Footswitch (#60-6700-001)
  • Splashproof Bipolar Footswitch (#60-5103-001)
Does the ConMed System 5000 have any special safety features to prevent burns?

Yes, the ConMed System 5000 includes a Laparoscopic Mode that limits open circuit voltages to below 2,700 volts. This reduces the risk of burns from capacitive coupling, enhancing patient safety during laparoscopic procedures.

What specialized surgical modes does this system offer?

The ConMed System 5000 is designed for high-performance versatility, featuring advanced modes that adapt to diverse surgical requirements:

  • Fluids Mode: Specifically optimized for surgical procedures performed in fluid environments.
  • Laparoscopic Mode: Prioritizes safety by limiting output voltages to below 2,700 volts, effectively reducing the risk of burns caused by capacitive coupling.
  • Pulse Cut: Tailored for high-precision, critical dissections.
  • Pulse Coag: Designed to deliver highly accurate, controlled hemostasis.

These modes are powered by Dynamic Response Technology, which utilizes Advanced Digital Signal Processing to sample current and voltage over 450,000 times per second, ensuring consistent tissue effects throughout your procedure.

What is the purpose of the Fluids Mode?

The Fluids Mode on the ConMed System 5000 Electrosurgical System is specifically designed to provide immediate energy delivery for surgical procedures that are performed within a fluid medium. This ensures optimal performance and safety in such environments.

How is the unit kept cool?

The ConMed System 5000 is designed with a convection/fan cooling system to ensure optimal performance and longevity during surgical procedures. This helps maintain consistent operation and prevents overheating.

Does it have memory for settings?

Yes, the ConMed System 5000 is designed with 9 memory locations for set-up and power settings, allowing surgeons to quickly recall preferred configurations for various procedures. This feature streamlines workflow and ensures consistency.

What technology ensures consistent tissue effect?

The consistent and precise tissue effect is ensured by Dynamic Response Technology. This proprietary system continuously synchronizes current and voltage, sampling the output over 450,000 times per second via Advanced Digital Signal Processing. This real-time adjustment guarantees repeatable clinical effects and optimal performance across all operational modes.

Does the system offer flexible control for bipolar surgery?

Yes, the ConMed System 5000 is equipped to handle varied surgical demands through two dedicated bipolar modes:

  • Micro Bipolar: Specifically designed for tasks requiring high precision and delicate coagulation.
  • Macro Bipolar: Engineered to provide more robust energy delivery for demanding applications.

These modes, combined with the included splashproof bipolar footswitch, allow surgeons to maintain exact control over tissue effect throughout the procedure.
