Warranty: 2 Years Parts and Labor - Generator, 1 Year Parts and Labor - Transducer.
Combination therapy plays an important role in today's modern practice. It allows for the expansion of treatment capabilities by combining therapeutic ultrasound with low volt muscle stimulation. It enables the practitioner to take full advantage of the thermal effect of ultrasound in combination with the analgesic effect of stimulation.
Each US/54 modality may be used independently or in combination through the lightweight ultrasound transducer. The custom designed transducer is available with standard size faceplate and/or small size faceplate. The optional QuickConnect Transducer Cable System allows the practitioner to replace the transducer cable on site.
The SynchroSonic US/54 features the patient treatment stop switch. Designed to promote patient assurance, the treatment stop switch allows the patient to discontinue stimulator output at the press of a button.

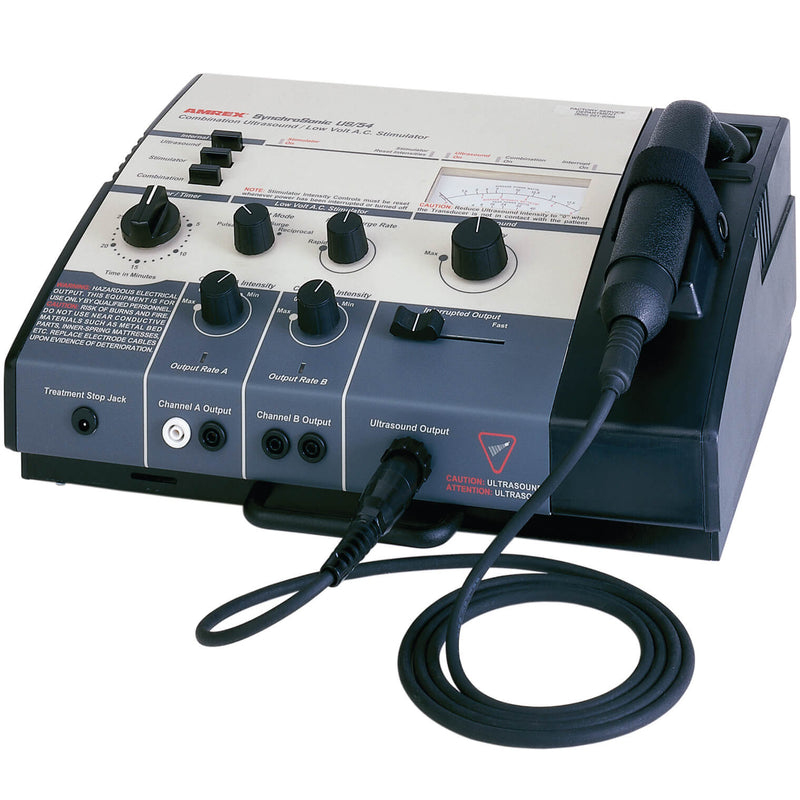

Amrex SynchroSonic US/54 Therapeutic Ultrasound Muscle Stimulator Features:
- Lightweight standard transducer.
- Cable Fault Alarm System: Detects improper transducer connection and/or cable damage providing a safety shutdown feature.
- Transducer protection switch.
- Adjustable interrupted output mode.
- Transducer sealed for underwater therapy.
- Dual channel, 4 pad stimulator.
- Dual intensity controls.
- Tetanize mode.
- Adjustable pulsation and ramped surge modes.
- Reciprocal mode ramped.
- Intensity reset circuit.
- Patient treatment stop switch.
- Combination therapy capability.
- CSA Approved.
Amrex SynchroSonic US/54 Therapeutic Ultrasound Muscle Stimulator Specifications:
Input Power Requirements:
- Line Voltage: 120 VAC, 60 Hz.
- Current: 1.0 A.
- Line Leakage: Less than 50 µA.
- Frequency: 1.0 MHz ± 5%.
- Waveform: Amplitude modulated at 120 Hz ± 1%.
- Pulse Duration: 8 ms ± 1%.
- Output Mode: Adjustable interrupted and non-interrupted.
- Output Power: 0 to 20 W total ± 20% / 0 to 5 W/cm2 ± 20%.
- Temporal Peak/Temporal Average Intensity: 2.8:1 ± 20%.
- Treatment Timer: Adjustable 0 to 30 minutes.
- Crystal Material: Barium-titanate.
- Applicator Beam Type: Collimating.
- Frequency: 1.0 MHz ± 5%.
- ERA (Effective Radiating Area): 4 cm2 ± 20%.
- BNR (Beam Nonuniformity Ratio): 5.5:1 maximum.
- Waveform: Asymmetrical alternating current (no load).
- Output Voltage: 110 V peak into 1 k Ω load / 28 V peak into 100 Ω load.
- Output Intensity: 56 µC maximum charge per pulse into 100 Ω load.
- Pulse Width: 200 µs at 50% V maximum.
- Frequency Range: 1 to 80 pulses per second.
- Surge and Reciprocal Duration: Adjustable 3.75 s on/off to 0.375 s on/off.
- Overall Dimensions: 14.5" W x 11.0" D x 7.0" H.
- Weight (with Transducer): 14 lbs.
- Shipping Weight: 22 lbs.
Amrex SynchroSonic US/54 Therapeutic Ultrasound Muscle Stimulator Configurations:
- 01-US54-ST: Standard Transducer.
- 01-US54-STQC: Standard QuickConnect Transducer.
- 01-US54-SMT: Small QuickConnect Transducer.
- 01-US54-BQCT: Standard and Small QuickConnect Transducers.
- 01-US54-133-ST: 1 and 3.3 MHz Unit with Standard Transducer.
- 01-US54-133-STQC: 1 and 3.3 MHz Unit with Standard QuickConnect Transducer.
- 01-US54-133-SMT: 1 and 3.3 MHz Unit with Small QuickConnect Transducer.
- 01-US54-133-BQCT: 1 and 3.3 MHz Unit with Standard and Small QuickConnect Transducers.
Amrex SynchroSonic US/54 Therapeutic Ultrasound Muscle Stimulator Literature:
Amrex SynchroSonic US/50-US/54 Combination Ultrasound/Low Volt AC Stimulator Brochure
