- Weight: 20.0 lb
- Offers the benefits of therapeutic ultrasound and high voltage muscle stimulation for muscle rehabilitation, prevention of muscle atrophy, pain management, and edema reduction
- Panel design provides simple operation of ultrasound and high voltage muscle stimulation separately or in combination through the ultrasound transducer
- Selectable frequency range, independent on/off surge duration, and pulse width
- Produces pulsation, tetanize, surge, and reciprocal output
-
Learn more:
-
MFR:
Amrex
Ships from Manufacturer
-
MPN: 01-US752-ST
- Phone: (800) 221-9069
Frequently asked questions
Does the unit include a patient safety stop switch?
Yes, the Amrex SynchroSonic US/752 includes a vital Patient Treatment Stop Switch (#23-PIS) as a standard inclusion.
This feature is designed for enhanced safety and patient assurance, allowing the user to:
- Immediately discontinue the high voltage muscle stimulator output during therapy.
- Maintain patient control throughout the treatment session.
Does the US/752 have advanced safety features?
Yes, the Amrex SynchroSonic US/752 is equipped with robust safety features to ensure secure and patient-controlled therapeutic sessions. These features prioritize patient comfort and operational safety for the practitioner.
Key safety mechanisms include:
- Patient Treatment Stop Switch: A dedicated switch is included, allowing the patient to immediately and safely discontinue the high-voltage stimulator output, providing instant control over the treatment.
- Cable Fault Alarm System: This critical feature actively monitors the ultrasound system for improper connections or cable damage. If a fault is detected, it triggers an automatic safety shutdown of the output.
Does the US/752 include all essential accessories?
Yes, the Amrex SynchroSonic US/752 is a complete, Factory New combination therapy unit ready for immediate professional use. It includes all essential components, leads, electrodes, and consumables required for both ultrasound and high voltage stimulation treatments.
Key included accessories are:
- Treatment Application Components: The necessary Ultrasound Transducer (type depends on the chosen configuration), a 3.5” x 7” Sponge Pad Electrode, and four 4” Flextrode Pads (with 20 corresponding covers).
- Safety Feature: The critical Patient Treatment Stop Switch is included, allowing the patient immediate control over the stimulator output.
- Stimulation Leads and Straps: A comprehensive set of patient leads (2 Black, 1 Red, 1 White) for dual-channel output, plus two 22” and two 42” Retention Straps.
- Consumables: A bottle of Conductance and Coupling Gel and Flextrode Conductive Spray.
- Power: AC Power Cord.
Does the stimulator require a dispersive electrode?
No, the high-voltage muscle stimulator component of the US/752 features bipolar application.
This design eliminates the need for a separate dispersive pad, which simplifies setup and streamlines the treatment process for the practitioner.
What are the benefits of combination therapy?

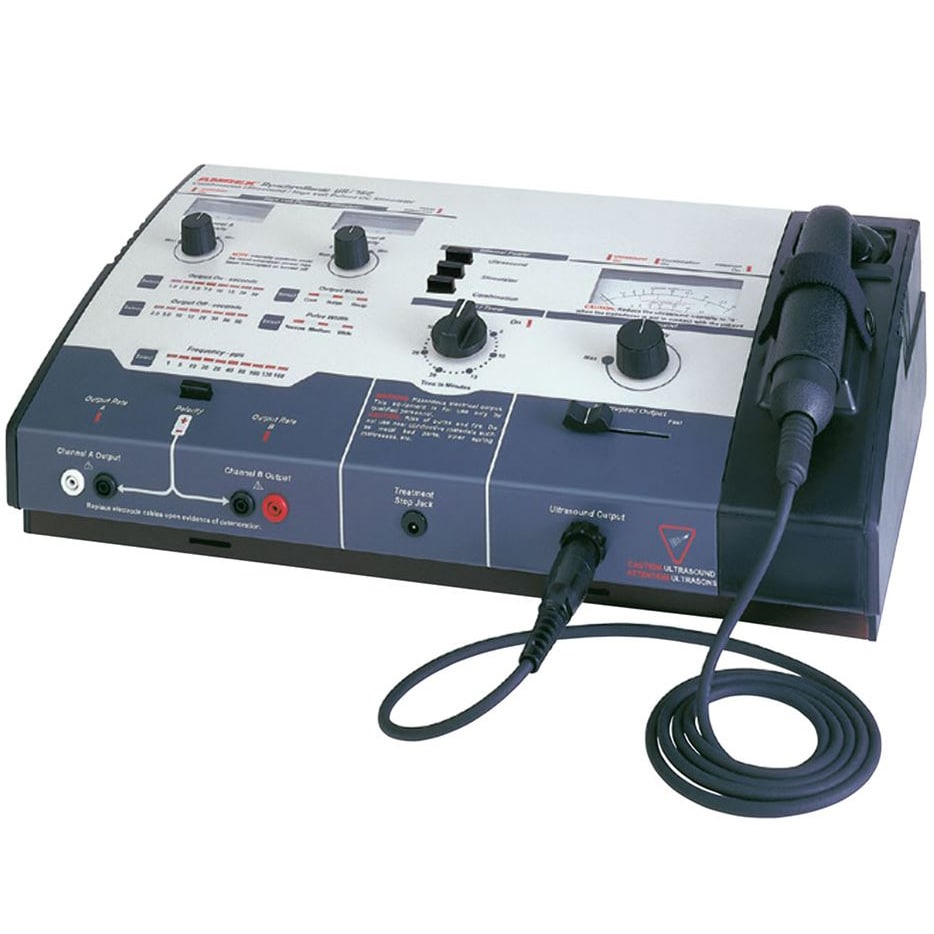

The Amrex SynchroSonic US/752 is a professional-grade combination unit that integrates therapeutic ultrasound (1.0 MHz) and High Volt Muscle Stimulation capabilities.
This combination therapy provides significant benefits by allowing practitioners to deliver both modalities simultaneously, often via the same ultrasound transducer, which maximizes treatment efficacy for:
- Muscle Rehabilitation: Supports muscle strengthening and function recovery.
- Prevention of Muscle Atrophy: Helps maintain muscle mass during recovery.
- Pain Management: Offers targeted relief through dual modalities.
- Edema Reduction: Assists in managing swelling.
Precision and Safety Features
Beyond the combined output, the US/752 features detailed controls and safety mechanisms:
- Precision Controls: Parameters are highly customizable, including selectable pulse width settings (Narrow, Medium, Wide) and surge outputs (Pulsation, Tetanize, Surge, Reciprocal) with independent on/off duration controls.
- Simplified Stim Application: The dual-channel stimulator supports bi-polar application (four-pad capability), which eliminates the need for a large dispersive pad.
- Safety Assurance: The unit includes a Cable Fault Alarm System that triggers a safety shutdown if connection issues are detected, and a dedicated Patient Treatment Stop Switch for immediate cessation of stimulator output.
What is the ultrasound frequency and power output?
The Amrex SynchroSonic US/752 provides professional-grade therapeutic ultrasound with the following precise specifications:
- Ultrasound Frequency: The unit operates at a standard frequency of 1.0 MHz (± 5%), which is effective for deep tissue penetration.
- Maximum Total Output Power: The maximum output power is up to 20 Watts (adjustable from 0 to 20 W).
- Maximum Output Intensity: The intensity is controlled up to 5 W/cm² over the effective radiating area (ERA).
Additionally, the unit supports both adjustable interrupted and non-interrupted output modes for highly customized treatment protocols.
Does the stimulator have dual channel output?
Yes, the Amrex SynchroSonic US/752 features a dual channel output for the High Volt Muscle Stimulator, enabling highly versatile treatment protocols.
This capability provides several key advantages:
- Four-Pad Application: The dual channels support four-pad application, allowing you to treat two different areas or cover a larger muscle region.
- Bipolar Convenience: It enables bipolar application, which eliminates the requirement for a large dispersive pad (the reference electrode).
- Comprehensive Modes: You can utilize this dual-channel setup across all available stimulator outputs, including pulsation, tetanize, surge, and reciprocal modes.
Are different transducer sizes available for the US/752?
Yes, the Amrex SynchroSonic US/752 offers versatility with two available transducer soundhead sizes:
- Standard Transducer (2.25” diameter): This size features an Effective Radiating Area (ERA) of 4 cm² and is suitable for broader treatment areas. It is also designed to be sealed for potential use in underwater therapy.
- Small Transducer (1.5” diameter): This smaller, optional soundhead is ideal for targeting precise areas or contoured parts of the body.
Both transducers utilize a high-quality Barium-titanate crystal and can be configured with standard cables or the optional QuickConnect cable system for enhanced clinical convenience.
Does the SynchroSonic US/752 offer precise therapy control?
Yes, the Amrex SynchroSonic US/752 is engineered for precise, customizable control over both the therapeutic ultrasound and high-volt muscle stimulation modalities.
Key areas of granular control include:
- High-Volt Muscle Stimulator Customization:
- Frequency: Adjustable range from 1 to 160 pulses per second.
- Pulse Width: Selectable options of Narrow (10 µs), Medium (20 µs), or Wide (30 µs).
- Surge Timing: Independent adjustment of ‘On’ duration (1 to 30 seconds) and ‘Off’ duration (2.5 to 90 seconds) for accurate cycle programming.
- Output Modes: Includes Pulsation, Tetanize, Surge, and Reciprocal modes.
- Ultrasound Precision:
- Output Power: Output intensity is adjustable from 0 to 5 W/cm².
- Output Modes: Features both adjustable interrupted and non-interrupted output modes.
This unit allows both modalities to be operated independently or simultaneously, with the high-volt stimulation capable of being delivered directly through the ultrasound transducer.
Does the ultrasound offer continuous and pulsed modes?
Yes, the Amrex SynchroSonic US/752’s ultrasound features a variable interrupt output mode for pulsed therapy and also supports continuous (non-interrupted) operation. This allows for versatile treatment options.
