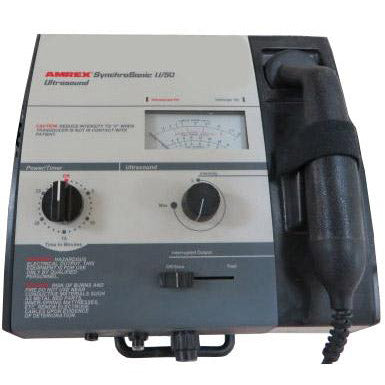

Amrex SynchroSonic U/50 Ultrasound

Yes, the Amrex SynchroSonic U/50 is designed to support combination therapy.

This means it can be used in two ways:

• Separately for ultrasonic diathermy therapy.
• Simultaneously combined with an external electrical stimulator (such as the Amrex MS324A) for integrated treatment applications.

Yes, the Amrex SynchroSonic U/50 is equipped with a comprehensive safety system to protect the transducer and cable, ensuring safe operation. Key safety features include:

• Cable Fault Alarm System: This critical feature actively detects improper transducer connections or cable damage, triggering an audible alert.
• Safety Shutdown: Upon detecting a fault, the system immediately initiates a safety shutdown to protect both the practitioner and the equipment.
• Transducer Protection Switch: The unit also integrates a dedicated switch for transducer protection.

Furthermore, the device is UL Listed and CSA Approved, demonstrating compliance with relevant professional safety standards.

The Amrex SynchroSonic U/50 Ultrasound is available in four transducer configurations, allowing you to choose the preferred connection type and soundhead size:

• Standard (Hard-wired): Includes the standard 2.25” diameter soundhead with a permanently attached cable connection.
• Standard QuickConnect: Features the standard 2.25” diameter soundhead utilizing the QuickConnect detachable cable system.
• Small QuickConnect: Includes the smaller 1.5” diameter soundhead, which is optimized for treating smaller or contoured anatomical areas, also using the QuickConnect system.
• Standard and Small QuickConnect (Dual): This option provides maximum versatility by including both the standard 2.25” soundhead and the small 1.5” soundhead, each equipped with the QuickConnect system.

The Amrex SynchroSonic U/50 is a factory-new medical device specifically designed to deliver therapeutic ultrasonic diathermy and is strictly intended for professional clinical use.

Its design emphasizes safety and versatile application:

• Safety Focused: Features an integrated Cable Fault Alarm system that triggers an audible alert and initiates a safety shutdown upon detecting improper connections or cable damage.
• Combination Therapy Ready: It is capable of being used simultaneously with an external electrical stimulator (such as the Amrex MS324A) for combination therapy.
• Precise Control: Offers a treatment timer adjustable from 0 to 30 minutes and supports both interrupted and non-interrupted output modes.
• High-Quality Transducer: The applicator uses Barium titanate crystal material and features a sealed soundhead, enabling optional underwater therapy use.
• Compliance: The unit is certified as both CSA Approved and UL Listed, ensuring adherence to professional safety standards.

The Amrex SynchroSonic U/50 is shipped as a complete system for professional use. The following essential components are included:

• Ultrasonic Generator Unit
• Transducer: The specific configuration (hard-wired or QuickConnect) depends on your selected variant. The soundhead is lightweight, ergonomically designed, and sealed for optional underwater therapy.
• Conductance and Coupling Gel (#02-OCG-01)
• Hospital Grade Power Cord (#27-PCH)

The transducer applicator utilizes Barium titanate crystal material. This specialized material is engineered to reliably generate the 1.0 MHz frequency necessary for effective ultrasonic diathermy therapy.The applicator’s design ensures optimal therapeutic delivery: * Beam Type: Features a collimating beam, which aids in focusing the acoustic energy during treatment. * ERA: The Effective Radiating Area is 4 cm² (± 20%). * BNR: It maintains a low Beam Nonuniformity Ratio (BNR) of 5.5:1 maximum. * Durability: The soundhead is sealed, making it safe and suitable for optional underwater therapy applications.

The Amrex SynchroSonic U/50 Ultrasound features an adjustable treatment timer that allows for customizable treatment durations from 0 to 30 minutes, providing flexibility for various therapeutic needs.

The Amrex SynchroSonic U/50 provides professional-grade output for ultrasonic diathermy treatments. The maximum spatial average intensity output is 5 W/cm² (with a tolerance of ± 20%).

Key output specifications include:

• Total Output Power: Adjustable from 0 to 20 W total (± 20%).
• Generator Frequency: The unit operates at an ultrasonic frequency of 1.0 MHz (± 5%).
• Output Modes: The treatment mode is adjustable, allowing selection between interrupted and non-interrupted output.
• Treatment Timer: The built-in timer can be set from 0 to 30 minutes for precise session control.

The Amrex SynchroSonic U/50 is a sturdy, professional unit designed for tabletop placement.

Here are the physical specifications:

• Dimensions (Depth x Width x Height): 11.0” x 11.5” x 7.0”
• Unit Weight (including Transducer): 12.0 lb (5.4 kg)
• Shipping Weight: 17.0 lb (7.7 kg)

The Amrex SynchroSonic U/50 operates at the established therapeutic frequency of 1.0 MHz.

This unit is designed for professional accuracy, with the following specifications:

• Generator Frequency: 1.0 MHz (± 5%)
• Applicator Frequency: 1.0 MHz (± 5%)
