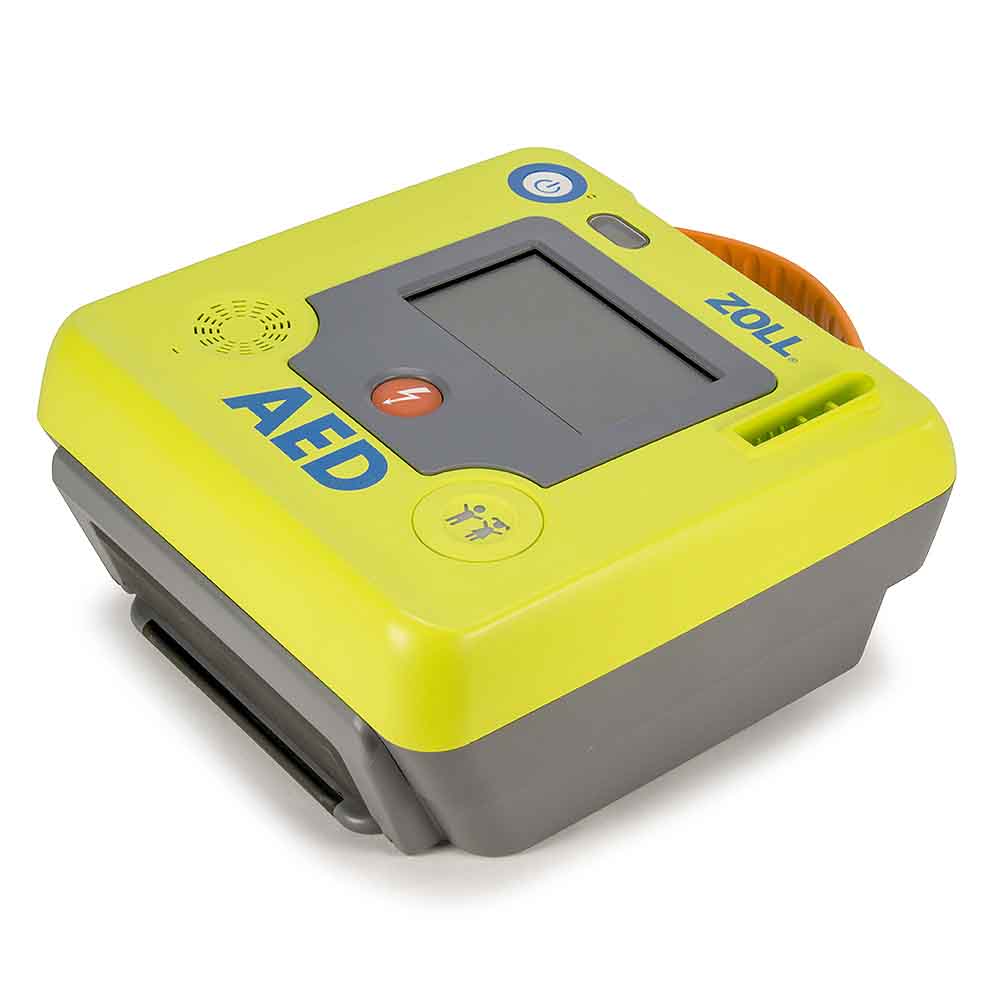

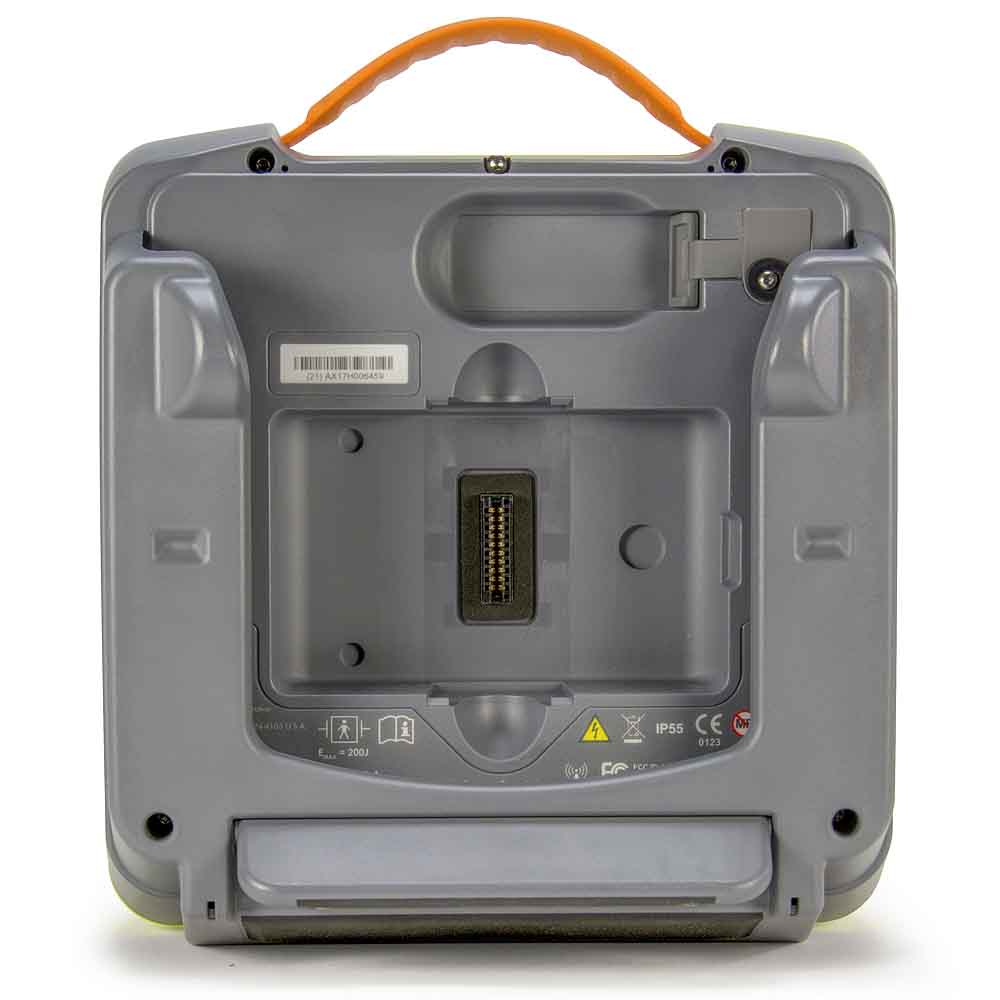

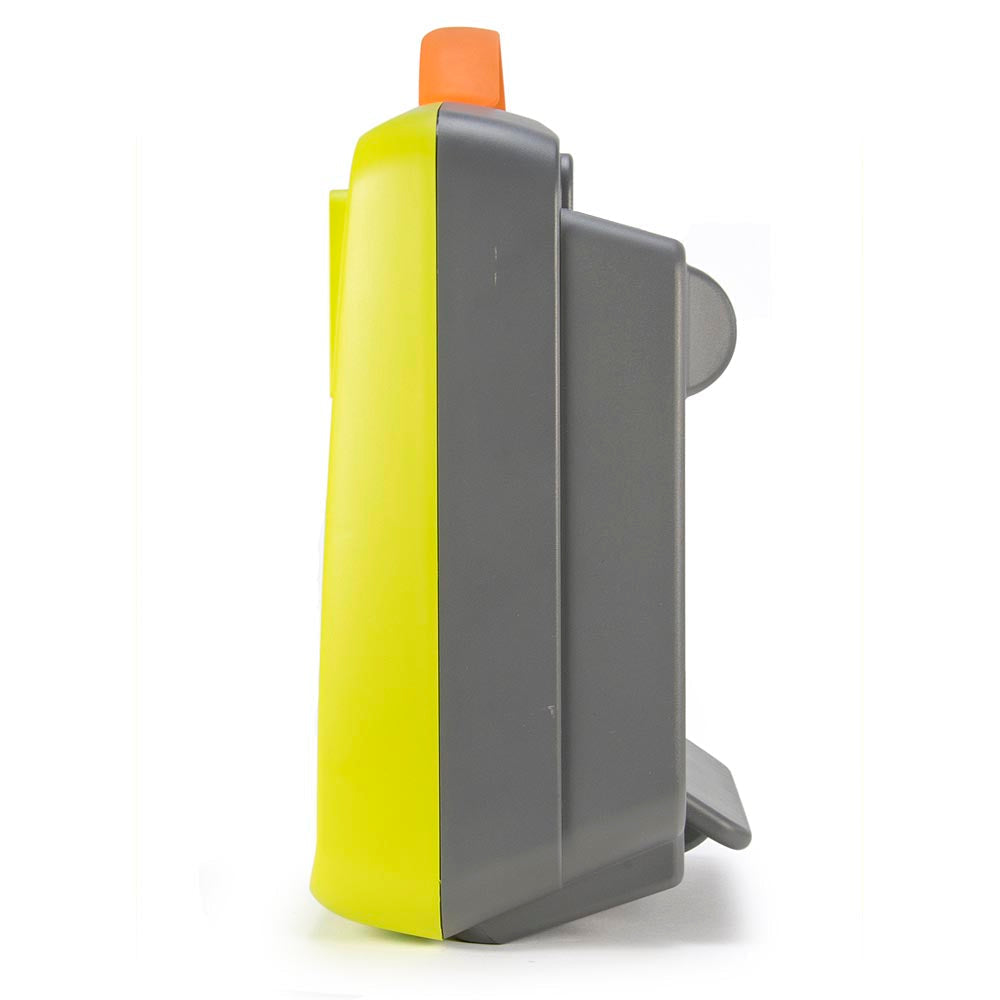

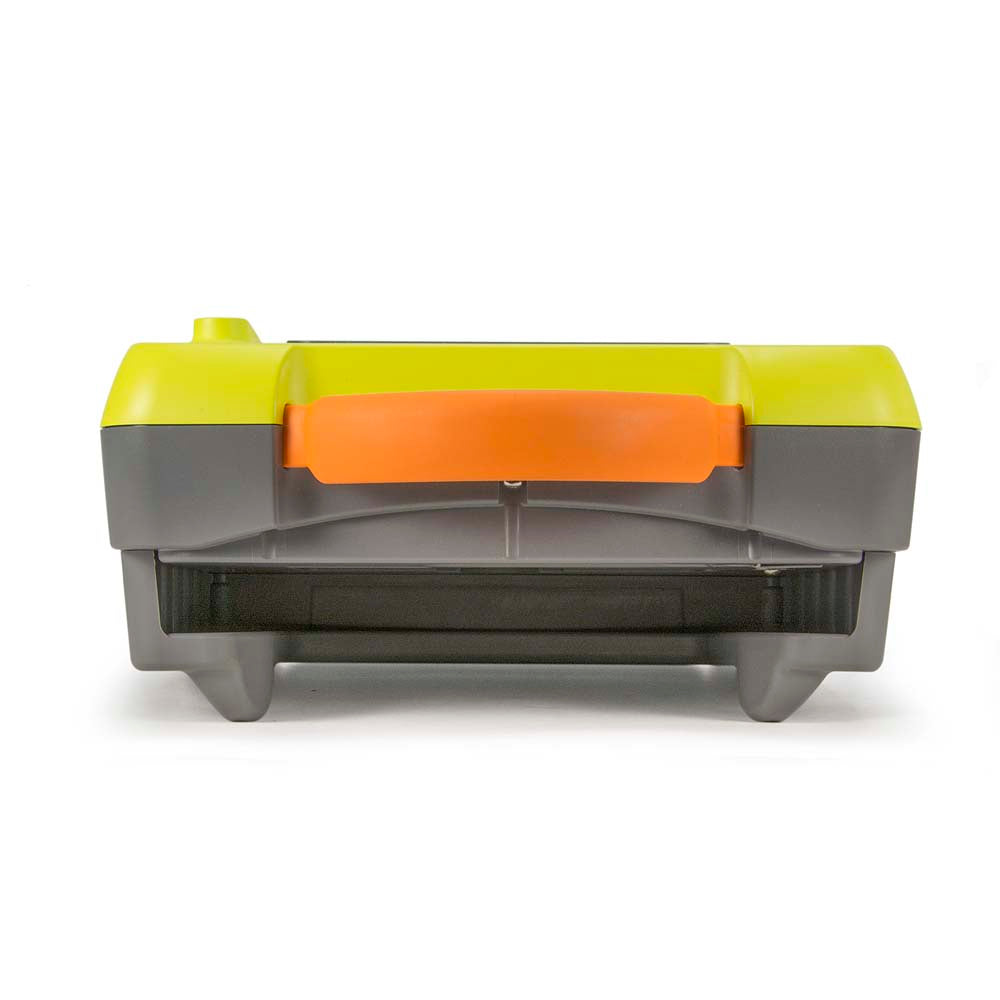

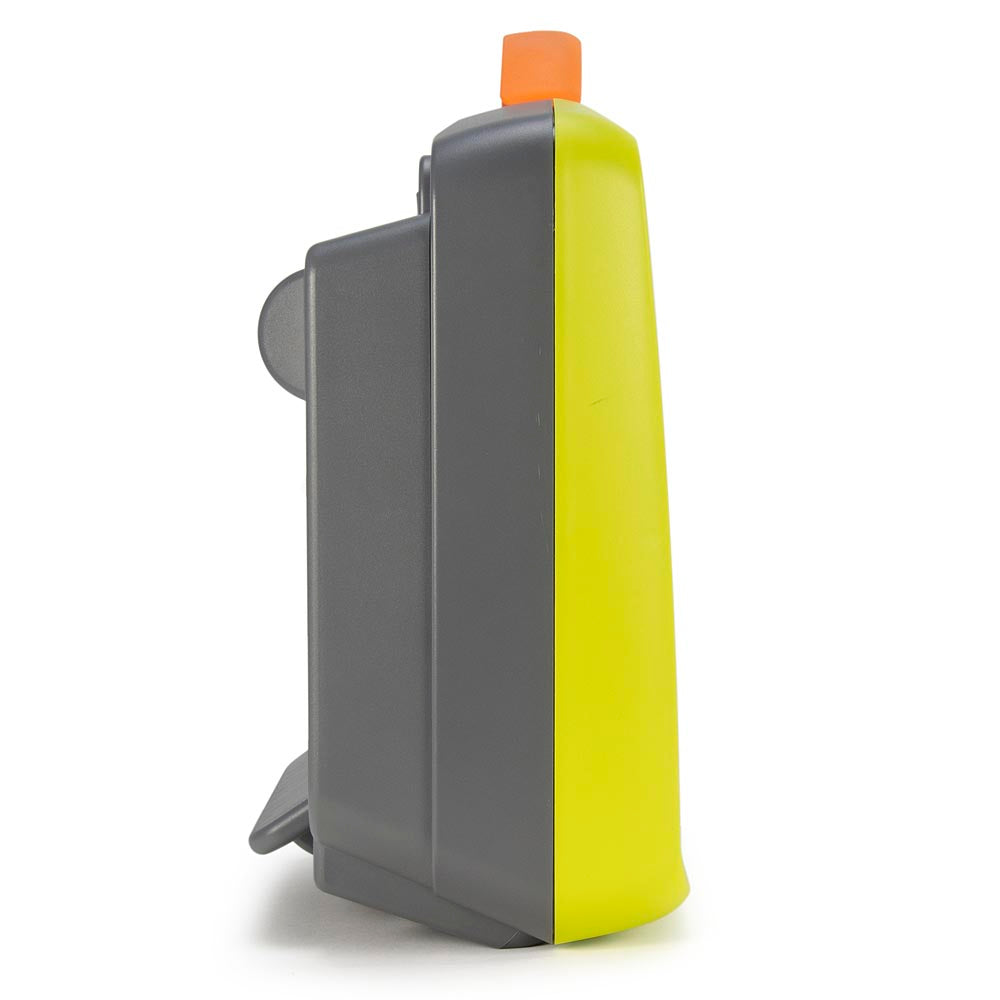

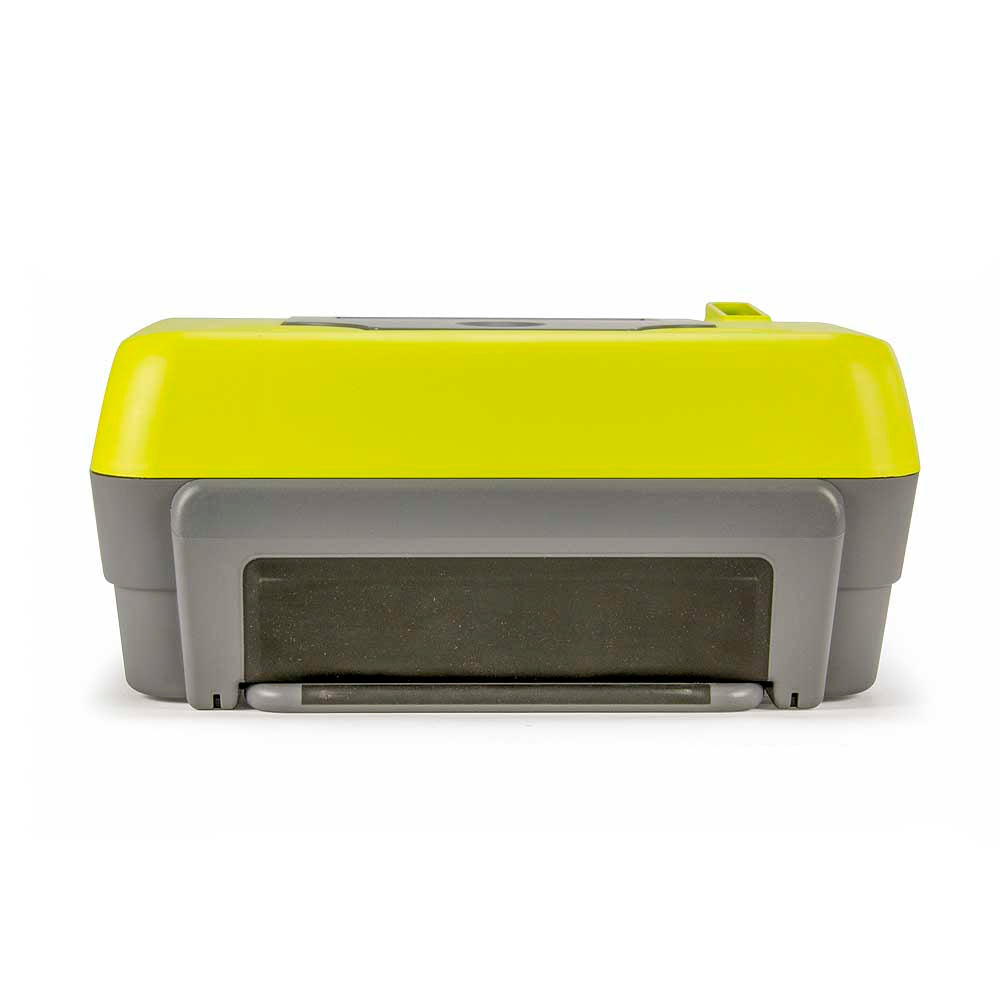

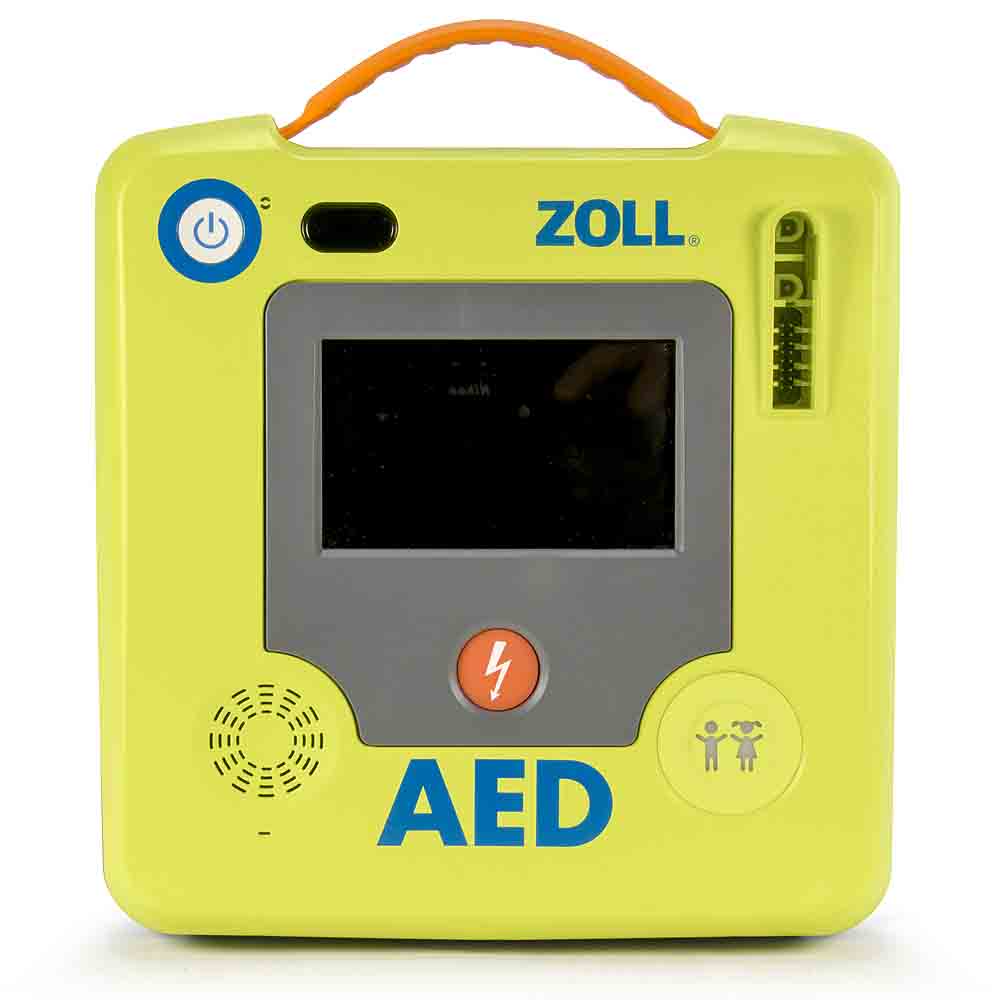

Zoll AED 3

The Zoll AED 3 includes Color Touchscreen LCD display, Real CPR Help, CPR Uni-padz, and non-rechargeable battery.

Warranty: 6 Years (Additional 2 years with registration).

The Zoll AED 3 will guide you through the process of performing high-quality CPR and will, if needed, deliver a potentially lifesaving shock to the heart. Zoll's Real CPR Help technology helps guide rescuers in performing high-quality CPR in accordance with the most recent guidelines for depth and rate of compression.

At 8 seconds with a fresh battery, the AED 3 is among the fastest at delivering a shock after chest compressions stop. Research shows that minimizing time to shock after the CPR cycle ends may improve survival.

How it works:

• The CPR Uni-padz Electrodes sense and report the motion of rescuers' chest compressions to the AED 3.

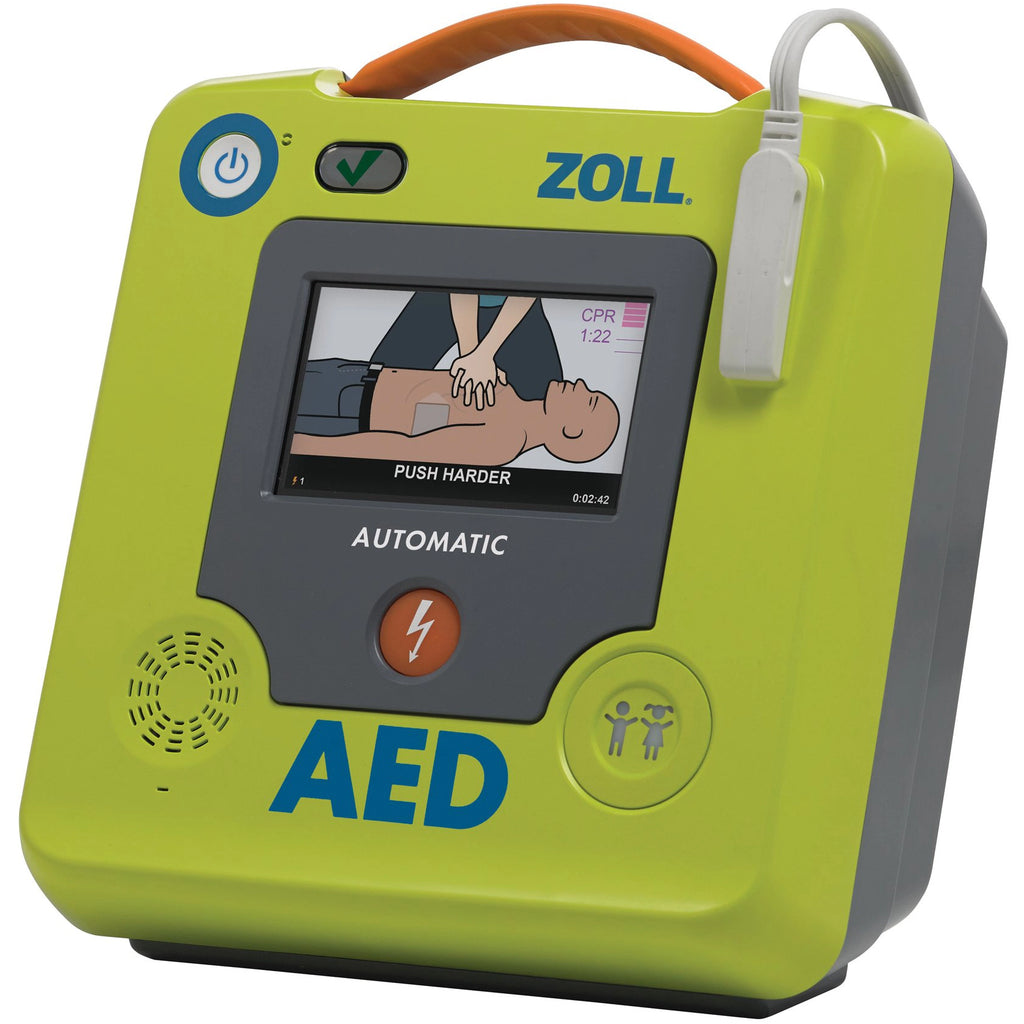

• During an adult rescue, audio and text prompts let rescuers know when to "push harder" and when they are doing "Good compressions."
• The compression depth bar gauge shows rescuers the depth of each compression in real time.
• The metronome detects compressions and encourages rescuers to compress at a rate of at least 100 compressions per minute.

Zoll AED 3 Features

• WiFi enabled.
• Real CPR Help assists rescuers in delivering high-quality CPR by providing real-time feedback on chest compression rate and depth.
• Better visibility with dual orientation to lay flat or stand upright like an ALS device.
• Better shock with only an 8-second pre-shock pause.
• The Real CPR Help integrated, real-time CPR feedback tells and shows rescuers when they need to "Push Harder" or when they are doing "Good Compressions," so they know when they are administering high-quality CPR.
• Long-lasting 5-year battery and electrodes reduce AED device maintenance requirements. This increases readiness by reducing the frequency of maintenance.
• Universal design of the CPR Uni-padz electrodes gives rescuers a single solution for both adult and pediatric victims of SCA. To treat a child, simply use the same set of pads and activate child mode.
• Fully interactive touch-screen display and onboard USB port enables fast and easy configuration, upgrades, and downloads of event data.
• Cloud connectivity can enable automatic reporting of device status, giving you confidence your AED is ready in an emergency. WiFi also provides the ability to quickly access and transmit cardiac arrest event data to medical professionals.

Zoll AED 3 Specifications

• Defibrillator:
  • Protocol: Semi-Automatic and Fully Automatic configuration.
  • Waveform: Zoll Rectilinear Biphasic.
  • Defibrillator Charge Hold Time: 30 seconds; Zoll AED 3 Automatic model: 3 seconds prior to automatic shock delivery.
  • Energy Selection: Factory preprogrammed selection.
  • Patient Safety: All patient connections are electrically isolated.
  • Charge Time: Less than 10 seconds with new battery.
  • Pre-Shock Pause: 8 seconds with new battery.
  • Electrodes: Zoll CPR Uni-Padz.
  • Self-Test: Configurable automatic self-test every day or every 7 days. Default: every 7 days. Monthly full-energy test.
  • Automatic Self-Test Checks: Battery capacity, status, and expiration; electrode connection and expiration; ECG and change/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; auto circuitry.
  • Compression Depth: 0.75" to 4" (1.9 cm to 10.2 cm).
  • Defibrillation Advisory: Evaluates defibrillation pad connection and patient ECG to determine if defibrillation is required.
  • Shockable Rhythms: Ventricular fibrillation with average amplitude of more than 100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for pediatrics. For ECG analysis algorithm sensitivity and specificity, refer to Zoll AED 3 Administrator's Guide.
  • Patient Impedance Measurement Range: 10 ohms to 300 ohms.
  • Defibrillator: Protected ECG circuitry.
  • Display Format: High-resolution LCD with capacitive touch panel.
  • Display Screen Size: 2.2" x 3.7" (5.4 cm x 9.5 cm).
  • Data Recording and Storage: User-configurable for 1 or 2 clinical events for a total of 120 minutes. Includes ECG, impedance measurements, device prompts, and CPR data.
  • Data Recovery:Controlled by touchscreen, uploaded to USB memory stick, or Zoll CaseReview over a Wi-Fi network.
  • Internal Clock Synchronization: Coordinated Universal Time (UTC) synchronization occurs when communicating with the Zoll Online server.
• Device:
  • Size: 5" x 9.3" x 9.7" (12.7 cm x 23.6 cm x 24.7 cm).
  • Weight: 5.5 lb (2.5 kg).
  • Power: Battery.
  • Wireless: 802.11 a/b/g/n.
  • Security Protocols: WPA 1, WPA 2, WPA Personal, WPA Enterprise.
  • Port: USB 2.0.
  • Rescue Accessory Pack Contents: Non-latex gloves, CPR barrier mask, razor, paper towel, and towelette.
  • Device Classification: Class III and internally powered per EN60601-1.
  • Design Standards: Meets applicable requirements of EN 60601-1, IEC 60601-1-11, IEC 60601-2-4.
• Environmental:
  • Operating Temperature: 32 degrees F to 122 degrees F (0 degrees C to 50 degrees C).
  • Storage Temperature: -22 degrees F to 158 degrees F (0 degrees C to 50 degrees C).
  • Humidity: 10% to 95% relative humidity, non-condensing.
  • Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat. 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2, EN 1789, Sweep per EN 60068-2-6 Test Fc.
  • Shock: IEC 60068-2-27; 100 G.
  • Altitude: -381 m to 4573 m; -1250 to 15,000 feet.
  • Particle and Water Ingress: IP55.
  • Drop Test: 1 m; 3.28 feet.
• Battery:
  • Battery Capacity: Typical new battery running at an ambient temperature of 68 degrees F to 77 degrees F (20 degrees C to 25 degrees C.) can provide 140 defibrillator discharges at maximum energy (200 joules), or 6 hours of continuous monitoring (with 2-minute CPR periods). Note: CPR periods shorter than 2 minutes can decrease the operating time that can be obtained from a new battery.
  • Type: Disposable, sealed lithium manganese dioxide.
  • Battery Standby Life (once installed): 5 years with weekly self-test. End of life indicated by blank status window(typical remaining shocks: 9).
  • Battery Shelf Life: Store for up to 2 years at 77 degrees F (23 degrees C) prior to installing in AED 3 to maintain above battery life.
  • Temperature: 32 degrees F to 122 degrees F (0 degrees C to 50 degrees C).
  • Humidity: 10% to 95% (non-condensing).
  • Weight: 317.5 grams (0.7 lb).
  • Size: 1" x 5.2" x 3.5" (27.75 mm x 133 mm x 88 mm).
  • Nominal Voltage: 12 volts.
• CPR Uni-Padz:
  • Shelf Life: 5 years.
  • Conductive Gel: Polymer Hydrogel.
  • Conductive Element: Tin.
  • Packaging: Multilayer foil laminate pouch.
  • Impedance Class: Low.
  • Cable Length: 56 (+/- 1.5) in. {142 (+/-3.8) cm.}
  • Design Standards: Meets requirements of IEC 60601-2-4, 2010.

Zoll AED 3 Configurations

• #8511-001101-01: Semi-Automatic.
• #8511-001102-01: Fully Automatic.
