Xltek EMU40EX EEG/PSG System

Yes, the Xltek EMU40EX EEG/PSG System is a highly versatile medical monitoring solution designed for several demanding clinical environments, including:

• Epilepsy Monitoring Units (EMU): This is the system’s core application, providing continuous, secure, long-term surveillance through its wireless, extended-range amplifier and internal flash memory recording.
• Clinical EEG Procedures: It is fully equipped for comprehensive electroencephalogram monitoring, supporting full 10-20 electrode placement with 40 clearly marked AC channels.
• In-Lab Sleep Studies (PSG): The system is also capable of performing in-lab polysomnography studies, benefiting from integrated Masimo SET pulse oximetry for accurate SpO2 readings.

Its modular design allows it to be used flexibly in both fixed clinical installations (wall or cart mounted) or in portable applications.

Yes, the Xltek EMU40EX provides secure and continuous wireless patient monitoring, crucial for intensive Epilepsy Monitoring Units (EMU) and clinical EEG procedures. The system utilizes advanced features to maintain security and data integrity:

• Secure Bluetooth Connection: Monitoring uses extended-range Bluetooth technology. The connection is strictly point-to-point, ensuring the data link cannot be intercepted by other local Bluetooth devices.
• Data Integrity: To guarantee no data is lost during temporary disconnections (allowing patient mobility), all EEG data is automatically recorded to the amplifier’s internal flash memory before being uploaded once the connection is re-established.

Furthermore, the amplifier unit is lightweight (0.6 lb), palm-sized, and built with durable, solid-state electronics to withstand the rigors of daily use in demanding clinical settings.

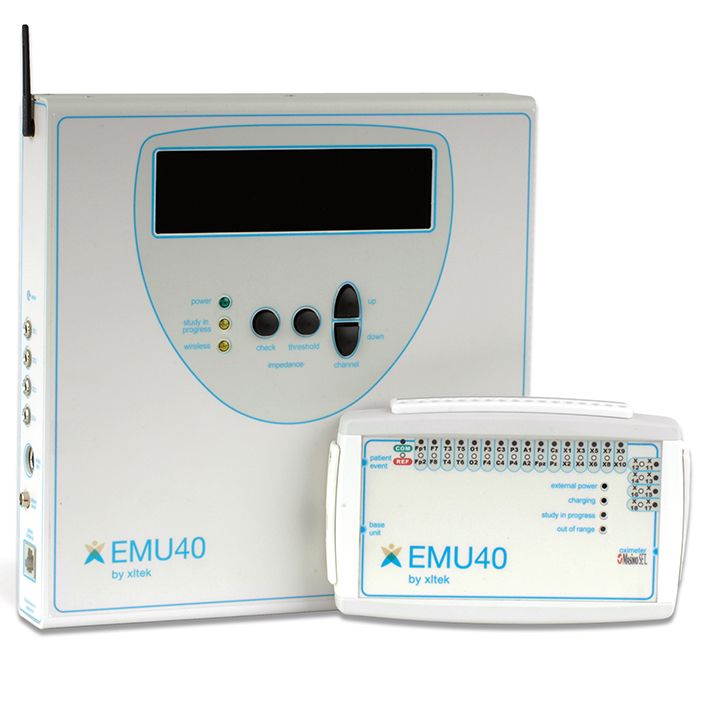

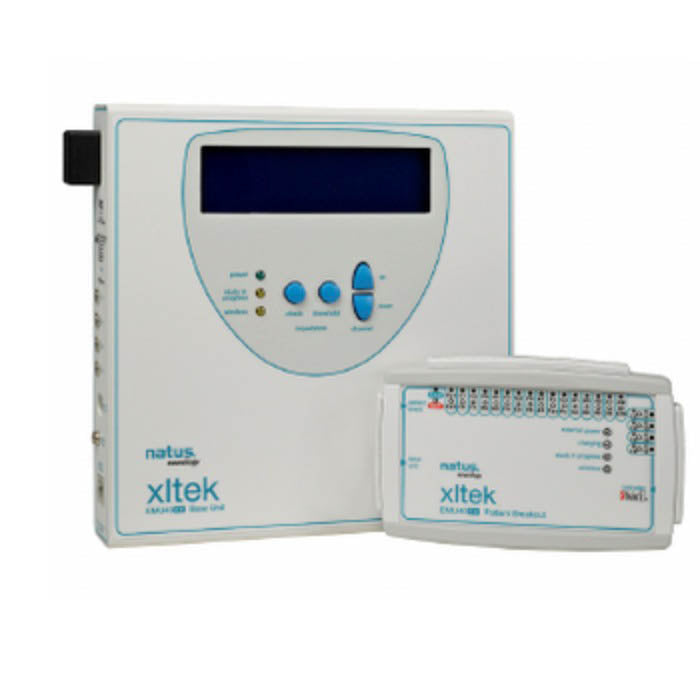

The Xltek EMU40EX system is a Certified Refurbished hardware package designed for comprehensive EEG and PSG studies. The package includes the following core components:

• Xltek EMU 40 Amplifier (#10406): This lightweight, wearable unit provides 40 AC channels (supporting full 10-20 electrode placement) and extended-range Bluetooth wireless connectivity. It features internal flash memory for secure data recording.
• Integrated Oximetry: The amplifier includes Masimo SET pulse oximetry for highly accurate SpO2 and Pulse Rate tracking.
• Base Unit (#006550): This unit acts as the central hub, providing connectivity (USB/TCP/IP), four auxiliary DC channels, and interfaces for photic stimulation and patient event marking.
• Interconnecting cables.

Required Components (Sold Separately):
Please note that a compatible Xltek Neuroworks Computer (with Version 8.1 software) is required to operate the EMU40EX system but is not included in this hardware package and must be purchased separately.

Yes, the Xltek EMU40EX is specifically engineered for reliable, high-fidelity data capture, essential for demanding applications like Epilepsy Monitoring Units (EMU), clinical EEG, and in-lab sleep studies (PSG).

Key features that ensure superior diagnostic data quality and integrity include:

• Comprehensive Channel Support: The system offers 40 clearly marked AC channels compliant with the full 10-20 electrode placement, plus four extra DC channels available on the base unit.
• High-Fidelity Sampling: Selectable sampling rates of 256, 512, or 1024 Hz are available to capture precise, detailed neurological information.
• Advanced Masimo SET Oximetry: It integrates reliable Masimo SET pulse oximetry technology, ensuring accurate measurement of SpO2 and pulse rate, even during patient movement or low perfusion.
• Data Integrity and Security: Data is first recorded onto the amplifier’s internal flash memory to prevent data loss if the wireless connection drops. The Bluetooth connection is strictly point-to-point, enhancing data security.

Yes, the Xltek EMU40EX EEG/PSG System is designed for high versatility, supporting both fixed clinical installations and portable monitoring for patient mobility.

Key features that enable portability and reliable monitoring include:

• Lightweight Design: The EMU40EX amplifier is palm-sized and weighs only 0.6 lb, making it comfortable for continuous patient wear.
• Wireless Monitoring: Utilizes secure, extended-range Bluetooth technology for continuous surveillance, granting patients freedom of movement within the clinical area.
• Secure Data Integrity: Data is recorded to internal flash memory within the wearable unit. This prevents data loss if the wireless connection is temporarily interrupted during movement, ensuring continuous data capture before automatic upload.
• Flexible Deployment: The unit features quick-disconnect options, allowing seamless use in either portable or fixed applications (such as wall or cart mount).

Yes, the Xltek EMU40EX system is designed to prevent data loss and maintain integrity, even when the patient moves out of wireless range.

The system uses a two-part approach:

• Wireless Connectivity: It uses extended-range Bluetooth wireless technology for real-time monitoring.
• Data Redundancy: EEG data is continuously recorded and stored locally on the amplifier’s internal flash memory.

If the wireless connection is temporarily lost, recording continues locally on the flash memory. The stored data is then automatically uploaded to the base unit once the connection is re-established, ensuring a complete record.

Yes, the Xltek EMU40EX system includes an integrated oximeter utilizing Masimo SET pulse oximetry. This technology is specifically used because it provides accurate monitoring of oxygen saturation (SpO2) and pulse rate even in challenging clinical conditions, such as during patient motion or low perfusion states.

The Xltek EMU40EX EEG/PSG System is a certified refurbished product. It comes with a 90-day warranty covering parts and labor, providing assurance of its quality and reliability.

No, the compatible Xltek Neuroworks Computer software is not included with this certified refurbished system. It must be purchased separately.

Key Requirement:

• You will need to purchase the necessary computer (laptop or desktop) running the compatible Neuroworks Version 8.1 software to operate the EMU40EX system and perform data analysis.

The Xltek EMU40EX EEG/PSG System is engineered to be a comprehensive and robust monitoring solution suitable for demanding clinical environments, primarily supporting three key areas:

• Epilepsy Monitoring Units (EMU): The system is specifically designed for continuous, long-term patient surveillance, utilizing extended-range Bluetooth wireless technology for patient mobility.
• Clinical EEG: It is fully capable of performing standard electroencephalography procedures, offering high diagnostic quality with sampling rates up to 1024 Hz.
• In-lab Sleep Studies (PSG): The system is also suitable for specific polysomnography applications.

Its clinical utility is enhanced by its comprehensive channel capacity, which includes 40 AC channels supporting full 10-20 electrode placement, and integrated Masimo SET pulse oximetry for accurate oxygen saturation and pulse rate monitoring.
