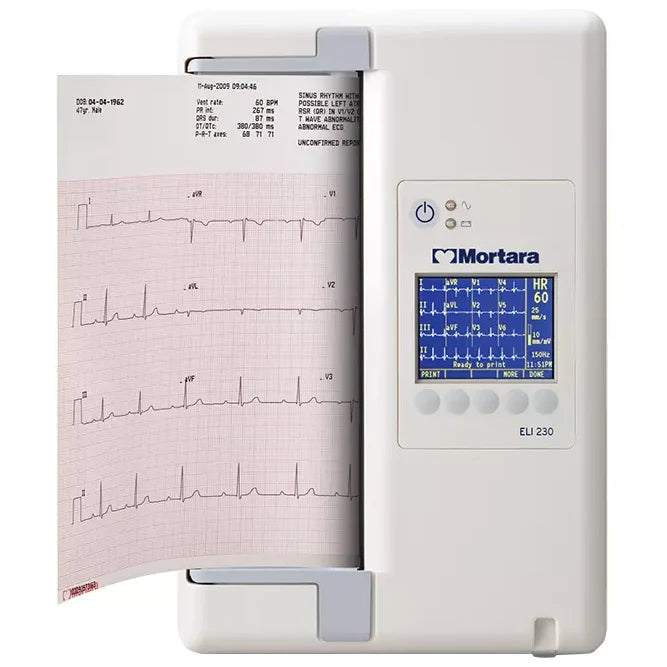

Welch Allyn Burdick ELI 230 Resting Electrocardiograph

Welch Allyn Burdick ELI 230 Resting Electrocardiograph
Key Features
  • SKU: WLA-BUR230-A
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 27 Months
  • Weight: 10.63 lb
  • Automatically selects the best 10‑second ECG
  • Provides high‑resolution pacemaker detection
  • Supports wired or wireless modules
  • Compact 12‑lead design with color display

  • Learn more:

Contact The Manufacturer
  • MFR: Hillrom
    Ships from MFI Medical
  • MPN: BUR230-A
  • Phone: (800) 445-3730
$2,610.67 $2,193.31

+Free Shipping*

Select a Configuration

Special Order Item

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Welch Allyn Burdick ELI 230 Resting Electrocardiograph includes US/Canada power cord, AHA 10‑wire, 12‑lead lead set with banana plugs, ECG clip adapters (set of 10), CardioSens Ultra II resting tab electrodes (pouch of 100), and starter roll of thermal paper (approximately 50 ft).

Warranty: 27 Months.

The Welch Allyn Burdick ELI 230 Resting Electrocardiograph is a compact and portable 12‑lead ECG system that delivers accurate and reliable results for both adult and pediatric patients. Its advanced Best 10 feature automatically selects the highest‑quality 10‑second ECG interval from up to five minutes of data, helping reduce repeat tests and improve workflow efficiency. The system is powered by the widely recognized VERITAS resting ECG interpretation algorithm, which applies sex‑specific as well as adult and pediatric criteria to provide a preliminary interpretation that can be reviewed and confirmed by a healthcare professional.

Designed for flexibility and ease of use, the ELI 230 offers optional wireless data acquisition through the WAM module or a traditional wired option with the AM12 module. Its high resolution color display allows real time viewing of three, eight, or twelve leads and post acquisition review of stored ECGs. With diagnostic quality ECG resolution capable of accurate pacemaker detection, full size printouts, and a complete accessory package including electrodes, lead sets, adapters, and thermal paper, the ELI 230 is a dependable solution for delivering clear, consistent ECG data in any clinical setting.

Features

Welch Allyn Burdick ELI 230 Resting Electrocardiograph Features

  • Best 10 feature selects the highest‑quality 10‑second ECG interval from up to 5 minutes of data.
  • VERITAS interpretation algorithm with sex‑specific, adult, and pediatric criteria.
  • Diagnostic‑quality resolution supports accurate pacemaker detection.
  • Compact, portable design with color LCD display and real‑time multi‑lead preview.
  • Post‑acquisition review capability for efficient workflow.
  • 12‑lead multi‑channel electrocardiograph with AC or battery operation.
  • Provides reliable adult and pediatric ECG functionality with full‑size printouts.
  • Designed as a complete, ready‑to‑use ECG solution with current software and accessories.

Configurations

Welch Allyn Burdick ELI 230 Resting Electrocardiograph Configurations

  • Instrument Type: 12-lead electrocardiograph.
  • Input Channels: Simultaneous acquisition of all 12 leads.
  • Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.
  • Waveform Display: Backlit, 1/4 VGA 320 x 240 LCD color display; 4+4 or 6+6 lead presentation.
  • Input Impedance, Input Dynamic Range, Electrode Offset Tolerance, Common Mode Rejection, Pacemaker Pulse Display: Meets or exceeds the requirements of ANSI/AAMI/IEC 60601-2-25.
  • Patient Leakage Current, Chassis Leakage Current: Meets or exceeds requirements of ANSI/AAMI ES1; IEC 60601-1.
  • Digital Sampling Rate: 40,000 s/sec/channel used for pacemaker spike detection; 1000 s/sec/channel used for recording and analysis.
  • Resolution: 1.875 microvolt LSB.
  • A/D Conversion: 20 bits.
  • Frequency Response: 0.05 to 300 Hz.
  • Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz.
  • Optional Functions: Optional Welch Allyn VERITAS resting ECG interpretation with age and gender specific algorithm.
  • Paper: Thermal roll paper, 210 mm (8.25") wide.
  • Thermal Printer: Computer-controlled dot array; 8 dots/mm.
  • Thermal Printer Speeds: 5, 10, 25, or 50 mm/s.
  • Gain Settings: 5, 10, or 20 mm/mV.
  • Report Print Formats: Standard or Cabrera; 12, 6, or 3+1 channel.
  • Rhythm Print Formats: 12, 6, or 3 channel with configurable lead groups.
  • Device Classification: Class I, Type CF defibrillation-proof applied parts.
  • ECG Storage: Internal storage up to 20 ECG records; external storage to USB memory stick.
  • Weight: 5.8 lb (2.63 kg) including battery (without paper).
  • Dimensions: 11.25 x 7.5 x 2.75" (28.58 x 19 x 7 cm).
  • Power Requirements: Universal AC power supply (100-240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery.
  • Battery: Rechargeable sealed lead-acid (SLA) 12V battery; 1.2 AH; 3.78" x 1.69" x 2.04" (96 x 43 x 52 mm); weighs 1.20 lb (0.54 kg).

Configurations

Welch Allyn Burdick ELI 230 Resting Electrocardiograph Configurations

  • #BUR230-A: AM12 Wired Acquisition Module.
  • #BUR230-B: WAM Wireless Acquisition Module.

Frequently asked questions

Does it support both wired and wireless acquisition?

Yes, the Welch Allyn Burdick ELI 230 provides flexible data acquisition options. You can configure the system using either of the following modules:

  • Wired Acquisition (AM12 Module): Provides a traditional, reliable physical connection.
  • Wireless Acquisition (WAM Module): This optional configuration offers enhanced mobility and flexibility, simplifying patient setup and positioning across various clinical settings.
Is the ELI 230 ECG a new device?

Yes, the Welch Allyn Burdick ELI 230 Resting Electrocardiograph is factory new, ensuring you receive a high-quality and reliable device for accurate patient diagnostics.

Is the ELI 230 adaptable for various clinical needs?

Yes, the Welch Allyn Burdick ELI 230 is designed for high adaptability in various clinical environments. Key features that highlight its versatility include:

  • Portability: Its compact design and ability to operate on both AC power and a rechargeable internal battery make it suitable for different settings.
  • Flexible Data Acquisition: You can choose between the wired AM12 module or the optional WAM wireless module to best suit your clinical workflow.
  • Comprehensive Patient Coverage: It provides accurate 12-lead ECG results for both adult and pediatric patients, ensuring broad applicability.
  • Efficient Workflow: The Best 10 Feature automatically selects the highest-quality ECG interval, reducing retests and streamlining operations.
Is the ELI 230 ECG system truly portable?

Yes, the Welch Allyn Burdick ELI 230 Resting Electrocardiograph is designed to be highly portable, featuring a compact design and an internal rechargeable battery. It’s easy to move and use in various clinical settings.

Does the ELI 230 provide high-quality diagnostic data?

Yes, the Welch Allyn Burdick ELI 230 is engineered for diagnostic precision and clinical reliability using several advanced technologies:

  • Best 10 Technology: This feature automatically identifies and selects the highest-quality 10-second ECG interval from up to five minutes of recorded data, which significantly reduces the need for repeat testing and ensures cleaner results.
  • VERITAS Interpretation Algorithm: The system utilizes sophisticated, evidence-based criteria—including age, sex, and pediatric-specific parameters—to provide accurate preliminary clinical interpretations for professional review.
  • High-Resolution Pacemaker Detection: The device is built with a high sampling rate (40,000 s/sec/channel for pacemaker detection) to ensure the precise identification of pacemaker pulses.
Does it accurately detect pacemakers?

Yes, the ELI 230 offers diagnostic-quality resolution specifically for accurate pacemaker detection, meeting or exceeding the requirements of ANSI/AAMI/IEC 60601-2-25.

Is the VERITAS interpretation reliable for diverse patients?

Yes, the VERITAS resting ECG interpretation algorithm is highly reliable and designed to provide a comprehensive preliminary diagnostic review for diverse patient populations. It ensures accuracy by applying specific criteria, including:

  • Sex-specific criteria
  • Adult criteria
  • Pediatric criteria

While this feature provides exceptional detail and workflow efficiency, final diagnosis and confirmation must always be performed by a qualified healthcare professional.

How much ECG data can the ELI 230 store?

The Welch Allyn Burdick ELI 230 is designed for operational efficiency in clinical environments and includes built-in storage to manage your diagnostic data. It features an internal memory capacity that can securely store up to 20 ECG records.

Is the ECG device made in the USA?

Yes, the Welch Allyn Burdick ELI 230 Resting Electrocardiograph is manufactured in the USA. This ensures adherence to high-quality standards and robust manufacturing practices.

Does this ECG system feature a high-resolution color display?

Yes, the Welch Allyn Burdick ELI 230 features a backlit color LCD display that provides clear, real-time visualization of ECG waveforms and system status. The display is high-resolution, assisting clinicians with both real-time monitoring and post-acquisition review of stored ECG data.Key display specifications include:* Resolution: 1/4 VGA (320 x 240).* Lead Viewing: Supports simultaneous, real-time viewing of three, eight, or twelve leads.* Modes: Offers 4+4 or 6+6 presentation modes for flexible viewing.
