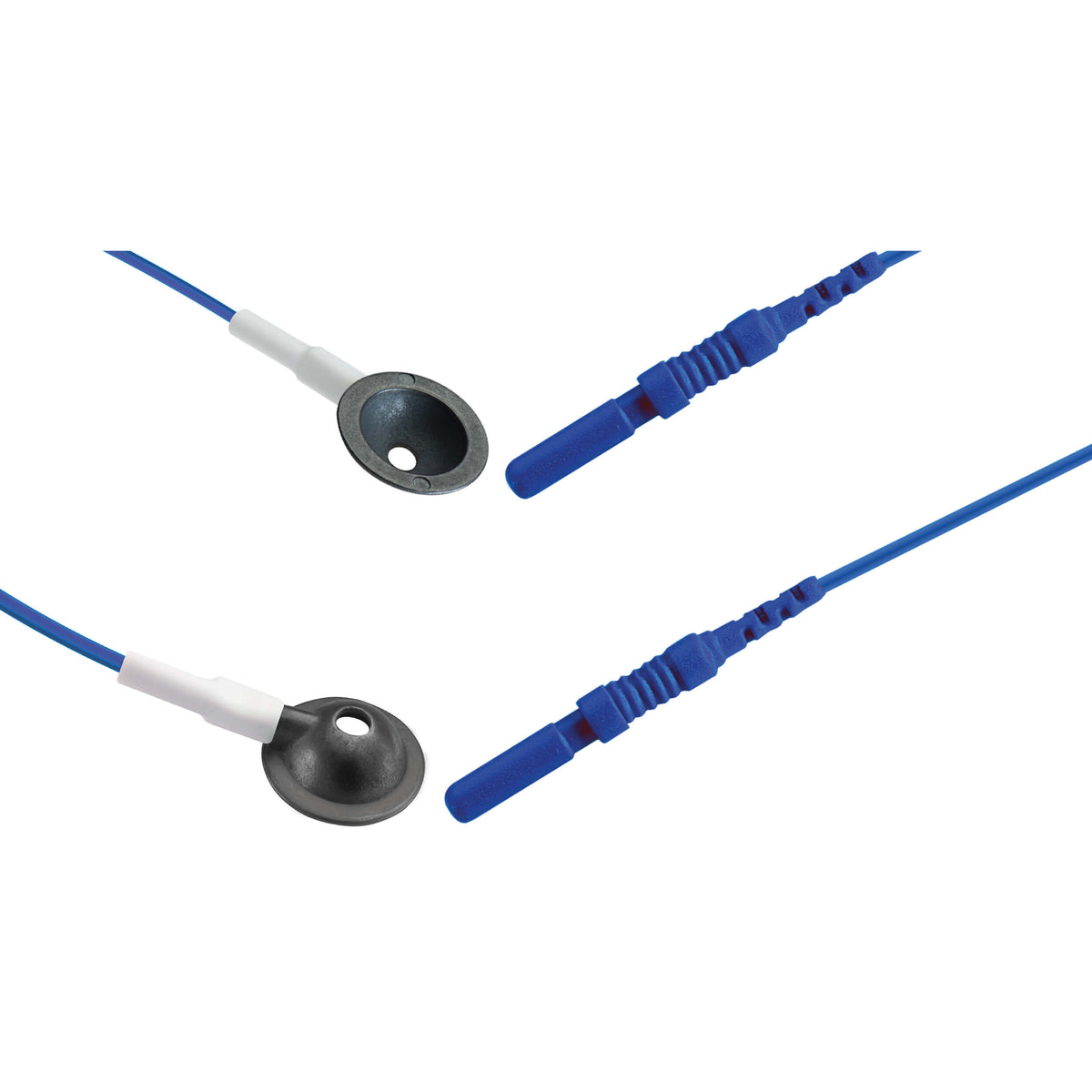

Technomed Disposable EEG Cup+ Electrode

The Technomed Disposable EEG Cup+ Electrode is designed to optimize EEG procedures and to enable you to focus on the patient and the EEG recording. It has a larger dome which holds a higher volume of conductive material.

Warranty: Until Use or Expiration.

The Technomed cup electrodes are compatible with most of the EEG equipment used in the world and give an excellent signal with this equipment for good diagnoses and accurate monitoring.

The PVC wires terminate into a safety DIN 42 802 connector, are multi colored, and are available in lengths of 1, 1.5, 2, or 2.5 meters.

Technomed Disposable EEG Cup+ Electrode Features

• No cleaning and preparation of EEG electrodes needed.
• Clear and reliable signal due to optimized layer of frequency-stable Ag/AgCl.
• Optimized signal quality due to larger electrode surface and volume.
• Short cup-to-cable connection to reduce lift risk.
• Flexible wires and optimized connector for easy headbox insertion and extraction.
• Low profile disk with soft and flexible anti-tangle lead wires for high patient comfort.
• Single use to avoid cross-patient contamination.

Technomed Disposable EEG Cup+ Electrode Specifications

• Cup Diameter: 10 mm.
• Cup Height: 3 mm.
• Lead Wire Core: Tin Plated Copper.
• Lead Wire Insulation: PVC.
• Connector: DIN 42802-1.
• Colors:
  • 5 Colors: Red, green, white, yellow, and blue.
  • 10 Colors: Green, white, yellow, red, orange, purple, black, blue, grey, and brown.
• Natural rubber latex-free.
• REACH and RoHS (EU) compliant.
