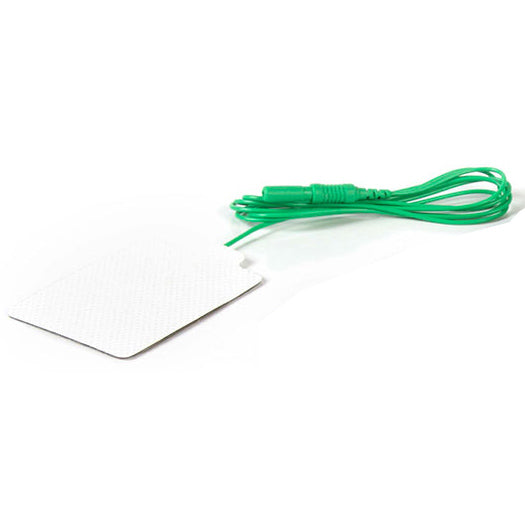

Technomed Disposable Adhesive EMG Ground Surface Electrode (20/Box)

Technomed Disposable Adhesive EMG Ground Surface Electrode
Key Features
  • SKU: TNM-TE-K50431-002
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Until Use/Expiration
  • Weight: 1.1 lb
  • For ground use
  • Clear and reliable signal with optimized sensor
  • Can be combined with all Technomed EMG needles or reusable needle electrodes and stimulation probes
  • Diameter: 40 mm x 50 mm

  • Learn more:

Contact The Manufacturer
  • MFR: Technomed
    Ships from Manufacturer
  • MPN: TE/K50431-002
  • Phone: (651) 288-0890
$58.04

+ Free Shipping

Select a Length
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Technomed Disposable Adhesive EMG Ground Surface Electrode (20 Pieces per Box) is designed with an Ag/AgCl sensor and an extra thick and flexible conductive gel which help provide a crystal clear signal, ease of use, repositionability, and good grounding.

Warranty: Until Use or Expiration (2 Year Shelf Life for unopened pouches).

The electrode, for ground use, is highly flexible and can be repositioned on all types of skin. The electrode is designed for patient comfort and user friendliness with soft wires and an optimized connector for easy headbox insertion and extraction.

The Disposable Adhesive Surface Electrode can be combined with all Technomed EMG needles or reusable needle electrodes and stimulation probes.

Note: When using this product, water and electrolyte gel between the felt strap/plate and the recording or stimulating electrodes should be avoided and removed before application.

Features

Technomed Disposable Adhesive EMG Ground Surface Electrode Features

  • Clear and reliable signal with optimized sensor.
  • Improved patient comfort with skin friendly soft and flexible materials.
  • Extra large soft and flexible gel patch with high repositionability.
  • Wire Color: Green.
  • Hydrogel: Solid.
  • Lead-free.
  • Latex-free.
  • BPA-free.
  • DEHP < 0.1% by weight.
  • REACH & RoHS compliant.
  • Leadwire Core: Tin plated Copper.
  • Leadwire Insulation: PVC.
  • Connector: DIN 42802.

Specifications

Technomed Disposable Adhesive EMG Ground Surface Electrode Specifications

  • Diameter: 40 mm x 50 mm.
  • Property - Test Method Typical Values:
    • Hydrogel Process pH: 6.3 (± 0.5).
    • Biocompatibility (ISO 10993): Pass.
    • Volume Resistivity (Ohm-in): 763 Ohm-in.
    • Stainless Steel Adhesion: 787 grams per inch of width.
    • Thickness of Hydrogel: 32 Mills (± 5 Mills).

Lengths

Technomed Disposable Adhesive EMG Ground Surface Electrode Lengths

  • #TE/K50431-002: 1.0 m.
  • #TE/K50431-003: 2.0 m.

Literature

Technomed Disposable Adhesive EMG Ground Surface Electrode Literature

Technomed Product Catalog

Technomed Disposable Adhesive Surface Electrode Product Datasheet

Frequently asked questions

Does the Technomed electrode use a high-quality sensor?

Yes, the Technomed Disposable Adhesive EMG Ground Surface Electrode uses an Ag/AgCl sensor, which is optimized to ensure a clear and reliable signal during electromyography (EMG) procedures.

Are these reliable EMG ground electrodes latex-free?

Yes, patient safety is a top priority. These disposable Technomed EMG ground electrodes are confirmed to be Latex-free, making them suitable for users with latex sensitivities.

Furthermore, they adhere to high international safety and material standards:

  • Lead-free and BPA-free composition
  • Confirmed ISO 10993 Biocompatibility
  • Compliance with stringent REACH and RoHS directives
  • DEHP content is confirmed to be less than 0.1% by weight
Do these high-quality electrodes have a long shelf life?

The Technomed Disposable Adhesive EMG Ground Surface Electrodes have a reliable shelf life of 2 years when stored in their original, unopened packaging. This ensures the optimal performance of the integrated Ag/AgCl sensor and the thick, flexible conductive gel until they are ready for use.

What is the size of the adhesive EMG electrode?

The disposable adhesive electrode patch, designed to be soft and highly flexible for patient comfort, measures 40 mm x 50 mm. This size ensures suitability for various skin surfaces and allows for high repositionability.

Does the EMG electrode use high-quality, solid hydrogel?

Yes, these EMG ground electrodes feature an extra-thick and flexible conductive hydrogel that is solid. This hydrogel is designed to ensure a crystal-clear signal and promote patient comfort due to its soft and flexible nature, allowing for easy repositioning on various skin types.

Are these ground electrodes highly repositionable?

Yes, these electrodes are designed for high repositionability.

They utilize skin-friendly, soft, and flexible materials to ensure patient comfort and adaptability. This allows the patch to conform well to various skin types and be easily repositioned if needed for accurate placement.

What is the high-quality leadwire material?

The leadwire core is made from tin-plated copper, ensuring excellent signal transfer and durability. For insulation, PVC is used.

Are these Technomed EMG electrodes compatible with other EMG needles?

Yes, these electrodes are compatible with all Technomed EMG needles, reusable needle electrodes, and stimulation probes.

What connector type do these EMG ground electrodes use?

The Technomed Disposable Adhesive EMG Ground Surface Electrode uses a DIN 42802 connector.

Are the electrodes REACH and RoHS compliant?

Yes, these disposable Technomed ground electrodes are manufactured with stringent safety in mind and are fully compliant with both REACH and RoHS standards.

These electrodes also meet several other critical safety requirements:

  • Biocompatibility: They have passed ISO 10993 testing.
  • Safe Formulation: They are certified Lead-free, Latex-free, and BPA-free.
  • DEHP Content: The concentration of DEHP is controlled to be less than 0.1% by weight.
