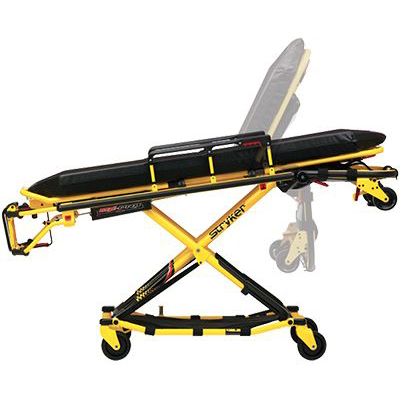

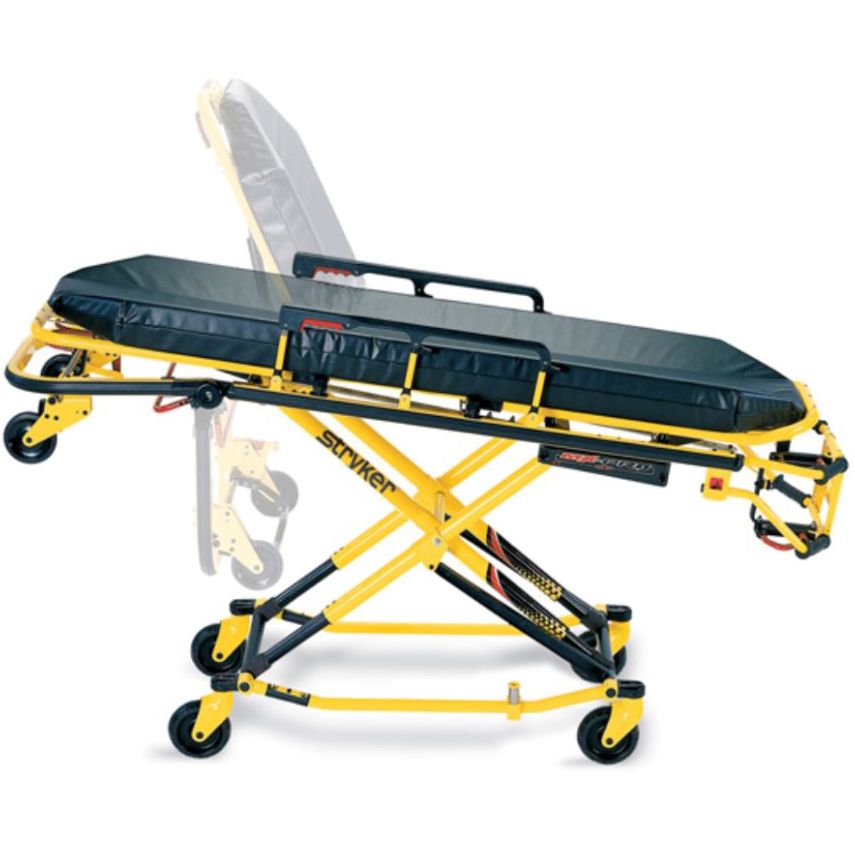

Stryker MX-PRO R3 Ambulance Cot

Stryker MX-PRO R3 Ambulance Cot Features

• The MX-PRO R3 weighs only 81 lb, yet delivers a 650 lb load capacity (available in a 600 lb patient weight capacity as well).
• Compact, easily maneuverable, it's shortest-in-class when the breakaway head section is folded.
• Pneumatic Backrest: The advanced one-hand pneumatic backrest is a rugged innovation that ensures superior operator control and significantly reduces manual lifting. The MX-PRO's standard one-hand release assists the operator with lifting the back of a patient to any position which also delivers maximum patient comfort.
• Easy-to-Use Release Handle: The easy-to-use release handle requires low force operation and short grip distance, especially appropriate for smaller operators.
• Fold Down Side Rails: Fold down side rails are a rugged innovation that require no additional lateral space, providing full operation in confined areas for user convenience. Their low-force operation provides security in the up position and unimpeded access to the litter in the down position.

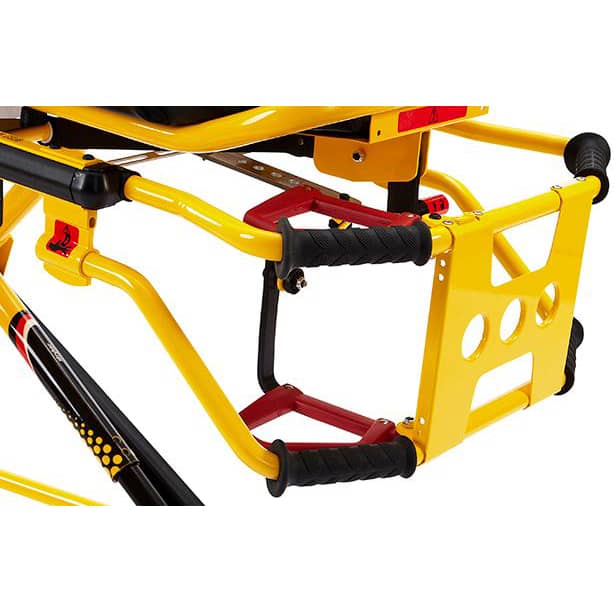

• Break Away Head Section: The one-hand breakaway head section offers shortest-in-class dimension when folded, maximizing maneuverability in tight areas.
• Floor Mounted Safety Hook: The distinctive floor mounted safety hook design significantly reduces the risk of cot drop incidents and potential operator or patient injury during the loading and unloading process.
• Lift Capable Safety Bar: The lift capable safety bar delivers handling confidence through smart design and rock solid construction. Dual lift points readily support a full load and accommodate operators of all heights.
• Larger Patient Surface: Stryker's standard larger patient surface easily accommodates a greater range of patient sizes, ensures optimal safety, and maximizes space between patient and provider alike.
• Automatic In-Fastener Shutoff: The innovative shutoff function automatically disables the cot when locked in the cot fastener system for exceptional, dependable safety.
• BackSmart Design: The revolutionary BackSmart design integrates innovative ergonomic features such as hydraulic lift, one-hand pneumatic backrest, and low-roll force over-sized wheels into our EMS equipment to minimize strenuous manual lifting and significantly reduce the risk of back and other related injuries.

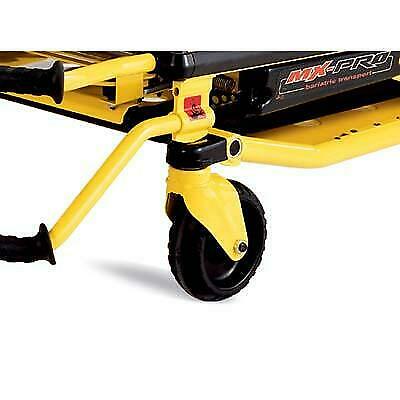

• Oversized Wheels: Heavy-duty oversize rear wheels require less roll force, providing safe, secure transport in challenging emergency situations for patient and provider alike.

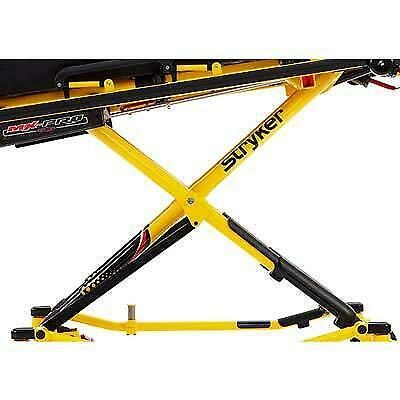

• Patented X-Frame Construction: Patented X-frame design defines proven performance and maximizes efficient operation for enhanced provider safety, patient comfort, and long term durability.
• Powder-Coated Frame: Tough, highly visible yellow powder coating provides an extra margin of safety and withstands repeated power washings for decontamination. The finish eliminates oxidation.
• Cot Fastener Compatibility: The MX-PRO R3 Ambulance Cot fastening system is compatible with every cot ensuring superior reliability and simplifying ambulance integration for added convenience.

Stryker MX-PRO R3 Ambulance Cot Specifications

• Height:
  • Position 1: 13.5" (34 cm).
  • Position 2: 21" (53 cm).
  • Position 3: 25.5" (65 cm).
  • Position 4: 29" (74 cm).
  • Position 5: 32" (81 cm).
  • Position 6: 35" (89 cm).
  • Position 7: 37.5" (95 cm).
• Length:
  • Standard: 80.5" (205 cm).
  • Minimum: 62" (158 cm).
• Width: 23" (58 cm).
• Weight: 81 lb (38 kg).
• Wheels:
  • Diameter: 6" (15 cm).
  • Width: 2" (5 cm).
• Articulation:
  • Backrest: 2 to 73°.
  • Shock Position: + 14°.
• Maximum Weight Capacity: Available in 600 lb (272 kg) and 650 lb (295 kg).
• Minimum Operators Required:
  • Occupied Cot: 2.
  • Unoccupied Cot: 1.
• Recommended Fastener System:
  • Stryker:
    • Floor Mount: Model 6370, 6377, or 6378.
    • Wall Mount: Model 6371.
  • Ferno 175 Fastening System.
• Recommended Loading Height: Up to 32" (81 cm).

Stryker MX-PRO R3 Ambulance Cot Configurations

• #MFI-SYK-MX-PRO-R3-600: 600 lb (272 kg) Weight Capacity.
• #MFI-SYK-MX-PRO-R3: 650 lb (295 kg) Weight Capacity.

Stryker MX-PRO R3 Ambulance Cot Accessories

The following accessories are compatible and commonly purchased with the MX-PRO R3 Ambulance Cot:

• #6082-140-000: Head End Oxygen Bottle Holder.
• #6080-216-010: MX-PRO R3 IV Pole.
• #6060-160-044: MX-PRO R3 Replacement Lap Belt.
• #6060-260-045: Shoulder Harness Restraint.
• #6082-128-010: Pocketed Head End Storage Pouch.
• Mattresses:
  • #6090-041-010: Sealed Bolster Mattress.
  • #6090-042-010: Sealed Flat Mattress.

Stryker MX-PRO R3 Ambulance Cot Literature

Stryker 6082 MX-PRO R3 Operations/Maintenance Manual

Stryker MX-PRO R3 X-Frame Ambulance Cot Spec Sheet
