RPI SDV106 Solenoid Valve (Oil Return)

RPI SDV106 Solenoid Valve (Oil Return)
Key Features
  • SKU: RPI-SDV106
  • Condition: Factory New

  • Learn more:

Contact The Manufacturer
  • MFR: RPI Ships from Manufacturer
  • MPN: SDV106
  • Phone: (800) 221-9723
$427.42

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

OEMs & Models > BULK STERILIZERS AND ENDOSCOPE PROCESSING SYSTEMS > STERRAD > 100NX > SDV106

BULK STERILIZERS AND ENDOSCOPE PROCESSING SYSTEMS
STERRAD
100NX

RPI Part #SDV106
OEM Part #28-51498-001

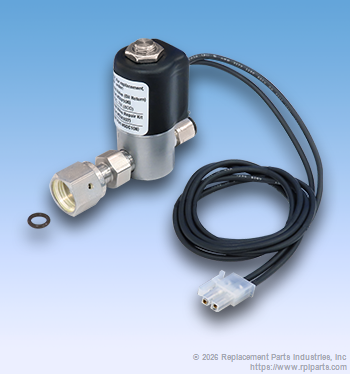

SOLENOID VALVE (OIL RETURN)

  • 12VDC, 7W (80Ω); 24" lg wires with 2 pin connector
  • Material: Stainless steel body; Viton (FKM) seals
  • Includes: Vacuum fitting face seal O-ring, (1 pc) (RPI Part #RXO091) and (1) Male Connector (1/4" push-in x 1/8" MPT) (RPI Part #RXF117)
  • Also available: Solenoid Valve Repair Kit (RPI Part #SDK107) and Coil (RPI Part #SDC108)

Fits: Vacuum Pump Chassis

Frequently asked questions

Does this valve use premium materials for longevity?

Yes, this solenoid valve is built for durability. It features a stainless steel body for corrosion resistance and highly resilient Viton (FKM) seals, which are chosen specifically for their superior chemical and temperature resistance in demanding medical environments.

Is this a direct replacement for the OEM part?

Yes, the RPI SDV106 is a direct replacement for the OEM Part #28-51498-001, ensuring full compatibility with your existing STERRAD 100NX system without the need for modifications.

Are all necessary installation components included?

Yes, the package is ready for installation. It includes:

  • One vacuum fitting face seal O-ring (RPI Part #RXO091)
  • One male connector adapter (1/4” push-in x 1/8” MPT, RPI Part #RXF117)
How simple is the electrical integration?

Integration is designed to be straightforward. The valve comes with 24-inch pre-attached wires that terminate in a standard 2-pin connector, allowing for a quick and secure connection to the vacuum pump chassis.

Can the solenoid coil be serviced individually?

Yes, the system is designed with maintenance in mind. Both the solenoid coil (RPI Part #SDC108) and the valve assembly as a whole can be serviced separately using available RPI repair kits, such as RPI Part #SDK107.

Is this valve rated for specific voltage requirements?

The solenoid valve is engineered for high-specification performance, operating at 12VDC with a power rating of 7 Watts and 80 Ohms impedance.

Where is this component specifically designed to fit?

This valve is precision-engineered specifically for integration into the Vacuum Pump Chassis of the STERRAD 100NX system.

What is the expected lead time for this part?

Orders for this item typically ship within 7 days from the manufacturer, with an estimated total lead time of 1-2 weeks.

Is this valve suitable for use in bulk sterilizers?

Yes, the RPI SDV106 is specifically designated for controlling oil return in STERRAD 100NX Bulk Sterilizers and Endoscope Processing Systems.

Can I get technical support if needed during installation?

Yes, RPI provides technical support for their products. You can reach their support team at (800) 221-9723 for assistance with installation or technical inquiries.
