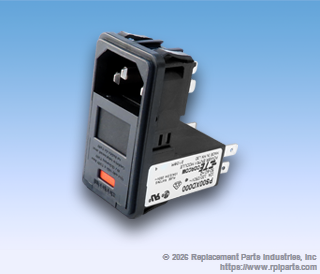

RPI RXM085 Power Entry Module

RPI RXM085 Power Entry Module
Key Features
  • SKU: RPI-RXM085
  • Condition: Factory New

  • Learn more:

Contact The Manufacturer
  • MFR: RPI Ships from Manufacturer
  • MPN: RXM085
  • Phone: (800) 221-9723
$73.01

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

OEMs & Models > EXAM TABLES AND CHAIRS > MIDMARK - RITTER > 230 > RXM085

EXAM TABLES AND CHAIRS
MIDMARK - RITTER
230

Tech Support Library

RPI Part #RXM085
OEM Part #015-1653-00/002-10454-00

POWER ENTRY MODULE

  • 10A @ Selectable 115 VAC/230 VAC, 3/16" tabs
  • For use with C13 power cords
  • Fuses not included, accepts up to 2 ea 1/4" dia. x 1-1/4" lg. or 5mm x 20mm fuses
  • Panel cutout: 1.06" x 2.20", .031" - .079" panel Thk
  • Also available: Hospital Grade Power Cord (15A @ 125VAC, 8 ft.) (RPI Part #RPC554), Hospital Grade Power Cord (15A @ 125VAC, 10 ft.) (RPI Part #RPC260), and Fuse (6.3A, 250VAC) 5mm x 20mm Time Delay (RPI Part #RXF036)
  • See Notes below for Serial Numbers this part fits

Fits: Chassis

Frequently asked questions

Does this module handle different voltage requirements?

Yes, the RPI RXM085 is designed for flexibility, featuring a selectable 115 VAC/230 VAC input to easily accommodate varying clinical electrical configurations.

Is this component a precise fit for Midmark equipment?

Absolutely. It is specifically engineered for seamless integration with the Midmark-Ritter 230 series exam tables and chairs, ensuring a perfect fit for chassis installation.

What type of power cord does this unit accept?

The module is designed for convenience and standard compatibility, utilizing a widely available C13 power cord connection.

Are there versatile options for fuse protection?

The module allows for flexible circuit protection by supporting up to two fuses. It is compatible with two common sizes:

  • 1/4” diameter x 1-1/4” long
  • 5mm x 20mm
Is the mounting hardware standardized for easy installation?

Yes, it is designed for standard panel mounting. It fits a 1.06” x 2.20” cutout and is compatible with panel thicknesses ranging from 0.031” to 0.079”.

How secure are the electrical connections?

The module features reliable 3/16” tab connections on the rear, providing a secure and stable interface for professional-grade electrical connectivity.

Does this replace specific OEM parts?

Yes, this component is a factory-new, high-quality replacement for the following OEM parts:

  • 015-1653-00
  • 002-10454-00
What is the power rating of this module?

The RPI RXM085 is built to handle professional demands, with a power rating of 10A at 115 VAC/230 VAC.

Are fuses included with the module?

No, the package includes the RPI RXM085 Power Entry Module itself. You will need to source your own fuses separately to populate the carriage.

Is there professional support if I have installation questions?

Yes, technical support is available to assist with any questions regarding installation or compatibility. You can contact them at (800) 221-9723.
