Mindray N1 Monitor with Nellcor OxiMax SpO2

Yes, the Mindray N1 Monitor is engineered to be highly durable and resilient, making it ideal for demanding clinical and transport environments.Key durability features include:* Robust Build: The unit is built to withstand a 1.2-meter drop test endurance, ensuring reliability during patient transport.* Environmental Resistance: It holds an IP44 grade rating, meaning it is protected against particle intrusion and splashing water, making it easy to clean.* Sleek Design: The exterior is designed to eliminate difficult-to-clean seams and gaps, supporting effective disinfection and hygiene protocols.* Portability: Weighing only 2.0 lb (0.95 kg) without integrated CO2, its lightweight and compact dimensions (4.0” H x 5.9” W x 3.2” D) enhance its practicality and resilience during movement.

Yes, the Mindray N1 is a highly adaptable, multi-parameter monitoring solution designed to meet diverse clinical needs seamlessly. It is uniquely engineered to serve three key functions in a single, compact unit:

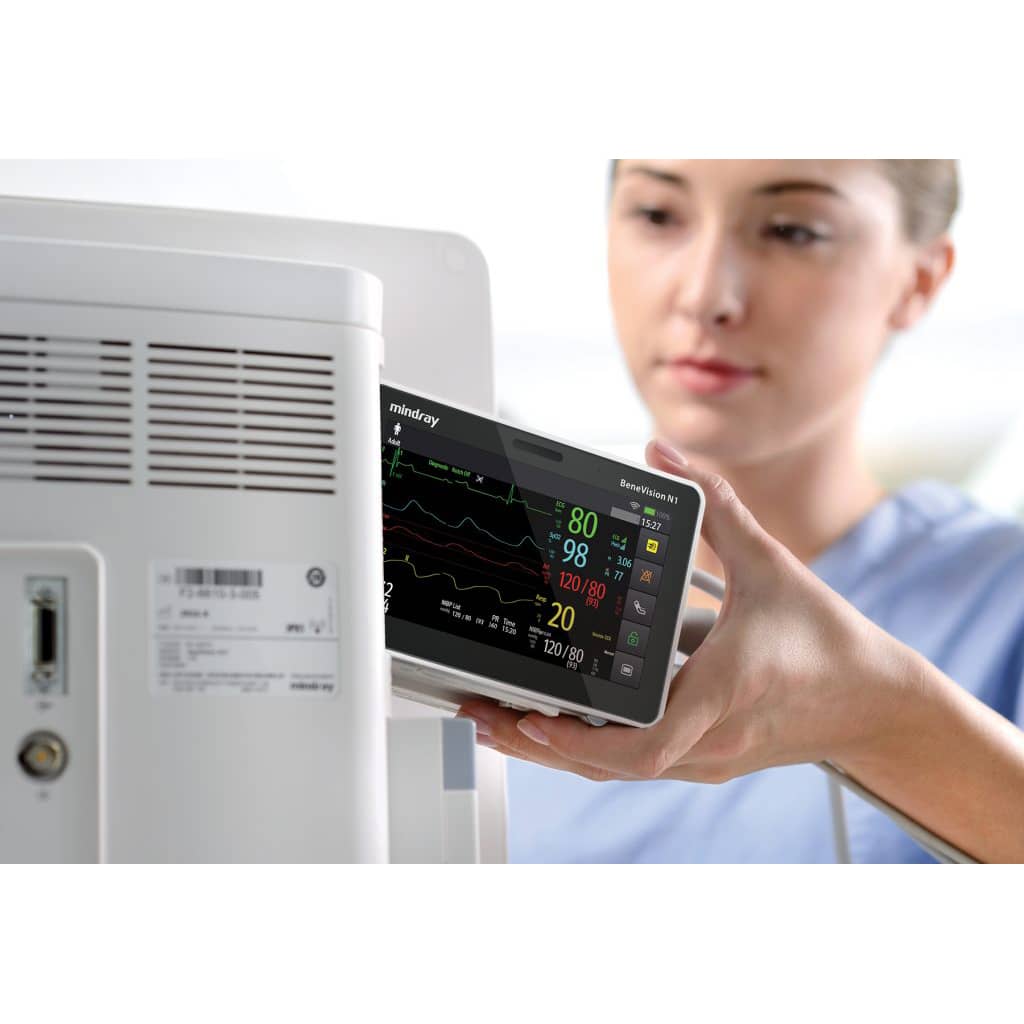

• Core Parameter Module: It integrates as the essential parameter module for the larger Mindray N-Series platform.

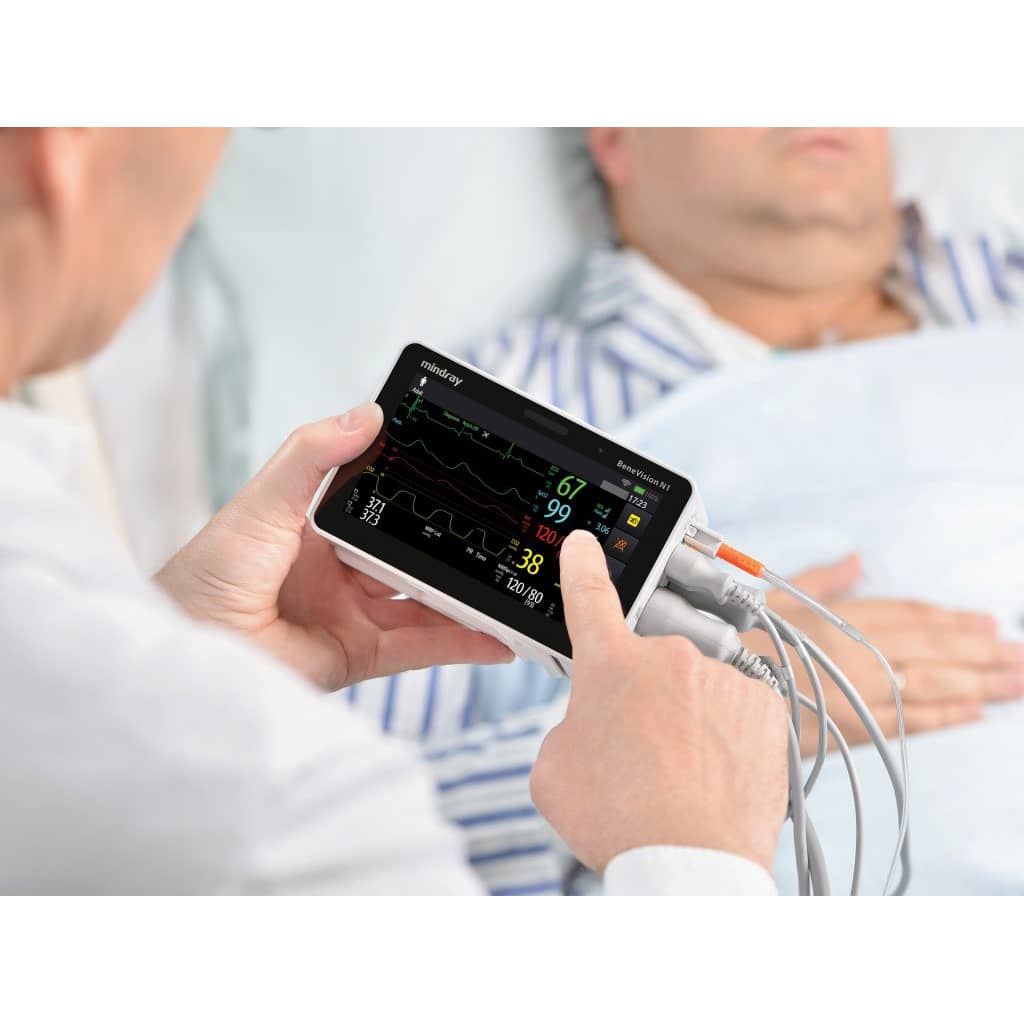

• Powerful Transport Monitor: Weighing only 2.0 lb (0.95 kg), its compact size and durable build make it ideal for transport. It is rated IP44 for particle and water resistance and is built to withstand a 1.2-meter drop test endurance.
• Versatile Bedside Monitor: It operates as a fully functional standalone unit, featuring an intuitive 5.5″ capacitive touchscreen with smartphone-like, multi-gesture control for high-quality patient care.

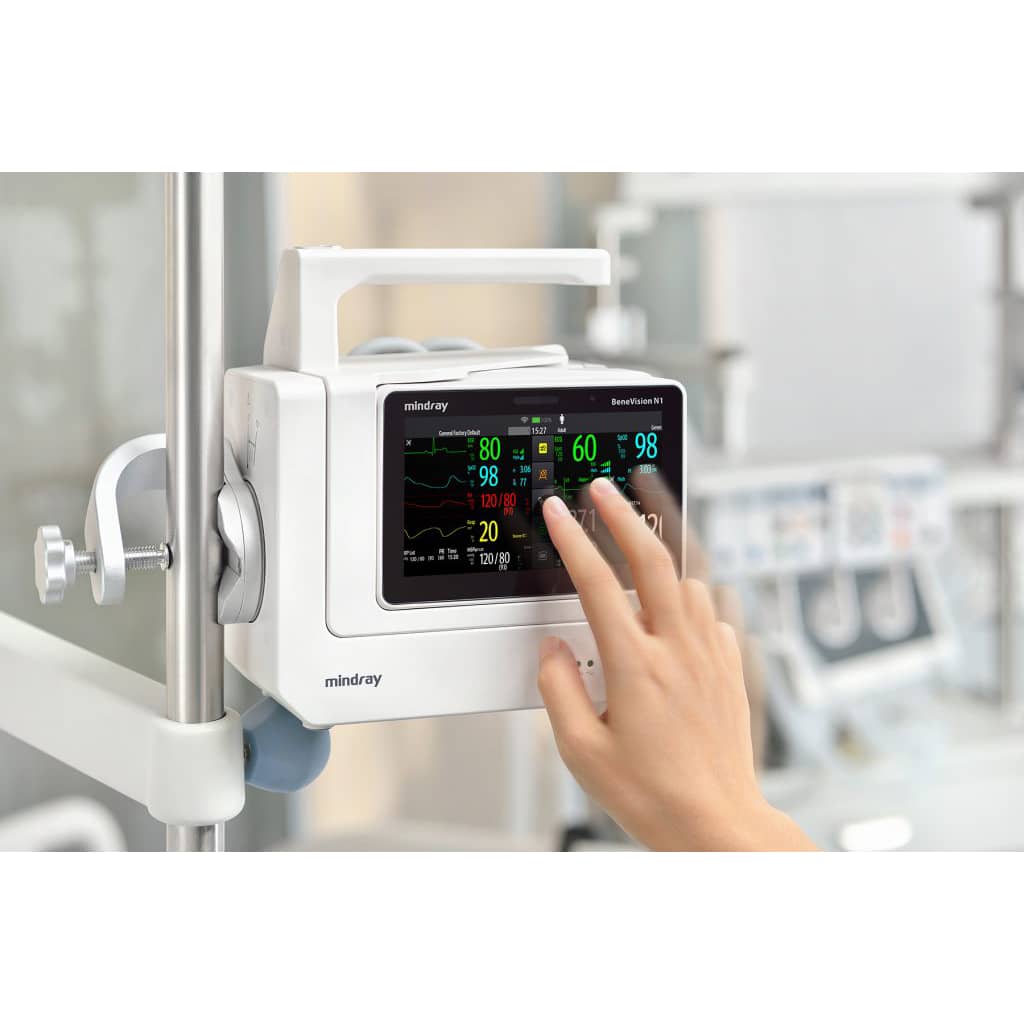

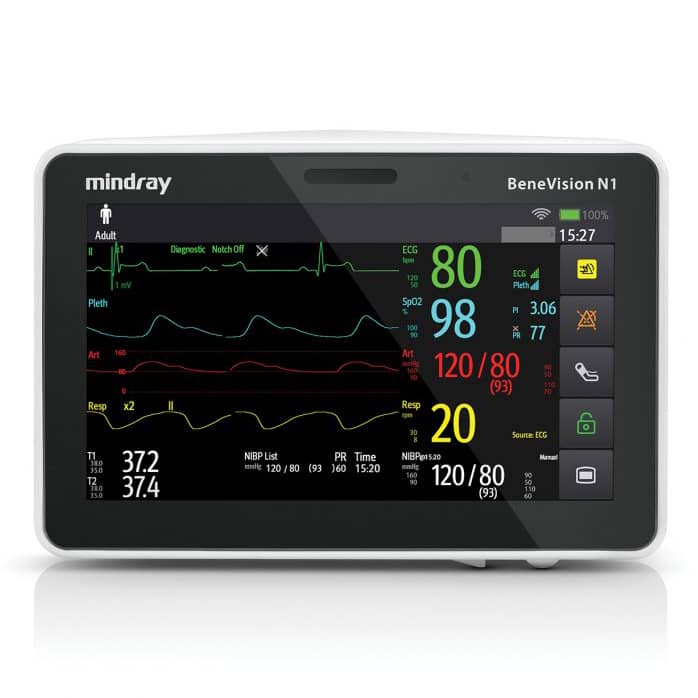

Yes, the Mindray N1 Monitor is designed with a highly intuitive and responsive interface, centered around a 5.5-inch capacitive touchscreen display.

This display enhances patient care by offering:

• Smartphone-Like Control: It supports multi-gesture controls, providing a familiar and easy-to-use experience for clinicians.
• High Visibility: It can display up to 6 waveforms simultaneously, ensuring comprehensive, real-time data visualization.
• N-Series Consistency: The user interface is consistent with the broader Mindray N-Series platform, streamlining training and operation across different Mindray devices.

The Mindray N1 Monitor offers comprehensive monitoring capabilities right away, featuring these essential measurements across all standard configurations:

• ECG: 3, 5, or 6-lead ECG.
• SpO2 (Oxygen Saturation): Monitoring is included, utilizing the provided Nellcor OxiMax components (sensor and cable).
• NIBP: Non-Invasive Blood Pressure.
• 2 IBP: Two channels for Invasive Blood Pressure.
• Respiration
• 2 Temperatures: Two temperature inputs.

In addition to vital signs, standard software includes advanced analysis features such as Arrhythmia analysis and Atrial Fibrillation (Afib) detection.

The Mindray N1 Monitor features an integrated, high-capacity battery system perfect for transport, offering extended operation.

Key power specifications include:

• Run Time: Provides over 8 hours of continuous monitoring (without the internal CO2 module).
• Battery Type & Quantity: The unit uses two rechargeable lithium-ion batteries.
• Capacity: Each battery has a capacity of 2500 mAh at 7.56 VDC.
• Recharge Time: The batteries recharge up to 90% capacity in approximately 6 hours.

The Mindray N1 Monitor is a factory-new unit that includes all core accessories necessary for standard patient monitoring right out of the box. These essential components include:

• SpO2 Monitoring: Nellcor SpO2 adult reusable sensor and cable.
• NIBP Monitoring: Reusable adult NIBP cuff and hose.
• ECG Monitoring: ECG 5-lead adult defib-proof cable and a 5-lead snap wire set.
• Temperature Monitoring: MR420B adapter cable (for YSI probe).
• Power and Portability: Power supply cable (110/220VAC) and the integrated rechargeable Li-ion battery system (2 batteries).

This robust battery system provides a run time of over 8 hours, ensuring reliable performance for patient transport.

Note: Accessories specifically required for 12-lead ECG monitoring must be ordered separately, regardless of the chosen configuration.

Yes, the Mindray N1 Monitor is equipped with strong cardiac analysis features, though some advanced functions are dependent on the configuration purchased.

Core Cardiac Analysis Features (Included):

• Supports 3, 5, and 6-lead ECG monitoring.
• Includes Arrhythmia analysis and Atrial Fibrillation (Afib) detection.
• Features Defibrillator synchronization capability.

Advanced Analysis (Configuration Dependent):

Depending on the specific MPN ordered, the monitor can also include:

• ST analysis (for assessment of ischemic changes).
• QTc interval monitoring.

Yes, the Mindray N1 is designed for high-acuity transport and uses two integrated, high-performance rechargeable lithium-ion batteries.

This robust power system ensures reliable operation:

• Extended Run Time: The unit provides greater than 8 hours of continuous monitoring (without the internal CO2 module), supporting long-duration transport.
• Recharge Time: The batteries can be recharged to 90% capacity in approximately 6 hours.
• Specifications: The battery capacity is 2500 mAh at 7.56 VDC.

Yes, the Mindray N1 Monitor has standard 2.4/5 GHz dual-band wireless communication capabilities.

Yes, the Mindray N1 Monitor is configured to include the highly reliable Nellcor OxiMax SpO2 monitoring capability, ensuring accurate and dependable oxygen saturation measurements.

For immediate use, the following required accessories are included with the monitor:

• Nellcor SpO2 adult reusable sensor
• Nellcor SpO2 cable
