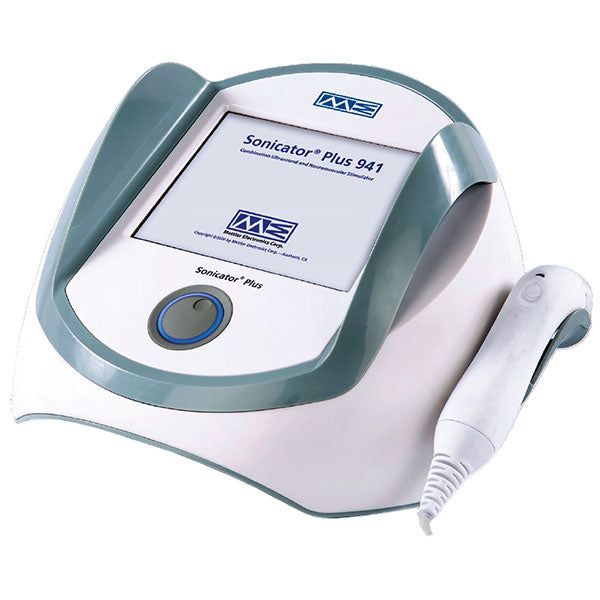

Mettler Sonicator Plus 941

Mettler Sonicator Plus 941 Features

• Four-channel stimulator with ultrasound component.
• Equipped with six waveforms: Interferential, Premodulated, EMS, Russian, TENS, and High Voltage.
• Includes eight inch color touchscreen and intensity control knob.
• Storage for up to 50 user defined protocols.
• Optional treatment cart allows for mobility.

Mettler Sonicator Plus 941 Specifications

General Specifications

• Input: 120 V, 60 Hz (domestic), 140 VA.
• Weight: 8.8 lb.
• Dimensions: 13.8" (W) x 10.6" (D) x 5.7" (H).
• Channels: 4 stimulation, 1 ultrasound.
• Maximum Treatment Time:
  • 60 minutes - electrical stimulation.
  • 30 minutes - ultrasound or combination therapy.

Ultrasound Specifications

• Frequency: 1.0 and 3.0 MHz.
• Modes:
  • Continuous.
  • Pulsed: 5, 10, 20, 30, 40, and 50% duty cycles.
  • Pulse Frequency: 16, 48, and 100 Hz.

Electrical Stimulation Specifications:

• Waveform Types: Interferential, premodulated, EMS, Russian, High Volt, TENS, Microcurrent and Direct Current.
• Current:
  • Interferential: 0.5 - 100 mA peak, 500 ohm load, CC or CV
  • Premodulated: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • EMS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Russian: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • High Volt: 0.5 - 300 V peak, 500 ohm load (no mA stated), CV only.
  • TENS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Microcurrent: 10 - 750 uA peak, 500 ohm load, CC only.
  • Direct Current: 0.2 - 20 mA peak, 500 ohm load, CC or CV.
• Frequency:
  • Interferential: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • Premodulated: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • EMS: 2, 4, 5, 8, and 10 kHz (20 to 250 beats in 10 beat steps).
  • Russian: 2500 Hz, Burst 10 to 100%.
  • High Volt: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • TENS: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • Microcurrent: 0.2 to 400 Hz
  • Direct Current: None or 60 - 100 ms pulses.
• Special Features:
  • Interferential: Vector Sweep Angle - 0, 15, 30, and 45 degrees.
  • Premodulated: None
  • EMS: Independent, Simultaneous, Alternate.
  • Russian: Independent, Simultaneous, Alternate.
  • High Volt: Independent, Simultaneous, Alternate.
  • TENS: Independent, Simultaneous, Alternate.
  • Microcurrent: None.
  • Direct Current:  None.
• Polarity:
  • Interferential: None.
  • Premodulated: None.
  • EMS: None.
  • Russian: None.
  • High Volt: Positive, negative, or both.
  • TENS: Positive, negative, or none, sym.l or asym. biphasic.
  • Microcurrent: Positive, negative, or both.
  • Direct Current: Positive, negative.

Mettler Sonicator Plus 941 Configurations

• #ME 941: Standard Unit

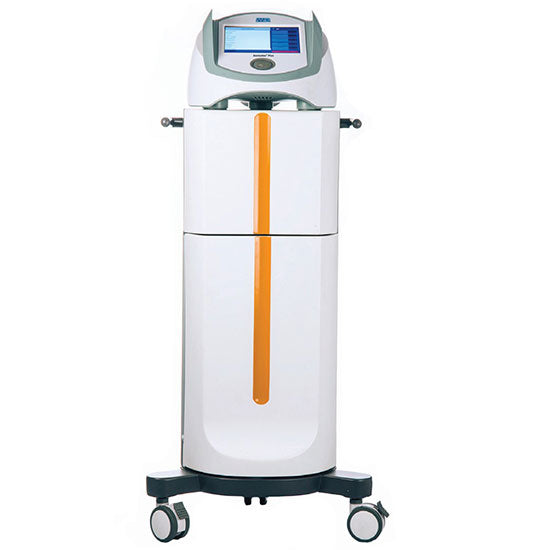

• #ME 941C: Standard Unit with Cart included.
