Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount

Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount
Key Features
  • SKU: MII-061425-9
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 3 Years
  • Weight: 104.0 lb
  • Delivers 75,000 lux of illumination with near-zero heat output,
  • Well-suited for patient examinations and minor surgical procedures alike
  • Center handle is removable for sterilization
  • Each light head is mounted on its own articulated arm, providing full movement to position the lights freely without the heads interfering with each other

  • Learn more:

Contact The Manufacturer
  • MFR: Medical Illumination
    Ships from Manufacturer
  • MPN: 061425
  • Phone: (800) 831-1222
$7,391.15

+Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

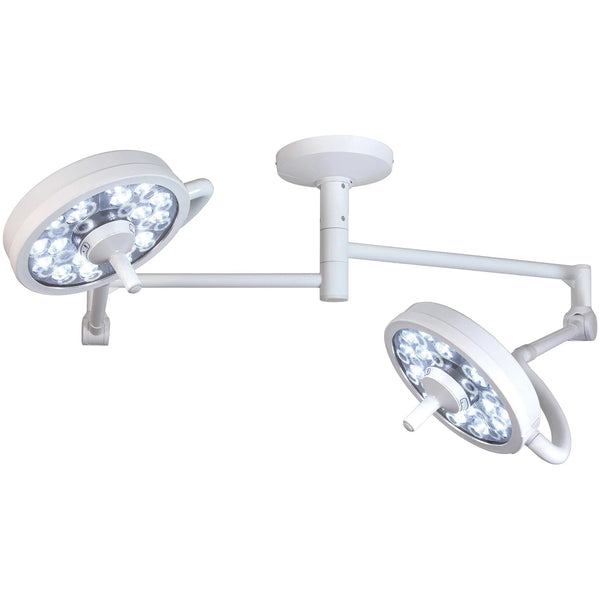

The Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount features two MI-750 LED multipurpose lights integrated into a single mount, providing comprehensive illumination and minimizing shadows. Ceiling rod length options are available in various configurations.

Warranty: 3 Years - Against Defective Material and/or Workmanship.

What sets the MI-750 Dual Ceiling Mount apart is its design: rather than using a shared yoke, each light head is mounted on its own articulated arm, stacked vertically. This arrangement allows the arms to swivel independently without obstruction, giving users the flexibility to position the lights freely. Together, the two lamp heads can deliver full-body illumination. Each head contains 18 LEDs, totaling 36 LEDs, ensuring maximum brightness and clarity. Brightness can be adjusted using the control button located at the tip of the center handle, with three selectable intensity levels.

Highly adaptable, the MI-750 LED Double Ceiling Mount delivers 75,000 lux of illumination with near-zero heat output, making it well-suited for patient examinations and minor surgical procedures alike.

Features

Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount Features

  • Two LED light heads that produce up to 75,000 lux of illumination.
  • More energy-efficient than halogen lights.
  • Center handle is removable for sterilization.
  • Three brightness settings to fit any treatment scenario.
  • Dual ceiling mount provides full movement without the light heads interfering with each other.

Specifications

Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount Specifications

  • Light Head Weight: 9 lb (4.1 kg) per light head.
  • Light Heads Diameter: 14.5" (Diameter) x 2.75" (Height) (37 cm x 7 cm).
  • Light Intensity Output: 75,000 lux (6,968 footcandles) at one meter.
  • Light Source: Light Emitting Diode (LED) (27 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 36 (18 per head).
  • Light Color Temperature: 4,300 Kelvin pure white.
  • Color Rendering Index: 97.
  • Light Field Diameter: 7.7" (20 cm).
  • Focal Length: 39.4" (1 m).
  • Depth of Field/Illumination: 26.5" (67 cm).
  • Dimming Levels: 3.
    • Level 3 (100%): 75,000 lux (6,968 footcandles).
    • Level 2 (75%): 56,200 lux (5,221 footcandles).
    • Level 1 (50%): 37,500 lux (3,484 footcandles).
  • Arm Rotation: 540°.
  • Light Head Rotation: 300°.
  • Power Supply Circuit: 100 to 240 VAC, 50/60 Hz.
  • Power Handling Capacity: 65 W.
  • Shipping Weight (two packages):
    • 32 lb (14.5 kg).
    • 72 lb (32.7 kg).
  • Shipping Dimensions (two packages):
    • 36" (L) x 23" (W) x 18" (H) (91.4 cm x 58.4 cm x 45.7 cm).
    • 36" (L) x 23" (W) x 12" (H) (91.4 cm x 58.4 cm x 30.5 cm).

Configurations

Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount Configurations

  • #061425-9: With 9" Ceiling Rod (#1001461-9).
  • #061425-20: With 20" Ceiling Rod (#1001461-20).
  • #061425-30: With 30" Ceiling Rod (#1001461-30).
  • #061425-40: With 40" Ceiling Rod (#1001461-40).
  • #061425-50: With 50" Ceiling Rod (#1001461-50).
  • #061425-1000701-9: With 9" Ceiling Rod and Dual Battery Backup.
  • #061425-1000701-20: With 20" Ceiling Rod and Dual Battery Backup.

Ceiling Height Calculation:

Ceiling Mounting Height (Distance to Floor) Ceiling Rod Length From Mount to Bottom of Extension Arm Head Room to Bottom of Extension Arm
8'0" to 8'10" (2438 to 2692 mm) 9" (229 mm) [#1001461-9] 23.5" (597 mm) 72.5 to 82.5" (1842 to 2280 mm)
8'11" to 9'8" (2718 to 2946 mm) 20" (508 mm) [#1001461-20] 34.5" (876 mm) 72.5 to 81.5" (1842 to 2070 mm)
9'9" to 10'6" (2972 to 3200 mm) 30" (762 mm) [#1001461-30] 44.5" (1130 mm) 72.5 to 81.5" (1842 to 2070 mm)
10'7" to 11'4" (3226 to 3454 mm) 40" (1016 mm) [#1001461-40] 54.5" (1384 mm) 72.5 to 81.5" (1842 to 2070 mm)
11'5" to 12'2" (3480 to 3708 mm) 50" (1270 mm) [#1001461-50] 64.5" (1638 mm) 72.5 to 81.5" (1842 to 2070 mm)

Literature

Medical Illumination MI-750 LED Procedure Light - Dual Ceiling Mount Literature

Medical Illumination MI Line Installation and Service Manual

Medical Illumination MI Series Brochure

Frequently asked questions

What maximum light intensity is delivered?

The MI-750 Dual Ceiling Mount light delivers a high maximum light intensity of up to 75,000 lux (6,968 footcandles) at one meter, ideal for detailed clinical work and minor surgical procedures.This superior illumination is also characterized by:

  • A high Color Rendering Index (CRI) of 97, ensuring accurate tissue visualization.
  • A pure white Color Temperature of 4,300 Kelvin.

The intensity is fully adjustable via controls located on the removable center handle, offering three distinct dimming settings:

Intensity Level Output Percentage Illumination (Lux)
Level 3 100% 75,000 lux
Level 2 75% 56,200 lux
Level 1 50% 37,500 lux
Does the light offer superior color rendition?

Yes, the Medical Illumination MI-750 is engineered to provide superior color accuracy, which is essential for detailed clinical assessments and procedures.

Key specifications confirming its high visual quality include:

  • Color Rendering Index (CRI): The light features an exceptional CRI rating of 97. This score ensures superb color rendition, allowing clinicians to accurately assess tissue and subtle color changes.
  • Color Temperature: It delivers a consistent 4,300 Kelvin pure white light, offering an ideal, neutral temperature for examination environments.

This high color fidelity is combined with a maximum intensity output of 75,000 lux (at one meter) for outstanding clarity and precision.

Is the center handle removable for sterilization?

Yes, the design of the MI-750 light prioritizes hygiene and ease of maintenance. The center control handle on the light head is specifically designed to be removable, which facilitates convenient and thorough sterilization. This ensures adherence to strict hygiene and infection control protocols required in procedure rooms.

Do both light heads articulate independently?

Yes, the MI-750 Dual Ceiling Mount system is specifically engineered for dual, independent articulation.

This configuration utilizes two separate MI-750 light heads, each mounted on its own vertically stacked articulated arm. This non-interfering design ensures that the movements of one light head do not impede the positioning of the other, providing maximum flexibility to achieve comprehensive coverage and superior shadow reduction during procedures.

Each arm and head offers extensive control:

  • Arm Rotation: Up to 540°
  • Light Head Rotation: Up to 300°
Does the light ensure precise tissue differentiation?

Yes, the MI-750 LED Procedure Light ensures precise tissue differentiation due to its high Color Rendering Index (CRI) of 97 and a pure white 4,300 Kelvin color temperature. This provides exceptional visual clarity in medical settings.

Is the rated LED lifespan long?

Yes, the Medical Illumination MI-750 utilizes high-efficiency LED technology designed for maximum longevity and energy savings, reducing the need for frequent maintenance.

Key features regarding the LED lifespan and performance include:

  • Exceptional Lifespan: The 36 LEDs (18 per head) have an outstanding rated operational life of 50,000 hours.
  • Cool Operation: The advanced LED technology ensures near-zero heat output, maintaining a comfortable and cool environment for medical staff and patients.
  • Energy Efficiency: The dual-light system is highly efficient, drawing a total power handling capacity of just 65 W.
How many adjustable brightness settings are available?

The MI-750 LED procedure light provides three distinct dimming levels (100%, 75%, and 50%), allowing you to customize the light output for various examination and minor procedure needs. The maximum light intensity reaches 75,000 lux at full power.

Brightness is conveniently adjusted using the control button located on the center handle. This handle is removable for sterilization to maintain stringent hygiene standards.

The available settings are:

Level Intensity (%) Light Output (Lux)
3 (Maximum) 100% 75,000 lux
2 (Mid) 75% 56,200 lux
1 (Minimum) 50% 37,500 lux
Does the MI-750 LED procedure light offer a dual battery backup?

Yes, a Dual Battery Backup system is available for the MI-750 LED Procedure Light. This option is specifically offered with the 9-inch and 20-inch ceiling rod configurations to ensure continuous operation during power interruptions.

Is this procedure light designed for energy efficiency?

Yes, the MI-750 system is engineered for superior energy efficiency. As a high-performance alternative to traditional halogen lighting, it utilizes advanced LED technology to provide high-intensity illumination while minimizing power draw, with the entire system rated at 65 W total power handling capacity. Key benefits include:

  • Extended Lifespan: The LEDs are rated for up to 50,000 hours of use, reducing the need for frequent replacements.
  • Near-Zero Heat: By generating minimal heat, the light improves comfort for both patients and practitioners, while reducing the load on clinical climate control systems.
  • High-Output Performance: Despite its efficiency, each head delivers an impressive 75,000 lux of pure white light at one meter.
What is the diameter of the MI-750 light head?

The diameter of each MI-750 light head is 14.5 inches (37 cm).

This size is optimized to house the 18 high-efficiency LEDs, which collectively deliver the maximum 75,000 lux output, while maintaining excellent maneuverability. Despite its diameter, each light head weighs only 9 lb (4.1 kg).
