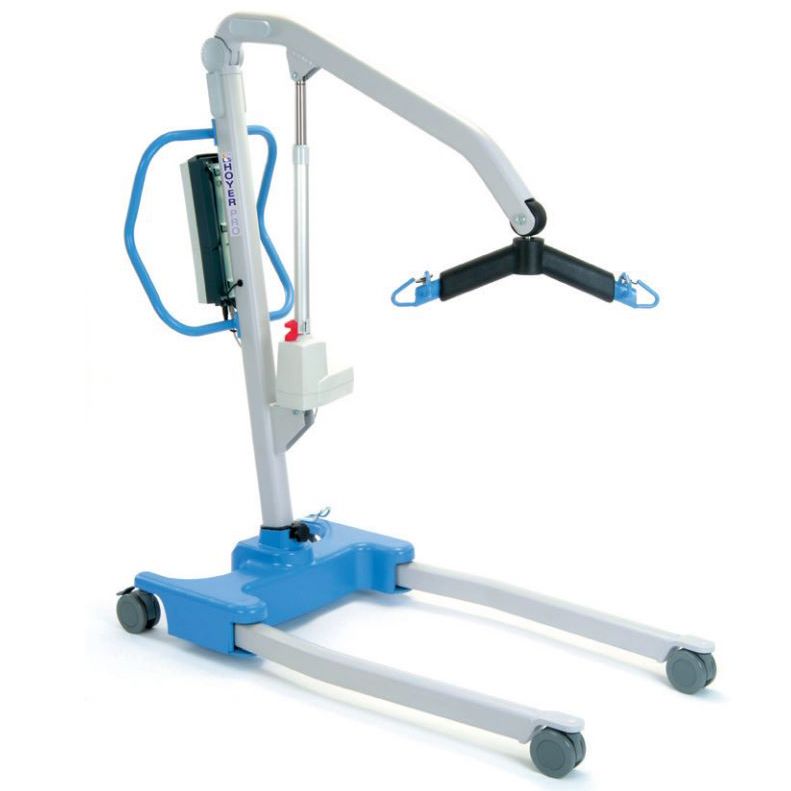

Joerns Hoyer Presence Professional Patient Lift

Name: Joerns Hoyer Presence Professional Patient Lift
Brand: Joerns
SKU: JRN-HOY-PRESENCE-S
Price: 5999.0 USD
Availability: InStock

Joerns Hoyer Presence Professional Patient Lift With Scale

Joerns Hoyer Presence Professional Pa...

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: JRN-HOY-PRESENCE-S
Condition:

Condition: Factory New

Condition: Factory New
Country of Origin: USA

Country of Origin: USA
Warranty:

Warranty: 5 Years

Warranty: 5 Years
Weight: 88.0 lb
500 lb load capacity
Low profile legs for storing under beds and furniture
Cable-free and mounted on wheels
Learn more:

Contact The Manufacturer

MFR: Joerns

Ships from Manufacturer

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: HOY-PRESENCE-S

MPN: HOY-PRESENCEWSC-S
Phone: (800) 826-0270

$8,469.00 $5,999.00

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Joerns Hoyer Presence Professional Patient Lift comes with a 6-point cradle, and electric base. Customers can choose between the standard model, or with a scale included.

Warranties:

2 Years - Defects in Material and Workmanship.
5 Years - Aluminum structural components and mechanical components.
90 Days - Casters and batteries.

With a 500 lb working load and larger spatial area, the Joerns Hoyer Presence Professional Patient Lift can gently handle residents of any size. Whether it's transferring from floor to bed, or higher surface, this lift is a reliable, durable construction. In addition, it's cable-free and mounted on caster wheels for maximum mobility. The low profile of the lift legs allow the unit to roll under beds, stretchers, or other furniture and be able to reach the patient to transport them.

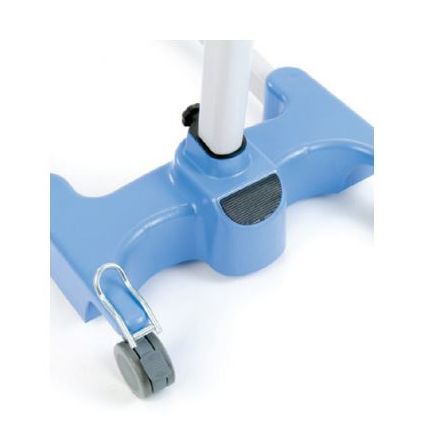

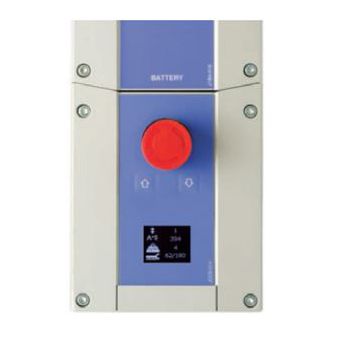

It's equipped with a Smart Monitor control box with a large red button to deploy the lift. On this monitor, users can also survey lift utilization, service data, and battery power levels on a convenient LCD display. A large foot pad is positioned on the back of the unit to assist with maneuvering.

The Joerns Hoyer Presence Professional Patient Lift is compatible with a wide variety of Joerns Hoyer Professional Patient Slings for easy securing and lifting.

See Accessories for a list of compatible slings.

Features

Joerns Hoyer Presence Professional Patient Lift Features

Low profile legs for slipping under beds and furniture.
Load capacity of 500 lb to lift patients of any size.
The included Smart Monitor collects service data and monitors battery life.
Completely cable-free and mounted on wheels for mobility.

Specifications

Joerns Hoyer Presence Professional Patient Lift Specifications

Weight: 88 lb (40 kg).
Safe Working Load: 500 lb (227 kg).
Maximum Overall Length: 57.5" (1460 mm).
Minimum Overall Length: 55.1" (1400 mm).
Maximum Overall Height: 81.3" (2065 mm).
Minimum Overall Height: 57.5" (1460 mm).
Spreader Bar Maximum Height: 75.2" (1910 mm).
Spreader Bar Minimum Height: 16.9" (430 mm).
Height at Maximum Reach: 51.5" (1310 mm).
Reach at Maximum Height: 25.6" (650 mm).
Reach at Minimum Height: 15.7" (400 mm).
Maximum Reach: 36.6" (930 mm).
Turning Radius: 64.2" (1630 mm).
Legs Open - Internal Width: 40.1" (1020 mm).
Legs Closed - External Width: 26.4" (670 mm).
Front Twin Casters: 4.0" (100 mm).
Rear Braked Casters: 4.0" (100 mm).
Overall Height of Legs: 4.7" (120 mm).
With Low Leg Option: 2.4" (60 mm).
Ground Clearance: 1.4" (35 mm).

4-Point Position Cradle

Cradle Max. Height: 61.0" (1550 mm).
Cradle Min. Height (usable): 15.4" (390 mm).

Electric Shock Protection

Charger: Class II.
Lift: Internal power source.

Degree of Shock Protection

Charger: Type B.
Lift: Type B.
Intended operating environment: >+5˚C <+40˚C.
**Outside this environment functionality and safety may be compromised.

Electrical Specifications

Battery: 24vDC rechargeable sealed lead acid type.
3.2A hours.
Charger rated input: 100-240V AC 24 VDC 50/60Hz.
Charger rated output: 29.5 VDC, Max. 19 W.

Accessories

Joerns Hoyer Presence Professional Patient Lift Accessories

The following items are commonly purchased with this unit. Please note that these are NOT included with the unit. They are sold separately.

#HOY-4PTSB: Joerns Hoyer 4-Point Adaptive Positioning Spreader Bar.
#HOY-4PT-APC: Joerns Hoyer 4-Point Adaptive Positioning Powered Cradle.
#HOY-6PTSB: Joerns Hoyer 6-Point Cradle.
#HOY-4PTWSC-APC: Joerns Hoyer 4-Point Adaptive Positioning Powered Spreader Bar with Scale.
#HOY-4PTWSC-LP: Joerns Hoyer Low Profile 4-Point Adaptive Positioning Spreader Bar with Scale.
#HOY-6PTWSC-LP: Joerns Hoyer Low Profile 6-Point Cradle With Scale.
#HOY-ADV-6PTWSC: Joerns Hoyer Cradle for Scale.
#0Y0067: Joerns Hoyer Linak Battery
#0Y0053: Joerns Hoyer Charging Station for Linak Battery
#HOY-STRETCHER-AC: Joerns Hoyer Stretcher Adjustment Cradle.
#59050: Joerns Tutorial Video "How To Use a Hoyer Patient Lift".
#NA30010: Joerns Hoyer Canvas Stretcher with Straps - Standard.
#NA30011: Joerns Hoyer Canvas Stretcher with Straps - Extra Wide.

Compatible Slings (sold separately):

Joerns Hoyer Quickfit Sling.
Joerns Hoyer Full Back Sling.
Joerns Hoyer Quickfit Deluxe Sling.
Joerns Hoyer Long Seat Sling.
Joerns Hoyer Access Sling.
Joerns Hoyer Comfort Sling.

Configurations

Joerns Hoyer Presence Professional Patient Lift Configurations

HOY-PRESENCE-S: Standard Model.
HOY-PRESENCEWSC-S: Standard with Scale.

Literature

Joerns Hoyer Presence Professional Patient Lift Literature

Joerns HoyerPro Family Brochure

Joerns Hoyer Sling Specs Sheet

Joerns Hoyer Presence Professional Patient Lift Brochure

Joerns Hoyer Presence Professional Patient Lift User Instruction Manual
