Graham-Field Patriot Homecare Beds, Semi-Electric

Graham-Field Patriot Homecare Beds, Semi-Electric
Key Features
  • SKU: GMF-US0208
  • Condition:
    Condition: Factory New
  • Weight: 1.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Graham-Field
    Ships from Manufacturer
  • MPN: US0208
  • Phone: (770) 368-4700
$693.75

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

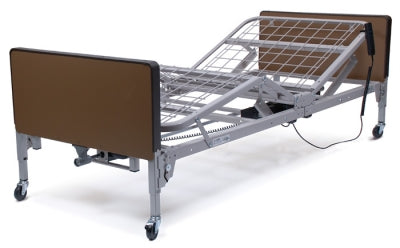

Introducing the new Patriot Semi-Electric Homecare Bed with a grid sleep surface! Designed and engineered by the same team who develop the GF Long Term Care beds. Sleep surface and motors are MADE IN THE USA! The motor unit and bed design provide the ultimate in quiet, smooth operation. Complete welded steel frame construction. The head and foot sections can be raised or lowered simultaneously or independently with one hand control. During a power failure the motor unit can lower both the head and foot section with just a single standard 9 volt battery. Assembles easily with just five components. Designed to meet the requirements of applicable HCPCS codes. Total bed weight assembled: 166 lb (bed and motor only). Available with Fiberboard Decorative Walnut Bed-ends or High-impact Plastic Bed-ends. Maximum patient weight 350 lbs. 450 lb evenly distributed total weight capacity including patient, mattress, rails, and accessories. Bed Height: Min. 15";, Max. 24"; (at deck level). Lift Range: Head - 60°, Knee - 30°. Overall Bed Size: 87"; L x 36"; W. No external pinch points! Slots in frame to ensure proper rail placement. Locking pins secure bed ends to sleep deck.  Attached lanyards prevent loss while moving or storing. Only homecare bed to offer a 4-inch extension kit that can extend either the head, foot, or both head and foot decking. Bed length will be 84"; with one kit, 88"; with 2 kits. The only homecare bed to offer optional corner mattress retainers . Grid Deck offers the following advantages: Much stronger frame. Better mattress support. No spring sag or bottoming out with heavier patients. Easier to clean. No connecting links or springs to lose. Warranty: Two year warranty for defects in workmanship and materials of mechanical components, frame, and electronics. During the warranty period, defective items will be repaired or replaced at manufacturer’s option. The warranty does not include any labor charges incurred in replacement part(s) installation or any associated freight or shipping charges to the manufacturer. Bed shipped in three cartons: 1. Foot section and motor. 2. Head section and Hi/Lo rod. 3. Bed end set.

Frequently asked questions

What is the maximum weight capacity?
<p>The Graham-Field Patriot Homecare Bed is built with a complete <strong>welded steel frame</strong> and a robust grid sleep surface, providing exceptional support. The bed has two distinct weight capacities:</p>

<ul>
<li><strong>Maximum Patient Weight Capacity:</strong> 350 lbs</li>
<li><strong>Total Weight Capacity (Evenly Distributed):</strong> 450 lbs (This total includes the patient, mattress, rails, and all accessories.)</li>
</ul>
What is the adjustable deck height range?
<p>The deck level of the Patriot Homecare Bed is adjustable, which is essential for ensuring safer patient transfers and comfortable caregiving.</p>

<p>The adjustable height range for the deck is:</p>

<ul>
<li><strong>Minimum Height (Low Position):</strong> 15 inches</li>
<li><strong>Maximum Height (High Position):</strong> 24 inches</li>
</ul>

<p>This range allows caregivers to optimize the bed’s position for different patient needs and facilitate smoother transitions.</p>
Is there a power failure backup?
<p>Yes, the Graham-Field Patriot Semi-Electric Homecare Bed includes a <strong>standard 9-volt battery backup</strong>. This feature allows you to lower the head and foot sections of the bed in the event of a power failure, ensuring continued functionality when needed.</p>
Is the bed length extendable?
<p>Yes, the Graham-Field Patriot Homecare Bed is the only model that offers an <strong>optional 4-inch extension kit</strong> for customized bed length. This is an excellent feature for accommodating taller users or meeting specific spatial requirements.</p>

<p>While the overall bed length is typically 87 inches, the optional kit allows you to adjust the sleep deck length to achieve either:</p>

<ul>
<li><strong>84 inches long</strong></li>
<li><strong>88 inches long</strong></li>
</ul>

<p>The kit can be used to extend the head, foot, or both decking sections.</p>
Does this bed offer customizable ends and rails?
<p>Yes, the Patriot Homecare Bed provides several customization options for both the head/foot ends and the safety rails.</p>

<p><strong>Bed End Options:</strong><br>
You can choose between two durable and functional styles:</p>
<ul>
<li><strong>Fiberboard Decorative Walnut Bed-ends:</strong> Offers a more traditional aesthetic.</li>
<li><strong>High-impact Plastic Bed-ends:</strong> Provides maximum durability and ease of cleaning.</li>
</ul>

<p><strong>Available Rail Options:</strong><br>

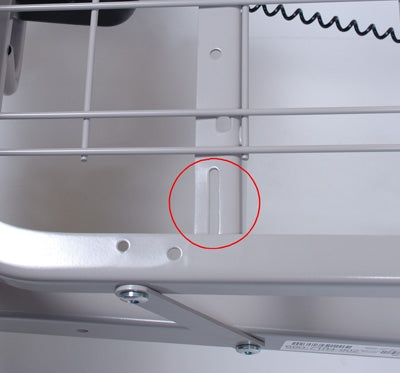

The frame features integrated slots to ensure proper and secure rail placement. Various configurations are available, typically including:</p>
<ul>
<li>Full Chrome Rails</li>
<li>Half Chrome Rails</li>
<li>FDA Full Rails</li>
<li>FDA Half Rails</li>
</ul>
Are the bed's key components made in the USA?
<p>Yes, key components of the Graham-Field Patriot Homecare Bed are <strong>Made in the USA</strong>.</p>

<p>Specifically, both the quiet <strong>motor unit</strong> and the durable <strong>grid sleep surface</strong> are manufactured in the USA. This commitment to domestic manufacturing ensures high quality and reliability in these essential parts.</p>
What are the benefits of the grid sleep surface?
<p>The <strong>grid sleep surface</strong> offers several superior benefits:</p>

<ul>
<li><strong>Stronger frame:</strong> Provides enhanced structural integrity.</li>
<li><strong>Better mattress support:</strong> Ensures consistent and stable support for the mattress.</li>
<li><strong>Eliminates spring sag:</strong> Unlike traditional spring systems, it prevents mattress sagging over time.</li>
<li><strong>Ease of cleaning:</strong> With no connecting links or springs, it’s much simpler to clean and maintain.</li>
</ul>
Does this bed feature a durable steel frame?
<p>Yes, the Patriot Homecare Bed features a <strong>complete welded steel frame</strong> for exceptional strength and durability, ensuring longevity and reliable performance.</p>
