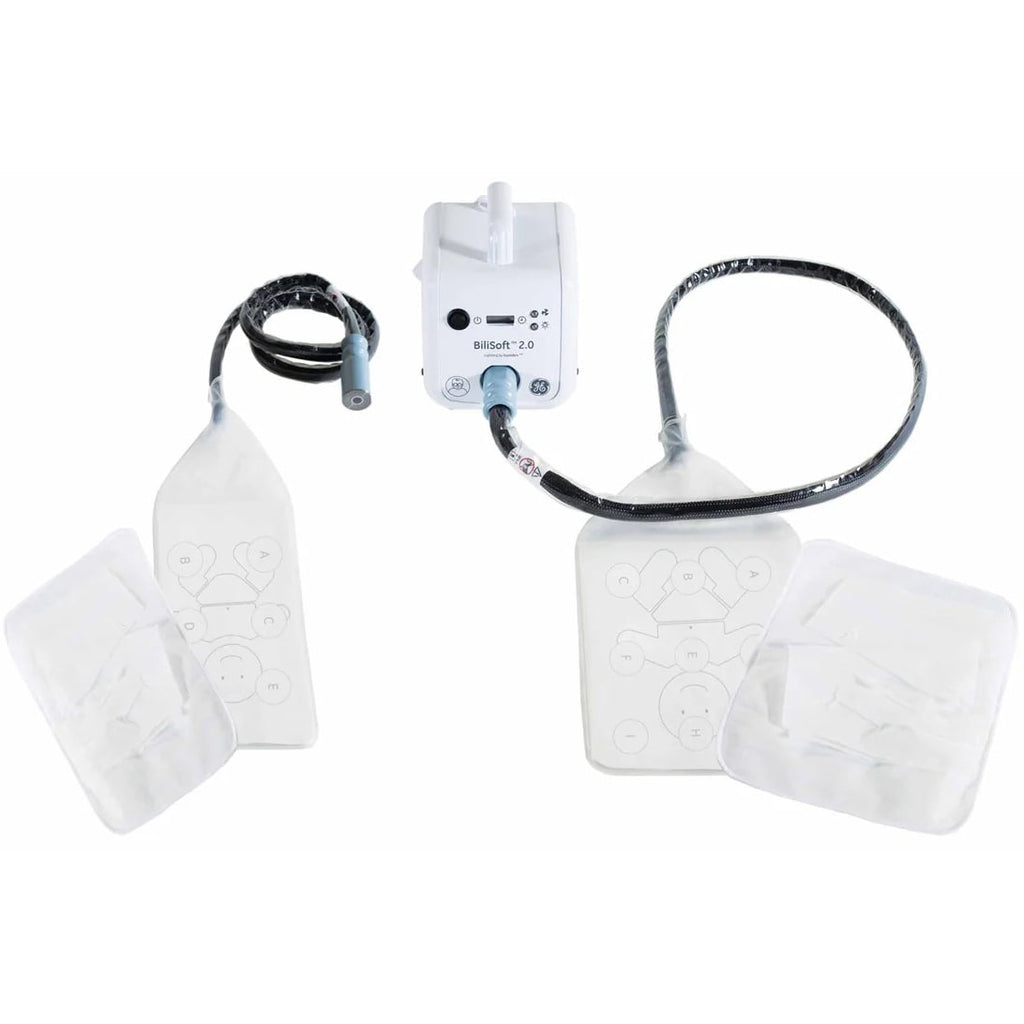

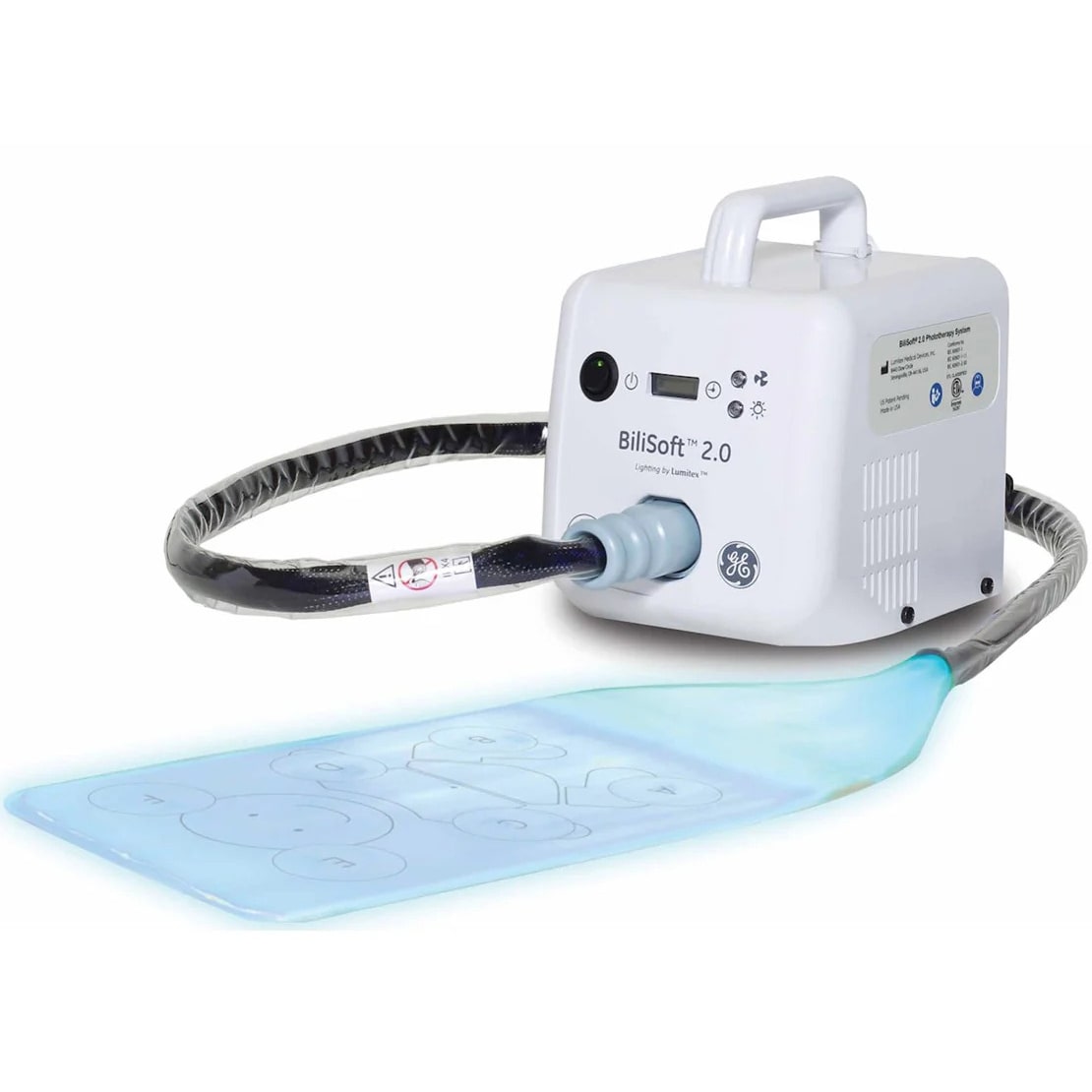

GE BiliSoft 2.0 Phototherapy System

GE BiliSoft 2.0 Phototherapy System Features

• Ultra soft, disposable BiliSoft 2.0 covers are made of flame-retardant, skin-friendly fabric.
• Long, flexible, fiber optic cable makes positioning easier than ever.
• Small footprint and lightweight design allows easy mounting to a bed or roll stand, providing flexibility and conservation of space.
• Long lasting blue LED light provides more than 50,000 hours of light therapy.

GE BiliSoft 2.0 Phototherapy System Specifications

• Electrical Input: 0.25A - 0.75A at 100 - 240 V~, 50/60 Hz.
• Electrical Leakage Touch Current: Allowable values are 100 μA in single fault condition at 264 V~.
• Environmental Operating Conditions:
  • Temperature: +5 degrees C to +5 degrees C (41 degrees F to 95 degrees F).
  • Humidity: 15% to 90%, non-condensing, but not requiring a water vapor partial pressure above 5 kPa.
  • Atmospheric Pressure: 70 kPa (10,000' to -1,250').
  • Light Box: IP21.
  • Light Pad: IPX4.
• Environmental Storage Conditions:
  • Temperature without Humidity Control: -25 degrees C to +5 degrees C (-13 degrees F to 41 degrees F).
  • Temperature w/ Up To 90% Relative Humidity (non-condensing): +5 degrees C to +35 degrees C (41 degrees F to 95 degrees F).
  • Temperature w/ Water Vapor Pressure Up To 5 kPa: +35 degrees C to +70 degrees C (95 degrees F to 158 degrees F).
• Special Irradiance (Bare Fiber Optic Pad):
  • Large Fiber Optic Pad: 49 μW•cm^-2 •nm^-1 (+/- 25%) 9-point check.
  • Small Fiber Optic Pad: 70 μW•cm^-2•nm^-1 (+/- 25%) 6-point check.
• Peak Wavelength: 445 - 470 nm.
• LED Module Estimated Life: Under continuous use, tested at room temperature, a typical LED module will run more than 50,000 hours before the light intensity drops 25%.
• Sound Level: Less than or equal to 44 dB (A) at 1 meter.
• X-ray: X-ray compatible.
• Physical Specifications:
  • Light Box: 6.5" x 8.3" x 6.9" (16.5 cm x 21 cm x 17.5 cm).
  • Light Box Weight (Excluding Fiber Optic Pad:) Less than 3.7 lb (1.7 kg).
  • Light Pad Weight: Less than 1.3 lb (0.6 kg) (Large or Small).
  • Small Light Pad: 7.9" x 9.8" (20 cm x 25 cm) (Light-Emitting Area).
  • Large Light Pad: 9.8" x 11.8" (25 cm x 30 cm) (Light-Emitting Area).
  • Light Pad Cable Length: 53.1" +/- 2" (135 cm +/- 5 cm).

GE BiliSoft 2.0 Phototherapy System Sizes

• #2106573-001: Small Pad.
• #2103959-001: Large Pad.

GE BiliSoft 2.0 Phototherapy System Literature

GE BiliSoft 2.0 Phototherapy System Specifications Sheet

GE BiliSoft 2.0 Phototherapy System Brochure
