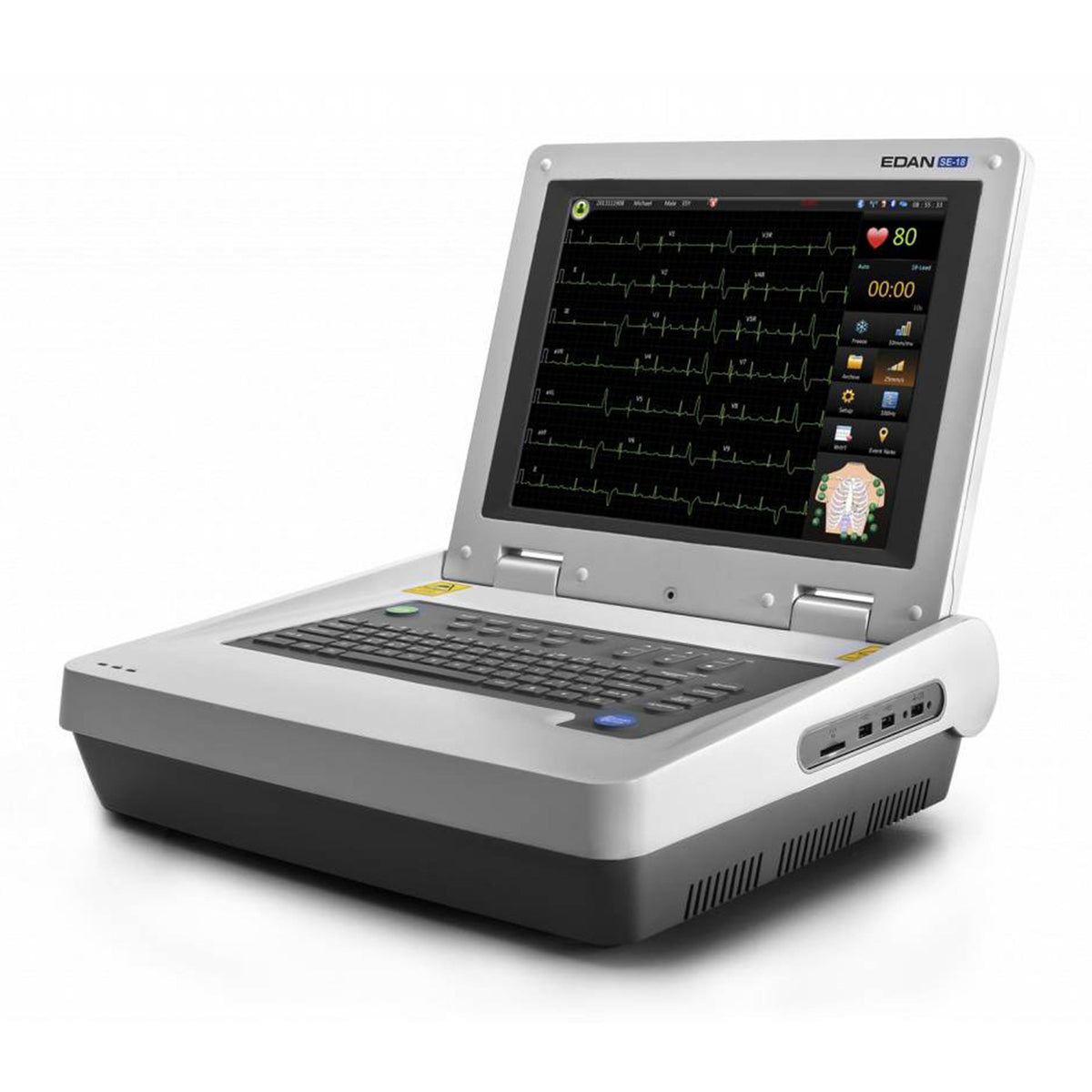

Edan SE-18 ECG

Edan SE-18 ECG  18-lead Configuration, Supports 9/12/15/18-lead EC
Edan SE-18 ECG
Edan SE-18 ECG  18-lead Configuration, Supports 9/12/15/18-lead EC
Edan SE-18 ECG
Key Features
  • SKU: EDN-SE-18-12
  • Condition: Factory New
  • Warranty: 2 Years
  • Weight: 10.0 lb
  • 15" color touch-screen and waterproof keyboard
  • 512 M internal memory in addition to USB/SD card external memory
  • Powerful data management functions
  • Bi-directional communication with the SE-1515 Data Management System

  • Learn more:

Contact The Manufacturer
  • MFR: Edan
    Ships from Manufacturer
  • MPN: SE-18.12
  • Phone: (888) 850-4597
$6,000.00 $5,602.00
Select a Configuration
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SE-18 ECG includes a 10-lead patient cable, 6 adult suction electrodes, 4 adult limb clamp electrodes, recording paper (Z-Fold), a power cord, a rechargeable lithium battery, and a user manual.

Warranty: 2 Years.

Available in three different lead configurations, the Edan SE-18 ECG delivers a plethora of advanced functions and provides reliable interpretation to help increase clinicians' productivity. Allowing for simultaneous sampling, this innovative ECG machine features a 15" color touch-screen and a waterproof alphanumeric keyboard making it incredibly easy to use.

Features

Edan SE-18 ECG Features

  • 15" color touch-screen and waterproof keyboard.
  • 512 M internal memory in addition to USB/SD card external memory.
  • Powerful data management functions.
  • Bi-directional communication with the SE-1515 Data Management System.
  • Capable of long time sampling, analyzing, and storing thanks to the 9/12/15/18-lead configurations.
  • Easy to use thanks to an intuitive one-touch operation.
  • Utilizes comprehensive filters and anti-noise technology.
  • Supports on-screen diagnosis like waveform amplifying, measuring, and confirming.
  • Color identification of arrhythmia.
  • Advanced SEMIP algorithm allows for automatic measurements and interpretation.
  • Automatically luminance adjustment in relation to the ambient lightness.
  • Smart light sensor automatically changes the brightness of the screen in accordance with the environment to protect the user's eyes.
  • Three color signal quality indicator enables users to identify the signal quality of each lead with a glance.
  • Also boasts enhanced weak signal detection.
  • Optional LAN/Wi-Fi connections.
  • Optional VCG/TVCG/VLP/HRV/Pharmacological Study.
  • Optional Direct HL7 and DICOM support.

Configurations

Edan SE-18 ECG Configurations

  • 12-lead Configuration, Supports 9/12-lead ECG Test (#SE-18.12).
  • 15-lead Configuration, Supports 9/12/15-lead ECG Test (#SE-18.15).
  • 18-lead Configuration, Supports 9/12/15/18-lead ECG Test (#SE-18.18).

Accessories

Edan SE-18 ECG Accessories

The Edan SE-18 ECG is commonly purchased with:

  • Edan SE-18 12-Lead Wires.
  • Edan SE-18 C7/C8/C9/C3R/C4R/C5R Leadwires Kit (#01.57.471688011).
  • Edan SE-18 V7/V8/V9/V3R/V4R/V5R Leadwires Kit (#01.57.471689011).
  • Edan SE-18 CA-100 Cable Arm (#02.04.242643).
  • Edan SE-18 Calculated VCG (Calculated Vector ECG) Package (#18-CVCG).
  • Edan SE-18 FDA-XML Export Format Package (#18-FDA-XML).
  • Edan SE-18 SCP Export Format Package (#18-SCP).
  • Edan SE-18 TVCG (Time Vector ECG) Package (#18-TVCG).
  • Edan SE-18 VCG (Vector ECG) Package (#18-VCG).
  • Edan SE-18 VLP (Ventricular late potentials) Package (#18-VLP).
  • Edan SE-1515 Data Management System (#83.61.360597).
  • Edan Upgrade SE-18 from 12-lead to 15-lead 1 x 15-lead Function (#SE-18U12-15).
  • Edan Upgrade SE-18 from 12-lead to 18-lead 1 x 18-lead Function (#SE-18U12-18).
  • Edan Upgrade SE-18 from 15-lead to 18-lead 1 x 18-lead Function (#SE-18U15-18).
