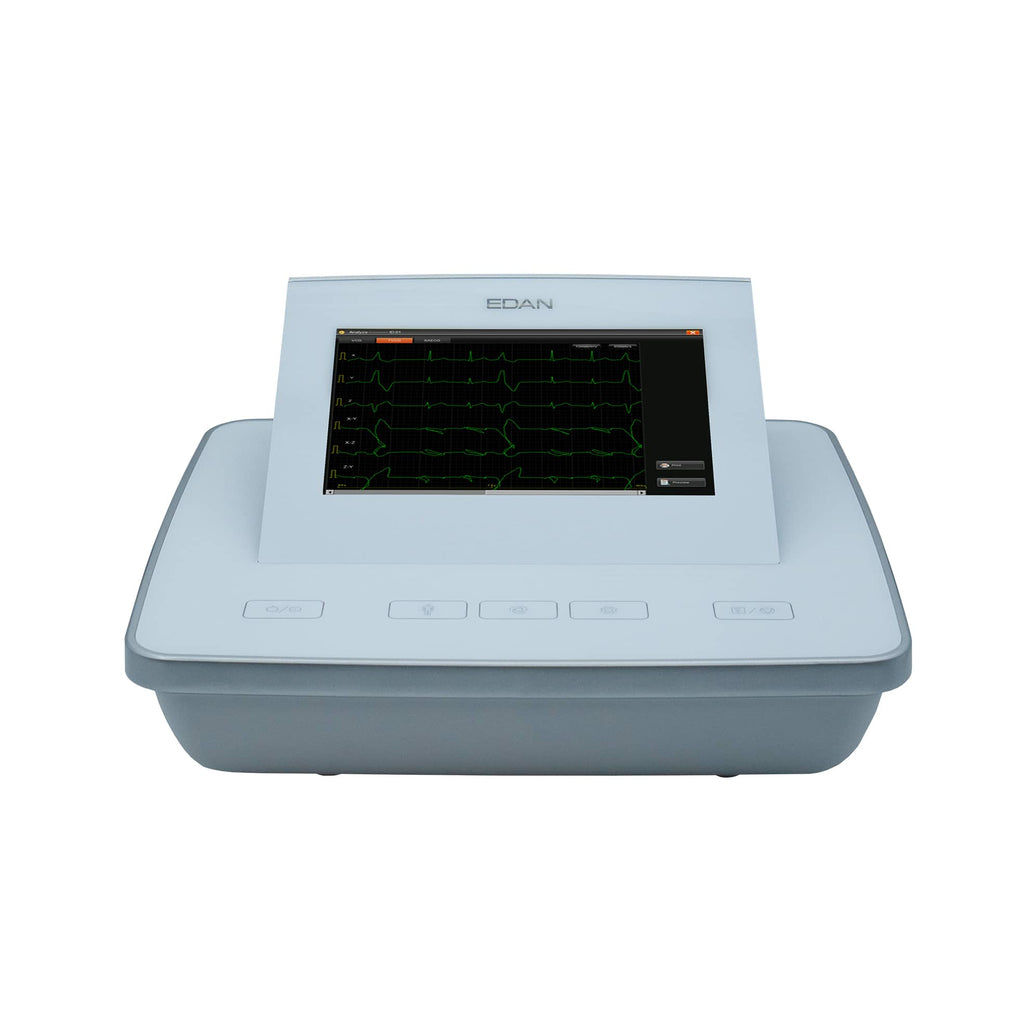

Edan SE-1202 12-Channel EKG Machine

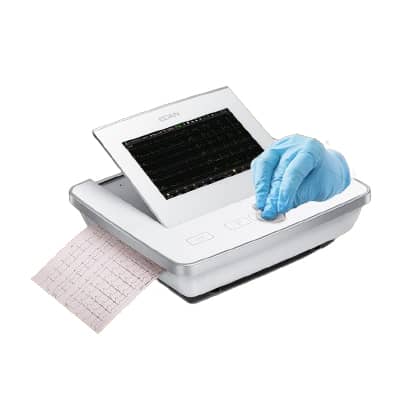

Edan SE-1202 12-Channel EKG Machine Printing

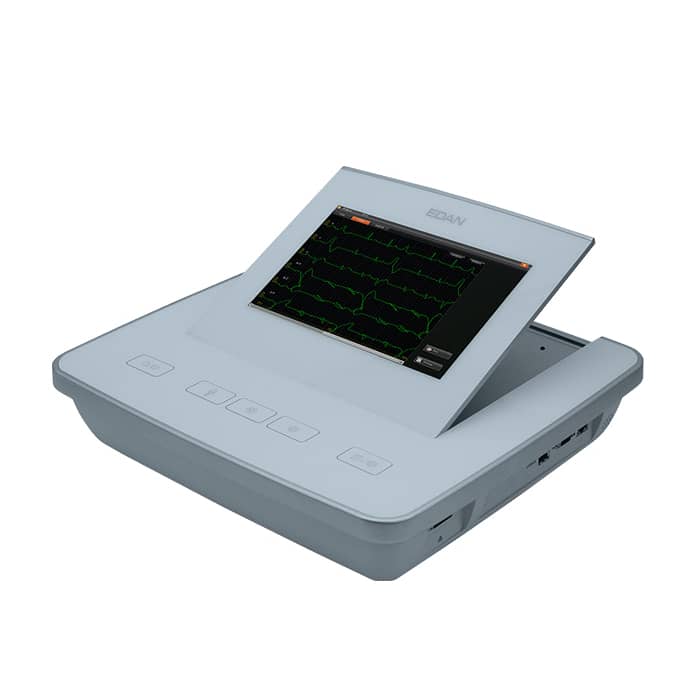

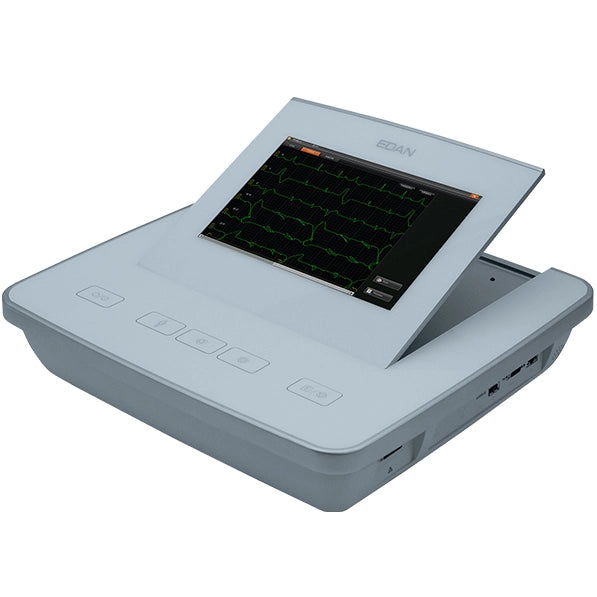

Edan SE-1202 12-Channel EKG Machine Angled

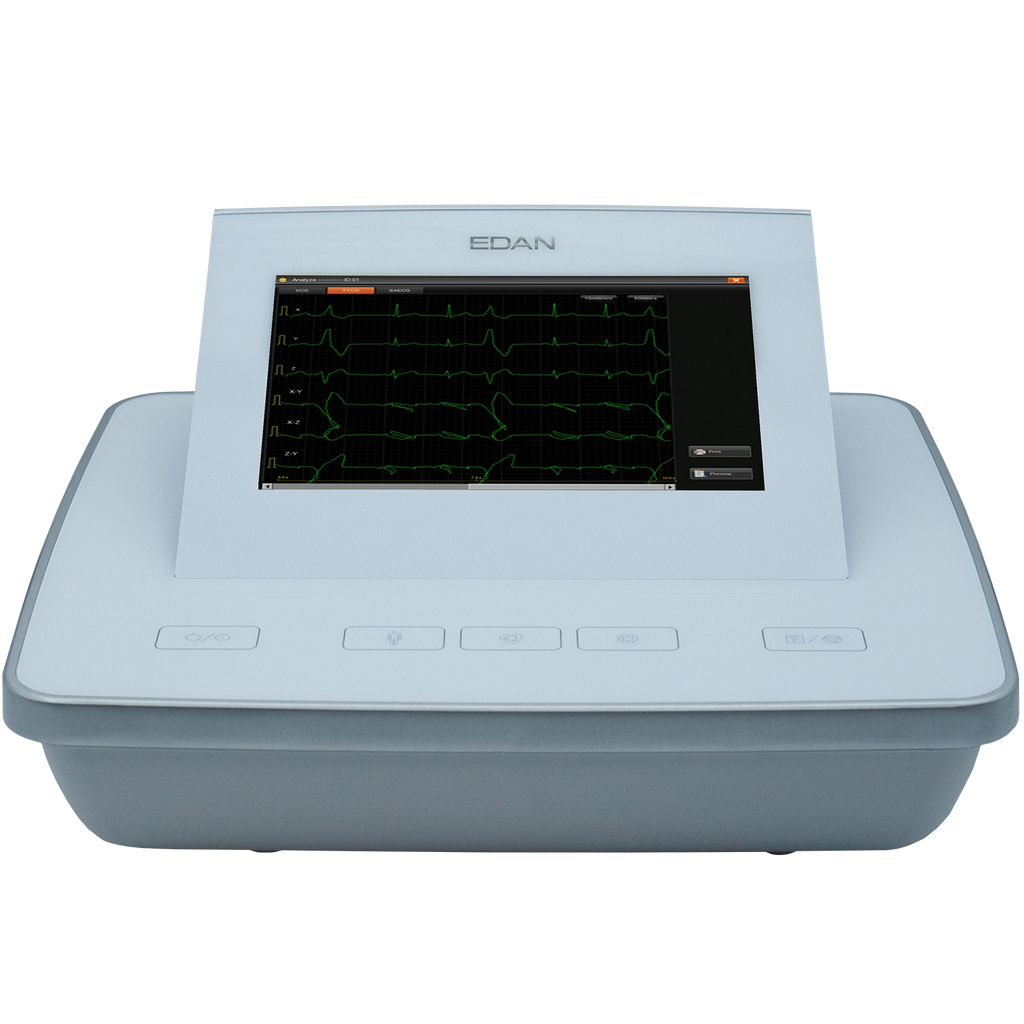

Edan SE-1202 12-Channel EKG Machine
Edan SE-1202 12-Channel EKG Machine Printing
Edan SE-1202 12-Channel EKG Machine Angled
Key Features
  • SKU: EDN-SE-1202
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 14.33 lb
  • Glasgow interpretation
  • 10.1" LCD display with intuitive touch screen interface
  • Preview and printing for waveform and analysis
  • Built-in rechargeable Lithium battery

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: SE-1202
  • Phone: (888) 850-4597
$4,794.00 $3,995.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SE-1202 12-Channel EKG Machine (#SE-1202) includes an ECG Cable (4mm, banana connector, AHA), 100 resting tab electrodes, 10 Unomedical 10-Lead universal clips, Recording Paper (Z-fold, 210 mm x 295 mm x 100 P), a Power Cord (USA standard), a Rechargeable Lithium Battery (2200 mAH), a Fixed Bar for Battery (Necessary accessory for 2200 mAH battery), and two Fuses (1 A).

Warranty: 2 Years.

Powerful and sleek, the SE-1202 12-Channel EKG Machine provides a comprehensive set of cardiac diagnosis tools paired with cutting-edge to ensure the high-quality performance you've come to expect from Edan. It also features a glass-covered surface which supports easy cleaning and disinfection.

Features

Edan SE-1202 12-Channel EKG Machine Features

  • Glasgow interpretation.
  • Auto analyzing and diagnostic software (interpretation).
  • Preview and printing for waveform and analysis.
  • 10.1" LCD display with intuitive touch screen interface.
  • USB data export.
  • Wifi enabled.
  • Built-in rechargeable Lithium battery.
  • Built-in thermal printer.

Specifications

Edan SE-1202 12-Channel EKG Machine Specifications

  • Dimensions: 400 mm x 360 mm x 90 mm.
  • Weight: 14.33 lb (≤ 6.5 kg - excluding recorder paper and battery).
  • Display: 10.1'', 1280 x 800 multicolor LCD Screen (the display can be flipped 25 degrees clockwise).
  • Power Supply:
    • Mains Supply:
      • Operating Voltage: 100 V - 240 V~.
      • Operating Frequency: 50 Hz/60 Hz.
      • Input Current: 0.9-0.4 A.
    • Internal Li-ion Battery Pack:
      • Rated Voltage: 14.8 V.
      • Rated Capacity: 2,500 mAh or 5,000 mAh.
      • Necessary Charge Time: 3 hours or 6 hours.
  • HR Recognition:
    • HR Range: 30 BPM ~300 BPM.
    • Accuracy: ±1 BPM.
  • ECG Unit:
    • Leads: 9 or 12 standard leads.
    • A/D Converter: 24 bits.
    • Time Constant: ≥ 5 s.
    • Sampling Frequency: 64,000 Hz/channel.
    • Input Impedance: ≥ 100MΩ (10Hz).
    • Input Voltage Range: ≤ ±5 mVpp.
    • CMRR: ≥140dB (AC on). ≥123dB (AC off).
    • Acquisition Mode: 9 or 12 leads acquisition simultaneously.
    • Resolution: 0.1192uV/LSB.
    • Frequency Response: 0.01 Hz ~ 350 Hz (-3 dB).
    • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC, ±5%.
    • Input Circuit Current: ≤ 0.01μA.
    • Calibration Voltage: 1mV±2%.
    • QTc Formulas: Bazzet, Fridericia, Framingham, Hodges, and QRS.
  • Pacemaker:
    • Amplitude: ±500μV to ±700 mV.
    • Sampling Frequency: 80,000 Hz, Rhythm Lead.
    • Width: 30μs to 2.0 ms.
  • Filter:
    • AC Filter: Off/50 Hz/60 Hz.
    • EMG Filter: Off/25 Hz/35 Hz/45 Hz.
    • DFT Filter: 0.01 Hz/0.05 Hz/0.32 Hz/0.67 Hz.
    • LOWPASS Filter: 350 Hz/300 Hz/270 Hz/150 Hz/100 Hz/75 Hz.
  • Environment Specifications:
    • Temperature:
      • Transport & Storage: -20º C (-4º F) ~ +55º C (+131º F).
      • Working: +5º C (+41º F) ~ +40º C (+104º F).
    • Atmospheric Pressure:
      • Transport & Storage: 70 kPa ~106 kPa.
      • Working: 70 kPa ~106 kPa.
    • Relative Humidity:
      • Transport & Storage: 15%~95% Non-Condensing.
      • Working: 15%~95% Non-Condensing.

Literature

Frequently asked questions

What type of display does the Edan SE-1202 EKG machine have?

The Edan SE-1202 features a 10.1” LCD touchscreen display with a resolution of 1280 x 800. The display can be flipped 25 degrees clockwise.

Does the Edan SE-1202 EKG machine have wireless connectivity?

Yes, the Edan SE-1202 EKG machine is WiFi enabled, allowing for wireless data transfer.

Does the EKG machine have a powerful rechargeable battery?

Yes, the Edan SE-1202 includes a powerful, built-in rechargeable Lithium-ion battery pack for cordless and portable operation. This flexibility is a key selling point, allowing the unit to be used efficiently in various clinical settings. The internal battery is available in two capacity options:

  • 2,500 mAh: Requires approximately 3 hours of charging time.
  • 5,000 mAh: Requires approximately 6 hours of charging time.
How much does the SE-1202 EKG machine weigh?

The Edan SE-1202 EKG machine weighs 14.33 pounds. Please note that this measurement excludes the weight of the internal battery and the recorder paper.

Does the Edan SE-1202 EKG machine come with interpretation software?

Yes, the Edan SE-1202 EKG machine is equipped with Glasgow interpretation and auto-analyzing software for reliable diagnostic support.

What essential accessories are included?

The standard package for the Edan SE-1202 12-Channel EKG Machine includes all the essential components needed for immediate operation and diagnostic use. The accessories provided are:

  • ECG Cable (4mm, banana connector, AHA standard)
  • 100 resting tab electrodes
  • 10 Unomedical 10-Lead universal clips
  • Recording Paper (Z-fold, 210 mm x 295 mm x 100 P) for the built-in thermal printer.
  • Power Cord (USA standard)
  • Rechargeable Lithium Battery (2200 mAH capacity)
  • Fixed Bar for Battery (An accessory necessary for the 2200 mAH battery)
  • Two Fuses (1 A)
What type of recording paper does the Edan SE-1202 use?

The Edan SE-1202 EKG machine uses Z-fold recording paper with dimensions of 210 mm x 295 mm x 100 P.

What filters are available on the Edan SE-1202 EKG machine?

The Edan SE-1202 EKG machine has several filter options:

  • AC Filter: Off/50 Hz/60 Hz
  • EMG Filter: Off/25 Hz/35 Hz/45 Hz
  • DFT Filter: 0.01 Hz/0.05 Hz/0.32 Hz/0.67 Hz
  • LOWPASS Filter: 350 Hz/300 Hz/270 Hz/150 Hz/100 Hz/75 Hz
What QTc formulas are available on the Edan SE-1202?

The Edan SE-1202 provides the following QTc formulas: Bazzet, Fridericia, Framingham, and Hodges, and QRS.

How user-friendly is the interface?

The Edan SE-1202 EKG machine is designed for ease of use with its intuitive touch screen interface on a 10.1” LCD display (1280 x 800 resolution). Additionally, the display can be flipped 25 degrees clockwise for optimal viewing.
