Edan iM70 Patient Monitor

The Edan iM70 Patient Monitor comes standard with:

• *Skin Temperature Probe (#01.15.040187).
• *Adult Reusable SpO₂ Sensor (#02.01.210119-11).
• *Adult Reusable NIBP Cuff (#01.57.040205-13).
• *3-lead ECG Integrative Cable with Snap Leadwires (#01.57.471095-10).
• NIBP Tube with Connector (#01.59.036118-11).
• (30) Adult Disposable Adhesive Electrodes (#11.57.471056).
• Power Cord (#01.13.036106).
• Rechargeable Lithium-Ion Battery (#01.21.064143).
• Ground Cable (#11.13.114214).
• User Manual.

*Accessories can be customized by size/configuration to match your needs. These options can be found below; please call MFI to personalize your iM70 standard accessories.

Warranty: 3 Years - Free from Defects in Materials and Workmanship.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

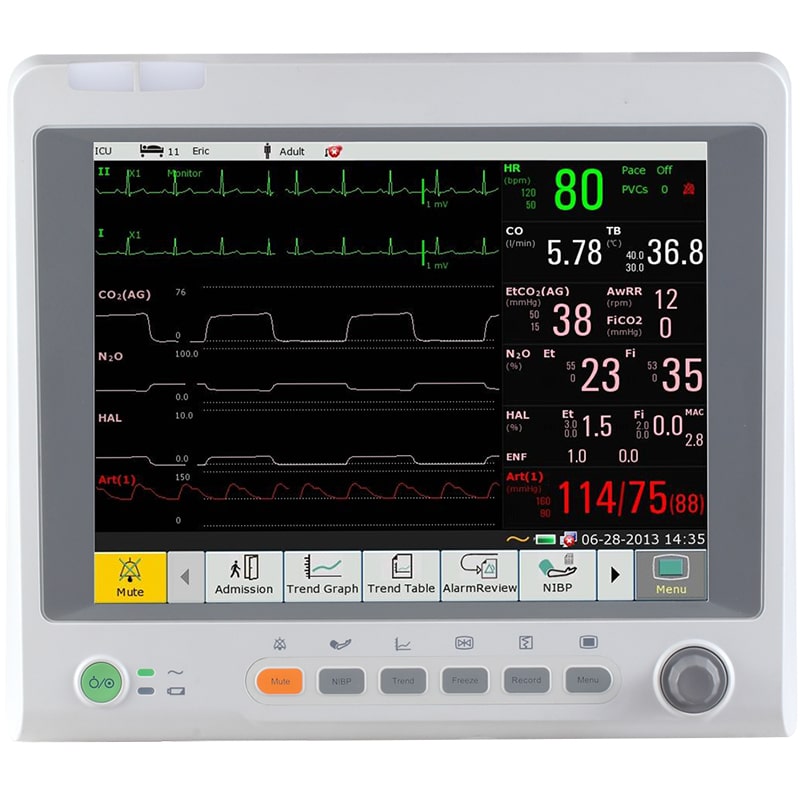

The Edan iM70 Patient Monitor is a quiet, no-fan design patient monitor ideal for night time operations and divisions which require a dust-free environment.

The iM70 is embedded with various communication capabilities including HL7, LAN, Nurse Call, Defibrillator Synchronization, and optional built-in Wi-Fi. The iM70 can easily communicate and co-work with hospital information systems as well as other hospital facilities.

With a wide range of optional parameters from IBP to cardiac output, from capnography to anesthesia gas, iM70 can meet most clinical requirements in cardiovascular monitoring and gas monitoring.

Edan iM70 Patient Monitor Features

• Large high resolution color display.
• No fan design.
• Waterproof and dust proof keypad design.
• Pacemaker detection.
• Electrosurgical interference proof.
• Defibrillation protection and defibrillation synchronization.
• Pitch tone.
• iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement.
• iMAT SpO₂ algorithm with outstanding motion resistance and low perfusion resistance performance.
• iCUFS NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients.
• Large storage capacity.
• Nurse call function.
• LAN connection with DHCP support.
• Bi-directional communication with the MFM-CMS central station.
• HL7 support.
• VGA output.

Edan iM70 Patient Monitor Specifications

• Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO₂, EDAN NIBP, PR, 2-TEMP.
• Optional Parameters: Nellcor OxiMax SpO₂, Omron NIBP, 2-IBP, Respironics CO₂, C.O., Phasein Anesthetic Gas/O₂.
• Display: 12.1" (30.7 cm).
• Display Resolution: 800 x 600.
• Dimensions: 12.9" x 6.2" x 11.2" (328 mm x 158 mm x 285 mm).
• Weight: Less than 12 lb (Less than 5.5 kg).
• Power Supply:
  • Current: 1.4A-0.7A.
  • Fuse: T3.15AH, 250 V.
• Battery Operating Time:
  • 2.1 Ah: 150 minutes or longer.
  • 4.2 Ah: 300 minutes or longer.
• Battery Charging Time:
  • 2.1 Ah: 200 minutes or shorter.
  • 4.2 Ah: 360 minutes or shorter.
• IBP Channels: 2.

Edan iM70 Patient Monitor Configurations

• Temperature Probe:
  • #01.15.040187: Skin Temperature Probe.
  • #01.15.040186: Rectal / Oral Temperature Probe.
• Reusable SpO₂ Sensor:
  • #12.01.110492-11: Neonate (Less than 3 kg / Less than 6.6 lb) Wrap Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
  • #02.01.210121-11: Pediatric (10 - 50 kg / 22 - 110 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
  • #02.01.210119-11: Adult (Greater than 30 kg / Greater than 66 lb) Reusable SpO₂ Sensor (Lemo / 2.5 m). Compatible with Edan M series patient monitors (Standard).
  • #02.01.210120-11: Adult (Greater than 30 kg / Greater than 66 lb) Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
  • #02.01.210122-11: Adult (Greater than 30 kg / Greater than 66 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• NIBP Cuff:
  • #01.57.040212: Infant (10 - 19 cm) Reusable NIBP Cuff, CM 1301.
  • #01.57.040211: Child (18 - 26 cm) Reusable NIBP Cuff, CM 1302.
  • #01.57.040205-13: Adult (25 - 35 cm) Reusable NIBP Cuff, CM 1303 (Standard).
  • #01.57.040210-12: Large Adult (33 - 47 cm) Reusable NIBP Cuff, CM 1304.
• ECG Cable:
  • #01.57.471087-10: 3-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
  • #01.57.471095-10: 3-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation (Standard).
  • #01.57.471096-10: 5-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation.
  • #01.57.471097-10: 5-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.

Edan iM70 Patient Monitor Accessories

The iM70 Patient Monitor is commonly purchased with:

• End Tidal CO₂ Option: (can be selected in "Configuration" menu above)
  • Respironics LoFlo Sidestream ETCO₂ Module:
    • Disposable Adult CO₂ Nasal Cannula (#3468ADU-00).
    • Adult/Pediatric Airway Adapter Set with Dehumidification tubing (#3473ADU-00).
    • Disposable Sampling Line Kit with Dehumidification Tubing (#3475-00).
• #02.04.240256: Thermal Printer Upgrade Kit.
• #01.57.78035: Thermal Printer Paper.
• #02.04.240050: Data Management Kit.
• #ISA AX+: Edan Phasein ISAAX+ Module.
• #MT-207: Rolling Stand with Mounting Plate and Basket.
• #wifi: Internal WiFi Module.

Edan iM70 Patient Monitor Literature

Edan iM Series Patient Monitor User Manual

Edan iM50/iM60/iM70/iM80 Patient Monitor Product Specifications

Edan iM70 Patient Monitor Brochure
