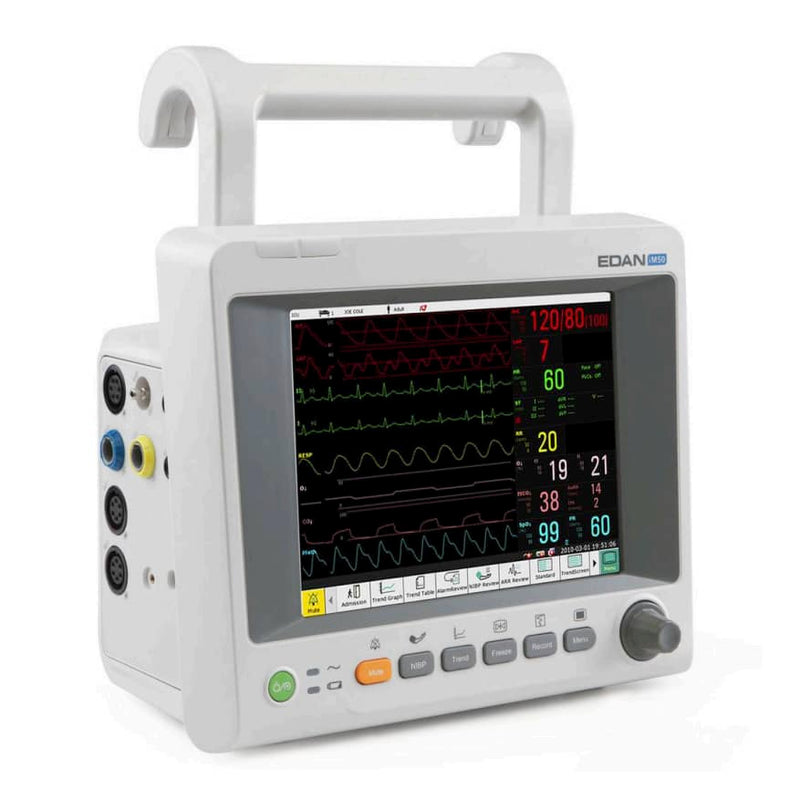

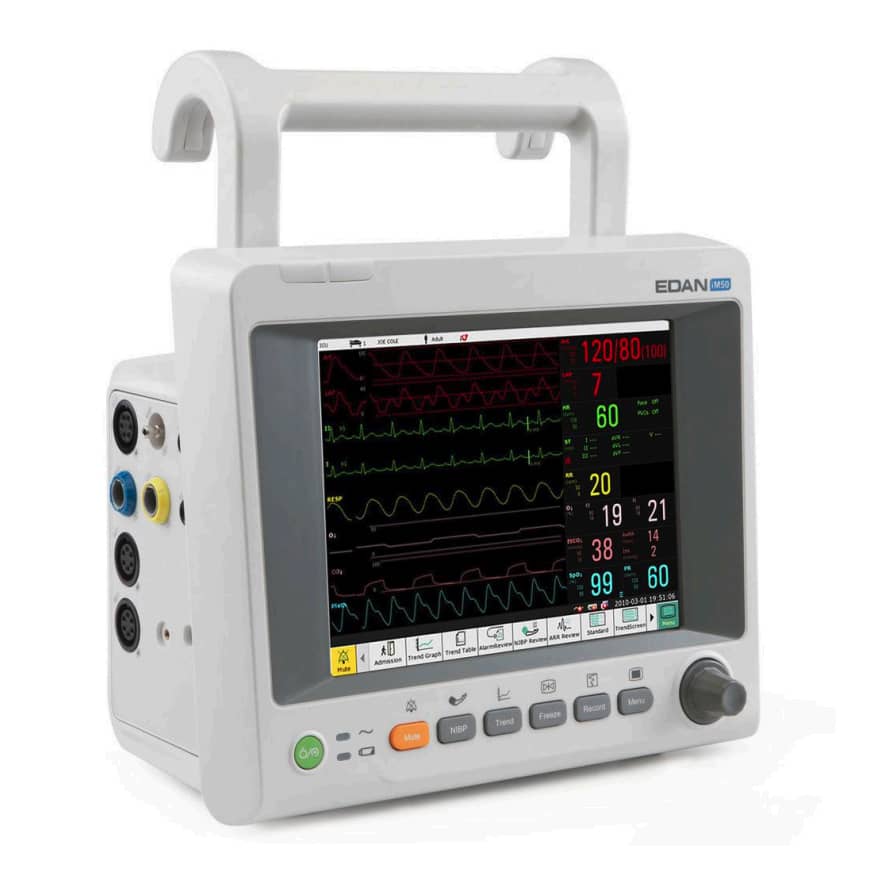

Edan iM50 G2 Patient Monitor

The Edan iM50 G2 Patient Monitor provides comprehensive vital sign monitoring capabilities, notably featuring an integrated CO2 module standard.

Standard monitored parameters include:

• ECG: 3-lead or 5-lead ECG, Heart Rate (HR), and Pulse Rate (PR).
• NIBP: Non-Invasive Blood Pressure.
• SpO2: EDAN SpO2 (Oxygen Saturation).
• Respiration (RESP): Monitoring of respiratory rate.
• Temperature (2-TEMP): Dual channel temperature monitoring.
• CO2: Integrated internal OEM Edan Sidestream G2 CO2 module (Capnography).

Additionally, the monitor offers specialized clinical analysis capabilities, such as S-T segment and arrhythmia analysis, and the OxyCRG function for detailed neonatal assessment.

The Edan iM50 G2 Patient Monitor supports flexible dual control, utilizing both physical and digital interfaces:

• Navigation Knob: This physical control is a standard feature on all monitor configurations, providing simplified menu interaction.
• Full Touchscreen: Touchscreen functionality is optional. This feature must be selected during purchase (e.g., choosing a ‘With Touchscreen’ configuration) for direct, intuitive interaction with parameters and waveforms.

Yes, the Edan iM50 G2 is specifically engineered to be a flexible solution suitable for patient transport and mobile monitoring, as well as routine clinical use. Its design facilitates continuous observation during movement:

• Built-in Power: Includes a rechargeable li-ion battery for uninterrupted monitoring away from AC power.
• Portability: Features a compact design with an integrated carrying handle for easy manual transport.
• Readability: The large font display option ensures vital signs can be quickly and clearly assessed in dynamic environments.
• Reliability: Engineered with electrosurgical interference proofing and defibrillation protection for robust performance during transport or critical events.

Yes, the Edan iM50 G2 Patient Monitor includes the OxyCRG function. This specialized feature is available specifically to assist in evaluating and judging the respiration and circulation function for neonatal patients.

The Edan iM50 G2 Patient Monitor is designed with robust internal memory capabilities for comprehensive data review directly on the unit. This allows clinicians to easily access past measurements and events.

Key data review capacities include:

• Trend Data: Stores up to 120 hours of trend data.
• NIBP Measurements: Capable of reviewing 1,200 Non-Invasive Blood Pressure measurements.
• Alarm Events: Stores records of 60 alarm events.
• Frozen Waveforms: Allows review of 120 seconds of frozen waveform data.

For enhanced data management, the monitor also features an SD card slot for memory extension, supporting large data storage and archival needs.

Yes, the Edan iM50 G2 Patient Monitor features a built-in rechargeable Li-ion battery, ensuring reliable power for continuous monitoring, even during transport or power outages.

Yes, the Edan iM50 G2 Patient Monitor is equipped with advanced connectivity features:

• It supports bi-directional communication with the MFM-CMS central monitoring station, allowing for seamless, centralized data management.
• It also includes a built-in Nurse Call function to quickly streamline staff notifications.

Yes, this patient monitor supports memory expansion through a dedicated SD card slot, allowing for large data storage to meet clinical documentation needs.

In addition to the expandable storage, the unit features robust internal memory capacity for immediate clinical review:

• Trend Review: Stores up to 120 hours of trend data.
• NIBP Measurements: Holds 1,200 non-invasive blood pressure measurements.
• Alarm Review: Retains records for 60 alarms.
• Waveform Freeze: Allows freezing of waveforms for up to 120 seconds for detailed analysis.

Yes, the Edan iM50 G2 Patient Monitor offers flexible control options, although the interface depends on the configuration you choose:

• Touchscreen Interface: A highly intuitive full touchscreen interface is available on select configurations. This option provides fast, direct selection of parameters and efficient data management.
• Standard Control: All models, including those without the touchscreen option, come standard with a navigation knob for reliable menu access and adjustments.

All configurations utilize a high-visibility 8.5-inch TFT display to ensure patient data is always clear and easy to read, supporting a large font option for quick visibility.

Yes, the Edan iM50 G2 is equipped with comprehensive safety features crucial for maintaining reliable performance in critical clinical settings, including:

• Defibrillation Protection and Synchronization: The unit is protected during defibrillation procedures.
• Pacemaker Detection: Ensures accurate monitoring readings for patients with pacemakers.
• Electrosurgical Interference Proofing: Guarantees data reliability even when electrosurgical devices are active.
