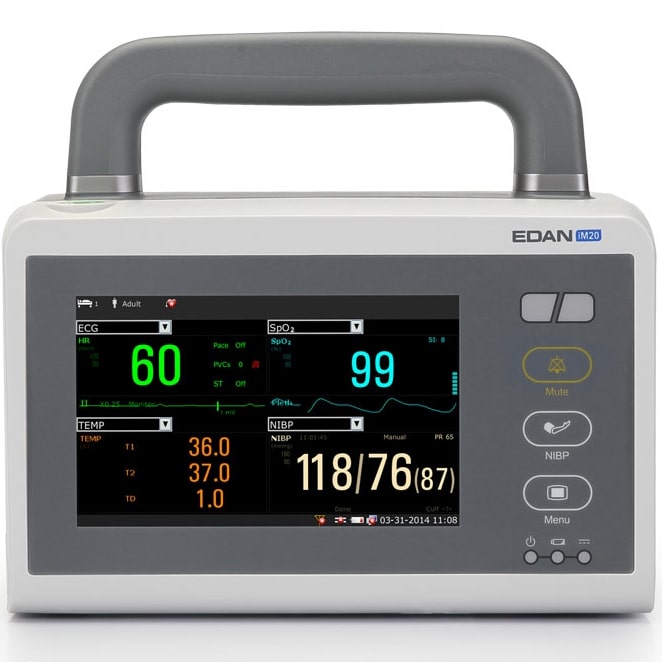

Edan iM20 Transport Patient Monitor

Edan iM20 Transport Patient Monitor

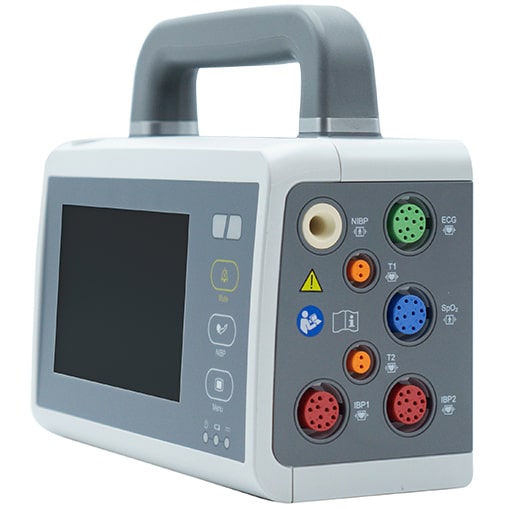

Edan iM20 Transport Patient Monitor ports

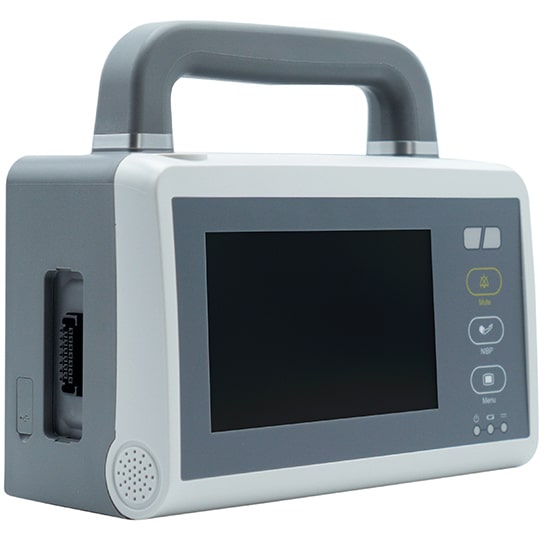

Edan iM20 Transport Patient Monitor port for Elite V Series
Edan iM20 Transport Patient Monitor
Edan iM20 Transport Patient Monitor ports
Edan iM20 Transport Patient Monitor port for Elite V Series
Key Features
  • SKU: EDN-iM20
  • Condition:
    Condition: Factory New
  • Country of Origin: China
  • Warranty:
    Warranty: 2 Years
  • Weight: 8.0 lb
  • Standard Parameters: 3/5-lead ECG, RESP, NIBP, 2-TEMP, PR, HR, and Edan SpO2
  • 5" high resolution color TFT-LCD with full-touch screen
  • 12 volt direct power supply with built-in high-capacity rechargeable battery
  • iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement

  • Learn more:

Contact The Manufacturer
  • MFR: Edan
    Ships from Manufacturer
  • MPN: iM20
  • Phone: (888) 850-4597
$3,443.00 $2,880.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan iM20 Transport Patient Monitor includes a 3-Lead ECG Cable (#01.57.471380) for configurations iM20, iM20_2IBP, and iM20-ST or 10-Lead ECG Cable for iM20_12L, NIBP Tubing (#01.59.473007), Adult Reusable NIBP Cuff (27 to 35 cm) (#Cuff.E9), Skin Temperature Probe (#01.15.040225), Snap Electrodes (#T716-50), 1 m Adult Reusable SpO2 Sensor (#SH1.Lemo), SpO2 7-Pin Extension Cable (#01.57.471068), Power Cable (#21.21.064216), Rechargeable Li-Ion Battery (#21.21.064213), and a user manual.

Warranty: 2 Years (Monitor) / 1 Year (Accessories) - Free from Defects in Materials and Workmanship.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Serving as both a transport monitor and a multi-parameter module for the Elite Series (such as the Elite V5, Elite V6, and Elite V8), the Edan iM20 Transport Patient Monitor is a comprehensive and seamless monitoring solution that can be used both inside and outside a hospital to connect ambulatory and intensive care. Designed to meet IP44 waterproof and dust proof standards and boasting a solid shock resistance performance making it suitable for patient transport in even the harshest environments, this exceptional monitor is also small and compact, weighing less than 1.5 kg with battery installed. The battery life is also extended for long term transport even without the use of an external power supply. It does not require a fan for heat expiration. Plus, it features a full-touch operation without physical buttons to facilitate ease of use.

Features

Edan iM20 Transport Patient Monitor Features

  • Standard Parameters: 3/5-lead ECG, RESP, NIBP, 2-TEMP, PR, HR, and Edan SpO2.
  • 5" high resolution color TFT-LCD with full-touch screen.
  • No-fan design.
  • 12 volt direct power supply with built-in high-capacity rechargeable battery.
  • iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement.
  • SEMIP 12-lead diagnosis algorithm with 208 kinds of analysis results.
  • iMAT SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance.
  • iCUFS NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients.
  • Built-In Wi-Fi/3G supports seamless data transmission from ambulatory cares to hospitalization.
  • IP44 waterproof and dustproof standard.
  • Shock resistance performance.
  • Weight: 3.31 lb (1.5 kg) (with battery).
  • Nellcor SpO2, 12-lead ECG, End-tidal CO2 and invasive blood pressure are available as options.
  • SunTech Transport Motion Tolerant NIBP (optional) to address noise and motion associated with transporting.

Configurations

Edan iM20 Transport Patient Monitor Configurations

  • #iM20: Standard (No 12-lead ECG, IBP, or SunTech NIBP).
  • #iM20_12L: With Built-In 3/5/12-lead ECG Module.
  • #iM20_2IBP: With Built-In 2-IBP Module.
  • #iM20-ST: With SunTech NIBP Module.

Accessories

Edan iM20 Transport Patient Monitor Accessories

The following accessories are compatible and commonly purchased with the iM20 Transport Patient Monitor:

  • #01.56.465553-1.0: iM20 Carry Belt.
  • #01.56.465615-1.0: iM20 Bedrail Mounting Belt.
  • #01.56.46627010: iM20 Carrying Bag.
  • #02.04.243318: iM20 Mounting Plate.
  • #02.04.243319: iM20 Bedrail Clamp.
  • #02.04.243320: iM20 Mounting Kit (with plate and clamp).
  • #83.60.260648: iM20 EFM Module with Respironics LoFlo Sidestream CO2.

Literature

Frequently asked questions

Is the iM20 highly durable for transport?
<p>Yes, the Edan iM20 Transport Patient Monitor is specifically engineered for high durability and continuous monitoring in demanding environments, such as inter-facility transfers.</p>

<p>Key features that ensure its reliability during transport include:</p>

<ul>
<li><strong>Environmental Protection:</strong> The unit meets the <strong>IP44 waterproof and dustproof standard</strong>, providing robust protection against liquid and particle ingress.</li>
<li><strong>Shock Resistance:</strong> It features solid <strong>shock resistance</strong> performance suitable for dynamic and challenging environments.</li>
<li><strong>Extreme Portability:</strong> Weighing less than <strong>1.5 kg (3.31 lb)</strong> with the battery installed, the iM20 is highly mobile and easy to carry using its curved top handle.</li>
<li><strong>Operational Efficiency:</strong> The monitor utilizes a <strong>fanless design</strong>, which minimizes noise, reduces maintenance needs, and decreases the number of potential failure points.</li>
<li><strong>Power Source:</strong> It includes a high-capacity rechargeable Li-Ion battery for extended operation during prolonged transport.</li>
</ul>
Does the monitor use advanced algorithms?
<p>Yes, the Edan iM20 utilizes several proprietary, high-performance monitoring algorithms crucial for ensuring accuracy and reliability, especially during patient transport and movement. This focus on advanced processing enhances diagnostic confidence.</p>

<p>Key algorithms incorporated include:</p>

<ul>
<li><strong>iSEAP Algorithm (ECG):</strong> Optimized for highly precise <strong>arrhythmia detection</strong>, <strong>pacemaker detection</strong>, and reliable heart rate (HR) measurement.</li>
<li><strong>iMAT Algorithm (SpO2):</strong> Provides outstanding resistance to <strong>patient motion</strong> and maintains accurate readings even in conditions of <strong>low perfusion</strong>.</li>
<li><strong>iCUFS Algorithm (NIBP):</strong> Specifically tailored for critical patient populations, including <strong>cardiac patients</strong>, <strong>hypertensive patients</strong>, and <strong>neonatal patients</strong>.</li>
</ul>

<p>For comprehensive diagnostics, the unit also supports the optional <strong>SEMIP 12-lead ECG diagnosis algorithm</strong>, which delivers 208 types of analysis results.</p>
What optional monitoring parameters can be added?
<p>The Edan iM20 is highly versatile and supports the integration of several optional parameters and specialized modules beyond the standard measurements (3/5-lead ECG, RESP, NIBP, 2-TEMP, PR, HR, and Edan SpO2).</p>

<p>These optional capabilities allow you to configure the monitor for specialized clinical needs:</p>

<ul>
<li><strong>12-Lead ECG:</strong> Provides comprehensive cardiac analysis, utilizing the advanced <strong>SEMIP 12-lead diagnosis algorithm</strong>.</li>
<li><strong>Invasive Blood Pressure (IBP):</strong> Supports the monitoring of invasive blood pressure.</li>
<li><strong>End-tidal CO2 (EtCO2):</strong> Essential for continuous capnography monitoring.</li>
<li><strong>Specialized NIBP (SunTech):</strong> The <strong>SunTech Transport Motion Tolerant NIBP</strong> module is available, offering enhanced accuracy during active patient transport.</li>
<li><strong>Alternative SpO2 (Nellcor):</strong> You can select the <strong>Nellcor SpO2</strong> algorithm as an alternative to the standard Edan SpO2 technology.</li>
</ul>
Does it support seamless Wi-Fi/3G data transmission?
<p>Yes, the Edan iM20 Transport Patient Monitor features <strong>built-in Wi-Fi and 3G support</strong> specifically for seamless data transmission.</p>

<p>This crucial connectivity ensures that vital signs and patient information are continuously transmitted:</p>

<ul>
<li>Between ambulatory care settings and hospitalization units.</li>
<li>Maintaining data continuity and security throughout the patient transport process.</li>
</ul>
What accessories are included with the monitor?
<p>The Edan iM20 Transport Patient Monitor ships with a complete set of accessories for standard multi-parameter monitoring (ECG, NIBP, SpO2, and Temperature), allowing for immediate use upon arrival.</p>

<p>The standard configuration includes:</p>

<ul>
<li><strong>Power and Portability</strong>
<ul>
<li>Rechargeable Li-Ion Battery</li>
<li>Power Cable</li>
</ul>
</li>
<li><strong>ECG Monitoring</strong>
<ul>
<li>3-Lead ECG Cable</li>
<li>Snap Electrodes</li>
</ul>
</li>
<li><strong>NIBP (Non-Invasive Blood Pressure)</strong>
<ul>
<li>NIBP Tubing</li>
<li>Adult Reusable NIBP Cuff (27 to 35 cm)</li>
</ul>
</li>
<li><strong>SpO2 (Pulse Oximetry)</strong>
<ul>
<li>1 m Adult Reusable SpO2 Sensor</li>
<li>SpO2 7-Pin Extension Cable</li>
</ul>
</li>
<li><strong>Temperature Monitoring</strong>
<ul>
<li>Skin Temperature Probe</li>
</ul>
</li>
<li><strong>Documentation</strong>
<ul>
<li>User Manual</li>
</ul>
</li>
</ul>

<p><em>Note: If you choose an optional configuration (such as 12-lead ECG or IBP), the included accessories will be adjusted to provide the corresponding specialized components.</em></p>
Does the monitor feature a fanless design?
<p>Yes, the Edan iM20 is engineered with a <strong>no-fan design</strong> (fanless).</p>

<p>This deliberate design choice provides significant advantages, especially for a portable transport monitor:</p>

<ul>
<li><strong>Quiet Operation:</strong> Ensures silent monitoring, which is critical for maintaining a calm patient care environment during transport.</li>
<li><strong>Reduced Maintenance:</strong> By eliminating the fan, the unit minimizes dust intake and mechanical wear, leading to reduced maintenance requirements.</li>
<li><strong>Enhanced Durability:</strong> The fanless operation complements the monitor’s robust construction, which meets the <strong>IP44 waterproof and dustproof standard</strong> and features solid shock resistance.</li>
</ul>
Does it integrate with other Edan monitors?
<p>Yes, the Edan iM20 is designed to integrate seamlessly as a multi-parameter module with the <strong>Edan Elite Series monitors</strong> (Elite V5, Elite V6, and Elite V8), enhancing its versatility in various clinical settings.</p>
Is the transport monitor lightweight?
<p>Yes, the Edan iM20 is specifically designed for high portability and rugged transport environments.</p>

<ul>
<li><strong>Weight:</strong> It weighs less than <strong>1.5 kg (3.31 lb)</strong> with the high-capacity rechargeable battery installed, making it extremely lightweight for transport.</li>
<li><strong>Durability:</strong> The monitor features a robust, fanless design that meets the <strong>IP44 waterproof and dustproof standard</strong> and provides solid shock resistance performance, ensuring reliability in harsh conditions.</li>
<li><strong>Design:</strong> Its compact form factor and integrated handle simplify carrying and deployment during patient transfers.</li>
</ul>
