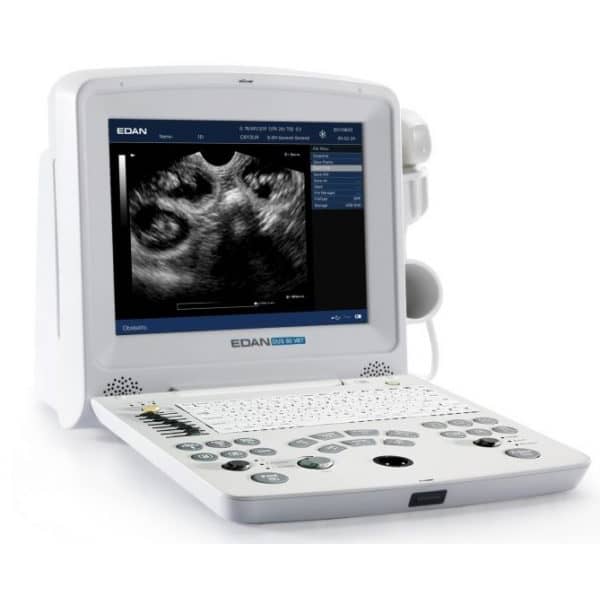

Edan DUS 60 VET Diagnostic Ultrasound System

Edan DUS 60 VET Diagnostic Ultrasound System
Key Features
  • SKU: EDN-DUS60Vet-Main
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 2 Years
  • Weight: 15.7 lb
  • 12.1 inch LCD monitor
  • Two standard transducer connectors
  • 8-segment TGC control
  • IP (Image Processing) function

  • Learn more:

Contact The Manufacturer
  • MFR: Edan Ships from Manufacturer
  • MPN: DUS60Vet_Main
  • Phone: (888) 850-4597
$5,175.00

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan DUS 60 VET Diagnostic Ultrasound System (#DUS60Vet_Main) includes the following:

  • #01.56.465073-10: Luxury Carry Bag.
  • #01.51.113140: Transducer Holder.
  • #01.52.113229: Transducer Cable Holder.
  • #21.51.113131: Ultrasound Gel Holder.
  • #11.13.36015: Power Cord (USA standard).
  • #11.13.114214: Ground Cable.
  • #01.21.064356: Rechargeable Lithium-Ion Battery.
  • Ultrasound Gel - 250 g.
  • User Manual.

The DUS 60 VET is ideally suited for veterinary ultrasound. Boasting Phase Inversion Harmonic Imaging technology, it increases your diagnostic confidence. Efficient and easy to use, it is also lightweight for improved mobility with a built-in battery that provides up to 2 hours of point-of-care imaging making it great for on-the-go use.

Warranty: 2 Years.

Features

Edan DUS 60 VET Diagnostic Ultrasound System Features

  • Black and White Ultrasound.
  • 12.1 inch LCD monitor.
  • Two standard transducer connectors.
  • 8-segment TGC control.
  • IP (Image Processing) function.
  • 256-frame cine loop memory.
  • 504MB image storage capacity.
  • Two USB ports.
  • Pseudo Color: 7 types.
  • Measurement & Calculation software package.

Specifications

Edan DUS 60 VET Diagnostic Ultrasound System Specifications

General

  • Imaging Mode: B, 2B, 4B, B+M, M, and PW.
  • Gray Scale Levels: 256.
  • Display: 12.1 TFT-LCD.
  • Transducer Frequency: 2.0-10.0 MHZ.
  • Transducer Connector: 2 standard Beam.
  • Scanning Angle: Up to 155 degrees (transducer dependent).
  • Scanning Depth (mm): From 19 to 324 (transducer dependent).

Functions

  • Cine Loop: 256-frame bidirectional cine-loop.
  • Zoom: x1.0, x1.2, x1.4, x1.6, x2.0,x2.4, x3.0, x4.0 in distance. Panoramic zoom in real-time and freeze.
  • Storage Media: Built-in Flash, internal large capacity data storage.
  • Built-in Image Archive: 504MB built-in image storage.
  • Body Marks: : 40 types Transducer auto-detection.

Display

  • Date, Time, Probe Frequency, Frame Rate, Host, ID, Hospital Name, Depth, Frame Rate, Exam Type, Measurement Values, Gain, IP, Body Marks, Annotations, Probe Position.

Others

  • Peripheral Ports:
    • S-video Output: 1.
    • Video Output: 1.
    • VGA Output: 1.
    • USB Port: 2.
    • Ethernet Port: 1.
    • Remote Control: 1.
    • Footswitch Port: 1.
  • Power Supply: 100V-240V ~ 50Hz/60Hz.
  • Lithium Battery: Continuous operation for up to 2 hours.
  • Dimensions: 330 mm (13.0”) L x 220 mm (8.7”) W x 320 mm (12.6”) H.
  • Net Weight: 7.1kg (15.7 lb).

Imaging Processing

  • Pre-Processing:
    • Dynamic Range.
    • Frame Persist.
    • Gain.
    • 8-segment TGC adjustment.
    • IP (Imaging Process).
  • Post-Processing:
    • Gray map.
    • Speckle Reduction Technology.
    • Pseudo-color.
    • Gray Auto Control.
    • Black/white invert.
    • Left/right invert.
    • Up/down invert.
    • Image rotation at 90° interval.

Measurement & Calculation

  • B-Mode: Distance, circumference, area, volume, ratio % stenosis, histogram, and angle.
  • M-Mode: Distance, time, slope, and heart rate.
  • Doppler: Time, heart rate, velocity, acceleration, trace, and RI.
  • Software Packages: Canine, feline, equine, bovine, ovine.

Accessories

Edan DUS 60 VET Diagnostic Ultrasound System Accessories

The Edan DUS 60 VET Diagnostic Ultrasound System is commonly purchased with the following transducers:

  • #12.01.210693: Edan Micro-Convex Array Transducer C611-2.
  • #12.01.210683: Edan Convex Array Transducer C361-2.
  • #12.01.210695: Edan Linear Array Transducer L743-2.
  • #E741: Edan Endorectal Transducer E741-2.

Literature

Edan DUS 60 VET Diagnostic Ultrasound System Literature

Edan DUS 60 VET Diagnostic Ultrasound System Brochure

Frequently asked questions

Is the DUS 60 VET specialized for veterinary use?

Yes, the Edan DUS 60 VET is explicitly designed and specialized for comprehensive veterinary diagnostic applications. It enhances diagnostic confidence by utilizing Phase Inversion Harmonic Imaging technology and comes fully equipped with specialized measurement and calculation software packages for a wide range of animals. These veterinary software packages include: * Canine * Feline * Equine * Bovine * Ovine

Is the Edan DUS 60 VET portable?

Yes, the Edan DUS 60 VET is designed to be portable. It features a lightweight design and a built-in battery that lasts up to 2 hours, making it suitable for field use and mobile veterinary practices.

How is the Edan DUS 60 VET's image quality enhanced?

The Edan DUS 60 VET enhances its diagnostic image quality using Phase Inversion Harmonic Imaging technology.

This sophisticated technology improves image clarity and detail, helping to increase diagnostic confidence during veterinary examinations.

What advanced features does the Edan DUS 60 VET ultrasound system offer?

The Edan DUS 60 VET Diagnostic Ultrasound System is equipped with advanced features designed for comprehensive veterinary diagnostics, including:

  • High-Resolution Display: It features a 12.1-inch TFT-LCD monitor for clear image visualization and 256 gray scale levels.
  • Versatile Imaging Modes: Supports a range of imaging modes such as B, 2B, 4B, B+M, M, and PW, allowing for diverse diagnostic applications.
  • Wide Frequency Range: The transducer frequency ranges from 2.0-10.0 MHz, providing flexibility for different examinations.
  • Extensive Cine Loop & Storage: Includes a 256-frame bidirectional cine-loop for reviewing dynamic images and 504MB of built-in image storage, complemented by two USB ports for additional capacity.
  • Long-Lasting Battery: A built-in lithium battery allows for up to 2 hours of continuous on-the-go operation.
How many transducer connectors does the Edan DUS 60 VET have?

The Edan DUS 60 VET Diagnostic Ultrasound System is equipped with two standard transducer connectors, allowing for versatile diagnostic capabilities.

Does the system feature ample built-in image storage?

Yes, the Edan DUS 60 VET is designed with robust internal storage capabilities to efficiently manage diagnostic images and video clips.

Key storage specifications include:

  • Image Storage: The system features 504MB of built-in storage for saving diagnostic images and data.
  • Cine Loop: It includes a 256-frame bidirectional cine loop memory, allowing clinicians to review and analyze recent moving images for better diagnostic assessment.
What connectivity and output ports does this system feature?

The Edan DUS 60 VET is equipped with a comprehensive range of connectivity options to facilitate seamless data management and external display integration:

  • Transducer Ports: 2 standard transducer connectors for quick switching between probes.
  • Data Ports: 2 USB ports for efficient image storage, export, and connectivity with peripherals.
  • Network: 1 Ethernet port.
  • Display/Video Output: VGA, S-video, and standard video outputs for connection to external monitors or diagnostic displays.
How long does the Edan DUS 60 VET battery last?

The Edan DUS 60 VET Diagnostic Ultrasound System is equipped with a rechargeable lithium-ion battery that provides up to 2 hours of continuous operation, making it ideal for mobile point-of-care imaging.

What essential accessories are included with the DUS 60 VET system?

The Edan DUS 60 VET system ships as a comprehensive package, ensuring you have the necessary components for immediate and mobile veterinary use. The included accessories are:

  • Rechargeable Lithium-Ion Battery: This is crucial for portability, providing up to 2 hours of continuous operation for point-of-care imaging.
  • Luxury Carry Bag: Designed for easy and secure transport of the lightweight system (7.1 kg).
  • Transducer Holder and Transducer Cable Holder
  • Ultrasound Gel Holder
  • 250 g Ultrasound Gel (initial supply)
  • Power Cord (USA standard) and Ground Cable
  • User Manual
What animal-specific software is included?

The Edan DUS 60 VET includes comprehensive software packages tailored for various animals, such as:

  • Canine
  • Feline
  • Equine
  • Bovine
  • Ovine

These packages assist with accurate measurements and calculations specific to each animal type.
