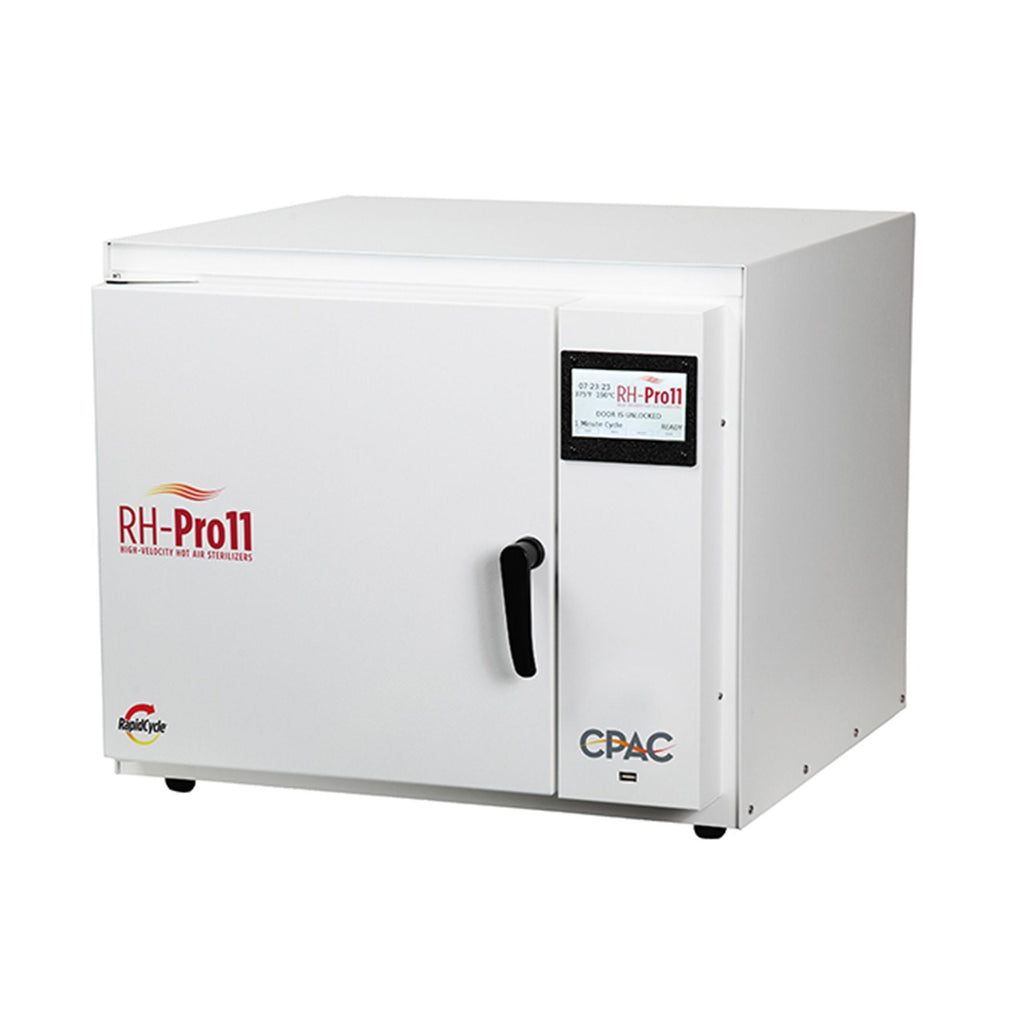

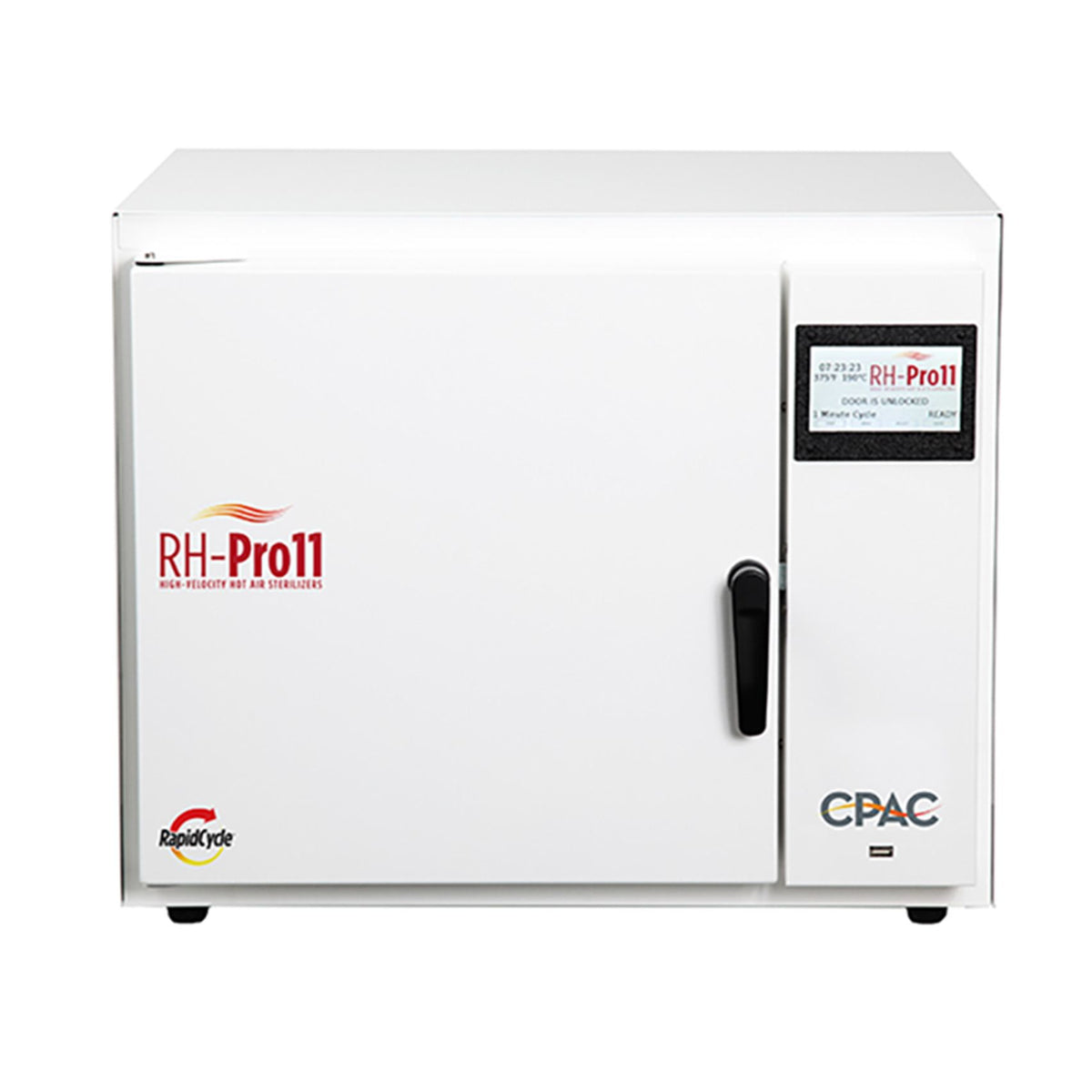

CPAC RapidHeat RH-Pro11 HVHA Sterilizer

The CPAC RapidHeat RH-Pro11 HVHA Sterilizer includes four removable instrument trays, one pair of tray removal safety gloves, instructions & care card, and the user manual.

Warranty: 3 Years - Parts and Labor.

An advancement in "RapidCycle" sterilization, the CPAC RapidHeat RH-Pro11 HVHA Sterilizer is a proven method of raising sterilization efficiency. Thanks to state-of-the-art High-Velocity Hot Air (HVHA) technology, the RH-Pro11 provides the fastest instrument turnaround time of any FDA-cleared sterilization technology on the market today. Plus, no steam or water means no prolonged drying cycle and helps ensure a longer product life free of corrosion.

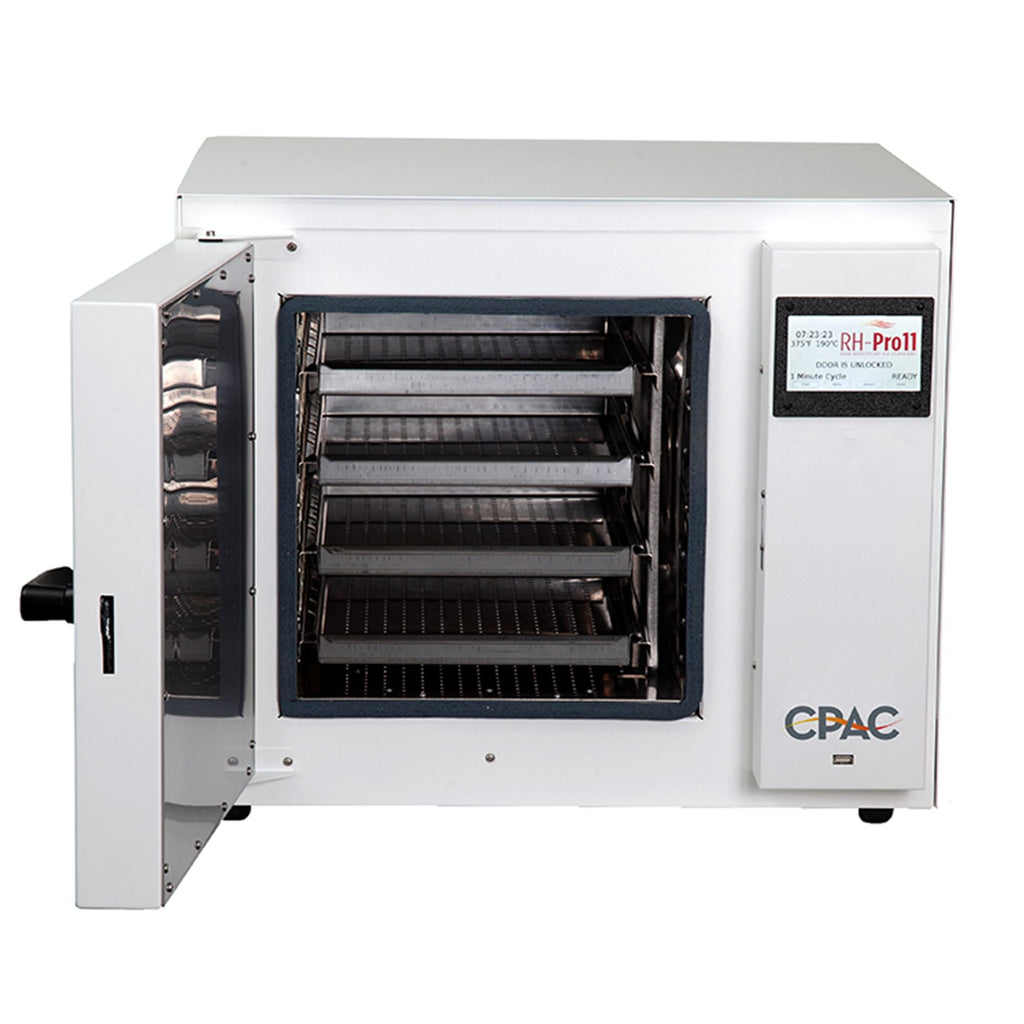

With four removable trays, the RH-Pro11 chamber can be easily modified to handle all sizes of instrument sets.

CPAC RapidHeat RH-Pro11 HVHA Sterilizer Features

• Accommodates both small and large cassettes.
• Waterless sterilization with no chemicals.
• Uses 85% less energy than steam.
• Documents cycles for easy log retrieval.
• Self-locking door ensures cycle completion.
• Up to six large instrument trays per cycle.
• Large table-top capacity (2295 cubic inches).
• Non-corrosive sterilizer environment.
• FDA-cleared six minute cycles (unwrapped).
• FDA-cleared 12 minute cycles (wrapped).
• Validate and verify 12-log kill sterilization.
• Choice of three low-temperature cycles.

CPAC RapidHeat RH-Pro11 HVHA Sterilizer Specifications

• Weight: 90 lb (41 kg).
• Dimensions: 22.5" (D) x 22.5" (W) x 19.5" (H) (572 mm x 572 mm x 495 mm).
• Chamber Dimensions: 17.75" (D) x 11" (W) x 11.75" (H) (433 mm x 279 mm x 299 mm).
• Chamber Capacity: 2294 cubic inches (10 gal / 38 L).
• Instrument Tray: 15" (D) x 9" (W) x 1" (H) (381 mm x 229 mm x 28 mm).
• Sterilization Temperature: 375 degrees F (190 degrees C).
• Sterilization Times:
• Cycle 1: Six minutes for unwrapped instruments.
• Cycle 2: Eight minutes for hand pieces and medical drills.
• Cycle 3: 12 minutes for wrapped instruments.
• Low Temperature Sterilization Times:
• 320 degrees F: 42 minute cycle.
• 300 degrees F: 58 minute cycle.
• 280 degrees F: 126 minute cycle.
• N95 FFR Mask Decontamination (175 degrees F): 30 minute cycle.
• Wrapped Cassettes:
  • 5.5" x 8" x 1.5": 8 Cassettes (Total: 64 Instruments).
  • 6" x 8" x 1.5": No 2-Tier Cassettes.
  • 8" x 11" x 1.5": 4 Cassettes (Total: 80 Instruments).
• Instrument Capacity:
  • Unwrapped: 3.2 kg; 160 Dental Instruments.
  • Handpieces (Unwrapped): 24 Handpieces; 6 per Tray.
  • Wrapped Instruments: 3.2 kg; 8 Dental Instruments/Pouch; 5 Pouches/Tray; 4 Trays/Load. Total Instruments/Load: 160.
• Electrical:
• 110 - 120 V, 60 Hz, 1400 Watts warm up, 300 Watts operating.
• 220 - 240 V, 50 Hz, 1400 Watts warm up, 300 Watts operating.
• Safety: Meets requirements of U.S. Electrical Safety Standards.
• Shipping Weight: 109 lb (49 kg).

CPAC RapidHeat RH-Pro11 HVHA Sterilizer Voltages

• #RH-Pro11: 110 - 120 V.
• #RH-Pro11-230V: 220 - 240 V.

CPAC RapidHeat RH-Pro11 HVHA Sterilizer Accessories

The following accessories are compatible and commonly purchased with the RapidHeat RH-Pro11 HVHA Sterilizer:

• #400597B: SteriSURE Dry Heat Sterilizer Bags.
• SteriDent Spore Test Monitoring Service - Dry Heat or Steam:
  • #400633: Box of 12.
  • #400634: Box of 52.
• #400635: Dry Heat Indicator Strips 4".
• Self-Seal Nylon Pouches:
  • #400636: 2" x 10".
  • #400651: 3" x 10".
  • #400637: 4" x 10".
  • #400638: 7" x 10.5".
  • #400639: 9.5" x 13".
• #400640: In-Office Biological Monitoring System.
• Spore Culture Refill:
  • #400644: Box of 20.
  • #400645: Box of 100.

CPAC RapidHeat RH-Pro11 HVHA Sterilizer Literature

CPAC RapidHeat Dental Microsurgical Sterilization White Paper

CPAC RapidHeat Medical Dental Instrument Compatibility

CPAC RapidHeat Steam Comparison Sheet

CPAC RH-Pro11 High Velocity Hot Air Sterilizer Flyer

CPAC RapidHeat RH-Pro11 High Velocity Hot Air Sterilizer Operation Manual

CPAC RapidHeat RH-Pro11 High Velocity Hot Air Sterilizer Brochure

CPAC RapidHeat RH-Pro11/RH-Pro9 HVHA Sterilizers Brochure
