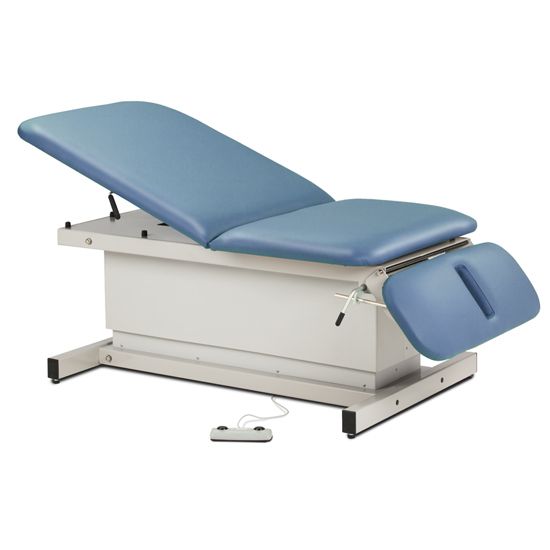

Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section

Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section Features

• Extra-wide, bariatric model with choice of 2 widths (34" and 40").
• Dual-cylinder, pneumatic backrest is adjustable from either side and can be raised 80 degrees from a flat position.
• Drop section is adjustable from either side and can be raised 80 degrees from a flat position.
• Standard drop section has nose hole, but it may be ordered without a nose hole (please specify when ordering).
• Easy-clean ABS plastic enclosed lift.
• Electric power height adjustment with foot control.
• Ultra-strong, uni-frame base and top construction.
• Heavy-duty, all welded, lift mechanism.
• Durable gray powder-coated steel frame.
• Self-lubricating pivot points.
• Smooth 110 volt electric height adjustment.
• Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1.
• Hands-free low voltage foot control.
• Easy service, self contained, electrical components.
• Seamless, rounded corner, upholstered top.
• 2" (5 cm) ultra-firm padding.
• Low height may help achieve ADA tax credit.
• Customizable with options.
• Made in the USA by Clinton Industries.
• 550 lb load capacity under normal use.

Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section Specifications

#84438-34 (Overall):

• Length: 76 in.
• Width: 34 in.
• Height Range: 21-34 in.

#84438-34 (Backrest):

• Length: 38 in.
• Width: 34 in.

#84438-34 (Drop Section):

• Length: 13 in.
• Width: 34 in.

#84438-40 (Overall):

• Length: 76 in.
• Width: 40 in.
• Height Range: 21-34 in.

#84438-40 (Backrest):

• Length: 38 in
• Width: 40 in.

#84438-40 (Drop Section):

• Length: 13 in.
• Width: 40 in.

Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section Accessories

The Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section is commonly purchased with the following:

• #012: Headrest/Power Tables - Padded and adjustable, headrest extends the table's length for extra tall patients.
• #030: Paper Dispenser - Accommodates paper rolls from 18-21 in.
• #034: Paper Dispenser/Cutter Combo - Paper dispenser and paper cutter ordered as one option.
• #035: Armboard/Power Tables - Padded, ratchet style, rotating armboard. Rotates 180 degrees, interchangeable on right or left side.
• #040: Paper Cutter - Clear plastic with elastic straps and buckle.
• #080-X: Bariatric Safety Strap - 2 x 120 inch strap is secured with quick hook and loop fasteners (2 safety straps per set).
• #082: Safety Rails - Includes plunger height adjustment, 3-height position, sold in pairs.
• #083: 2-Hook IV Pole and Mounting Bracket - 2-hook top with chrome pole with height adjustment, removable bracket mounts to either side of the head end.
• #084: Hand-Held Height Control - Alternative to foot control, stores easily under to when not in use.
• #087: Locking Casters - 3 inch heavy duty, rubber wheel, easy-roll casters. (Note: Addition of casters adds 6" to the overall width of the table.)

Clinton Shrouded Extra Wide Bariatric Power Table with Adjustable Backrest and Drop Section Literature

Clinton Power Tables Catalog

Clinton Upholstery Color Chart
