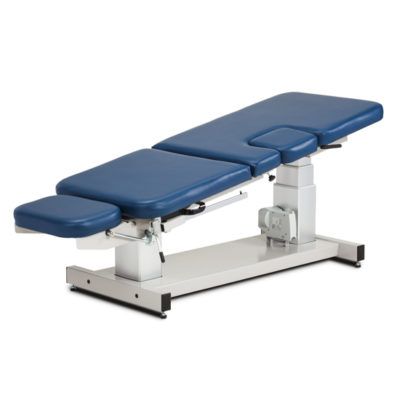

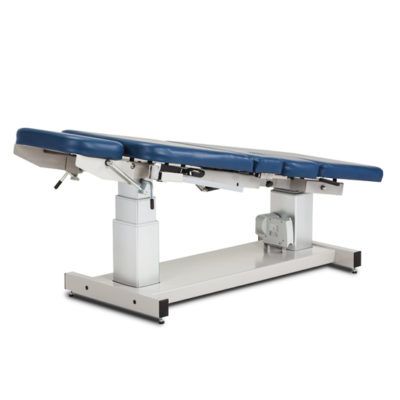

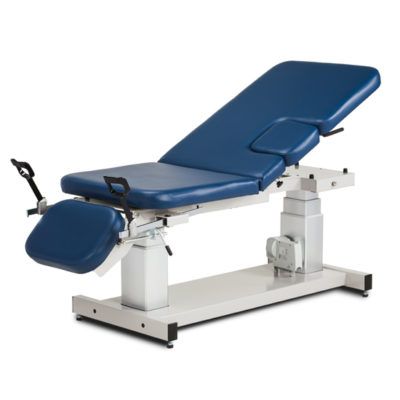

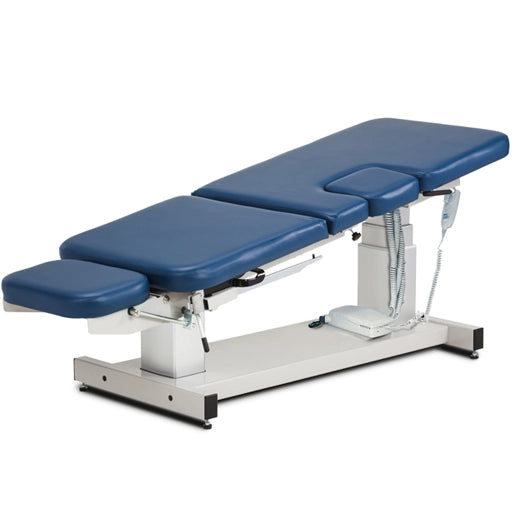

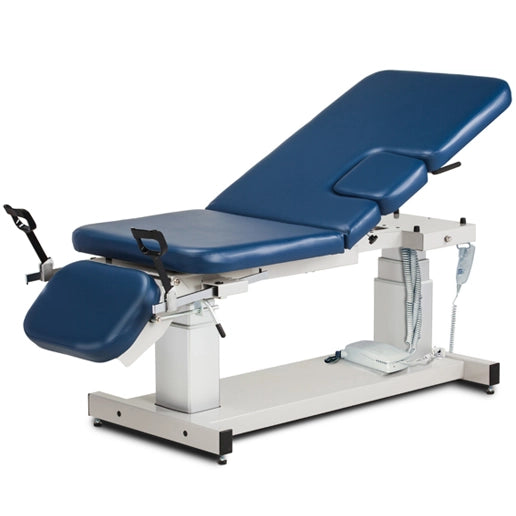

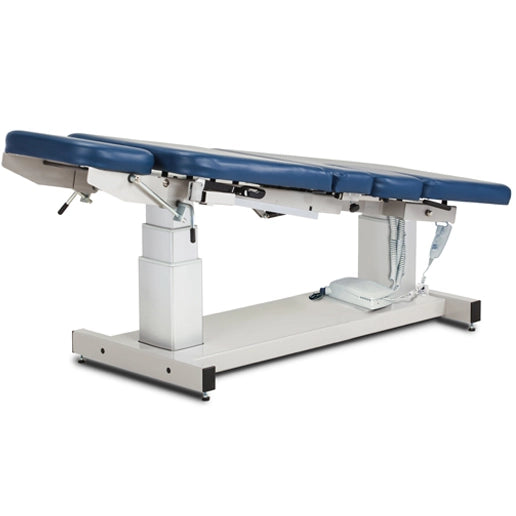

Clinton Multi-Use Imaging Table with Stirrups and Drop Window

The Clinton Multi-Use Imaging Table with Stirrups and Drop Window features a pneumatic adjustable backrest, manual footrest, stirrups, and a window drop. Imaging table also includes a paper dispenser.

Warranty: 5 Years - Limited Defects in Materials, Workmanship, or Design.

Clinton Multi-Use Imaging Table with Stirrups and Drop Window Features

• Three-section table with pneumatic adjustable backrest, manual footrest, stirrups, and a drop window.
• Footrest is adjustable from either side and raises up to 30 degrees from flat position.
• Trendelenburg/Reverse Trendelenburg plus or minus 15 degrees.

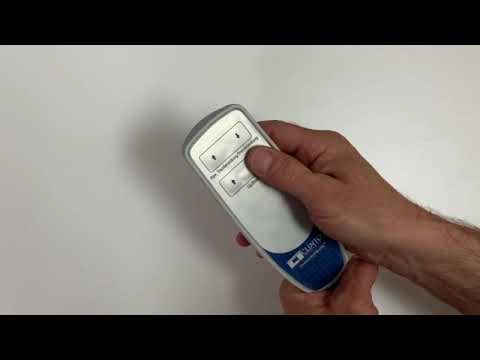

• Easy-to-use hand controls.
• All-welded base and top frame.
• Unobstructed base design.
• Dual column lift system adds rigidity.
• Paper dispenser included.
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1.
• Industry leading 5-year, limited warranty.
• Optional side rails and casters available.
• 34 inch wide model available.
• 550 lb load capacity under normal use.

Clinton Multi-Use Imaging Table with Stirrups and Drop Window Specifications

#80079 (Standard Width):

• Length: 76 in.
• Width: 27 in.
• Height Range: 21.5-37.5 in.
• Backrest: 38 x 27 in.
• Footrest: 12 x 18.5 in.
• Window: 10 x 10 in.

#80079-X (Extra Width):

• Length: 76 in.
• Width: 34 in.
• Height Range: 21.5-37.5 in.
• Backrest: 38 x 34 in.
• Footrest: 12 x 18.5 in.
• Window: 10 x 10 in.

Clinton Multi-Use Imaging Table with Stirrups and Drop Window Accessories

The Clinton Multi-Use Imaging Table with Stirrups and Drop Window is commonly purchased with the following:

• #011: Power Backrest - Smooth power control raises backrest to 80 degrees and lowers to flat.
• #035: Armboard/Power Tables - Padded, ratchet style, rotating armboard, rotates 180 degrees, interchangeable on right or left side.
• #080: Safety Straps - 2 safety straps per set each measuring 2 x 89.5 in, strap is secured with quick hook and loop fasteners. Bariatric straps measuring 2 x 120 in each also available.
• #083: 2-Hook IV Pole and Mounting Bracket - Chrome pole with height adjustment, removable bracket mounts to either side of the head end, 2-hook top.
• #087: Locking Casters - 3 in heavy duty, rubber wheel, easy-roll casters. Note: Addition of casters adds 6 in to overall width of the table.
• #090: Power Footrest - Smooth power control lowers footrest to 30 degrees and raises to flat.

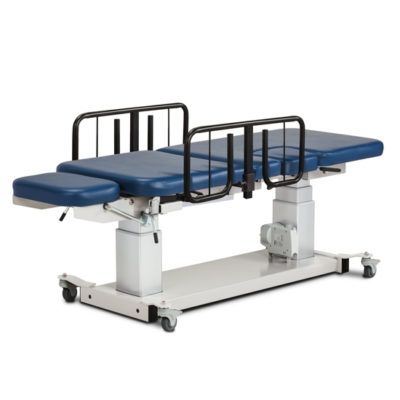

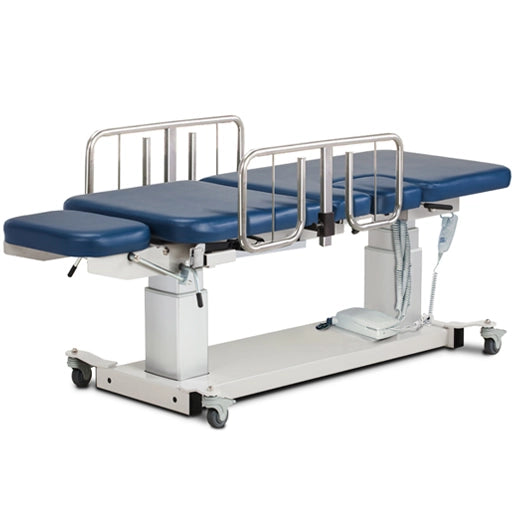

• #098: Safety Rails - Available in pairs, can be positioned at 3 heights, includes a plunger height adjustment.
