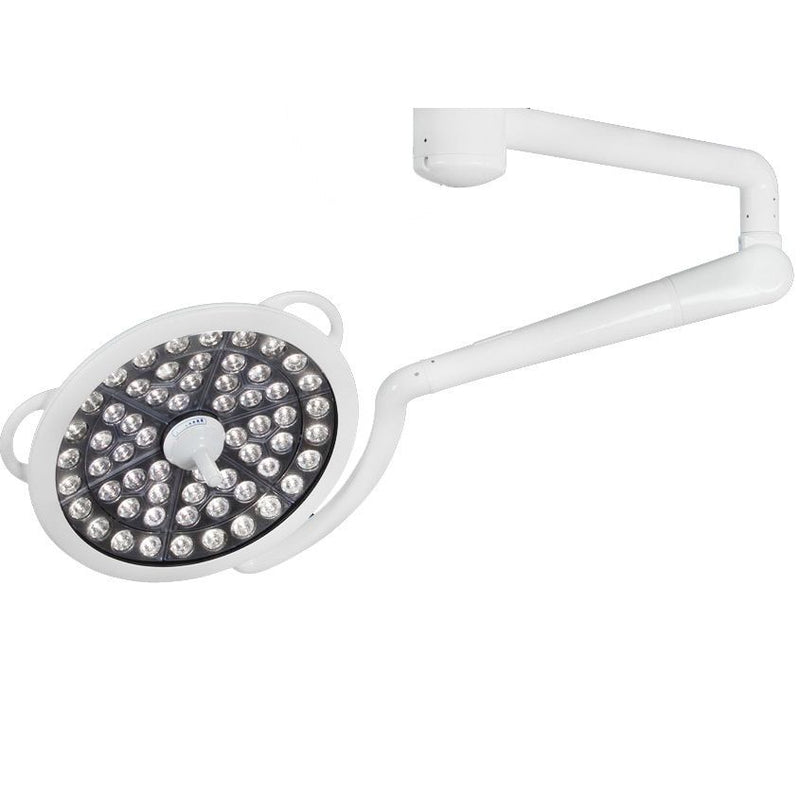

Bovie System Two LED Series Surgery Light - Single Ceiling Mount

Name: Bovie System Two LED Series Surgery Light - Single Ceiling Mount
Brand: Medical Illumination
SKU: BOV-XLDS-S2
Price: 9119.2 USD
Availability: InStock

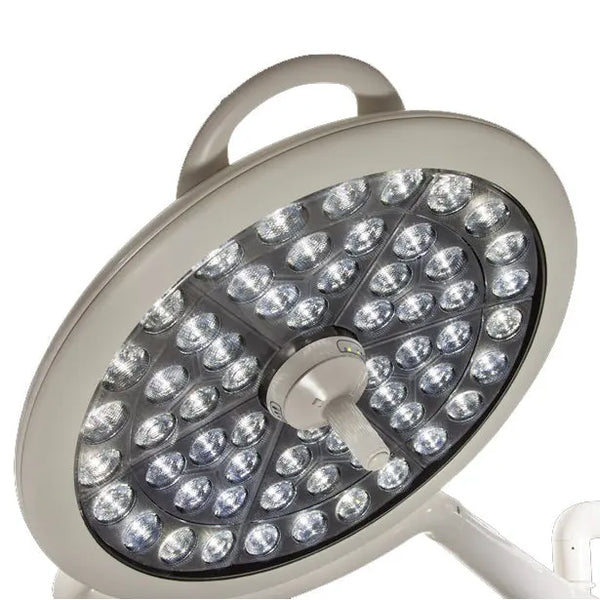

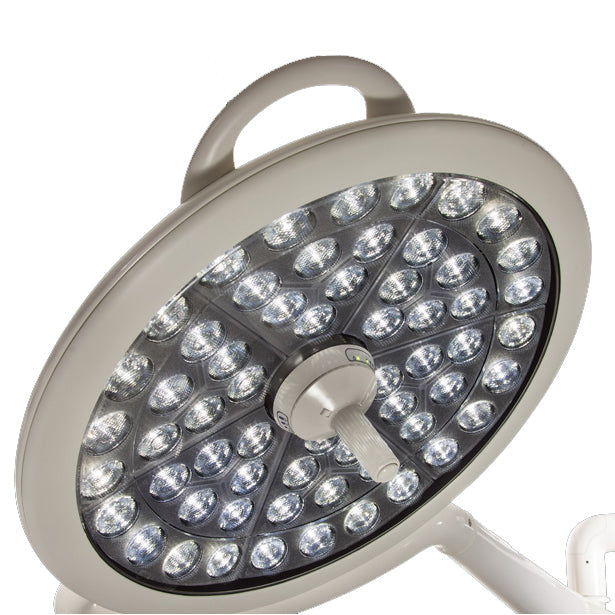

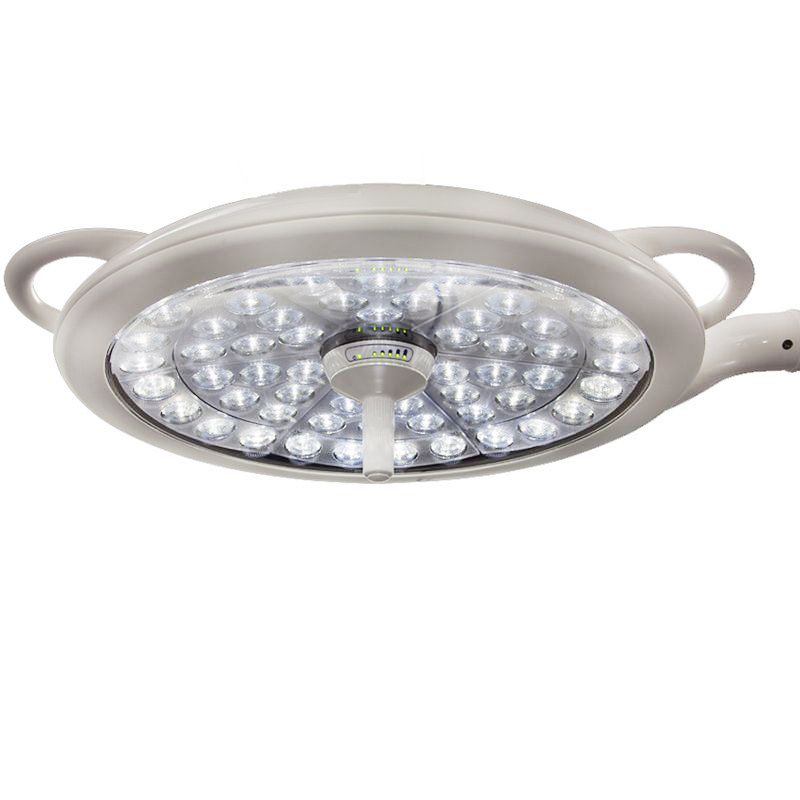

Bovie System Two LED Series Surgery Light - Close-Up

Bovie System Two LED Series Surgery Light - Angle

Bovie System Two LED Series Surgery L...

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: BOV-XLDS-S2
Condition: Factory New
Country of Origin: USA
Warranty: 3 Years
Weight: 75.0 lb
Six different intensity levels controlled via handle
No heat generation
Advanced suspension arm design provides smooth movement
50,000-hour rated LED life
Learn more:

Purchasing Restriction: Medical license or prescription required

Contact The Manufacturer

MFR: Medical Illumination Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: XLDS-S2
Phone: (800) 831-1222

$10,848.00 $9,119.20

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Bovie System Two LED Surgery Light - Single Ceiling Mount (#XLDS-S2) is a bright, luminous light source for surgical suites and operating rooms. The single ceiling mount keeps the light elevated away from vital equipment, while still providing long-lasting LED light for procedures.

Warranty: 3 Years.

Note: Please call or specify your facility ceiling height in the Additional Notes section of your Cart during the checkout process.

The Bovie System Two LED Surgery Light - Single Ceiling Mount is much more efficient and long-lasting than a halogen lamp, allowing for continuous cool light with little to no heat output. The LED lights have an average rated lifespan of 50,000 hours, with a maximum light intensity of 130,000 lux (12,077 footcandles).

The lightheads are equipped with a center sterilizable handle, which is also removable for cleaning purposes. This center handle is designed to quickly cycle through dimming levels as the user needs. With up to six intensity levels to choose from, including an Endo Mode, practitioners have access to perfect amounts of light for any procedure they want to tackle. There are also two handles on either side of the lighthead for easy manueverability.

Features

Bovie System Two LED Surgery Light - Single Ceiling Mount Features

Up to six different intensity levels via the removable sterilizable handle, including an ENDO Mode.
50,000-hour rated LED life.
Virtually zero heat generation and low energy consumption.
Ability to control all functions within the sterile field.
Advanced suspension arm design, providing smooth extensive coverage.
Excellent shadow control, even with just a single light head.
Exceptional value compared to other lighting systems with similar features.

Specifications

Bovie System Two LED Surgery Light - Single Ceiling Mount Specifications

Weight: ~73.5 lb (33.3 Kg).
Dimensions:
- Ceiling Rod: 2.5” (63.5 mm) Dia. x 9.0”-43.0”(228.6 -1092.2 mm) long (depending on ceiling height).
- Light Head Assembly: 25.5” (648 mm) Dia. 4.75” (120 mm) deep.
- Arm (articulated): 4.0” (102 mm) Dia. (tapered) x 26.0” (660 mm) long.
Rotations:
- Ceiling Mount/Extension Arm Interface: Continuous.
- Articulating/Extension Arm Interface: Continuous.
- Articulating Arm Vertical Movement: +15 Degrees, -65 Degrees.
- Articulating Arm/Yoke interface: Continuous.
- Yoke/Lamp Head Interface: +/-165 Degrees (330° range).
Input Voltage: 100 - 240 VAC 50/60 Hz – Single Phase.
LED Life: 50,000 hours (average).
Power: 120 Watts.
Correlated Color Temperature: 4,200° Kelvin ±300°K.
Irradiance: 128 W/m² (1 m).
Coloring Rendering Index: 95.
Focal Length: 39.4" (1 meter).
Light Field Diameter (adjustable): 9.5" - 14" (229 mm - 356 mm).

Dimming - Intensity Levels:

Intensity Level	100%	87.5%	75%	62.5%	50%	Endo Mode
Lux	130,000	113,750	97,500	81,250	65,000	8,500

Literature

Bovie System Two LED Surgery Light - Single Ceiling Mount Literature

Medical Illumination System Two Monitor Arm Installation Supplement

Symmetry Surgical | Bovie Ambulatory Surgery Center Products Brochure

Bovie System Two LED Series Brochure

Bovie System Two LED Series Installation Service Manual
