Bovie System Two LED Series Surgical Light and Monitor Arm - Triple Ceiling Mount
-
Condition:
Factory New
-
Warranty:
3 Years
- 130,000 lux output at 1 meter distance
- Zero heat generation
- Five light dimming settings and an ENDO Mode
- Monitor arm supports screens up to 26" wide
-
Learn more:
-
MFR:
Medical Illumination
Ships from Manufacturer
This item ships from MFI Medical
The displayed information indicates the present stock level of this item. Additional quantity is available and may have an extended estimated delivery range. We will provide you with regular updates throughout the order process.
Items shipped from the manufacturer
This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.
Special order item
A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
- MPN: XLDS-S23MA
- Phone: (800) 831-1222
Shop with Confidence
Oversized Shipping
Price Match Guarantee
Sales Tax Exemption
Dedicated Account Managers
Not ready to buy just yet?
Add this item to a quote
- Description
- Features
- Specifications
- Literature

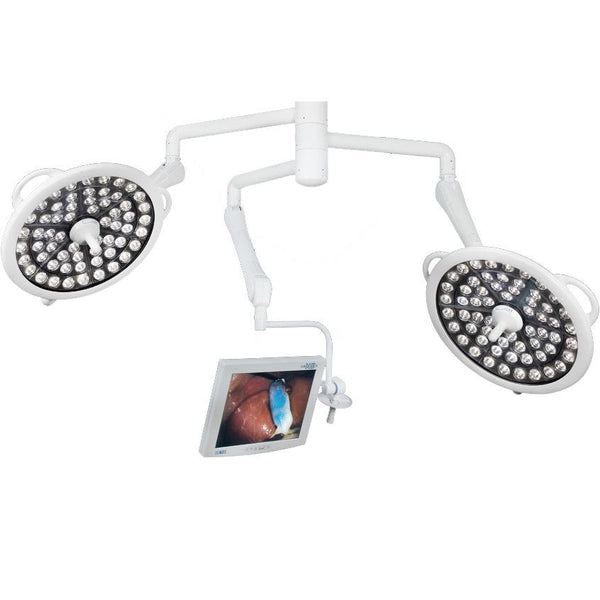

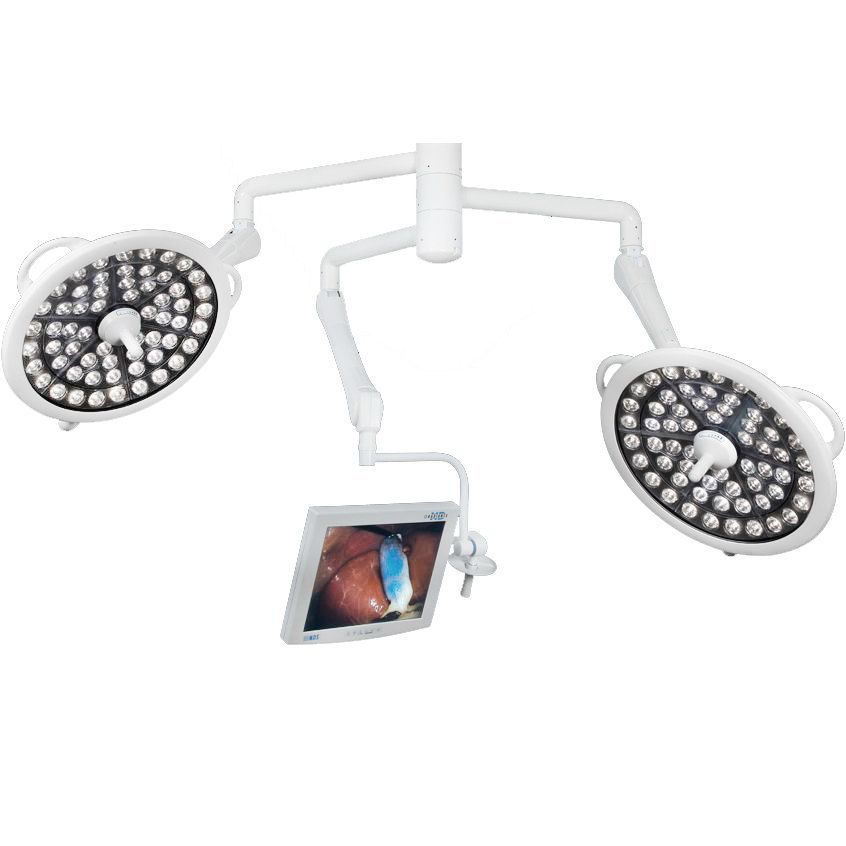

The Bovie System Two LED Surgical Light and Monitor Arm - Triple Ceiling Mount (#XLDS-S23MA) mounts two powerful lampheads and a compatible monitor arm, for real-time visuals and brilliant light in surgical areas.
Warranty: 3 Years.
Note: Please call or specify your facility ceiling height in the Additional Notes section of your Cart during the checkout process.

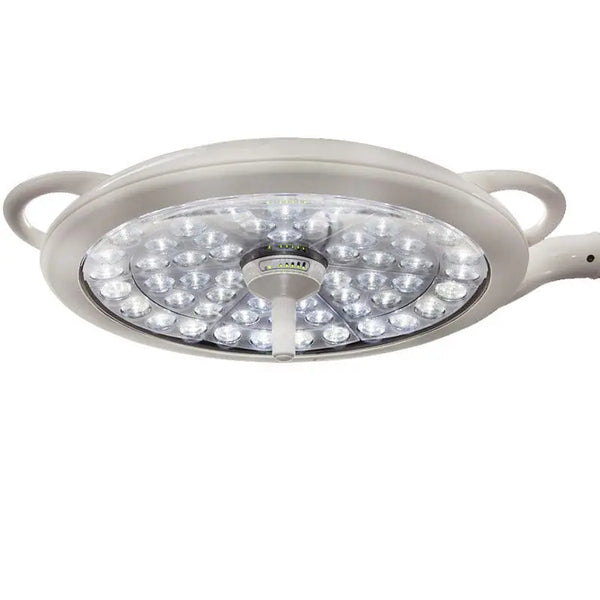

The System Two LED lampheads have a wide diameter for full light coverage in surgical suites and operating rooms, and each lamphead produces a luminance up to 130,000 lux. With the switch from halogen to LED, these surgical lights are now more energy-efficient and long-lasting. To save even more energy, these lamps are designed for five different dimming levels, as well as an Endo Mode (see the Dimming - Intensity Levels chart below). Users can cycle through these modes via the center handle button.

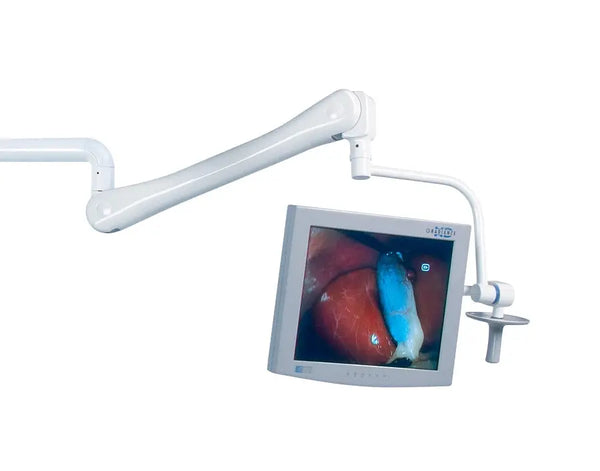

The Monitor Arm is a flexible arm that is capable of supporting monitors up to 26" wide. Boasting the 300 degree rotational movement and a sterilizable handle, this monitor can be rotated and moved to the user's ideal position. This enables real-time visuals during complex procedures, especially when coupled with the two brilliant light sources.
The Bovie System Two LED Surgical Light and Monitor Arm - Triple Ceiling Mount is the total package of two powerful surgical lights and a monitor support or real-time imaging.
Bovie System Two LED Surgical Light and Monitor Arm - Triple Ceiling Mount Features
- 130,000 lux output at 39.4″ (1 meter distance).
- Both units equipped with sterilizable handles.
- Virtually zero heat generation and low energy consumption.
- Five light dimming settings and an ENDO Mode with a 50,000-hour rated LED life.
- Monitor arm supports screens up to 26" wide.
- All three units equipped with sterilizable handles.
Bovie System Two LED Surgical Light and Monitor Arm - Triple Ceiling Mount Specifications
- Weight: ~155.5 lb (70.5 Kg).
-
Dimensions:
- Ceiling Rod: 2.5” (63.5 mm) Dia. x 9.0”-43.0”(228.6 -1092.2 mm) long (depending on ceiling height).
- Ceiling Casting: 17.0” (431.8 mm) Dia. x 4.7” (119.4 mm) deep.
- Light Head Assembly: 25.5” (648 mm) Dia. 4.75” (120 mm) deep.
- Arm (articulated): 4.0” (102 mm) Dia. (tapered) x 26.0” (660 mm) long.
-
Rotations:
- Ceiling Mount/Extension Arm Interface: Continuous.
- Articulating/Extension Arm Interface: Continuous.
- Articulating Arm Vertical Movement: +15 Degrees, -65 Degrees.
- Articulating Arm/Yoke interface: Continuous.
- Yoke/Lamp Head Interface: +/-165 Degrees (330° range).
- Input Voltage: 100 - 240 VAC 50/60 Hz – Single Phase.
- LED Life: 50,000 hours (average).
- Power: 120 Watts.
- Correlated Color Temperature: 4,200° Kelvin ±300°K.
- Irradiance: 128 W/m2 (1 m).
- Coloring Rendering Index: 95.
- Focal Length: 39.4" (1 meter).
- Light Field Diameter (adjustable): 9.5" - 14" (229 mm - 356 mm).
Dimming - Intensity Levels
| Intensity Level | 100% | 87.5% | 75% | 62.5% | 50% | Endo Mode |
| Lux | 130,000 | 113,750 | 97,500 | 81,250 | 65,000 | 8,500 |
