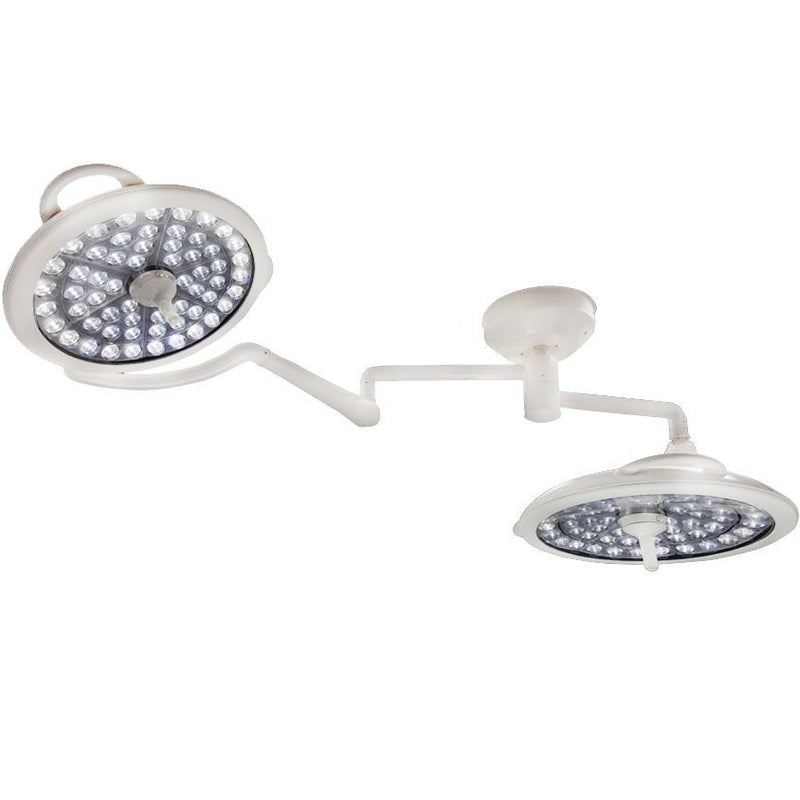

Bovie System Two LED Series Surgical Light - Dual Ceiling Mount

Bovie System Two LED Series Surgical Light - Dual Ceiling Mount
Bovie System Two LED Series Surgery Light - Close-Up
Bovie System Two LED Series Surgery Light - Angle
Bovie System Two LED Series Surgery Light - Dimmed
Bovie System Two LED Series Surgical Light - Dual Ceiling Mount
Bovie System Two LED Series Surgery Light - Close-Up
Bovie System Two LED Series Surgery Light - Angle
Bovie System Two LED Series Surgery Light - Dimmed
Key Features
  • SKU: BOV-XLDS-S22
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty: 3 Years
  • Weight: 105.0 lb
  • Six intensity levels via the removable sterilizable handle
  • Low energy consumption
  • No heat generation
  • Excellent shadow control

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
$21,201.00 $17,697.17

+ Shipping

Est. Delivery:

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match

Description

The Bovie System Two LED Surgical Light - Dual Ceiling Mount (#XLDS-S22) is a bright, luminous dual light source for surgical suites. The dual ceiling mount keeps the two powerful lightheads elevated away from vital equipment. With two lightheads, the system provides long-lasting LED light for procedures.

Warranty: 3 Years.

Note: Please call or specify your facility ceiling height in the Additional Notes section of your Cart during the checkout process.

The Bovie System Two LED Surgical Light - Dual Ceiling Mount is much more efficient and long-lasting than a halogen lamp, allowing for continuous cool light with little to no heat output. The LED lights have an average rated lifespan of 50,000 hours, with a maximum light intensity of 130,000 lux (12,077 footcandles) per lamphead. See the Specifications below for more information on the six dimming levels available.

Each lighthead is equipped with a center sterilizable handle, which is also removable for convenient cleaning. This center handle is designed to cycle through dimming levels, via the center push-button within reach of the user's thumb. With up to six intensity levels to choose from, including an Endo Mode, practitioners have access to perfect amounts of light for any procedure they want to tackle. There are also two handles on either side of the lighthead for easy manueverability.

Features

Bovie System Two LED Surgical Light - Dual Ceiling Mount Features

  • Up to six different intensity levels via the removable sterilizable handle, including an ENDO Mode.
  • 50,000-hour rated LED life.
  • Virtually zero heat generation and low energy consumption.
  • Ability to control all functions within the sterile field.
  • Advanced suspension arm design, providing smooth extensive coverage.
  • Excellent shadow control, even with just a single light head.
  • Exceptional value compared to other lighting systems with similar features.

Specifications

Bovie System Two LED Surgical Light - Dual Ceiling Mount Specifications

  • Weight: ~104.5 lbs (47.4 Kg).
  • Dimensions:
    • Ceiling Rod: 2.5” (63.5 mm) Dia. x 9.0” - 43.0”(228.6 -1092.2 mm) long (depending on ceiling height).
    • Ceiling Casting: 17.0” (431.8 mm) Dia. x 4.7” (119.4 mm) deep.
    • Light Head Assembly: 25.5” (648 mm) Dia. 4.75” (120 mm) deep.
    • Arm (articulated): 4.0” (102 mm) Dia. (tapered) x 26.0” (660 mm) long.
  • Rotations:
    • Ceiling Mount/Extension Arm Interface: Continuous.
    • Articulating/Extension Arm Interface: Continuous.
    • Articulating Arm Vertical Movement: +15 Degrees, -65 Degrees.
    • Articulating Arm/Yoke interface: Continuous.
    • Yoke/Lamp Head Interface: +/-165 Degrees (330° range).
  • Input Voltage: 100 - 240 VAC 50/60 Hz – Single Phase.
  • LED Life: 50,000 hours (average).
  • Power: 120 Watts.
  • Correlated Color Temperature: 4,200° Kelvin ±300°K.
  • Irradiance: 128 W/m2 (1 m).
  • Coloring Rendering Index: 95.
  • Focal Length: 39.4" (1 meter).
  • Light Field Diameter (adjustable): 9.5" - 14" (229 mm - 356 mm).

Dimming - Intensity Levels:

Intensity Level 100% 87.5% 75% 62.5% 50% Endo Mode
Lux 130,000 113,750 97,500 81,250 65,000 8,500

Frequently asked questions

What is the expected lifespan of the LEDs in the Bovie System Two Surgical Light?

The Bovie System Two LED Surgical Light has an impressive lifespan of approximately 50,000 hours on average. This significantly reduces the need for frequent replacements and minimizes downtime in surgical environments.

How many intensity levels does the Bovie System Two Surgical Light offer, and how are they adjusted?

The Bovie System Two LED Surgical Light provides six distinct light intensity levels, ensuring precise illumination control for various procedures.

Control is managed directly within the sterile field via the center sterilizable and removable handle, which features push-button access to all light functions.

The six available intensity levels (maximum output per head) are:

  • 100% intensity: 130,000 Lux
  • 87.5% intensity: 113,750 Lux
  • 75% intensity: 97,500 Lux
  • 62.5% intensity: 81,250 Lux
  • 50% intensity: 65,000 Lux
  • Endo Mode: 8,500 Lux (optimized for endoscopic procedures)
What is the maximum light intensity provided by each lighthead?

Each lighthead in the Bovie System Two LED Surgical Light delivers a maximum light intensity of 130,000 lux (or 12,077 footcandles) when set to 100% intensity.

Is the handle on the Bovie System Two Surgical Light sterilizable?

Yes, the Bovie System Two LED Surgical Light includes a removable, sterilizable handle. This handle is used to adjust the dimming levels, ensuring a sterile environment is maintained during surgical procedures.

What is the adjustable range of the light field diameter?

The light field diameter of the Bovie System Two LED Surgical Light is adjustable, ranging from 9.5 inches to 14 inches (229 mm to 356 mm). This adjustability allows users to focus the light precisely where it’s needed during surgery.

Does the Bovie System Two light offer superior shadow control?

Yes, the Bovie System Two LED Surgical Light is engineered to provide superior shadow control, which is crucial for detailed surgical procedures.

A key benefit of this dual-head system is that excellent shadow control is maintained even when operating with only a single light head active, ensuring consistent, high-quality illumination across the operative field.

What is the correlated color temperature of this surgical light?

The correlated color temperature of the Bovie System Two LED Surgical Light is 4,200° Kelvin ±300°K. This provides a natural and accurate color rendering, essential for surgical applications.

What is the input voltage requirement for the Bovie System Two LED Surgical Light?

The Bovie System Two LED Surgical Light is designed for use with an input voltage of 100 - 240 VAC 50/60 Hz – Single Phase, making it compatible with standard electrical systems worldwide.

Does this surgical light generate much heat?

Yes, the Bovie System Two LED Surgical Light produces virtually zero heat. This ensures a comfortable environment for medical staff and patients, even during prolonged procedures.

Does the surgical light offer superior maneuverability?

Yes, the Bovie System Two utilizes an advanced suspension arm design engineered for exceptional maneuverability and smooth, extensive light coverage. The system provides continuous rotation at multiple interfaces, ensuring precise light placement for any procedure. Key articulation specifications include:

  • Articulating Arm Vertical Movement: +15 degrees to -65 degrees
  • Yoke/Lamp Head Interface: A 330° range (+/-165 degrees)
  • Continuous Rotation: Available at the Ceiling Mount/Extension Arm, Articulating/Extension Arm, and Articulating Arm/Yoke interfaces.

For fine adjustments within the sterile field, all light functions are accessible via the removable, center sterilizable handle, complemented by two additional handles on the perimeter of the lighthead.
