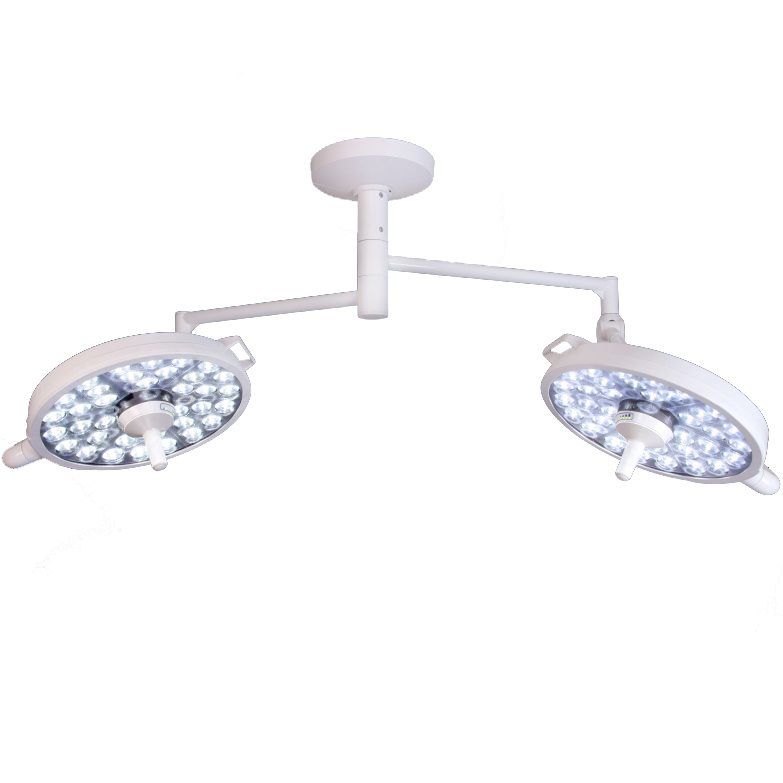

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount

The Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount combines the power of two brilliant MI-1000 LED lights, each emitting up to 100,000 lux of illumination. Customers also have the option to choose a drop ceiling rod that fits their clinic best.

Warranty: 3 Years.

What makes the MI-1000 LED Surgery Light - Dual Ceiling Mount especially unique is that the lights are not mounted on one horizontal rod. Instead, the arm mounts are stacked on top of each other, allowing users to maneuver the lights in any direction without interference from each other. With double the light heads, users will have access to brilliant, reliable light. The shape of the light head reduces the risk of shadows, and the LED lights use less energy than halogen models.

The MI-1000 LED Surgery Light is ideal for operating rooms, emergency rooms, ICUs and urgent care settings where bright light is needed. It's also the only light in the series that is equipped with an Endo Mode setting for endoscopic procedures. To enable Endo Mode, users press and hold the button on the center handle for three seconds.

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount Features

• Twice the power of an MI-1000 LED lamp, with 100,000 lux of illumination.

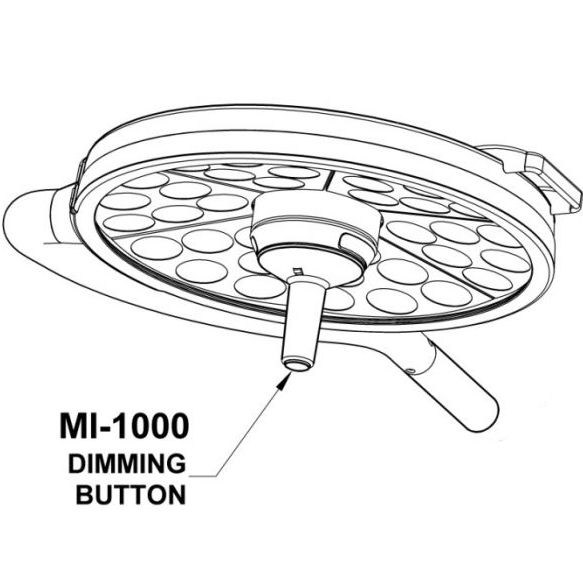

• Five brightness settings to choose, using the center handle button.
• Center handle can be removed with one hand for sterilization.
• More energy-efficient than traditional halogen lamps.
• Dual mount has wide range of movement without the lights interfering with each other.

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount Specifications

• Light Head Weight: 14.8 lb (6.7 kg).
• Light Head Diameter: 18" (45.7 cm).
• Floor Stand Height: 74.5" (189 cm).
• Light Intensity Output: 100,000 lux (9,290 footcandles).
• Light Source: Light Emitting Diode (LED) (54 W).
• Rated LED Lifespan: 50,000 hours.
• Number of LED: 72 (36 per light head).
• Light Color Temperature: 4,300° Kelvin.
• Color Rendering Index: 97.
• Light Field Diameter: 8.3" (21 cm).
• Focal Length: 39.4" (1 m).
• Depth of Illumination: 24" (61 cm).
• Dimming Levels: 5.
• Level 5 (100%): 100,000 lux (9,290 footcandles).
• Level 4 (87%): 87,500 lux (8,129 footcandles).
• Level 3 (75%): 75,000 lux (6,968 footcandles).
• Level 2 (62%): 62,500 lux (5,806 footcandles).
• Level 1 (50%): 50,000 lux (4,645 footcandles).
• Arm Rotation: 540°.
• Light Head Rotation:300°.
• Power Supply Circuit: 100 - 240 VAC, 50 / 60 Hz.
• Power Handling Capacity: 100 W.
• Shipping Weight: (2 boxes).
• 80 lb (36.3 kg).
• 32 lb (14.5 kg).
• Shipping Dimensions: (2 boxes).
• 36" (L) x 23" (W) x 18" (H) (91.4 cm x 58.4 cm x 46 cm).
• 36" (L) x 23" (W) x 12" (H) (91.4 cm x 58.4 cm x 30.5 cm).

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount Configurations

Note: Lead times may vary for different configurations.

• #XLD-DC: Standard Model.
• #XLD-DC-CR9: With 9" Ceiling Rod (for ceilings 8' to 8' 10" high).
• #XLD-DC-CR20: With 20" Ceiling Rod (for ceilings 8' 11" to 9' 8" high).
• #XLD-DC-ECK-30: With 30" Ceiling Rod (for ceilings 9' 9" to 10' 6" high).
• #XLD-DC-ECK-40: With 40" Ceiling Rod (for ceilings 10' 7" to 11' 4" high).
• #XLD-DC-ECK-50: With 50" Ceiling Rod (for ceilings 11' 5" to 12' 2" high).

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount Accessories

The Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount is commonly purchased with:

• 9" Ceiling Rod (for ceilings 8' to 8' 10" high).
• 20" Ceiling Rod (for ceilings 8' 11" to 9' 8" high).
• 30" Ceiling Rod (for ceilings 9' 9" to 10' 6" high).
• 40" Ceiling Rod (for ceilings 10' 7" to 11' 4" high).
• 50" Ceiling Rod (for ceilings 11' 5" to 12' 2" high).

Bovie MI-1000 LED Surgery Light - Dual Ceiling Mount Literature

Bovie MI LED Series Brochure

Bovie MI LED Series Installation Service Manual

Bovie MI LED Series Specifications
