Condition:
Factory New
-
Country of Origin: USA
-
Warranty:
Not Available
- Weight: 0.72 lb
- Proximal injection port
- Distal male luer lock connector
- DEHP and latex free
-
Learn more:
-
Purchasing Restriction: Medical license or prescription required
-
MFR:
B. Braun
Ships from MFI Medical
-
MPN: 418020
- Phone: (800) 227-2862
+Free Shipping*
Shop with Confidence
Free Shipping
Free Returns
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
Does this injection cap provide secure access?
Yes, the B. Braun Non-Needle Free Intermittent Injection Cap is specifically engineered to provide a secure and safer access point for intermittent medication delivery via an IV catheter line. It minimizes risk by eliminating the need for traditional sharp needles.
Key features ensuring reliable and secure access include:
- Secure Connection: It utilizes a distal male luer lock connector for reliable, threaded attachment to compatible IV lines and devices.
- Non-Needle Access: Features a proximal injection port for safe, non-needle delivery.
- Self-Sealing Port Option: The 0.16 mL variant (opaque yellow body) includes a proximal self-sealing injection port for enhanced closure after use.
- Sterile: All configurations are supplied sterile for aseptic handling.
- Material Safety: Both options are manufactured without BPA or natural rubber latex. One configuration is also explicitly DEHP and PVC free.
Are these caps free of restricted materials like PVC or DEHP?
Yes, both configurations of the intermittent injection cap adhere to strict material safety guidelines. They are certified to be Not made with BPA (Bisphenol A) or natural rubber latex.
Material composition, however, depends on the variant chosen, particularly concerning PVC:
- Opaque Yellow Body Cap (0.16 mL Priming Volume): This option is designed for maximum material safety. It is explicitly certified as Not made with PVC and is DEHP-free.
- Clear Body Cap (0.2 mL Priming Volume): This standard configuration Contains PVC.
If you require a product completely free of PVC, the Opaque Yellow Body configuration (SKU 654237) is the recommended choice.
What is the shelf life of these injection caps?
Both variants of the injection cap have an excellent shelf life of 60 months.
Are different priming volumes available?
Yes, B. Braun offers two distinct configurations of this intermittent injection cap, allowing facilities to select the optimal priming volume and material composition for their needs. These two sterile variants differ in several key specifications, including size, color, and material content.
| Feature | Variant 418020 | Variant 654237 |
|---|---|---|
| Priming Volume | 0.2 mL | 0.16 mL (Lower Volume) |
| Length | 1.125 inches (2.9 cm) | 0.875 inches (2.2 cm) |
| Body Color | Clear | Opaque Yellow |
| Injection Port | Standard proximal port | Proximal Self-Sealing Port |
| PVC Status | Contains PVC | PVC-Free |
| Case Quantity | 100 units | 1,000 units |
| Safety Compliance | Not made with DEHP/Latex | Not made with DEHP/Latex |
Are these injection caps sterile and CE certified?
Yes, both configurations of the B. Braun injection cap are supplied sterile and are CE Marked for compliance with European standards. They are manufactured in the USA and offer an extended 60-month shelf life.
Key Quality and Material Specifications
All caps are confirmed to be BPA-free. However, material safety composition varies by configuration, which is important for material-sensitive protocols:
| Feature | Variant 1 (0.2 mL / Clear Body) | Variant 2 (0.16 mL / Opaque Yellow Body) |
|---|---|---|
| Sterility | Supplied Sterile | Supplied Sterile |
| Sterilization Method | EO (Ethylene Oxide) | Not specified |
| PVC Content | Contains PVC | Not made with PVC |
| DEHP Content | Not specified | DEHP Free |
| Latex Content | Not specified | Latex Free |
The Variant 2 (0.16 mL) configuration provides the highest material safety, as it is explicitly DEHP-free, latex-free, and not made with PVC.
Are the injection caps supplied sterile?
Yes, all B. Braun Non-Needle Free Intermittent Injection Caps are supplied sterile and are ready for immediate clinical use. They are also CE Marked and have an extended total shelf life of 60 months.
Sterilization details vary by configuration:
| Configuration (Case Size) | Priming Volume | Sterilization Method |
|---|---|---|
| Clear Body (100/Case) | 0.2 mL | Ethylene Oxide (EO) |
| Opaque Yellow Body (1000/Case) | 0.16 mL | Supplied Sterile |
Is the injection cap composition PVC-free?
The material composition depends entirely on the configuration chosen, which is an important consideration for clinical needs:
- Configuration 1 (SKU BBN-418020 / Clear Body): This variant (0.2 mL priming volume, 100 units/case) contains PVC.
- Configuration 2 (SKU BBN-654237 / Opaque Yellow Body): This variant (0.16 mL priming volume, 1,000 units/case) is specifically not made with PVC. Furthermore, this option is also DEHP-free, BPA-free, and latex-free (not made with natural rubber).
What is the country of origin for this product?
This product is manufactured in the USA.
How do these caps connect to IV systems?
These injection caps are designed for secure integration with IV lines. They connect using a distal male luer lock connector, which ensures a reliable and secure attachment to the IV catheter system for intermittent medication administration.
Are different colored cap options available?
Yes, the B. Braun Injection Cap is available in two distinct body colors, which signify different material compositions and specifications:

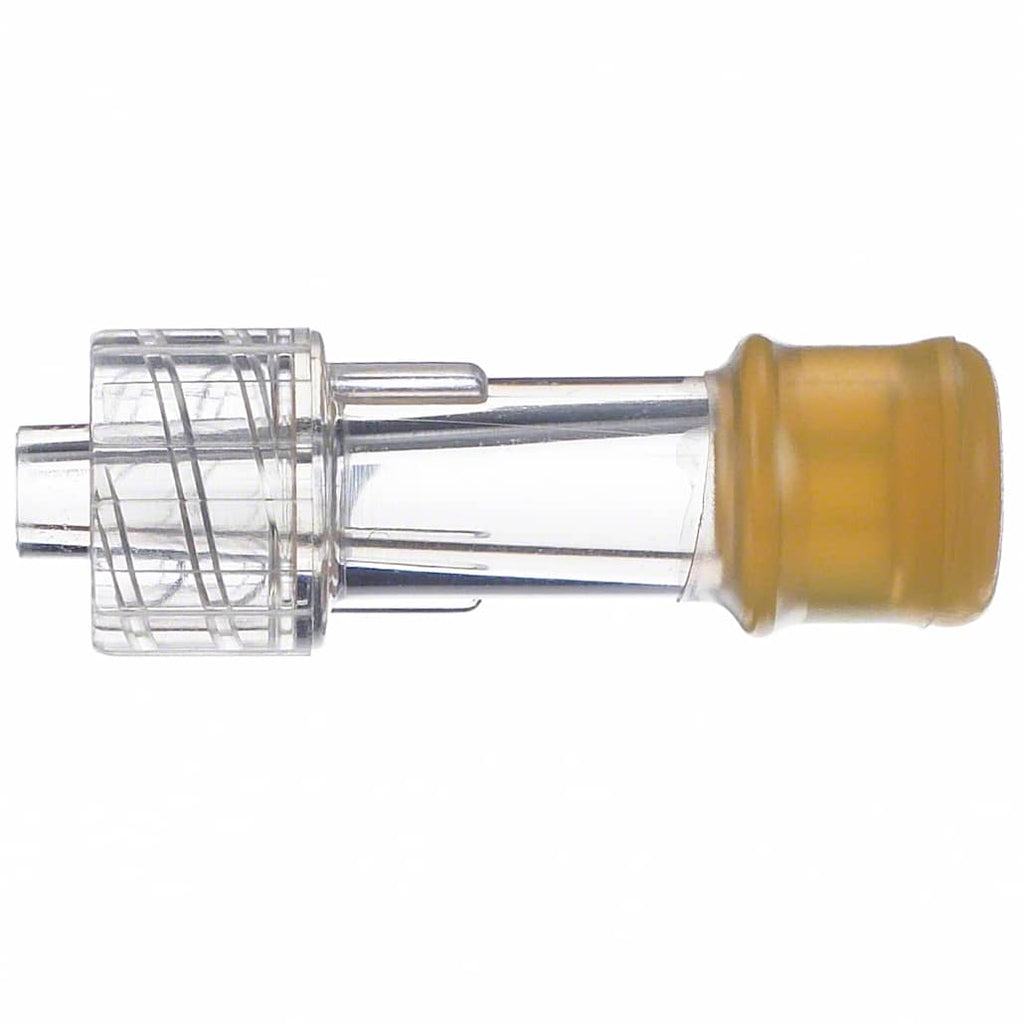

- Clear Body (SKU 418020): This configuration has a standard proximal injection port and a priming volume of 0.2 mL. Please note that this version contains PVC.

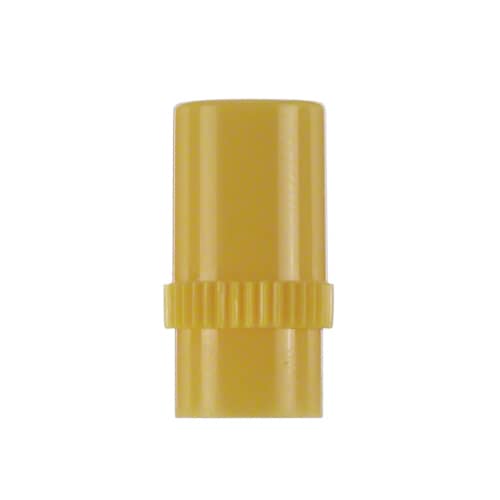

- Opaque Yellow Body (SKU 654237): This version features enhanced material safety. It has a smaller priming volume of 0.16 mL, a self-sealing proximal injection port, and is certified to be DEHP-free, Latex-free, and PVC-free.
