ADC Diagnostix 5422 3.5V PMV Otoscope Head

Yes, the ADC Diagnostix 5422 utilizes a Panoramic Magnified View (PMV) system, offering significantly enhanced diagnostic capability compared to standard otoscopes. This advanced view provides:

• 5X magnification (66% greater than standard models).
• An 11 mm field of view (twice the size of standard models).

This superior performance is achieved through reflection-optimized, high-performance glass optics and fiber-optic light transmission.

The otoscope head features fiber-optic light transmission to guarantee a clear, bright, and unobstructed view of the examination site. You have two high-performance illumination choices:

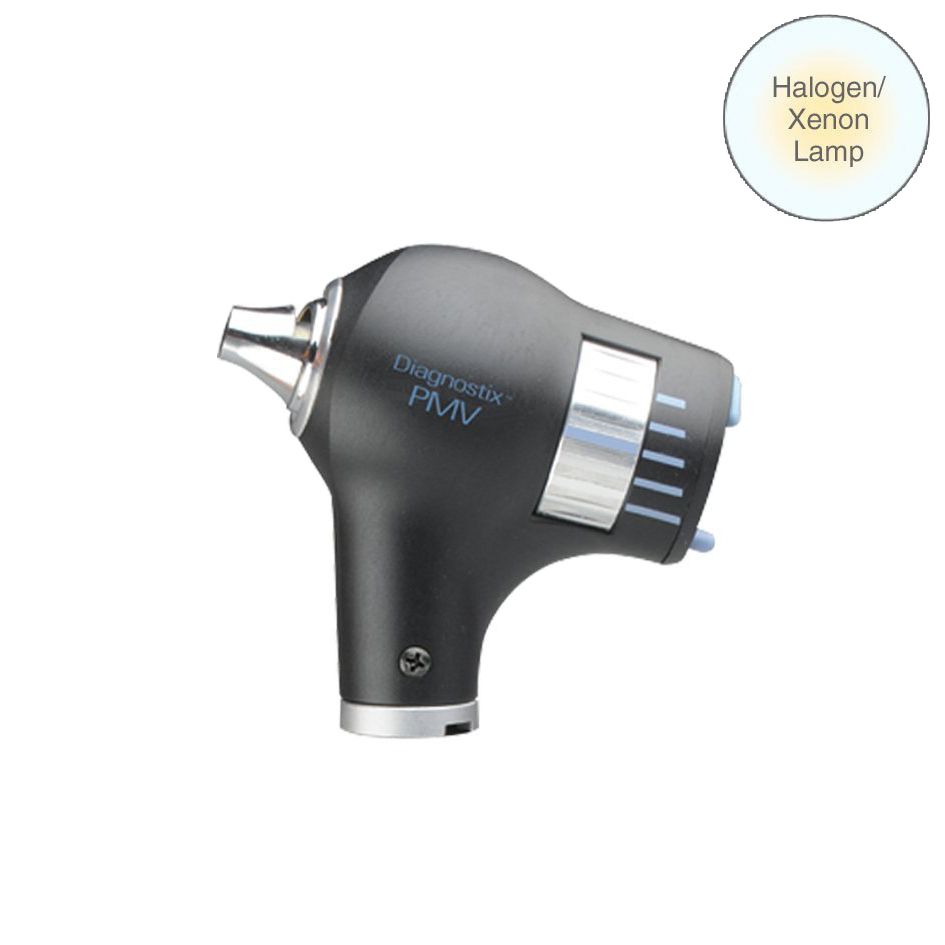

• Halogen/Xenon Lamp: A traditional and reliable light source that provides consistent general diagnostic lighting.

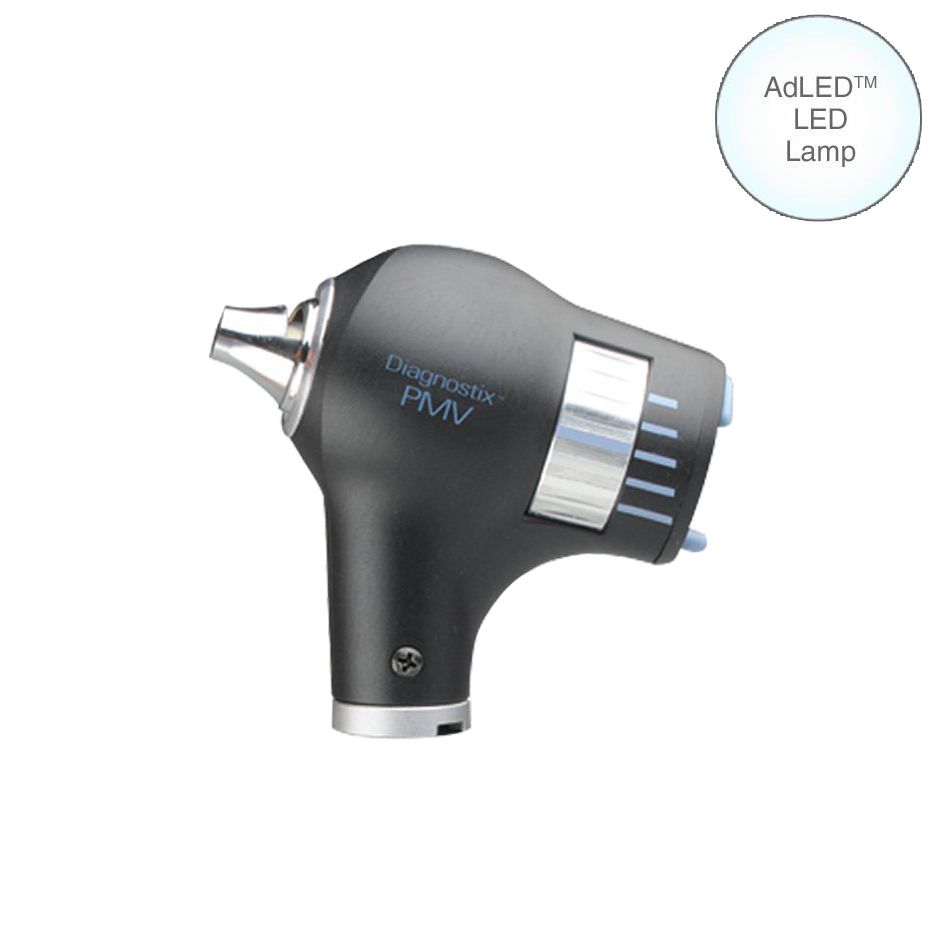

• High-Performance AdLED Lamp: This option is ideal for enhanced color accuracy and clarity. Key specifications include:
  • Color Temperature: 4,200 Kelvin
  • Color Rendering Index (CRI): 92, ensuring natural and accurate rendering of tissue colors.

Additionally, the AdLED lamp carries a lifetime warranty, providing long-term reliability.

Yes, the ADC Diagnostix 5422 PMV Otoscope Head is engineered to support versatile diagnostic procedures, including pneumatic otoscopy.

Please note: The necessary insufflator for performing pneumatic otoscopy is sold separately and is not included with the otoscope head.

Yes, the ADC Diagnostix 5422 PMV Otoscope Head is fully compatible with Welch Allyn specula. This allows for seamless integration with widely used standard diagnostic tools.

Yes, the ADC Diagnostix 5422 PMV Otoscope Head includes an anti-theft locking feature as a standard specification. This feature is designed to help secure the device when mounted or stored in professional medical settings.

This otoscope is made in Germany and then inspected and packaged in the U.S.A., ensuring high-quality construction and reliability.

The PMV (Panoramic, Magnified View) system uses advanced, reflection-optimized glass optics to significantly improve visualization for inner ear examinations. This results in:

• 5X magnification, which is 66% greater than standard otoscopes.
• An 11 mm field of view, delivering twice the viewing area compared to conventional models.

This technology provides a highly detailed and unobstructed image of the auditory canal and tympanic membrane, further optimized by fiber-optic light transmission.

Yes, the optional AdLED lamp is designed for superior longevity and is backed by an exceptional warranty:

• Lifetime Coverage: The AdLED lamp specifically includes a lifetime warranty.
• Performance: It provides high-quality, high-contrast illumination, featuring a color temperature of 4,200 Kelvin and an excellent Color Rendering Index (CRI = 92).

Keep in mind that the otoscope head assembly itself (excluding the AdLED lamp) is covered by a standard 2-year warranty.

The purchase includes the ADC Diagnostix 5422 3.5V PMV Otoscope Head only. This is the advanced instrument head component.

It is important to note that the following essential items are sold separately and are required for the device to function:

• Handle: A compatible 3.5V power source (e.g., ADC Diagnostix 5460 or 5560 rechargeable battery handles).
• Specula: Specula (ear tips) are not included, although the head is designed for compatibility with standard Welch Allyn specula.
• Insufflator: The necessary insufflator for pneumatic otoscopy must be purchased separately.

Yes, the ADC Diagnostix 5422 Otoscope Head utilizes fiber-optic light transmission.

This design ensures that the light source does not obstruct the visual field, providing a completely unobstructed view during examinations of the inner ear, which enhances clarity and diagnostic accuracy.
